Products Description


FD86 Intelligent Input Liquid Level Transmitter
The FD86 series liquid level transmitter uses a high-performance pressure sensor as the measuring element. Through the pressure sensor, the liquid static pressure proportional to the liquid level depth is accurately measured and converted into a standard signal output through a dedicated signal conditioning circuit to achieve accurate measurement of depth. The product has high precision, small volume, and easy to use. It can be directly put into the liquid to measure the liquid level height from the end of the transmitter to the liquid level.


Product Feature
■ All stainless steel welding structure eliminates hidden danger of water ingress
■ Optical fiber marking, delicate and beautiful appearance
■ High-precision diffused silicon pressure sensor as pressure measuring element
■ IP68 protection, moisture-proof, anti-condensation design
■ Full intelligent circuit board, no moving parts, stable and reliable performance
■ Reverse polarity protection and instantaneous overcurrent and overvoltage protection, in line with EMI protection requirements

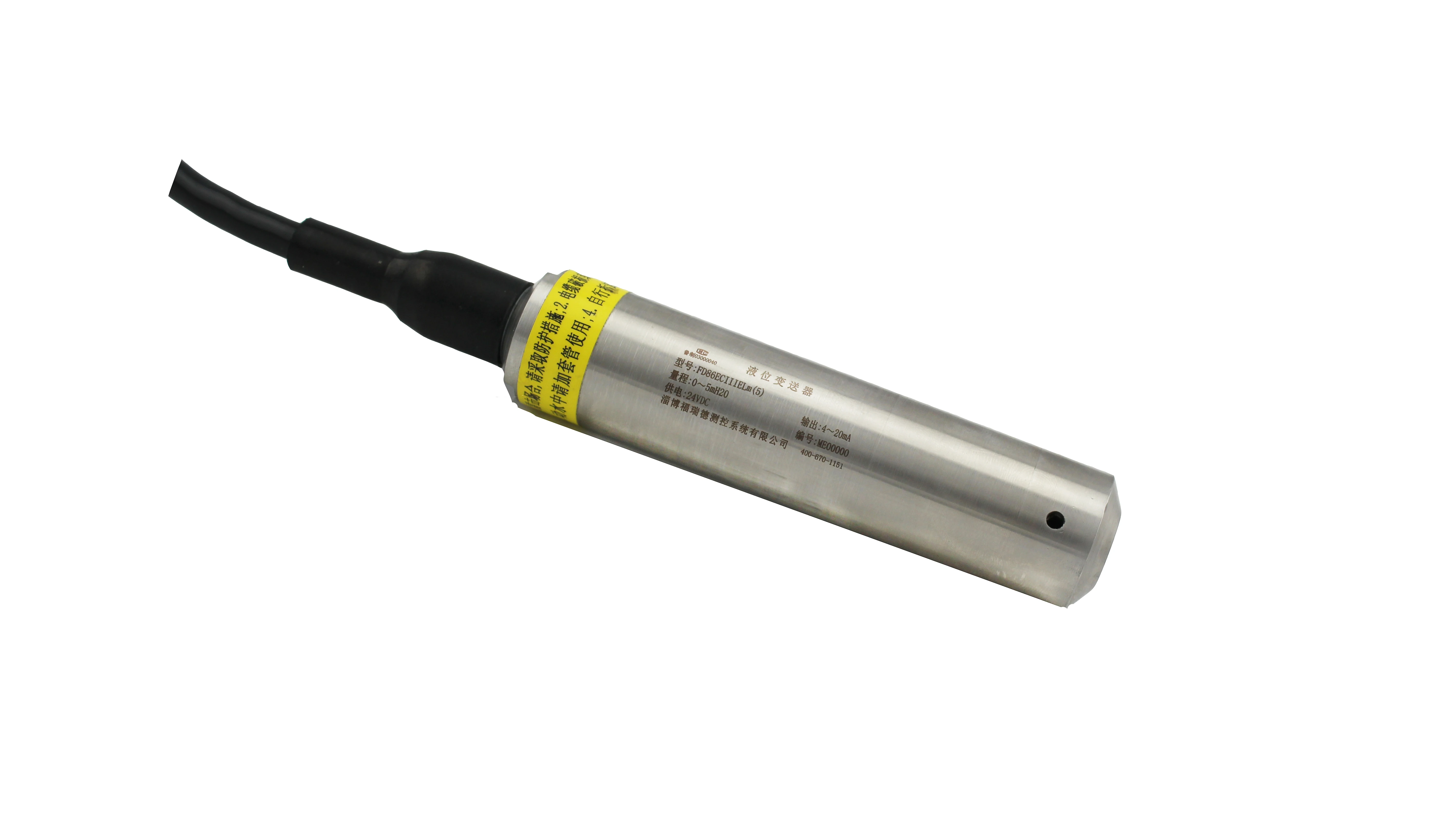

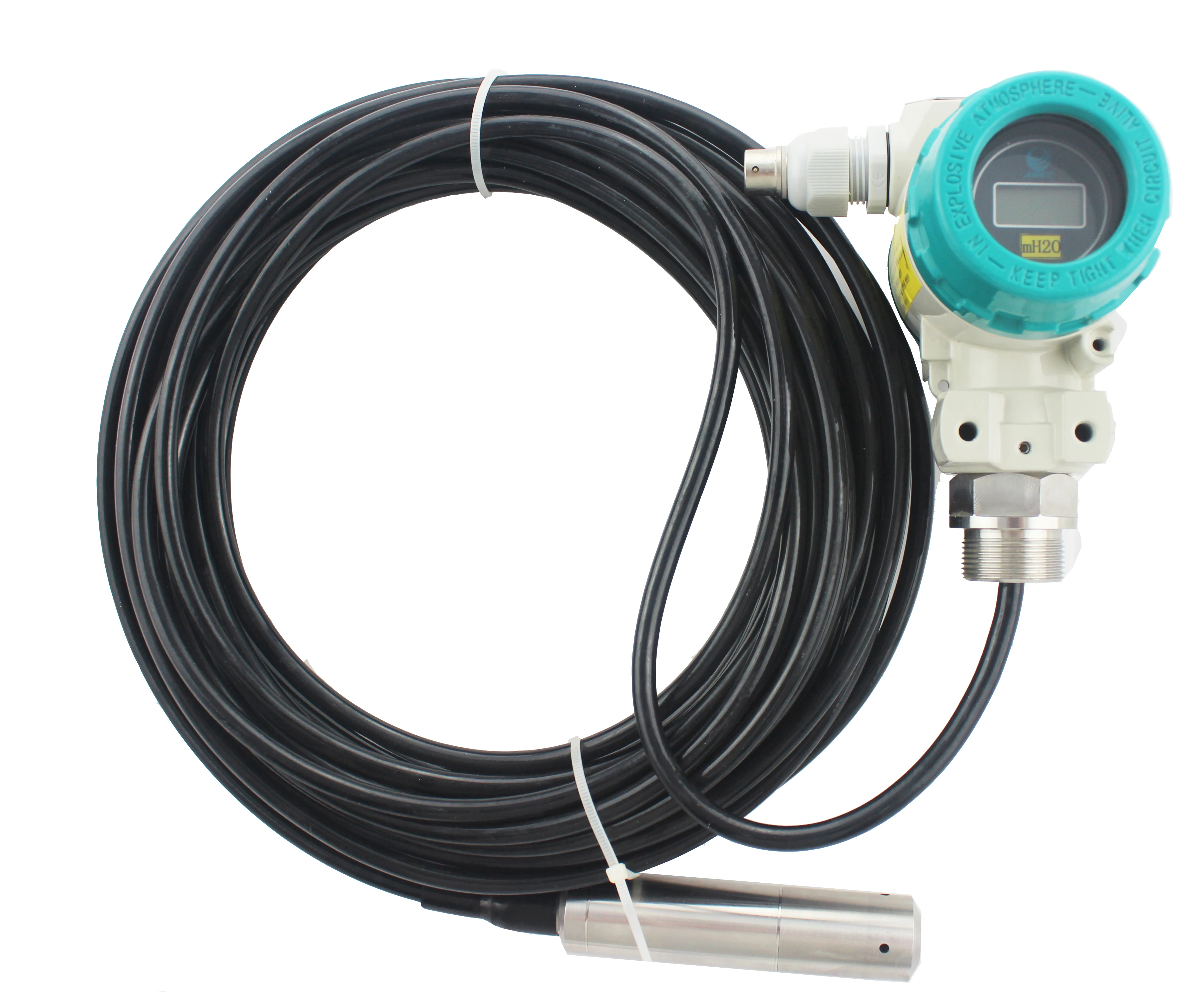

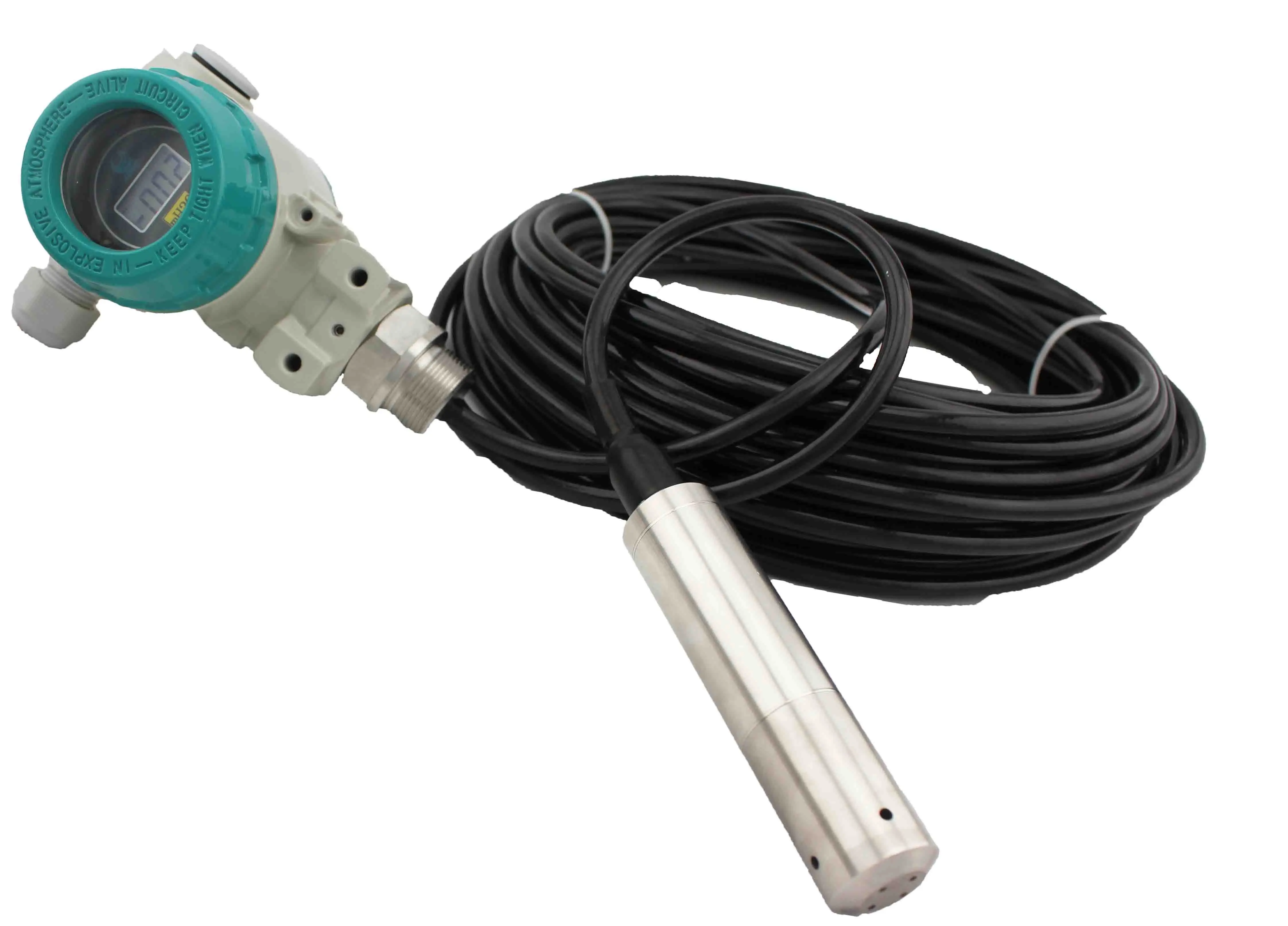

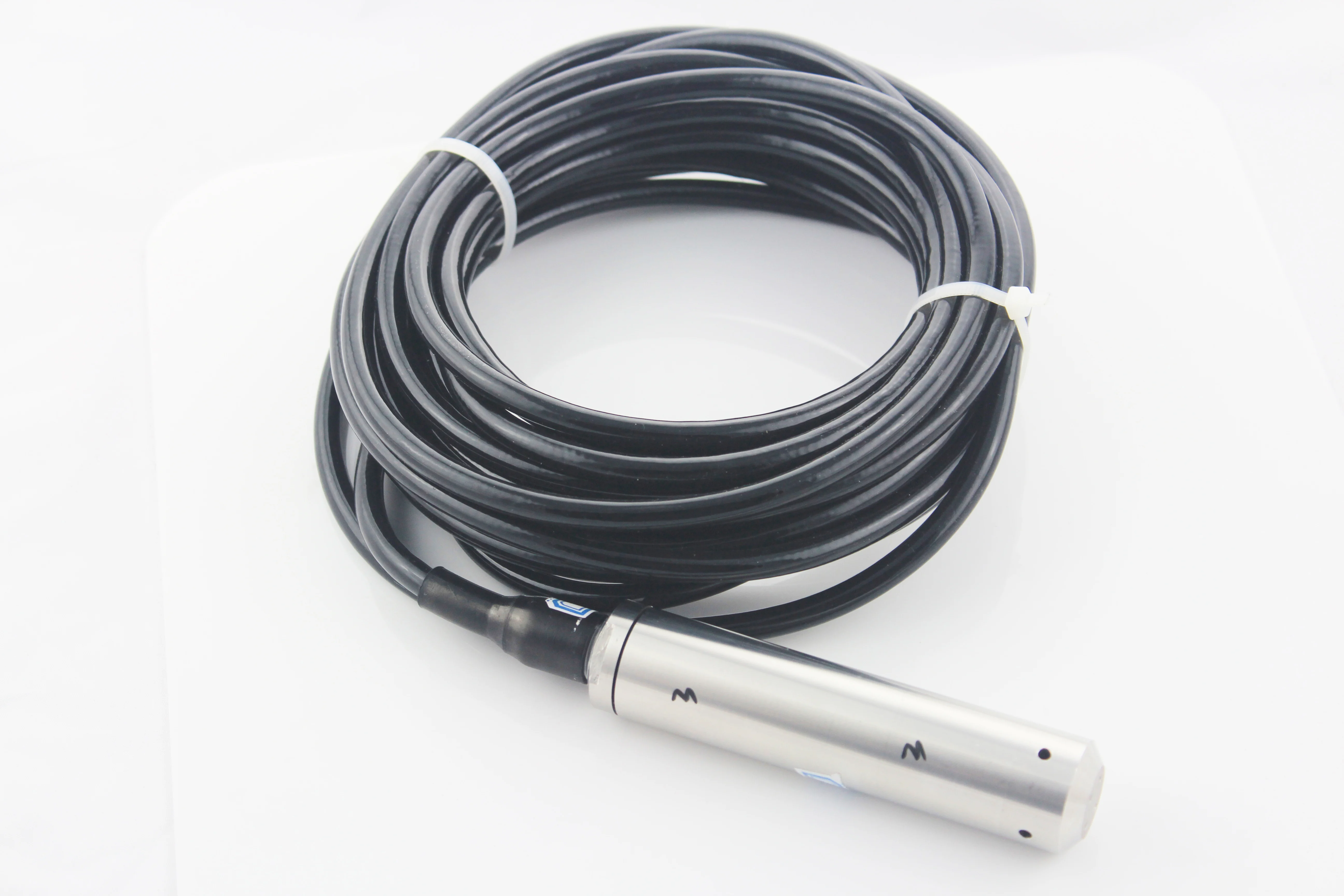

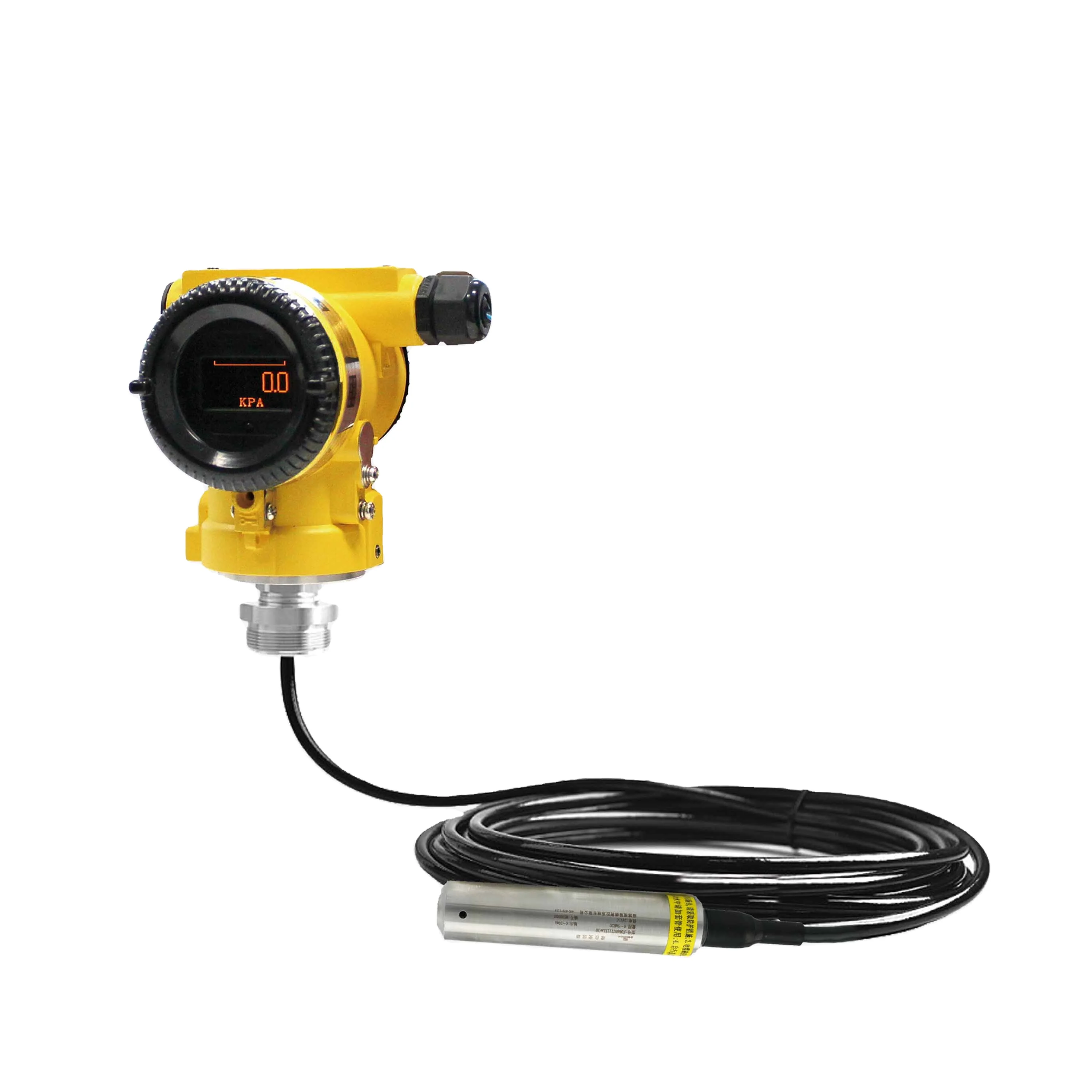

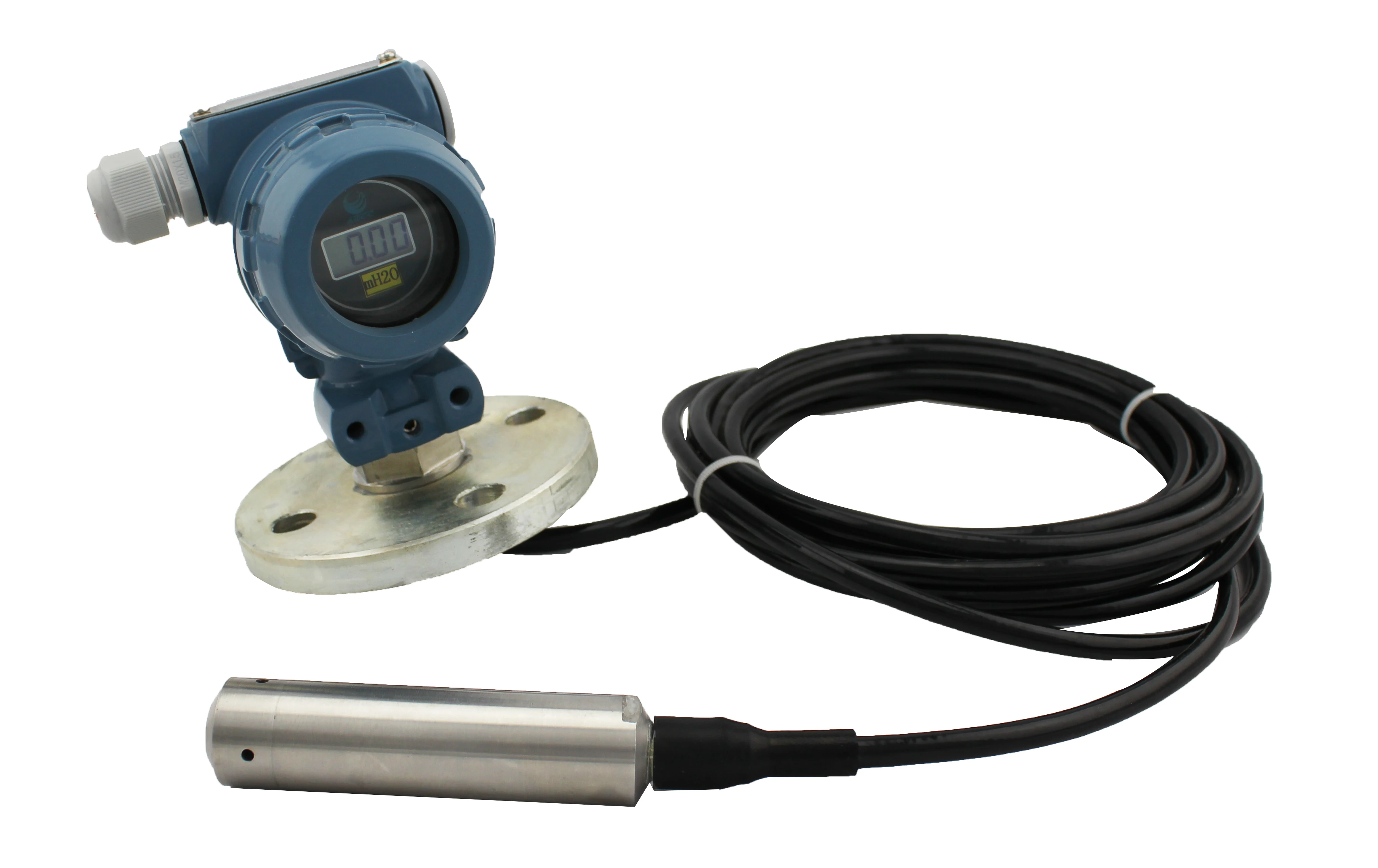

Details Images








Product Paramenters


Model
FD86 Intelligent Input Liquid Level Transmitter
Pressure Range
0-1mH₂O-2mH₂O-5mH₂O-10mH₂O-20mH₂O-50mH₂O-100mH₂O-200mH₂O(optional)
Pressure Type
Gauge pressure
Pressure Sensor
Diffused Silicon Pressure Sensor
Isolating Diaphragm
316L Stainless Steel
Output Signal
Two Wire 4~20mA
Output Signal
24VDC 10~30VDC
Accuracy
≤ 0.25%,0.5%
Working Temperature
-20℃ ~85℃
Compensated Temperature
-20℃~70℃
Storage Temperature
-20℃ ~85℃
Overload pressure
150% FS
Burst Pressure
200% FS
Long Stability
Standard: 0.2%/year
Zero/FS temp drift
0.003%FS/℃(≤100kPa), 0.002%FS/℃(>100kPa)
Insulation Resistance
>100M Ω @50V
Electrical Connection
IP68 cable outlet, ordinary junction box, moisture-proof junction box
Process Connection
Input type, M20 × 1.5 external thread
Indicator
Pointer or digital display (LCD,LED screen Optional)
Housing Material
Water head: 316L, 1Cr18Ni9Ti Junction box: low copper cast aluminum
Process Material
316 Stainless Steel or 304 Stainless Steel
Response Time
≤10ms
Protection Level
IP65, IP68


Our Advantages




Application




Recommend Products






Company Profile


About Us
ShanDong Friend Control System Co., Ltd. is a high technology production and service company. Our company is mainly engaged in research, development, production and sales of high accuracy & stability Pressure transmitter, Level transmitter, Temperature transmitter, Flowmeter and Control system.
Our products are widely used in oil, mechanical, petroleum, chemical, pharmaceuticals water treatment, food and papermaking industry etc.
Continuously as a world-class brand through superb quality and first class service, be closer to its customers to respond quickly and effectively to their demands.
