Горячая Распродажа автоматическая машина для упаковки в таблетки жидкого соуса меда масла
- Категория: Blister Packaging Machines >>>
- Поставщик: Foshan,Jason,Automatic,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 10710.35 $* | 11246.13 $* |
| Aug-16-2025 | 10620.53 $* | 11151.1 $* |
| Jul-16-2025 | 8910.94 $* | 9356.27 $* |
| Jun-16-2025 | 10440.65 $* | 10962.86 $* |
| May-16-2025 | 9090.0 $* | 9545.47 $* |
| Apr-16-2025 | 10260.43 $* | 10773.46 $* |
| Mar-16-2025 | 10170.42 $* | 10679.82 $* |
| Feb-16-2025 | 10080.99 $* | 10584.32 $* |
| Jan-16-2025 | 9990.30 $* | 10490.74 $* |
Характеристики

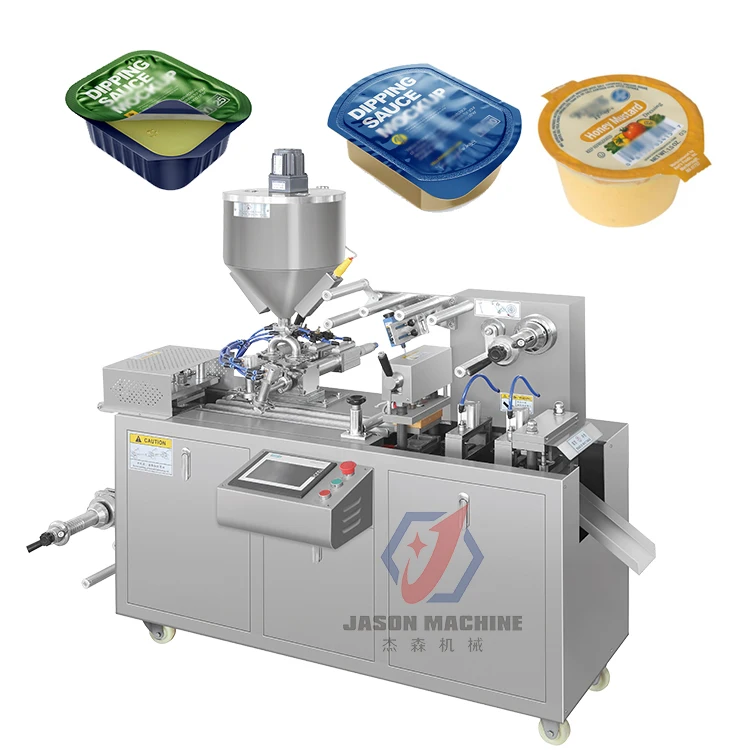

High efficiency automatic jam ketchup liquid blister packing machine
Product Description
It is suitable for packaging in food, medicine, medical equipment, hardware, electronics and other industries.
Such as honey, ketchup, jam, peanut butter, soy sauce, seasoning sauce, butter, nutrient solution, etc.
Such as honey, ketchup, jam, peanut butter, soy sauce, seasoning sauce, butter, nutrient solution, etc.
1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted. Also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.
3. It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
Punch frequency | 10-20 times/min |
Production capacity | 2400 plates/hour |
Max. forming area & depth | 105*70mm(standard depth ≦15mm), Max. depth 25mm(customized) |
Standard stroke range | 30-80mm(can be designed as user’s requirement) |
Standard plate size | 80*70mm(can be designed as user’s requirement) |
Air pressure | 0.4-0.6Mpa |
Compressed air required | Air compressor≥0.3m³/min |
Total power supply | 220V, 50Hz, 2.8kw |
Main motor | 0.75kw |
PVC hard Film | 0.15-0.5*110mm |
PTP aluminum film | 0.02-0.035*110mm |
Dialysis Paper | 50-100g*110mm |
Mould cooling | Tap water or recycling water |
Dimension | (L)1840*(W)900*(H)1300mm |
Weight | Net weight: 480kg, gross weight: 550kg |
Noise index | <75dBA |
The machine housing and the liquid-contacting parts are made of stainless steel, fully complying with GMP standards.

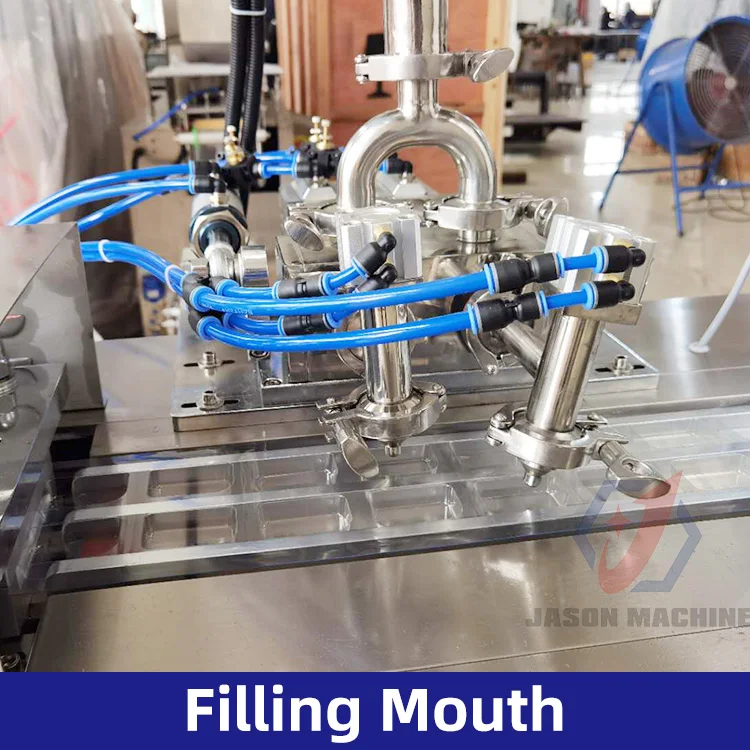

Adopt plunger type metering pump to perform filling, with high precision and anti-drip device.
Our company
Customer & Exhibition
Export Shipment
After sales service
FAQ
1: How to find a Packing machine suitable for my product?
Tell me about your product details. 1. What kind of product you have. 2. The size of your product( the length, width, and height).
2: Is an engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine
installation and assist you till the end.
3. Are you a factory or trading company?
We are the factory, and especially R&D, manufacture and sell various packing euipments. We have engaged in the packing R&D and production for over 10 years.
4. What's your payment way?
T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, or in cash.
5. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality
checking by yourself or by your contacts in China.
6. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance
service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
7. Why we should choose your company?
We are professional in packing machines for over 10 years, and we provide better after-sales service. You guarantee no risk for our deal.
Tell me about your product details. 1. What kind of product you have. 2. The size of your product( the length, width, and height).
2: Is an engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine
installation and assist you till the end.
3. Are you a factory or trading company?
We are the factory, and especially R&D, manufacture and sell various packing euipments. We have engaged in the packing R&D and production for over 10 years.
4. What's your payment way?
T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, or in cash.
5. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality
checking by yourself or by your contacts in China.
6. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance
service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
7. Why we should choose your company?
We are professional in packing machines for over 10 years, and we provide better after-sales service. You guarantee no risk for our deal.
Tell us your requirements, tell us your product information,
we will have a professional staff to provide you with a most suitable packaging solution!
You can also send us samples, we can provide free trial packaging service!
we will have a professional staff to provide you with a most suitable packaging solution!
You can also send us samples, we can provide free trial packaging service!
