Характеристики


Precast concrete mixing plant

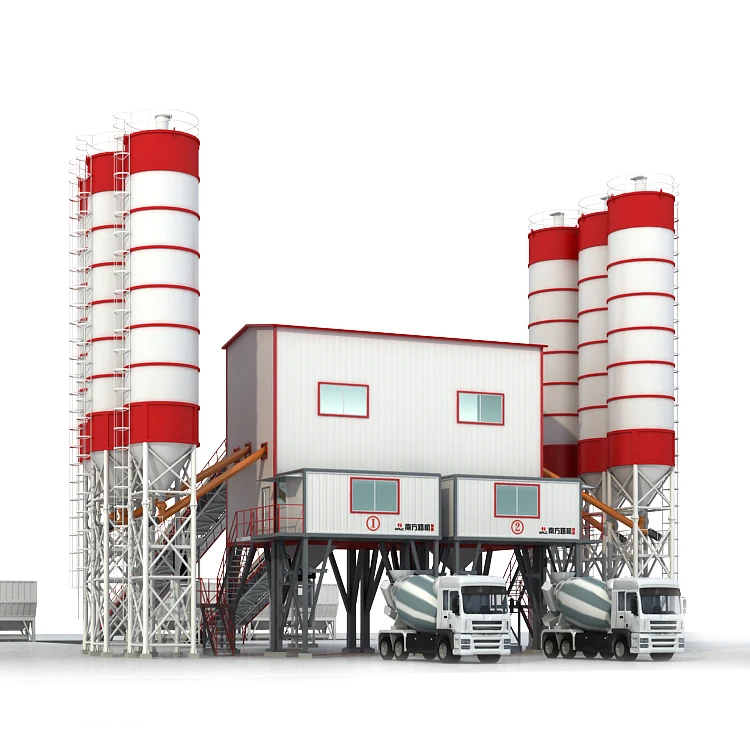

YHZS75 Mobile Concrete Mixing Equipment Mobile Concrete Batch Plant

.jpg

Concrete batch plants can be portable, stationary, or semi-portable. Typical batch plants are used for ready mix, concrete recycling, civil infrastructure, maritime work, and precast applications etc. In order to meet the construction requirements in new-normal condition, NFLG developed different concrete mixing plants, including 10 categories, 32 models, 28 options.

Capacity/ModelHZS50HZS75HZS100HZS150
Mixer hostPlanetary mixerModelJN1000JN1500JN2000JN3000
Discharge Volume(L)1000150020003000
discharge door1 or 21 or 2 or 3
Aggregate Particle Size(mm)≤60
Double horizontal shaftsModelJS1000JS1500JS2000JS3000
Discharge Volume(L)1000150020003000
discharge door1 or 2
Aggregate Particle Size(mm)≤60
Batching Station (Semi-Siloed)Bin Volume(M³)15×420×430×4
Lnclined Belt Conveyor Band WidthB800B800B1000
Stone Scale(Kg)(360-1200)±2%(540-1800)±2%(720-2400)±2%(1080-3600)±2%
Sand Scale(Kg)(240-800)±2%(360-1200)±2%(480-1600)±2%(720-2400)±2%
Cement Scale(Kg)(180-600)±1%(270-900)±1%(360-1200)±1%(540-1800)±1%
Fly Ash Scale(Kg)(60-200)±1%(90-300)±1%(120-400)±1%(180-600)±1%
Water Scale(Kg)(90-300)±1%(150-500)±1%(150-500)±1%(240-800)±1%
Liquid Admixture Scale(Kg)(15-50)±1%(15-50)±1%(24-80)±1%
Unloading Height(M)According to the actual

Batching system



Quality stability and efficiency upgrade

The optimized vibration lining plate structure, together with the design of large-inclined-angle and eccentric-pin arch-breaking, plus the adjustable pressure reducing plate, can guarantee the unloading efficiency, stable performance, safe production, and comfortable use.

Conveying system



Scientific design, easy to maintain and durable

Replaceable frictional rubber coating roller and it can be completed in half an hour. The water cleaning plus the five-pass in addition to removing foreign body mode makes the belt not vulnerable and the equipment more durable.

Powder weighing system



Overall optimization, accurate and reliable

Optimize the structure of the screw device, improve the weighing frame structure, more scientific breathable design, multiple accurate measurements for powder escort, so that the measurement data more accurate, more stable weighing performance.

Liquid weighing system



Multi-layer precision control and excellent performance

Upgrade the water storage tank, and realized the overbalance of the coarse and fine metering, to ensure the accurate and controllable liquid weighing; more with independent admixture said, further accurate, refined measurement data, highly ensure the quality of concrete.

Dust removing system



Streamlining, high efficiency, economy and environmental protection

Equipped with pulse bag filter with dust removal efficiency up to 99.9%, it's easy maintenance; Adopt the big fan to take the initiative to draw the air, balance the air pressure between each system, ensure the weighing accuracy and blanking speed stable.

Mixing system



High efficiency, energy saving, and stability

Adopt double spiral belt mixer, stable and reliable, easy to clean (only clean once a month). Its excellent performance and productivity performance can save about 15% mixing time and 20% production energy consumption. Scientific gate discharge hopper perfectly realizes efficient discharge without splash and drip.

Intelligent control system



Multiple securities, no–downtime, cloud monitoring is more convenient

Self-developed dual-computer synchronous production management and control system, plus the patent of fault warning, multiple guarantees to make your equipment never stop; Reports are automatically classified and summarized, and cloud data storage ensures clear data and convenient operation.

Remote emergency service



Real-time monitoring, timely communication, dedicated service, trouble-free

NFLG Internet service cloud platform can track and monitor the equipment in real time, by means of the wireless network and remote connection, to help equipment operators and NFLG headquarters technical service engineers to communicate in a timely manner, to ensure that solve the problems for users in the shortest time.

Q: How is the quality of your products?

A: our machines are manufactured strictly according to national and intemational standards, and we take a test oneach equipment before delivery You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.

Q: How about the price?

A: We are factory and be able to give you the lowest price than market one, and we have a policy that for saving timeand absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.

Q: Do you provide after-sale service?

A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q: Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q: Can you test our samples?

A: Yes. You can send your samples to us for test and analysis

Q: Service and Payment Terms?

A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery We take pictures of finished products before delivery.
