Подъемный кран грузоподъемностью 25 тонн 2 тонны 3 5 10 мостовой с
- Категория: Engineering & Construction Machinery >>>
- Поставщик: HENAN,JINNIU,HEAVY,CRANE,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 223346.81 $* | 234513.83 $* |
| Aug-15-2025 | 221469.31 $* | 232542.67 $* |
| Jul-15-2025 | 185809.40 $* | 195099.48 $* |
| Jun-15-2025 | 217716.48 $* | 228602.82 $* |
| May-15-2025 | 189563.5 $* | 199041.23 $* |
| Apr-15-2025 | 213962.82 $* | 224660.86 $* |
| Mar-15-2025 | 212085.65 $* | 222689.87 $* |
| Feb-15-2025 | 210208.17 $* | 220718.19 $* |
| Jan-15-2025 | 208331.19 $* | 218748.50 $* |
Характеристики

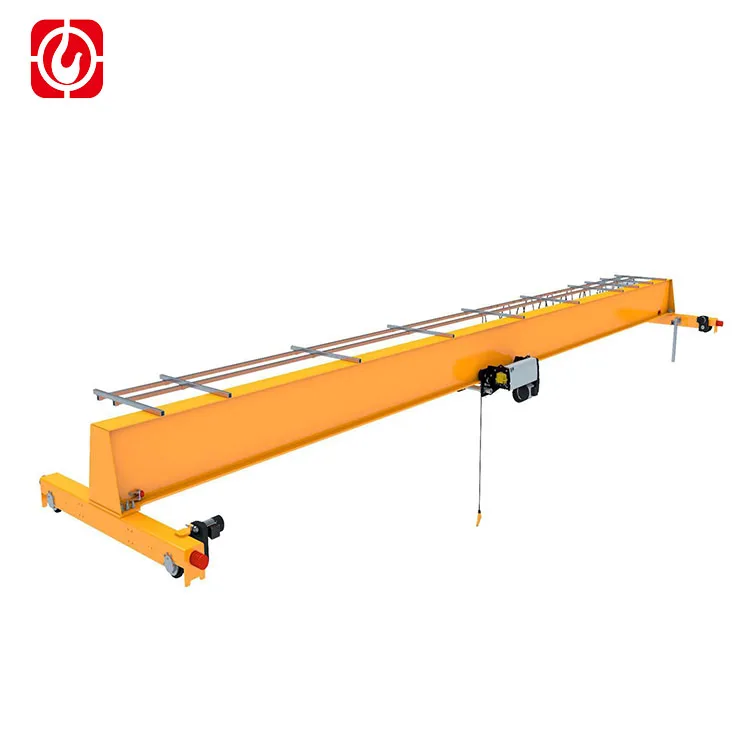

European Small Wheel Pressure 10ton Single Girder Beam Crane Travelling crane

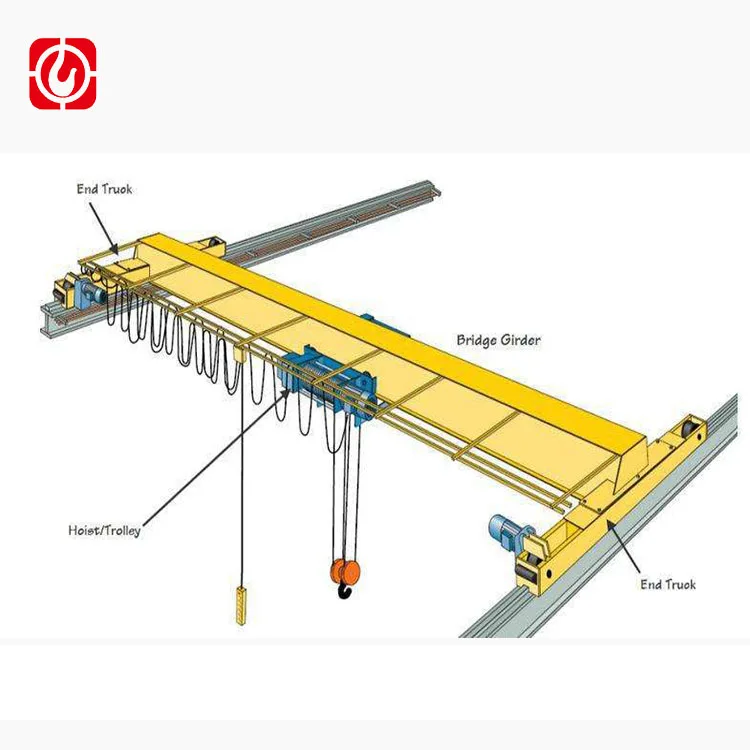

The new European hoist crane is designed and manufactured according to the FEM standards. Cranes are mainly made up by main beams, end beams, trolleys, electrical parts and control rooms and other components. The standard lifting capacity are 5~20 t. We also can customized the lifting capacity depend on customer requirements. Span is from 7.5 m to 31.5 m. The crane is used widely, it is not only extremely safe, good design, ergonomic, material handling convenient and efficient, but also save the warehouse space due to its compact size structure. Used for machinery manufacturing assembly, warehouse and other places, for the machine equipment manufacturing, maintenance, warehouses and other places, but not suitable for the self-explosion and fire to do dangerous, full corrosive gas medium and relative humidity greater than 85% of the work in the place, not suitable for hanging transport metal.
Lifting capacity | 1t | 2t | 3t | 5t | 10t | 16t | 20t | ||||||
Span | 9.5-24m | 9.5-20m | |||||||||||
Lifting height | 6-18(m) | ||||||||||||
Lifting speed (Double speed) | 0.8/5 m/min Or frequency control lifting | 0.8/5 | 0.8/5 | 7.9 | 0.66/4 m/min Or frequency control lifting | ||||||||
Travelling speed (Crane & Trolley) | 2-20 m/min (Frequency conversion) | 37.2 | 37.2 | 43.8 | 44.6 | ||||||||
Trolley Weight | 376 | 376 | 376 | 531 | 928 | 1420 | 1420 | ||||||
Total Power(kW) | 4.58 | 4.48 | 4.48-4.94 | 7.84-8.24 | 12.66 | 19.48-20.28 | 19.48-20.28 | ||||||
Crane Track | P24 | P24 | P24 | P24 | P38 | P43 | P43 | ||||||
Work duty | A5(2m) | ||||||||||||
Power supply | AC 220-690V, 50Hz | ||||||||||||
Company file
Xinxiang Jinniu Hoisting Machinery Co., Ltd. was established in 2008, are one of the leading manufacturers, suppliers retailers, and wholesalers of optimum quality Material Lifting Equipment. The company is mainly engaged in the production of cranes, electric hoists, electromagnetic chucks, Cantilever crane, Hydraulic lifting platform, hydraulic freight elevator and other lifting equipment.Manufacturing, export trade, and online sales are all-inclusive new-type lifting companies with annual sales of more than 12,000 units. The Special Equipment Manufacturing License of the Republic of China is issued by the National Quality Supervision Bureau.The company has also established a perfect quality assurance system and a comprehensive quality management system of TQC to ensure maximum quality and customer benefits.....
