Распродажа тележка с дистанционным управлением для мобильной мастерской однобалочный козловой кран электрическим
- Категория: Engineering & Construction Machinery >>>
- Поставщик: HENAN,JINNIU,HEAVY,CRANE,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3070.51 $* | 3224.83 $* |
| Aug-15-2025 | 3044.43 $* | 3196.62 $* |
| Jul-15-2025 | 2554.86 $* | 2682.82 $* |
| Jun-15-2025 | 2993.17 $* | 3143.99 $* |
| May-15-2025 | 2606.11 $* | 2736.61 $* |
| Apr-15-2025 | 2941.15 $* | 3088.66 $* |
| Mar-15-2025 | 2915.61 $* | 3061.12 $* |
| Feb-15-2025 | 2890.10 $* | 3035.81 $* |
| Jan-15-2025 | 2864.52 $* | 3007.84 $* |
Характеристики
Product Description
Good Sale Remote Control Mobile Workshop Rail Single Girder Gantry Crane With Electric Wire rope Hoist
Single girder gantry crane is a kind of track traveling midlight type crane, used together with CD, MD, HC model electrical hoist, according to the shape, it also divided into MH type and MHLP type gantry crane.
MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and noncantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs, which is very convenient and high efficiency.
MHLP type single girder gantry crane is L type partial hanging gantry crane, with small size and light duty, special for putting steel pipes, girders, or other long materials into the special place, widely used in steel plant, concrete girder yard.
MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and noncantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs, which is very convenient and high efficiency.
MHLP type single girder gantry crane is L type partial hanging gantry crane, with small size and light duty, special for putting steel pipes, girders, or other long materials into the special place, widely used in steel plant, concrete girder yard.

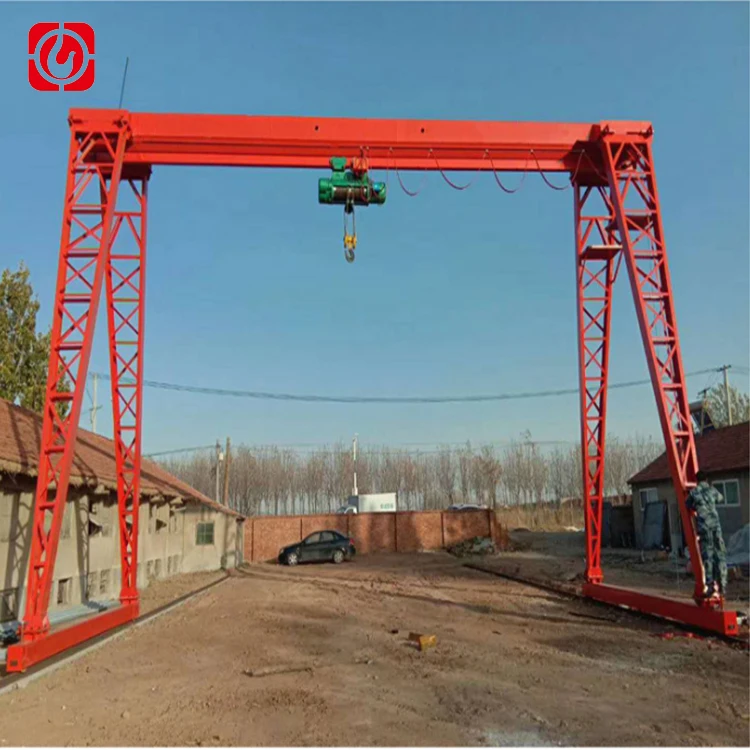

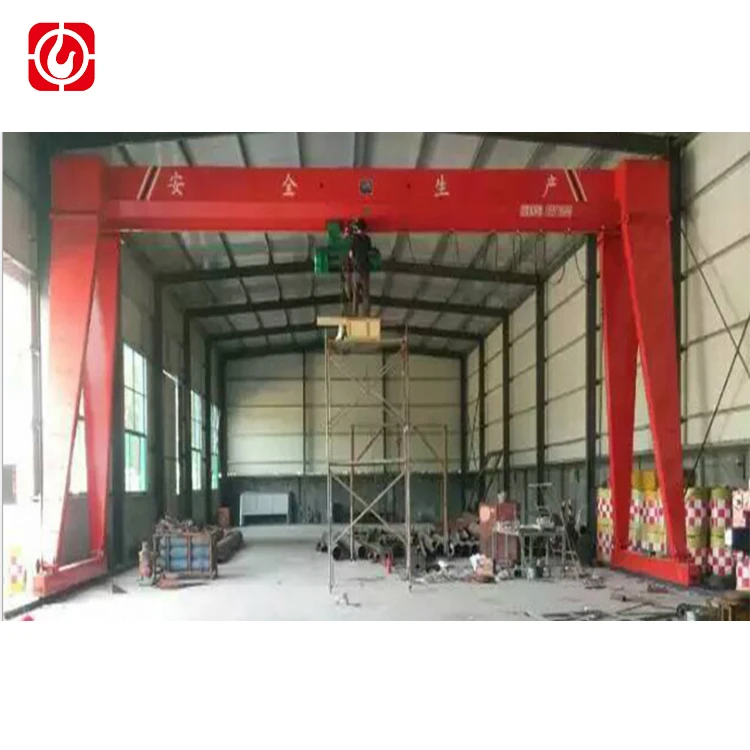

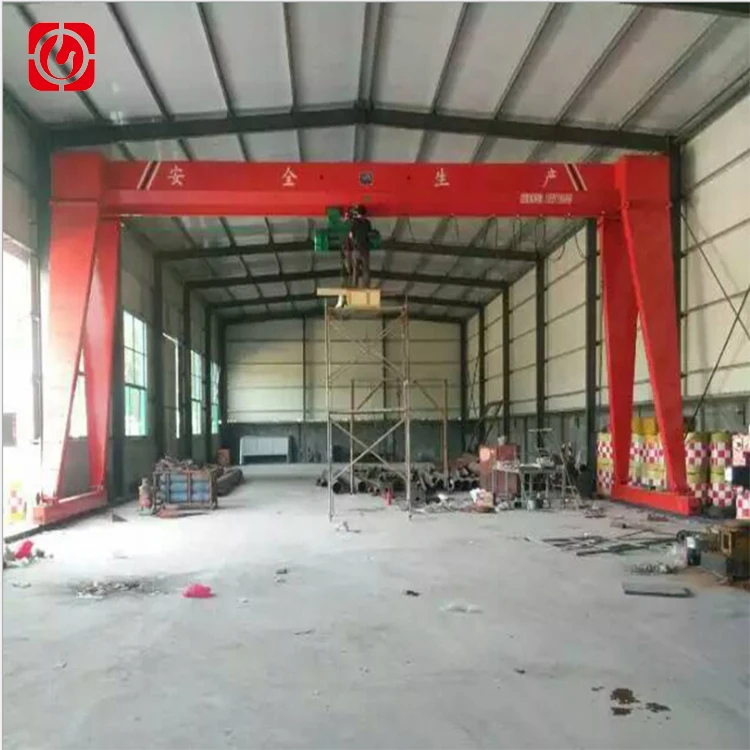

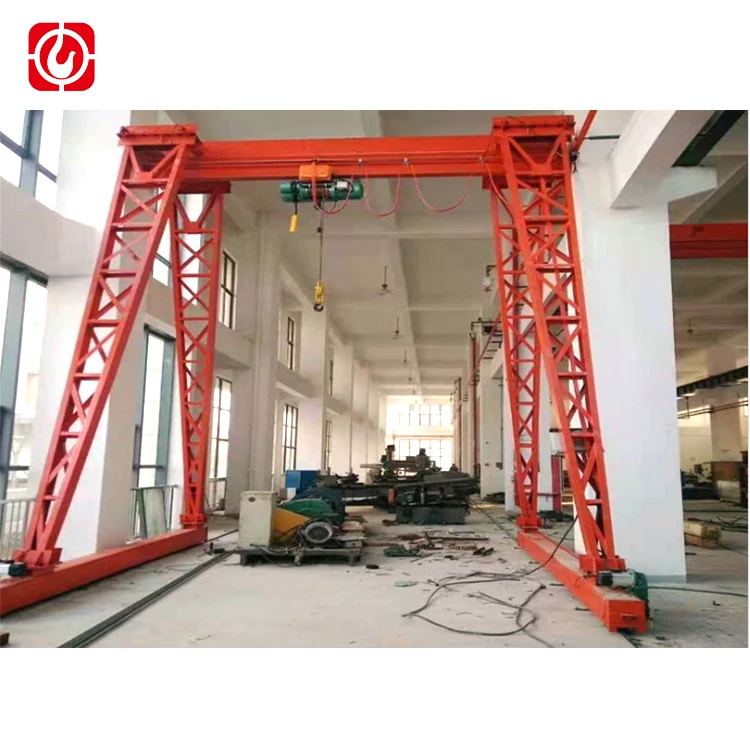

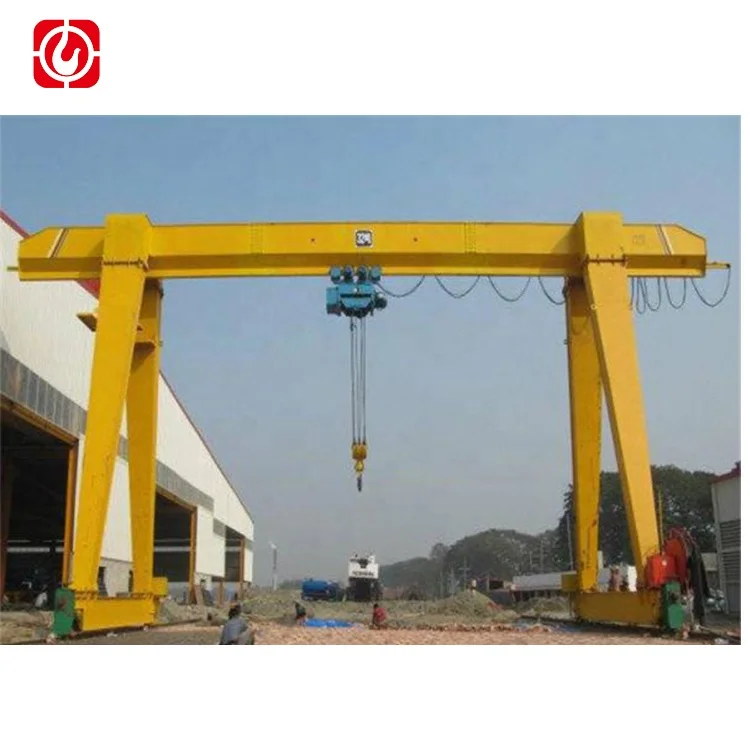

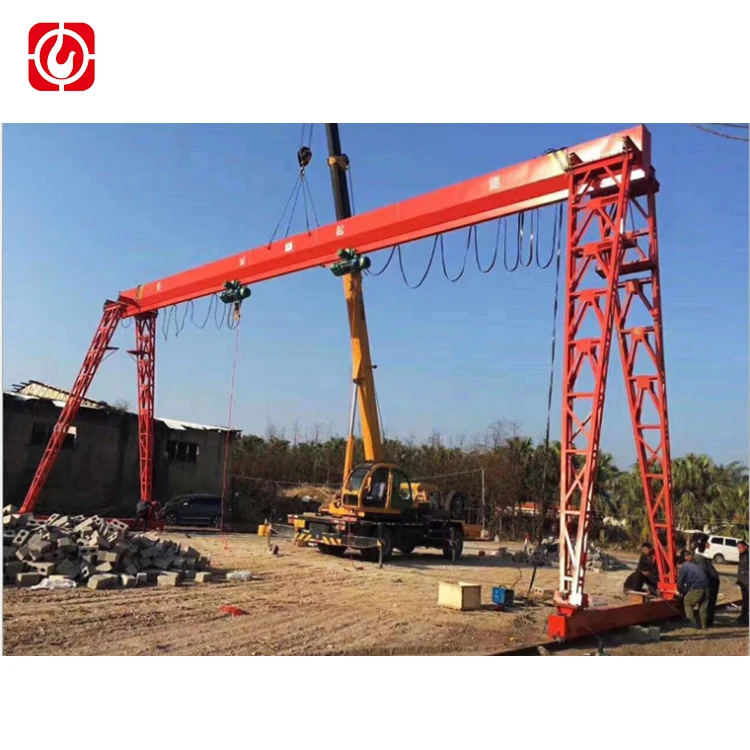

Product display
Product name | Good Sale Remote Control Mobile Workshop Rail Single Girder Gantry Crane With Electric Wire rope Hoist | ||||||||||||
Capacity | ton | 3 | 5 | 10 | 16 | 20 | |||||||
Span | m | 12,16,20,24,30 | |||||||||||
Operation method | Pendant line with press button / Cabin / Remote | ||||||||||||
Speed | Lifting | m/min | 8, 8/0.8 | 8, 8/0.8 | 7, 7/0.7 | 3.5 | 3.5 | ||||||
Cross travelling | 20 | 20 | 20 | 20 | 20 | ||||||||
Motor | Lifting | Type/kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 | ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13-4/13 | ZD152-4/18 | ||||||
Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.82 | ZDY121-4/0.82 | YZD-4/0.84 | ||||||||
Lifting height | m | 6,9,12,18,24,30 | |||||||||||
Work duty | A3 | ||||||||||||
Power supply | 380V 60HZ 3 Phase or according yo your demand | ||||||||||||
Technical parameters
You may like
Our Advantages
Professional Crane Manufacture Since 2008
Xinxiang Jinniu Hoisting Machinery Co., Ltd. was established in 2008,are one of the leading manufacturers, suppliers retailers, and wholesalers of optimum quality Material Lifting Equipment. The company is mainly engaged in the production of cranes, electric hoists, electromagnetic chucks, Cantilever crane, Hydraulic lifting platform, hydraulic freight elevator and other lifting equipment.Manufacturing, export trade, and online sales are all-inclusive new-type lifting companies with annual sales of more than 12,000 units. The Special Equipment Manufacturing License of the Republic of China is issued by the National Quality Supervision Bureau.The company has also established a perfect quality assurance system and a comprehensive quality management system of TQC to ensure maximum quality and customer benefits.....
