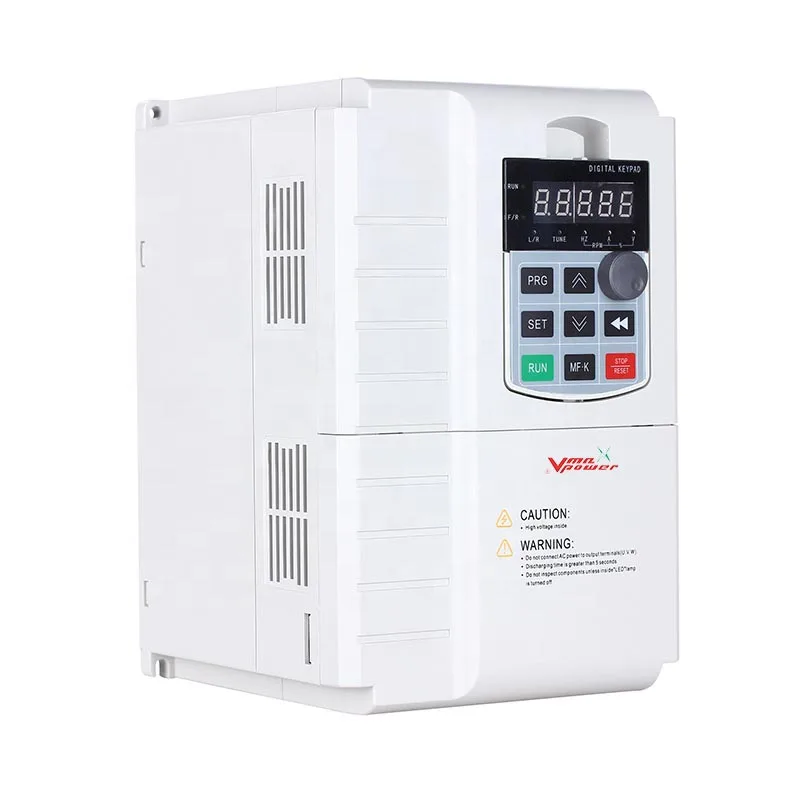

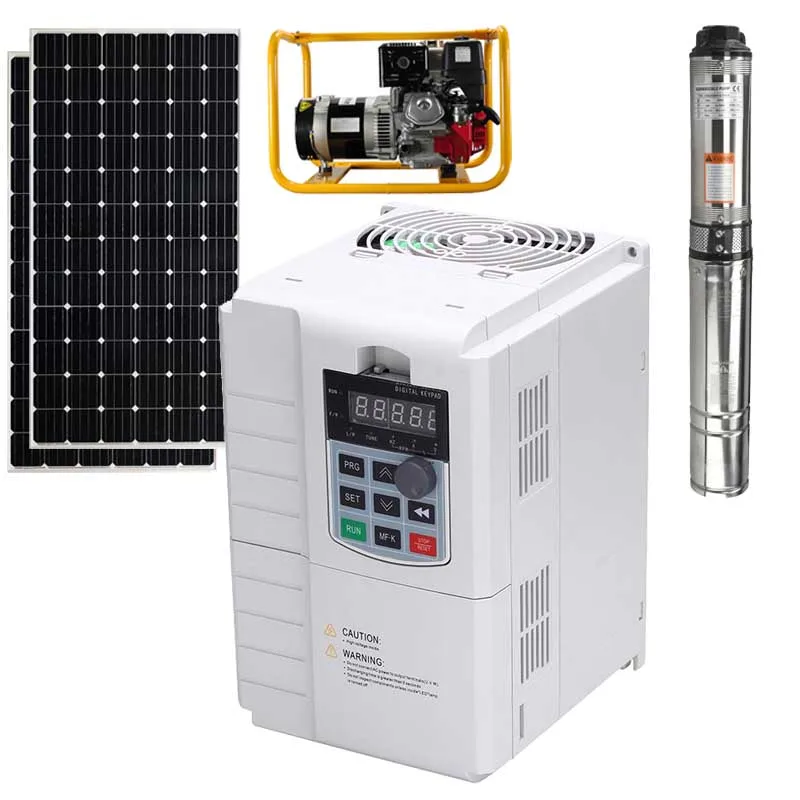

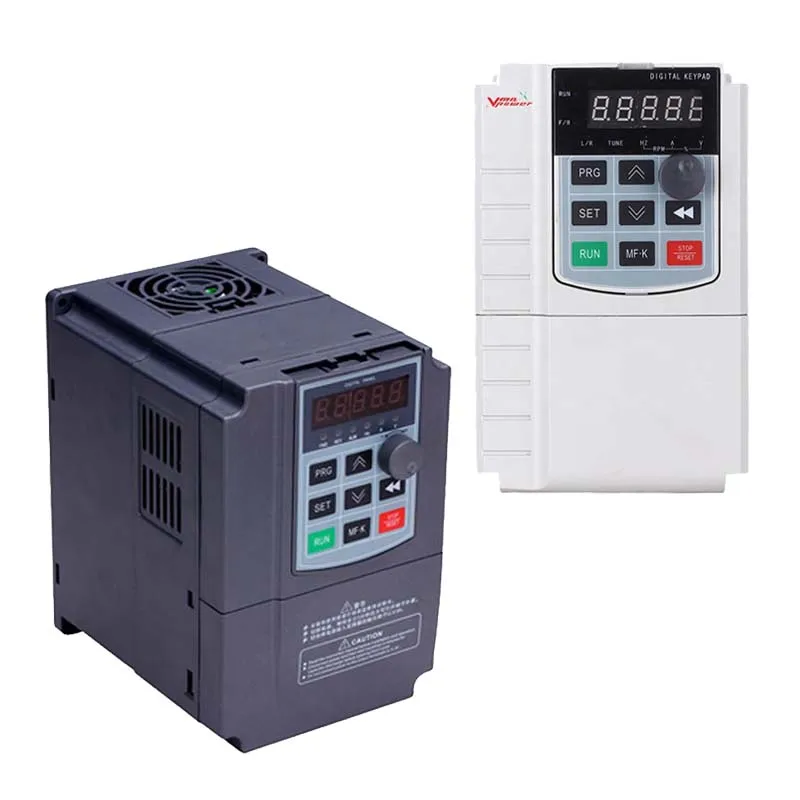

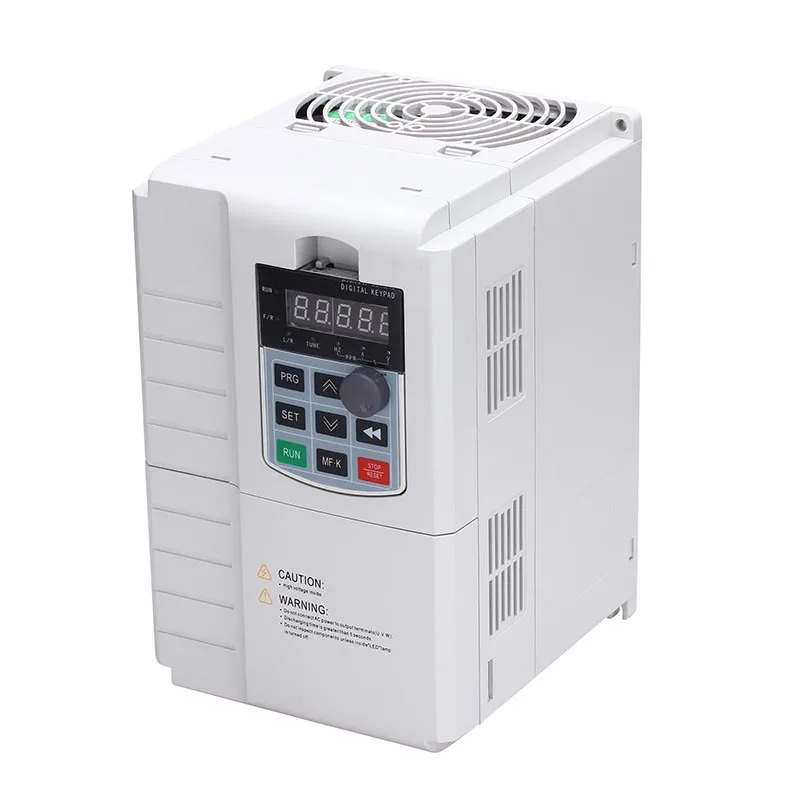

Солнечный насос, инвертор для орошения 20 кВт 55 кВт, трехфазный
US $100.00-$500.00
Портативный насос для глубокой скважины на солнечной батарее Надежный двигатель 3ph инвертор насоса бассейна и пустыни насосная
- Категория: Solar Pump Inverter >>>
- Поставщик: Beijing,Multifit,Electrical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.20 $* | 0.94 $* |
| Aug-18-2025 | 0.75 $* | 0.21 $* |
| Jul-18-2025 | 0.61 $* | 0.10 $* |
| Jun-18-2025 | 0.18 $* | 0.77 $* |
| May-18-2025 | 0.58 $* | 0.1 $* |
| Apr-18-2025 | 0.83 $* | 0.50 $* |
| Mar-18-2025 | 0.37 $* | 0.73 $* |
| Feb-18-2025 | 0.11 $* | 0.4 $* |
| Jan-18-2025 | 0.41 $* | 0.92 $* |
Характеристики
Solar Pump Inverter
Products Description
Software Desgin
1. Dual Supply Mode - Solar DC and Grid AC Compatible
2. Compatible with All Pumps, IM and PMSM
3. Dry Run Function
4. Automatic Start and Stop
5. Pumps Max Current Protection Setting
6. Water Tank Level Detect Function
Hardware Design
1. Innovation Design with Dual CPU
2. Good Ventilation with Low Temperature
3. Full Fault Protection Design to Ensure no IGBT Damaged
4. Infineon IGBT Module
5. Long Term Service Life Design
6. GPRS Remote Control is Optional
Features
* Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
* It can enter automatically to sleep mode when the intensity of sunlight is weak, as well as can exit the sleep mode when the intensity of sunlight is becoming strong.
* Automatic sleep when on high-water level and automatic restart when on low-water level to realize automatic control through water level.
* Multiple power supply design, power input can be solar energy photovoltaic DC power supply, can also
be single phase or three phase AC power, simple wiring.
* Smart operation, water level detection and operation panel to prevent overflow, dry pumping.
* Protect itself in trouble and improve the reliability of whole system.
* It can enter automatically to sleep mode when the intensity of sunlight is weak, as well as can exit the sleep mode when the intensity of sunlight is becoming strong.
* Automatic sleep when on high-water level and automatic restart when on low-water level to realize automatic control through water level.
* Multiple power supply design, power input can be solar energy photovoltaic DC power supply, can also
be single phase or three phase AC power, simple wiring.
* Smart operation, water level detection and operation panel to prevent overflow, dry pumping.
* Protect itself in trouble and improve the reliability of whole system.
Product Parameter
Model | Capacity | Rate Current | Max.DC/ Working DC | External Size(mm) | Packing Size(mm) | N.W. (kg) | ||||||
150~450VDC or 200~240VAC Input, 3 Phase 220~240VAC Output | ||||||||||||
MTLS-0K7KWP-2S | 0.75KW | 4A | 450V/ 250~350V | 143*86*114 | 178*133*150 | 0.9 | ||||||
MTLS-1K5KWP-2S | 1.5KW | 7A | 450V/ 250~350V | 143*86*114 | 178*133*150 | 0.96 | ||||||
MTLS-2K2KWP-2S | 2.2KW | 10A | 450V/ 250~350V | 185*118*157 | 232*172*212 | 1.67 | ||||||
MTLS-4K0KWP-2S | 4.0KW | 13A | 450V/ 250~350V | 247*160*178 | 302*212*231 | 2.9 | ||||||
250~900VDC or 380~480VAC Input, 3 Phase 380~460VAC Output | ||||||||||||
MTLS-1K5KWP-4T | 1.5KW | 3.7A | 900V/ 500~650V | 143*86*114 | 178*133*150 | 0.9 | ||||||
MTLS-2K2KWP-4T | 2.2KW | 5A | 900V/ 500~650V | 143*86*114 | 178*133*150 | 0.9 | ||||||
MTLS-1K5KWP-4T | 1.5KW | 3.7A | 900V/ 500~650V | 185*118*157 | 232*172*212 | 1.6 | ||||||
MTLS-1K5KWP-4T | 2.2KW | 5A | 900V/ 500~650V | 185*118*157 | 232*172*212 | 1.62 | ||||||
MTLS-4K0KWP-4T | 4.0KW | 10A | 900V/ 500~650V | 185*118*157 | 232*172*212 | 1.67 | ||||||
MTLS-5K5KWP-4T | 5.5KW | 13A | 900V/ 500~650V | 247*160*178 | 302*212*231 | 2.9 | ||||||
MTLS-7K5KWP-4T | 7.5KW | 17A | 900V/ 500~650V | 247*160*178 | 302*212*231 | 3 | ||||||
MTLS-011KWP-4T | 11KW | 22A | 900V/ 500~650V | 247*160*178 | 302*212*231 | 3.63 | ||||||
MTLS-015KWP-4T | 15KW | 30A | 900V/ 500~650V | 247*160*178 | 302*212*231 | 3.63 | ||||||
MTLS-018KWP-4T | 18KW | 37A | 900V/ 500~650V | 171*277*180 | 440*340*310 | 9 | ||||||
MTLS-022KWP-4T | 22KW | 45A | 900V/ 500~650V | 217*335*190 | 440*340*310 | 12 | ||||||
MTLS-030KWP-4T | 30KW | 60A | 900V/ 500~650V | 285*463*225 | 560*410*350 | 17.6 | ||||||
MTLS-037KWP-4T | 37KW | 75A | 900V/ 500~650V | 285*463*225 | 560*410*350 | 19.8 | ||||||
MTLS-045KWP-4T | 45KW | 90A | 900V/ 500~650V | 385*600*270 | 680*525*410 | 25.3 | ||||||
MTLS-055KWP-4T | 55KW | 110A | 900V/ 500~650V | 385*600*270 | 680*525*410 | 26.2 | ||||||
MTLS-075KWP-4T | 75KW | 150A | 900V/ 500~650V | 385*600*270 | 680*525*410 | 26.2 | ||||||
MTLS-090KWP-4T | 90KW | 180A | 900V/ 500~650V | 385*600*270 | 890*610*550 | 43.7 | ||||||
MTLS-110KWP-4T | 110KW | 220A | 900V/ 500~650V | 473*700*307 | 890*610*550 | 47 | ||||||
MTLS-132KWP-4T | 132KW | 260A | 900V/ 500~650V | 579*930*375 | 890*610*550 | 75 | ||||||
MTLS-160KWP-4T | 160KW | 310A | 900V/ 500~650V | 579*930*375 | 1040*780*610 | 81 | ||||||
150~450VDC or 200~240VAC Input, 1 Phase 220~240VAC Output | ||||||||||||
MTLS-0K7KWP-21D | 0.75KW | 7A | 450V/ 250~350V | 143*86*114 | 178*133*150 | 0.96 | ||||||
MTLS-1K5KWP-21D | 1.5KW | 10A | 450V/ 250~350V | 185*118*157 | 232*172*212 | 1.67 | ||||||
MTLS-2K2KWP-21D | 2.2KW | 13A | 450V/ 250~350V | 247*160*178 | 302*212*231 | 2.9 | ||||||
Applicantions of Solar Pumping System
Tips: The role of solar pump inverter
The solar pump inverter is the most important equipment in the photovoltaic water pumping system and the soul of the system. The inverter controls and regulates the operation of the PV pumping system, converts the DC power generated by the solar cell array into AC power, drives the water pump, and adjusts the output frequency in real time according to the change of the intensity of
the sunlight, realizes the maximum power point tracking, and maximizes the utilization of the solar energy.
the sunlight, realizes the maximum power point tracking, and maximizes the utilization of the solar energy.
Agricultural Greenhouse Water Supply
Solar agricultural greenhouses use solar modules installed in the roof of the greenhouse to meet the diverse needs of lighting, irrigation, temperature, ventilation, illumination, nutrition supplement, to achieve efficient use of solar energy and land resources three-dimensionally and to achieve the true meaning of ecology agriculture and agricultural science and technology.
Agricultural Irrigation
Solar pumping systems can effectively provide safe and efficient power supply solutions for remote areas. It can effectively meet the water demand for irrigation.
Landscape Fountain
Solar pumping system is widely applied to outdoor garden pond, park pond, artificial grassland and swimming pool, helping to develop garden economy, beautify park, build colorful fountain and increase oxygen for fishpond or shrimp pond.
About Multifit
Multifit is expert with ISO9001, ISO14001 on manufacturing TUV, CE, SONCAP & CCC solar products to over 60 countires since 2009. Covering solar inverters, controllers, solar panels, solar cells, solar cleaning robots, solar street lights, ect.
And Multifit has experienced designing and installation teams on solar system, either off grid or on grid. This ability can help us better support our customer's capability to win new sales and do an excellent maintenance.
And Multifit has experienced designing and installation teams on solar system, either off grid or on grid. This ability can help us better support our customer's capability to win new sales and do an excellent maintenance.
