Характеристики



Induction:
Solar pump inverter is positioned in environmental-friendly and economical PV market, the product is applicable to PV pumping system, replaced water storage with electric storage and needs no battery modules.The direct current generated by solar modules is input to the inverter and then converted into the alternation current to drive various pumps directly. Additionally, the output frequency is adjustable in real time according to sunlight intensity change.







Application






Main Feature
1. Automatic Hybrid Power Input(Solar ,AC/Diesel /Battery power)
2. Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel
3. IP65 Waterproof
4. GPRS SMS Control/Monitoring
5. Support Generator Automatic Start/stop by GATC
6. Protection:
Solar DC Input Anti-reverse
AC Input/Output Phase lost(3Phase)
AC Output Short Circuit
AC Output Unbalance (3Phase)
Pump Dry run (unload water )By sensor/ software
Water Over Flow of Tank
Solar Low power
Against Lighting
7. Variable Frequency Drive the AC Pump (1Hz ~ 50/60Hz)

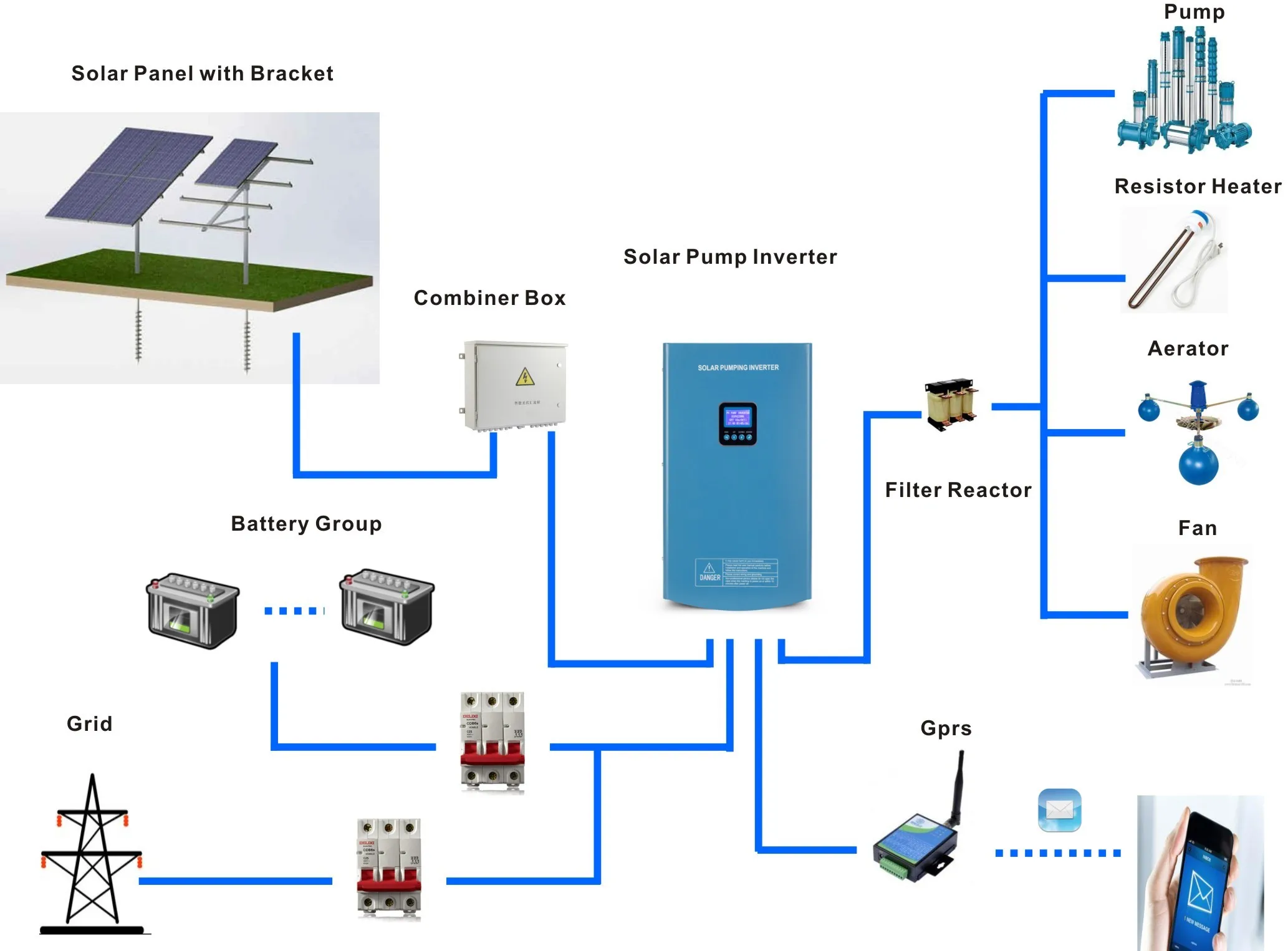

Pump inverter system connection diagram






Product Paramenters


Model
HSPH750L
HSPH1500L
HSPH2200L
HSPH3700L





Solar Panel DC Input
Max Voc Voltage
450V
Min Vmp Voltage
80V
200V
200V
200V


Recommend Vmp Voltage


≥100V
≥300V (Only Solar) ≥340 V (Hybrid Power)
≥300V (Only Solar) ≥340 V (Hybrid Power)
≥300V (Only Solar) ≥340 V (Hybrid Power)
Max MPPT Efficiency
99%
Max Input Current
10 A
7A
10A
26A
Number Of Strings
1
1
1
2
Inside Booster
Y(Support)
N
N
N

Note
Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel,without programming

Hybrid AC/Generator Input
Voltage
220/240V 1-Phase
220/240V 3-Phase
Max Input Current
7 A
12A
18A
21.8A


Hybrid Mode


N
Automatic .AC supplement automatic while solar is in low power mode and AC disconnect automatic while solar power recovery




AC Output (For Pump, Rerator, Fan Parameters)
Max Adapted AC Pump Horse Power
1 HP
2HP
3HP
5HP
Max Adapted AC Pump Power
750W
1500 W
2200 W
3700W
Drive Mode
 Single Phase(1 phase) and 3Phase (compatibility) Variable Frequency Drive
Max Output voltage
220 / 240 V
Max Output frequency
50 ~ 60 Hz (support program range 15 to 60Hz)
Max Output Current
7 A
11.5A
17.5A
24 A
Note
Need to Remove the capacitor while the pump is 1phase
Max Efficiency
97%
Water level Sensor(well / tank)
Yes
GPRS SMS Monitor&Controller
N
Optional
Optional
Optional
Display
LCD display
Waterproof
IP65
Noise
< 50dB
Cooling Method
Force Cooling by Fan (IP68)


Protection
Solar DC input Low/Over Voltage Solar DC Input Reverse Polarity AC Output Short-circuit Over Temperature Over Flow of Tank Against Lightning AC Output Phase Lose(3Phase) AC Output Unbalance(3Phase) Dry-Run (detecting by Sensor or Software)


Operating Enviornment
Operating environment temperature

-10 to 60℃, Above 60℃ need to derate load
Max Humidity
95%RH
Using altitude
< 3000m, Above 3000m need to derate load
Others
Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid.etc

Package
Size
500*300*240MM
550*350*285MM
Weight
10KG
14KG
14KG
16KG


Company Profile


Foshan Panpower Science & Technology Co.,Ltd is the earliest manufacturer in  China,producing power supply products. We have independent intellectual property and strong design and development capability. Our products include UPS power, kinds of inverter, EPS, voltage stabilizer, maintenance-free sealed lead acid battery. Our products are applied to many industries, such as aviation, railway, bank, security, electric power, road, national defense, insurance,electrical power and others. The customs, hospitals and governments give us a good evaluation due to our competitive price, high quality and complete service.












PACKAGE&SHIPPING




Why Choose Us


1. 10 years UPS and Power Inverter export experiences

2. 20 years UPS and Power Inverter manufacturer experiences

3. 11 years of high-level OEM Experience

4. 200,000pcs Monthly Capacity

5. Hi-tech Advanced R&D Team

6. Certifications--Applied with CE, ISO 9001, ISO14001 etc

7. Quality guarantee—warranty.

8. OEM / ODM acceptable

9. 100% QC inspection and testing before shipment




FAQ


Q1: Are you a factory?
A1: Yes, we are a factory specialized in inverter field over 20 years, solar controller since 2006 year.

Q2: Are you inverter pure sine wave output?
A2: Yes, all of our inverters are pure sine wave output.

Q3: What kind of output you can do?
A3: Normally, we produce inverter with 110V/120V/220V/230V/240V/380V/400V/415V, 50Hz/60Hz.
If you have special requirements, pls tell us for engineer consulting.

Q4: What appliances your inverters can load?
A4: Can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
