Солнечный насос, инвертор для орошения 20 кВт 55 кВт, трехфазный
US $100.00-$500.00
Контроллер для солнечной системы откачки воды 0 75 кВт инвертор солнечного насоса
- Категория: Solar Pump Inverter >>>
- Поставщик: Guangxi,Nanning,Craftsman,Electromechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 146.69 $* | 149.43 $* |
| Jul-15-2025 | 118.91 $* | 120.84 $* |
| Jun-15-2025 | 144.6 $* | 147.44 $* |
| May-15-2025 | 143.68 $* | 146.87 $* |
| Apr-15-2025 | 114.66 $* | 116.68 $* |
| Mar-15-2025 | 140.36 $* | 143.52 $* |
| Feb-15-2025 | 139.76 $* | 142.89 $* |
| Jan-15-2025 | 138.48 $* | 141.79 $* |
Характеристики

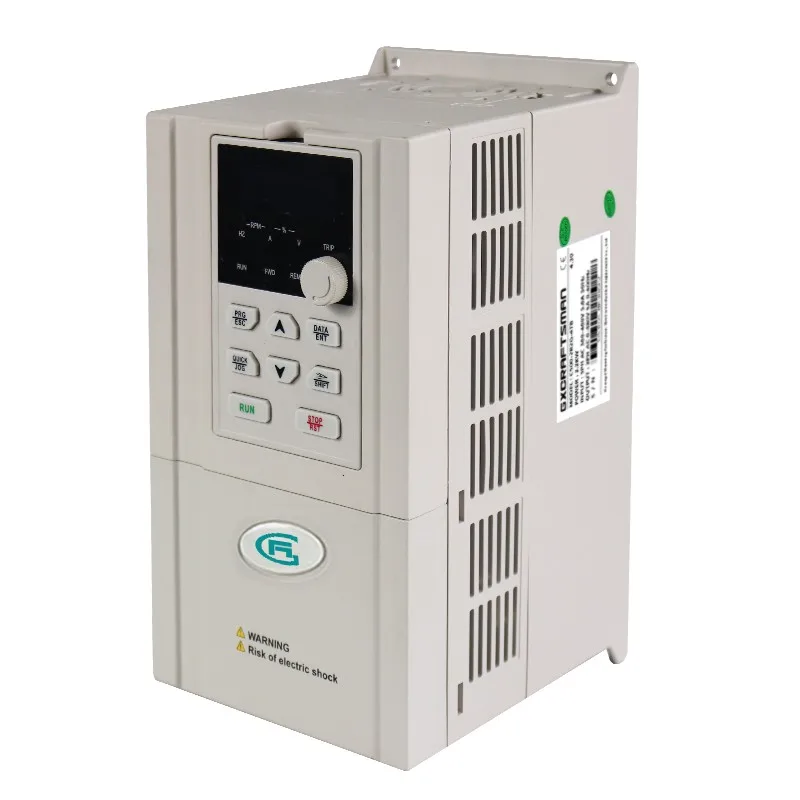

0.75KW solar pump inverter with MPPT controller for solar water pumping system
Product Description
This Product is specially designed solar pump inverters.solar pump inverter transfer solar DC current to be AC to drive the water pump to work.With unattended automatic operation function.No need for batteries, water storage instead of battery, easy installation, low cost and low maintenance, economical and environmental protection,zero carbon emissions,widely used in solar agriculture irrigation.irrigation station renovation,domestic water suooly,desert greening,etc.area.
Item | Description | ||||||
Product Name | 0.75KW solar pump inverter with MPPT controller for solar water pumping system | ||||||
Model | SV500-0R7-4TB | ||||||
Output Power(KW) | 0.75KW | ||||||
AC input voltage(V) | Three phase 380~480V AC | ||||||
MPPT voltage range(Vmp) | 500~700V DC | ||||||
Input DC voltage range(VOC) | 2S、2T：70~450V DC 4T：250~800V DC | ||||||
Over-load capacity | 150%：60S；180%：10S；200%：1S | ||||||
Output frequency | 0~600HZ(Default：50/60HZ) | ||||||
Ambient Temperature Range | -20℃~60℃，>45℃ or altitude above 1000m，Derating as required | ||||||
Cooling Method | Fan Cooling | ||||||
Communication port | Standard isolater RS-485，Modbus protocol | ||||||
IP grade | Standard：IP20 (can customized IP54 or IP65) | ||||||
Built-in protection | Shortage of water protection for deep well，Full of water protection for tank，Light weak sleep，Light intensity wake-up，Lightning protection，Overvoltage protection，Undervoltage protection，Overcurrent protection，Dry pumping protection，Overload protection，Phase loss protection，Short circuit protection，Overheat protection. | ||||||
Product analysis

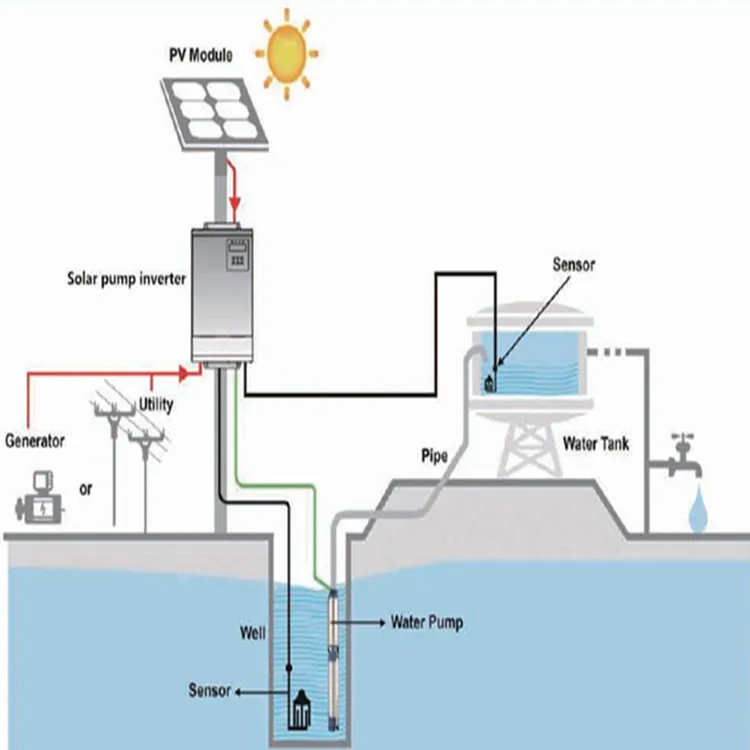

The solar pump system is mainly composed of solar panel,solar pump inverter,water pump,PV combiner box,mounting bracket,cables,water level sensor and other necessary accessories.The generation technology is used to solve the problem of water supply.It is widely used in agriculture irrigation,irrigation station reconstruction,household water supply and desert greening,where there is no electricity or insufficient electricity.
The photovoltaic array is made up of many solar panels connected in series and in parallel,and the solar energy is converted into electric energy by absorbing the solar radiation energy to provide power for the solar pump system.
The solar pump inverter transfer the solar DC to be AC,drives the water pump to supply water,with the functions of MPPT,water level control,AC/DC switching,fully automatic operation,etc.,to control and adjust the whole system operation.
The pump are deep well pump,submersible pump,horizontal centrifugal pump,vertical multistage centrifugal pump,driven by single-phase or three phase AC motors,pumping water from deep well,river and lake,injecting pool or tank,or agricultural irrigation and domestic water supply.
The mounting bracket provides fixed and support for the solar panel.It is installed at the best angle according to the latitude of different regions to achieve the maximum power generation efficiency of solar modules.With good performances of earthquake resistance,wind resistance and corrosion resistance,and solar panel can be installed on the ground or roof.
The accessories are mainly DC/AC cables,water pipes,water lever sensor,wire rope for hanging pump,DC/AC multi-meter,MC4 connector,filter,reactor,etc.
Product Specification
- Applicabal for various motors like IM, PMSM, BLDC etc.
- Use for single-phase 110V/220V and three-phase 220V/380V pumps.
- Power range:0.75KW-220KW. Built-in high-precision MPPT function, with accuracy reach up to 99%, make full use of solar energy.
- Automatic shutdown and restart, fully sutomatic contro, unattended.
- (1)Well: Automatically stop when shortage of water, and automatically restart when with enough water.
- (2)Tank: Automatically stop when full of water, and automatically restart when with shortage of water.
- (3) Automatically sleep when sun is weak,such as sunset;automatically restart when sun is strong, such as sunrise;
- Compatible with solar and mains power (or generator) input;
- Optional boost module for small power solar pump inverter, to reduce the number of solar panel and reduce the system cost.
- RS485 real-time remote monitoring system, remote control and monitoring system status.

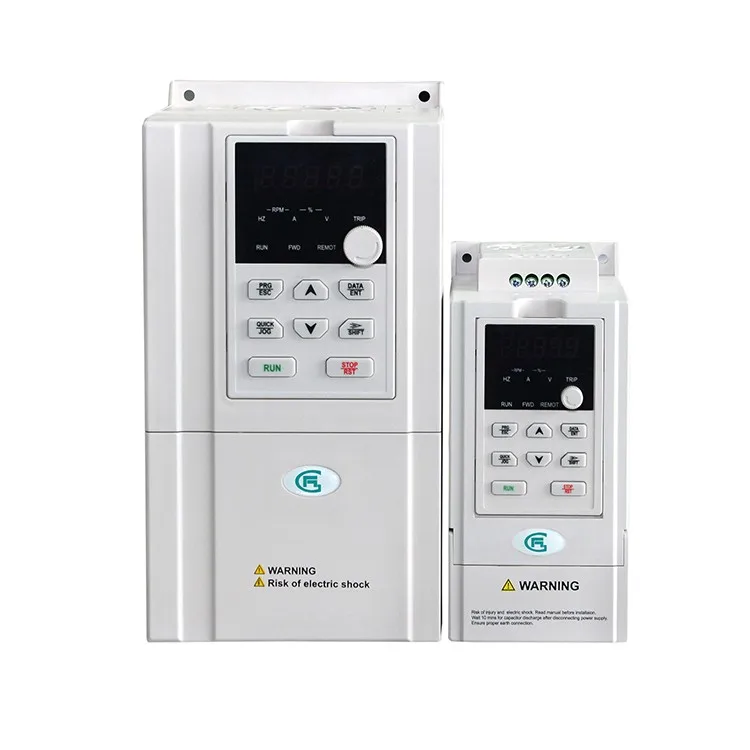

SV500 Series solar pump inverter
Model No. | AC input voltage/V | MPPT voltage range(Vmp) | Output power(KW) | Input Current/A | Output Current/A |
SV500-0R7-4TB | 3 Phase 380~480V DC | 500~700V DC | 0.75 | 3.4 | 2.5 |
SV500-1R5-4TB | 1.5 | 5 | 3.7 | ||
SV500-2R2-4TB | 2.2 | 5.8 | 5 | ||
SV500-004-4TB | 4.0 | 10 | 9 | ||
SV500-5R5-4TB | 5.5 | 15 | 13 | ||
SV500-7R5-4TB | 7.5 | 20 | 17 | ||
SV500-011-4TB | 11 | 26 | 25 | ||
SV500-015-4TB | 15 | 35 | 32 | ||
SV500-018-4TB | 18.5 | 38 | 37 | ||
SV500-022-4T | 22 | 46 | 45 | ||
SV500-030-4T | 30 | 62 | 60 | ||
SV500-037-4T | 37 | 76 | 75 | ||
SV500-045-4T | 45 | 90 | 90 | ||
SV500-055-4T | 55 | 105 | 110 | ||
SV500-075-4T | 75 | 140 | 150 | ||
SV500-090-4T | 90 | 160 | 176 | ||
SV500-110-4T | 110 | 210 | 210 | ||
SV500-132-4T | 132 | 240 | 250 | ||
SV500-160-4T | 160 | 290 | 300 | ||
SV500-185-4T | 185 | 330 | 340 | ||
SV500-200-4T | 200 | 370 | 380 | ||
SV500-220-4T | 220 | 410 | 415 |
SV100 Series solar pump inverter
Model No. | AC input voltage (V) | MPPT voltage range(Vmp) | Output power(KW) | Input current(A） | Output current(A) |
SV100-0R7-2SB | Single phase 220~240V AC | 250~350V DC | 0.75 | 8..2 | 4.5 |
SV100-1R5-2SB | 1.5 | 14.2 | 7 | ||
SV100-2R2-2SB | 2.2 | 23 | 10 | ||
SV100-0R7-2TB | 3 Phase 220~240V AC | 250~350V DC | 0.75 | 5 | 4.5 |
SV100-1R5-2TB | 1.5 | 7.7 | 7 | ||
SV100-2R2-2TB | 2.2 | 11 | 10 | ||
SV100-0R7-4TB | 3 Phase 380~480V AC | 500~700V DC | 0.75 | 3.4 | 2.5 |
SV100-1R5-4TB | 1.5 | 5 | 3.7 | ||
SV100-2R2-4TB | 2.2 | 5.8 | 5 | ||
SV100-004-4TB | 4 | 10 | 9 |
Application
Demand:
Pakistan is a big country with traditional agricutural production.Due to the shortage of electricity,when agricultural irrigation needs water,it often loses power,which will have a great impact and loss on the cultivation of local farmers.
Soultion:
Adopting the new Craftsman 3KW photovoltaic pump system,the 4.8KW solar module drives the 3KW water pump through the 4KW photovoltaic pump inverter.The system pumps water from the 8m water depth to the adjacent reservoir,and the flows through the channel to each in the farmland,working 6-8 hours a day,100~150 cubic meters of water can be pumped for farmland irrigation,solving the water can be shortage due to power shortage and water shortage,fully automatic operation,no operation.
Demand:
The farm is located in the mountains and deserts,with drought all year round,long sunshine radiation,inconvenient water supply,unable to meet the demand for electricity in the farm,and the high dependence of the fishery on water.Considering the power grid limit,the electricity price during the day is high and the electricity price is low at night.Introducing the new Craftsman photovoltaic pump power supply system to provide protection for fish farming and farm electricity,saving electricity costs.
Soultion:
The new Craftsman 100KW ground fixed + 50KW roof-type photovoltaic pump power supply system is used.During the day,all solar energy is used to power the pump,and the night electricity consumption is low and the electricity price is low.Now saves $1,500 in electricity bills per month,which not only solves the demand for electricity,but also saves the overall cost of electricity.
