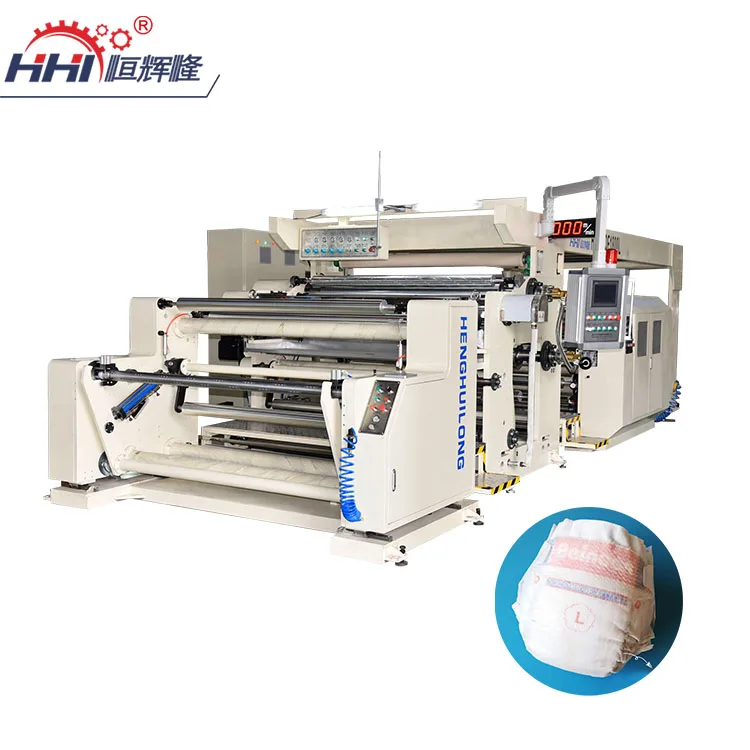

HHL-HQF1800B высокоскоростная машина для ламинирования детских подгузников горячего расплава
- Категория: Ламинаторы >>>
- Поставщик: Guangdong,Henghuilong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.52 $* | 0.10 $* |
| Aug-18-2025 | 0.29 $* | 0.55 $* |
| Jul-18-2025 | 0.80 $* | 0.10 $* |
| Jun-18-2025 | 0.65 $* | 0.83 $* |
| May-18-2025 | 0.26 $* | 0.33 $* |
| Apr-18-2025 | 0.8 $* | 0.48 $* |
| Mar-18-2025 | 0.60 $* | 0.43 $* |
| Feb-18-2025 | 0.91 $* | 0.97 $* |
| Jan-18-2025 | 0.84 $* | 0.72 $* |
Характеристики
Our machinery can produce products in five industries, namely:
1.Disposable hygiene products industry（diaper frontal tape、side tape、s cut tape、magic tape）
2.Medical industry (protective clothing fabric composite machine, mask machine)
3.Apparel/Automotive Industry (Textile Machinery)
4.Medical tape industry
1.Disposable hygiene products industry（diaper frontal tape、side tape、s cut tape、magic tape）
2.Medical industry (protective clothing fabric composite machine, mask machine)
3.Apparel/Automotive Industry (Textile Machinery)
4.Medical tape industry
If you need to know more, please click here
Medical protective clothing /isolation garments/diaper backsheet/bed sheet
Material | Non-woven+PE film |
Unwinding&Winding Station | Single Unwinding & Double Winding Station |
Max Material Width | 1650mm |
Roller surface width | 1800mm |
Machine total output | ~65Kw |
Glue type | Hot melt |
Glue coating speed | 6~200m/min(depend on the specification, raw material thickness uniformity and so on) |
Heating mode | Combination of oil heating and electric heating |
Cooling mode | Water cooling |
Oil temperature control | 50-200℃±1℃ |
Max length of paper code | 1750mm |
Paper code inch | ID76mm×OD92mm |
OD of winding and unwinding air expension shaft | 74mm |
Coating effective width | 600-1650mm |
Glue amount | 2-4g |
Tension control range | 2-20kg/full width |
Tension control precision | ±0.5kg/full precision |
Processing method：

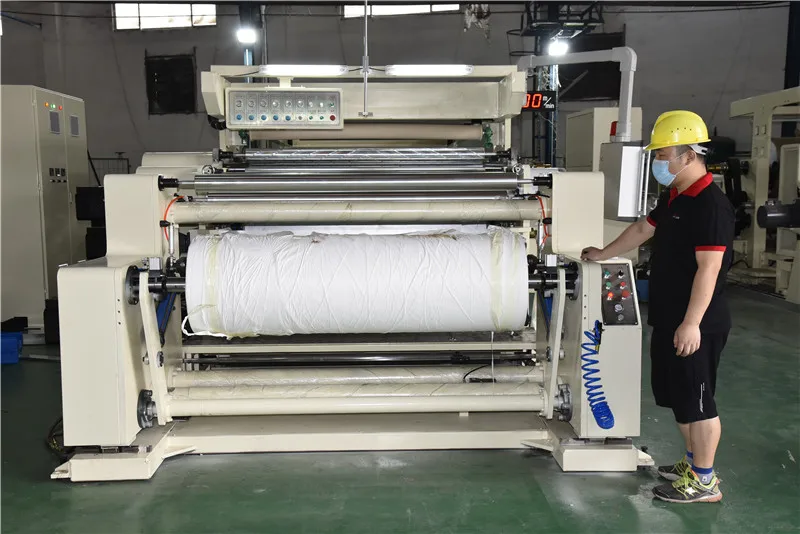

PE film unwinding unit-NW unwinding unit-coating&compound unit-winding unit
Main features：
1. Max machine speed: 230m/min
2. The satndar configuration of imported device is adopted: 4 stages vector frequency conversion motor linkage tension control
system, and 3 stages tension are detected by low tension cylinder swing roller mechanism, with high precision and high sensitivity
tension control.
3. Remote acceleration and deceleration and automatic speed control, tension and speed linkage control, acceleration and
deceleration stability.
4. Optional acceleration and deceleration curve, whether the acceleration and deceleration ring bell, meter reached the set value
whether the automatic deceleration stop, and other personalized functions. Fully embodies the people-oriented design concept of
science and technology.

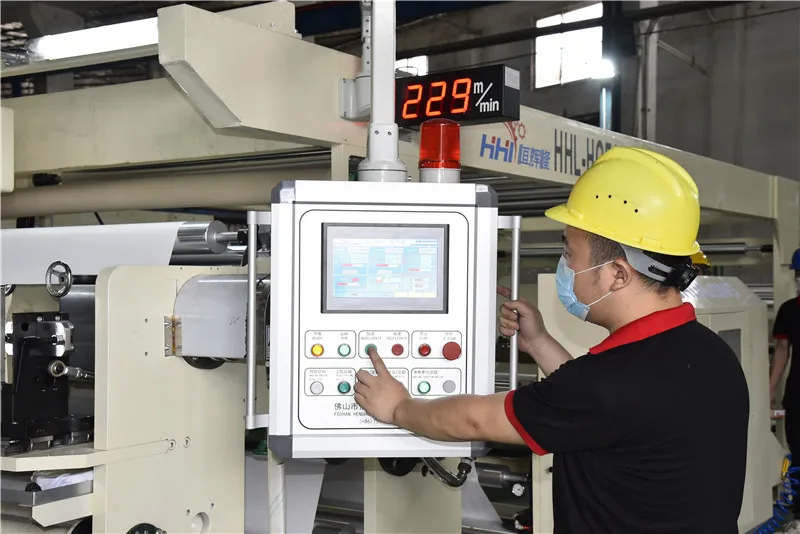

5.Mitsubishi FX3U series PLC centralized control, man-machine interface Chinese display operating system. Integrated design of
machine, electricity, light and gas, with perfect safety protection function.
PE film unwinding unit-NW unwinding unit-coating&compound unit-winding unit
Main features：
1. Max machine speed: 230m/min
2. The satndar configuration of imported device is adopted: 4 stages vector frequency conversion motor linkage tension control
system, and 3 stages tension are detected by low tension cylinder swing roller mechanism, with high precision and high sensitivity
tension control.
3. Remote acceleration and deceleration and automatic speed control, tension and speed linkage control, acceleration and
deceleration stability.
4. Optional acceleration and deceleration curve, whether the acceleration and deceleration ring bell, meter reached the set value
whether the automatic deceleration stop, and other personalized functions. Fully embodies the people-oriented design concept of
science and technology.
5.Mitsubishi FX3U series PLC centralized control, man-machine interface Chinese display operating system. Integrated design of
machine, electricity, light and gas, with perfect safety protection function.

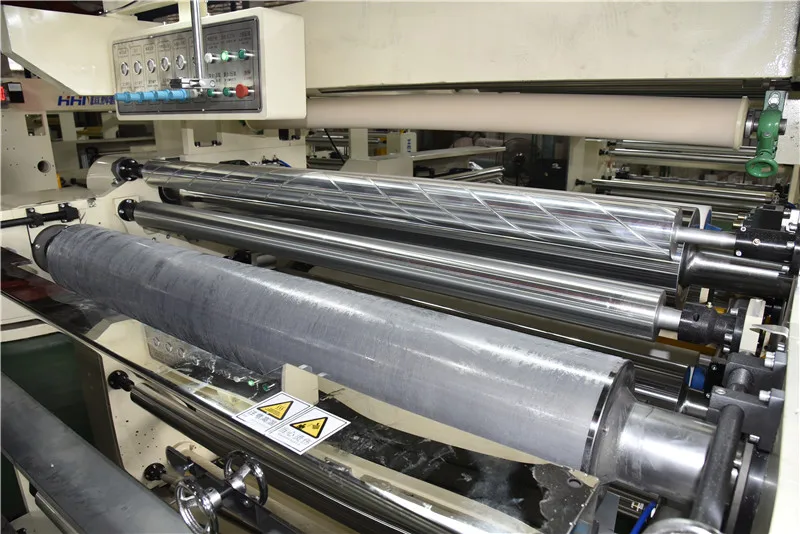

Comparison of the properties for Dot transfer lamination & Suspension scraping lamination
Item | Dot transfer lamination（other used） | Suspension scraping lamination（we used） | ||||
Post-maintenance | Frequently changing the width of the rubber baffle will result in a short life of the rubber baffle. The rubber baffle needs to be replaced frequently. The scraper blade is replaced in about 30 days. The rubber roller is often repaired and replaced, which is troublesome to disassemble. | Since the width of the glue is changed, there is no need to adjust the rubber baffle, and the rubber baffle has a long life. The pressure of squeegee for suspension scraping coating is 2-3KG air pressure relative to the squeegee for dot transfer coating, so the life of the squeegee is relatively long. | ||||
Frequently change the width of the glue coating, the baffle is easy to damage | The rubber roller is easy to be deformed and needs maintenance, and the accuracy must be well controlled. | |||||
Glue coating material | Not suitable for high air permeability and perforated materials, and not suitable for low weight materials, such as (8-15g non-woven fabric, etc.) | Breathable and non-breathable materials, both high and low weight materials are available, and mesh materials can also be coated | ||||
Q1: What Industry is your product suitable for?
A1:Our machines are widely used in the fields of disposable hygienic products,disposable medical products, clothing, textile fabrics, self-adhesive labels, medical tape, plaster backing, and various othercoating compounds.
Q2：What if the machine fails during use?
A2:Our machines will be carefully inspected and ensured before delivery,and we will provide the correct instructions for use of the products. In addition, our products support lifetime warranty service, if there any question during using our products please consult our work personnel.
Q3: When can I get the machine after payment?
A3:The product production time about 45-60 days. We will deliver it on time as the date we agreed both side.
Q4: How can I install my machine when it arrives?
A4:We will provide installation videos and tutorials, or send our engineer to your side ASAP
you get all your machines ready, for testing and teaching your technicians how to run the machine.
you get all your machines ready, for testing and teaching your technicians how to run the machine.
Q5: What payment do you accept?
A5:We generally accept T/T or L/C, and we can negotiate the payment method.
A5:We generally accept T/T or L/C, and we can negotiate the payment method.
