Характеристики
Product Description
Paper and PVC film lamianting machine
Plastic film cover laminating machine for PVC ceiling and door board laminating
wood panel lamination hot hydraulic press machine manual
white glue panel laminating machine
paper sticking machine
furniture board laminating line
This type machine is the best choice for laminate decorative material (PVC,PE, wood grain paper etc.)on the surface of the flat board(MDF board,density board, particle board, aluminum panel,steel panel,PVC panel etc.It equipped with dust-cleaning part, glue coating machine,glue heating part, cold and hot pressure part,can finish dust-cleaning, glue coating, hot & cold pressure, material sticking.The final product has a flat surface without wrinkles
the application
The glue: the white glue, water based or oil based PU glue and other glue can coat and stick in the common temperature.
The panel:MDF/HDF, Particleboard, MGO board,WPC board,PVC board,plywood board, gypsum board, foamed board, etc. All the board surface must be flat and mo more than 0.2mm.
The decorative material: HPL/CPL, the PVC film, PU paper, Kraft paper, paint paper, cloth, leather, wooden veneer.the material must be roller.

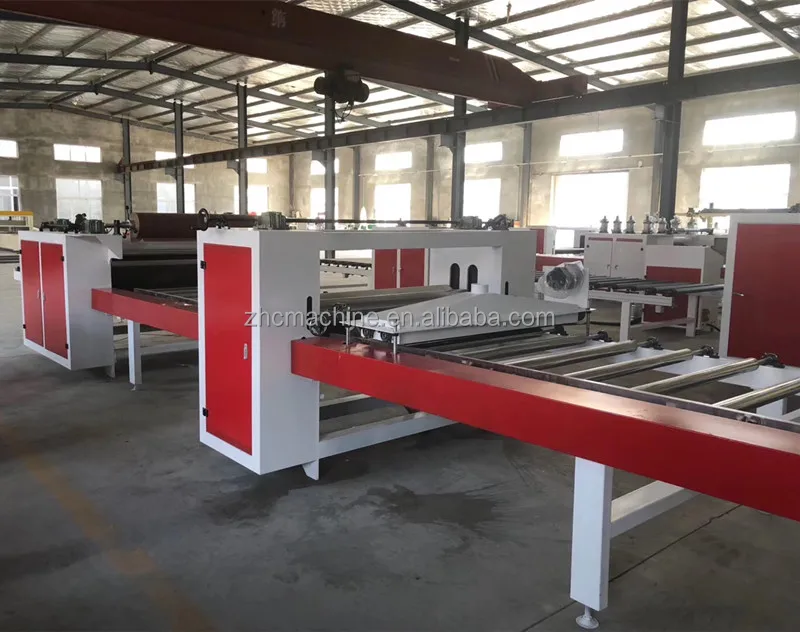

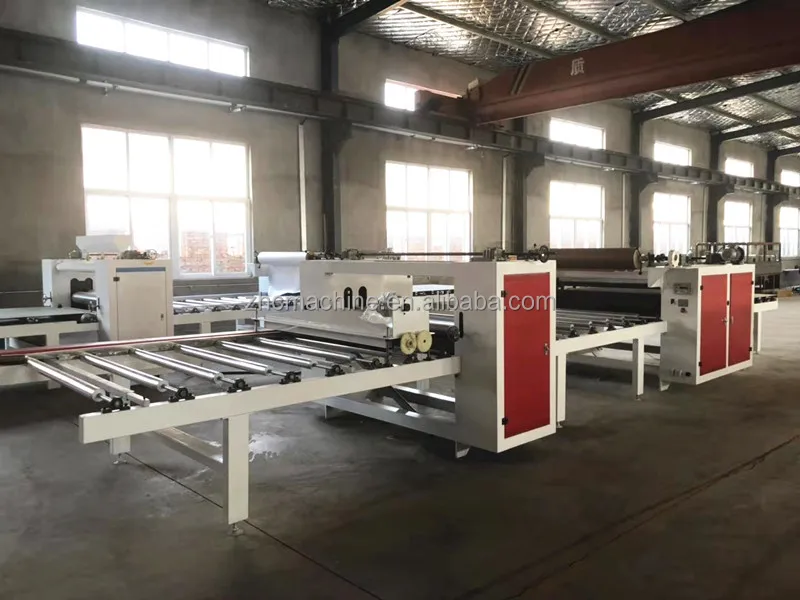

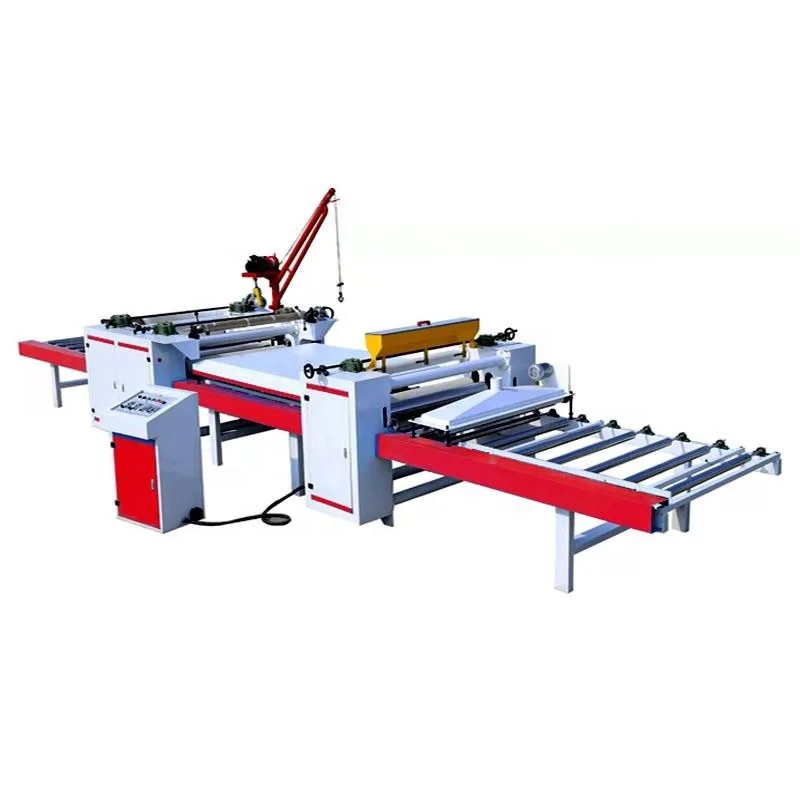

the reference machinery picture
Technical parameters
Paper and PVC film lamianting machine
| Item | 1350TZ-D |
| Pressing roller control | air cylinder(when change thickness of the panel, need to adjust the air cylinder one by one) |
| Main body of the machine | Made by 14mm steel plate |
| Voltage | 380V/50HZ |
| Rated power | 18KW |
| Glue coating roller | φ190x1350mm( silicone ) |
| Heating steel Pressing roller | φ190x1350mmx2PCS |
| Rubber pressing roller | φ190x1350mmx2PCS |
| Max processing thickness | 50mm |
| Max.work width | 1350mm |
| working speed | 1-15m/min |
| Overall dimensions | 9600*2300*1600mm |
| Machine weight | 2000kgs |
| Delivery time | Within 15 working days |
| Terms of payment | 30%deposit, paid off the balance before delivery. |
Detail information with pictures for
Paper and pvc film laminating machine

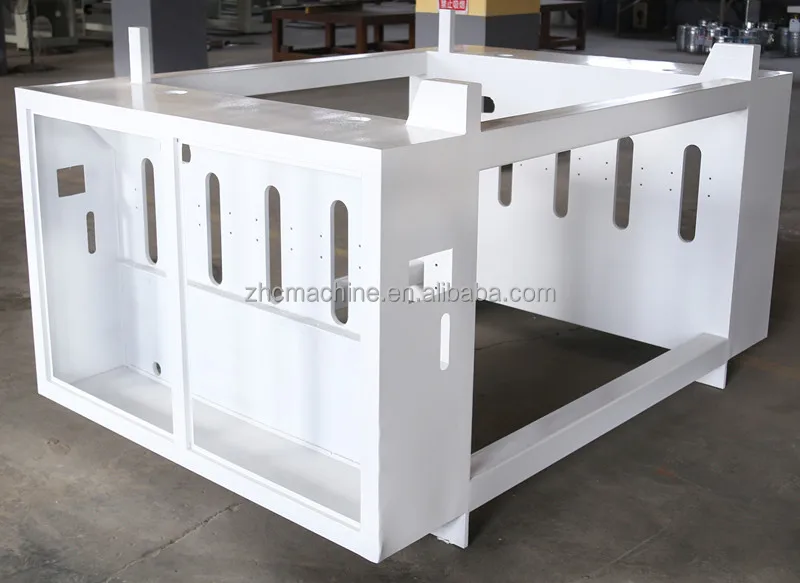

1st the strong and stabilization machine body.
Paper and PVC film lamianting machine

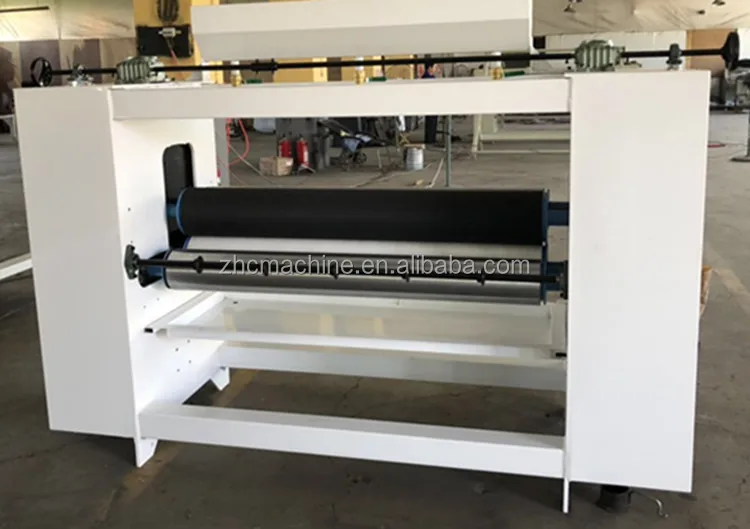

The glue coating part
1:Steel roller together with rubber roller makes the glue coating more uniform.
2:The machine adopt big glue box, adding glue will be more convenient and quick.
3:Main body made by 16mm thickness steel panel,make sure the service life of the machine longer
The pressing part
Paper and PVC film lamianting machine
1:Two sets of hot steel pressing roller together with two sets of cold rubber pressing roller.
2:The steel rollers continuous heating in a constant temperature to make sure the surface much more flat.
3:Main body made by 16mm thickness steel panel,make sure the service life of the machine longer

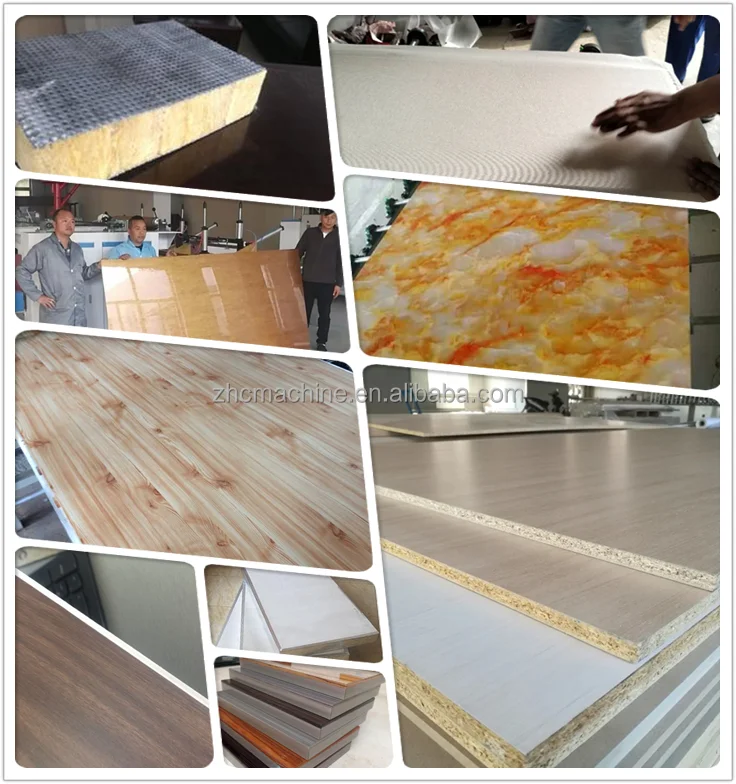

the samples showing
Paper and PVC film lamianting machine
This photo shows laminate pvc film on Particle board,the surface is flat and strong.
Packaging & Shipping
Company Information
WE have more than 12 years experience for produce Woodworking Machine (Paper and PVC laminating Machine, PUR Laminating Machine, Profile Wrapping Machine, CNC router and vacuum membrane press machine.)
Our company makes great efforts in the design, development and manufacture of cover adorn machines for many years, and we have accumulated rich experience in products' research and development. We never stop to advance and pursuit best.
The convenient economical design and durable subassemblies help customers use facility easily. We are ready to introduce advanced technology into our new products. For each machine, we really concern about its function and practicability. We believe a good reputation roots from strong quality guarantee. Only with best durable, reliable and credible quality merchandise could win customers' heart, and our present leading position in cover adorn machine field results from it.
Our Services
After sale service of the pvc laminating machine:
One-year warrant for factory defeat,6 months warranty for electric components,we will change new parts under warranty free of charge,hower we don't take responsibilities for parts due to natural wear-out and operation by mistic or any misuses.We promise a whole-life after-sale maintenance and support,call us any time.
Note:Oversea customer may need to undertake the roundway tickets,provide acommodation and food for our after-sale stuff if need our stuff flies over,if not we can only support you by email,videos,camera,ect. will spare no solve problem.
FAQ
1. Are you a manufacturer or a trading company?
We are a professional manufacturer of CNC Router cutting machine
2. What's the price of your machines?
You can inquiry to me directly,best price with suitable machine will provide to you as your material and max process size .
3. What is your payment terms?
Recommend to use Alibaba’s Trade Assurance.
T/T or L/C; by T/T 30% as down payment, 70% by T/T before delivery, 100L/C at sight before shipment.
4.How about your service if i can’t use machine ?
We can provide operate manual and 24-hour technical support by email or calling .
Another we can send engineer oversea to your factory if need .
5.What’s quality assurance of your machines ?
Normally we provide one year quality guarantee And provide spare parts all life with cost price .
