PRY-1300E/1450E Автоматическая гофрированная бумага флейта ламинатор печати магазинов Printyoung 0-90 м/мин 5000


Поделиться:


Цена:60 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 71400.10 $* 74970.34 $*
Aug-15-2025 70800.29 $* 74340.7 $*
Jul-15-2025 59400.99 $* 62370.33 $*
Jun-15-2025 69600.75 $* 73080.87 $*
May-15-2025 60600.81 $* 63630.51 $*
Apr-15-2025 68400.6 $* 71820.48 $*
Mar-15-2025 67800.31 $* 71190.16 $*
Feb-15-2025 67200.57 $* 70560.3 $*
Jan-15-2025 66600.3 $* 69930.6 $*

Характеристики






Product Description

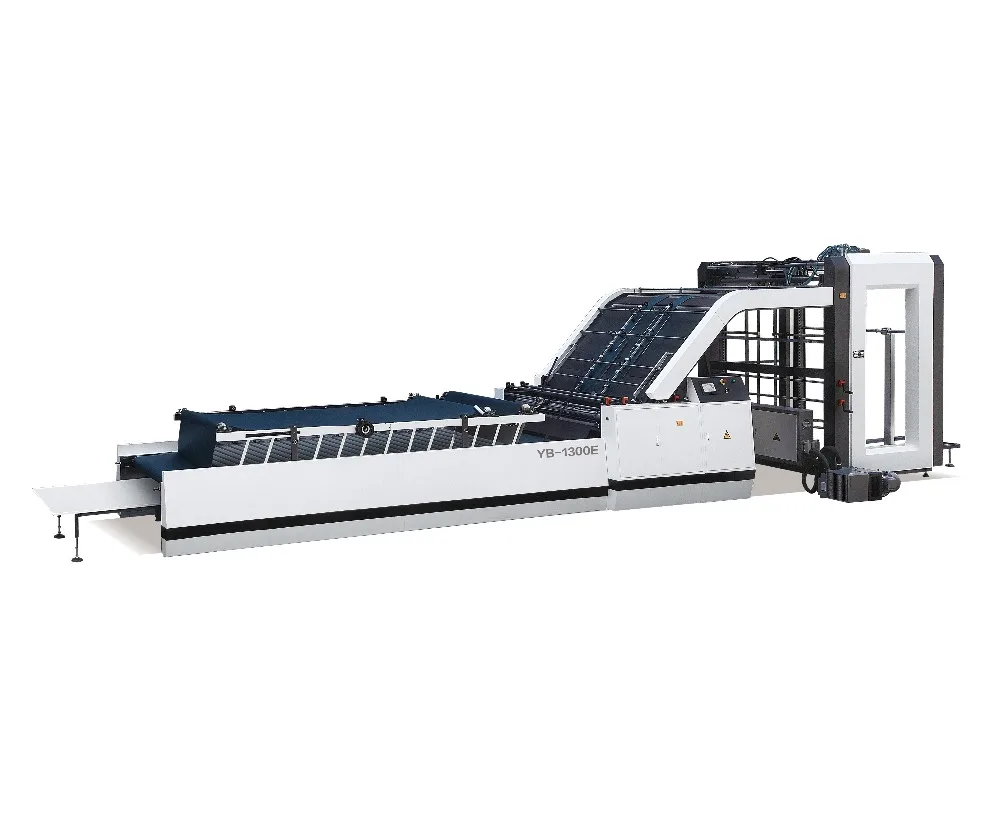

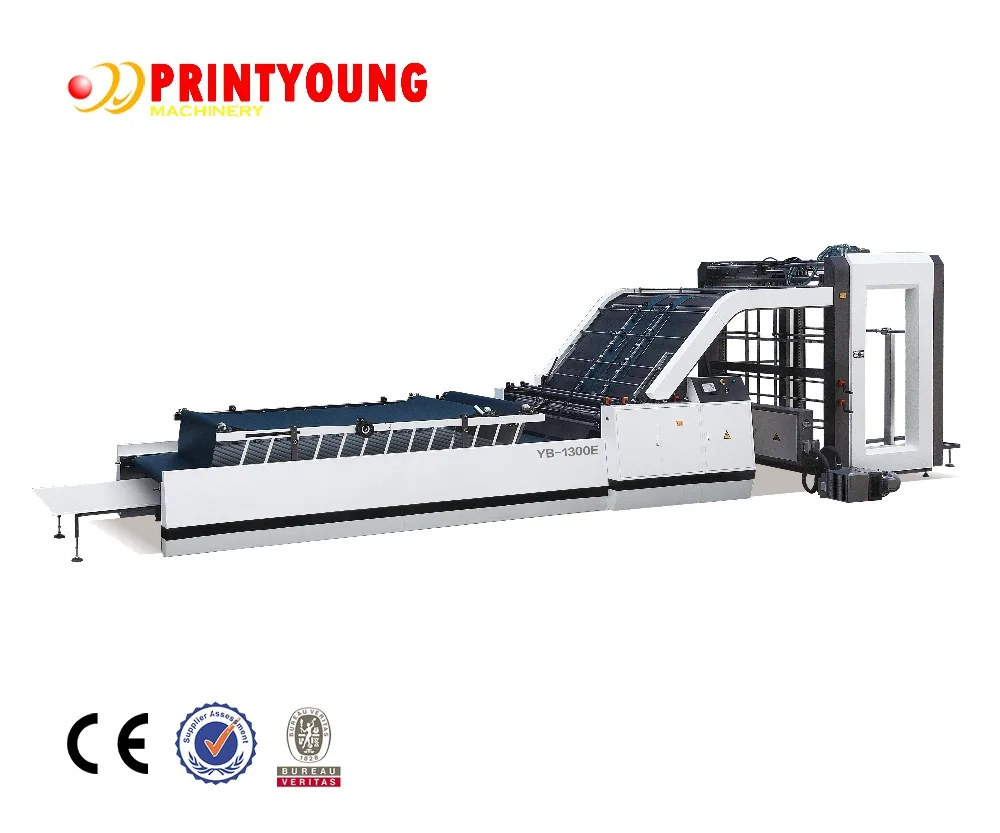

ZBZ-1300E/1450E Automatic corrugated paper Flute Laminating machine




USAGE AND CHARACTERISTIC
.The vacuum suction-type feeding system can lead the paper accurately Into the machine; cycle stacking planes in a state of non-stop the next batchof paper stack well. So that more efficient.
.Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking.
.Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceedes the top sheet.
.Machine uses touch-screen/PLC control system. the circuit system isstable,and can automatically display the failure alarm.
.The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste.
.Floating removable press, to ensure that laminated paper will not be crushed.and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick.
.Control of water tank cleaning cycle using an independent method,clean,hard rubber product.
.For 175g-500g of color cardboard and A/B/C/D/E/F corrugated laminating.





INTRODUCTION
This machine is used for the laminating of color top sheets and corrugated paper. Adopts feeder feeding the top sheet and suction device sending thebottom sheet combines fully automated. Simple operation, easy maintenance: high speed and high precision.








Specifications:



































ModelMax.Sheet sizeMin.Sheet sizeTotal powerSpeedWeightMeasurement
PRY--1300E1300*1100mm400*400mm10kw0-90m/min5000kg100000*2000*2400mm
PRY--1450E1450*1100mm400*400mm12kw0-90m/min6000kg100000*2100*2400mm








Packaging & Shipping
