 FFP3/FFP2 N95 Face Mask Body Making Machine For Folding Mask Making Machine

Product Description

Advantages and characteristics of the production line:

1. Small size, small footprint, aluminum alloy structure, beautiful, strong and rust-free
2. High stability, low failure rate and good accuracy.
3. Computer PLC programming control, servo drive, high degree of automation.
4. Photoelectric (optical fiber) testing raw materials, avoid mistakes
5. The camera is a dual-machine mask, compared with the single-machine mask machine, high efficiency, with automatic packaging line, greatly save manpower and material resources.

Technical specifications
Mode of product	HS-588
Production capacity	50-80 pcs/min
Machine air pressure	0.6Mpa/0.8Mpa
Machine power	4.5KW
Machine size	(L)5500mm*(W)850mm*(H)2050mm
Machine weight	800KGS
Control mode	PLC
Power supply	220V 50/60Hz

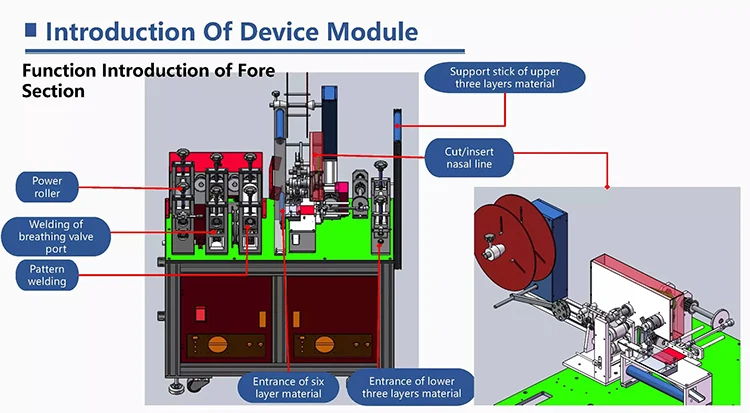

This machine is fully automatic face mask machine.

A body machine and machine to connect two ears.

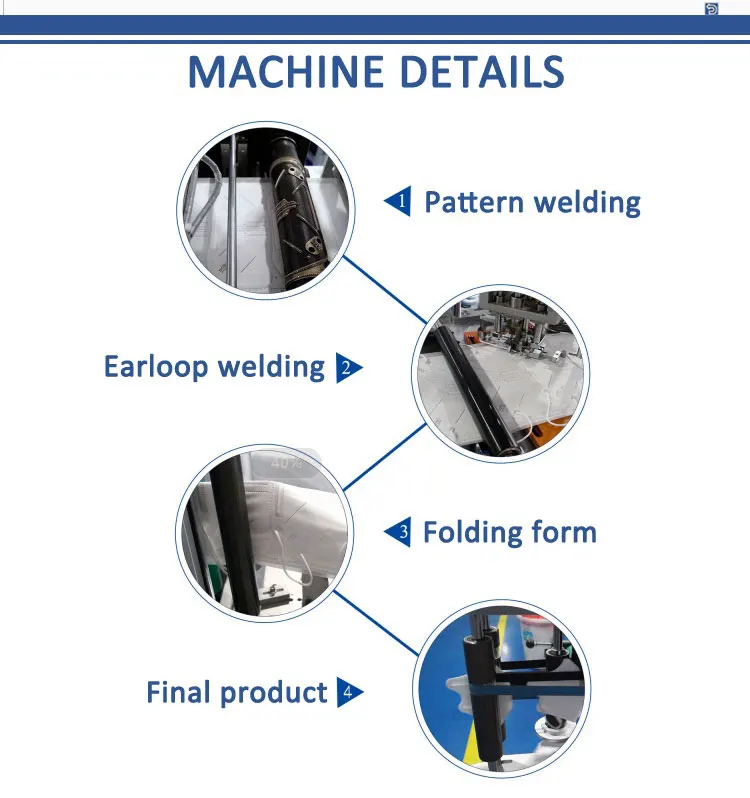

After the machine output mask ontology ontology by the conveyer belt structure to flip the mask body slice institutions, through the flip agencies will face mask plate flip to connect the ear machine conveyor belt, again through the conveyor belt to mask the ear piece to the front of the machine above the first mask plate, finally through the cylinder down the mask onto mask ear machine disc, follow-up by ear masks the ears of the belt welding machine is complete, and actions, such as ear wearing surgical masks to complete a product.

The machine adopts PLC, touch screen control, the main conveyor belt adopts single-phase motor transmission, stepping motor turnover, accurate transmission, stable control, adjustable speed.

Plant installation requirements:
1. Ground load bearing: less than or equal to 500KGS/ m2.
2. Working power :220V+/ -5%, 50Hz, rated power about 15KW(including packaging machine)
3. Operating environment: temperature 10-35 degrees, humidity 3-35%HR, no flammable corrosive gas, no dust, sterile workshop.
4. Compressed air: 0.5-0.7mpa, using flow rate 300L/ min
