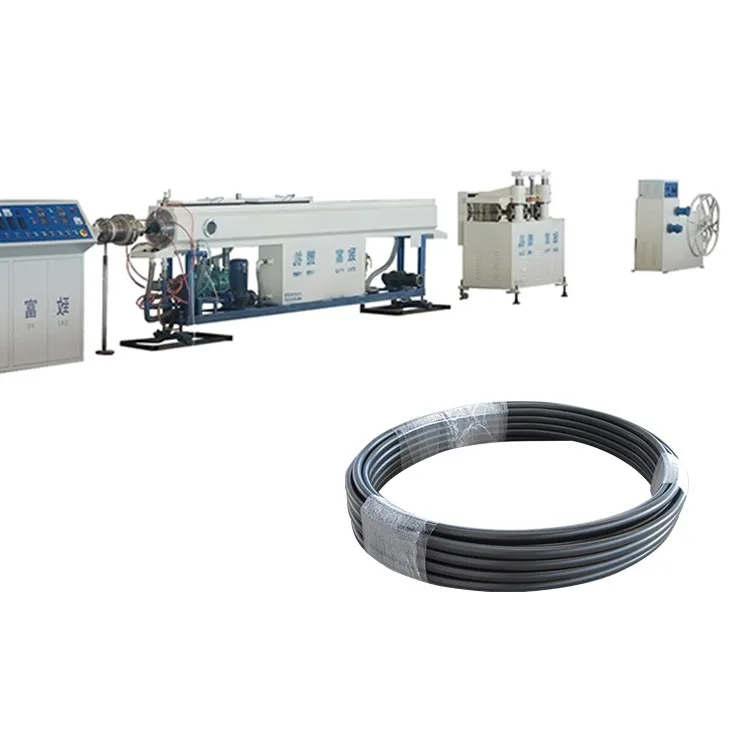

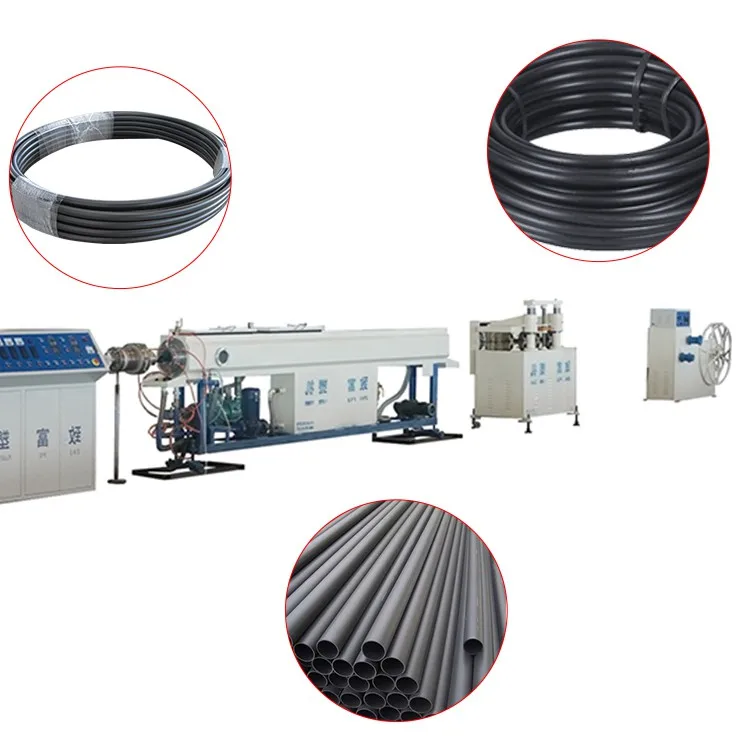

Производственная линия Oem для производства труб из полиэтилена высокой плотности капельного

Описание и отзывы

Трекер стоимости

Характеристики







Main technical parameter

	NO.Parameter	Technical parameter
1	Mold	SJ-45	SJ-65	SJ-70	SJ-90
2	Max.extruding capacity	40 kg/h	60 kg/h	100 kg/h	150 kg/h
3	Main drive power	15 KW	22 KW	30 KW	45 KW
4	Filter changing method	Durable filter	Durable filter	Durable filter	Durable filter
5	Heating power	15 KW	20 KW	35 KW	42 KW
6	Sizing way	Vacuum sizing	Vacuum sizing	Vacuum sizing	Vacuum sizing
7	Pipe specification	Φ16~Φ40	Φ20~Φ75	Φ50~Φ90	Φ63~Φ160
8	Cooling way	Spray+immersion	Spray+immersion	Spray+immersion	Spray+immersion
9	Tracting type	Roller type tractor	Roller type tractor	Roller type tractor	Roller/caterpillar band type for hard pipe
10	Tractor driving power	1.5 KW	2.2 KW	3 KW	4 KW
11	Winding motor	6 N.m	6 N.m	16 N.m	20 N.m
12	Installation power	40 KW	50 KW	75 KW	95 KW
13	Overall dimension	12m×1.6m×2.6m	12.2m×1.6m×2.7m	13m×1.6m×2.7m	15.8m×2.3m×2.8m
		15m×3m×2.6m	16.5m×3m×2.7m	17.5m×3m×2.7m	21m×2.3m×2.8m



Plastic pipe making machine

Introduction :

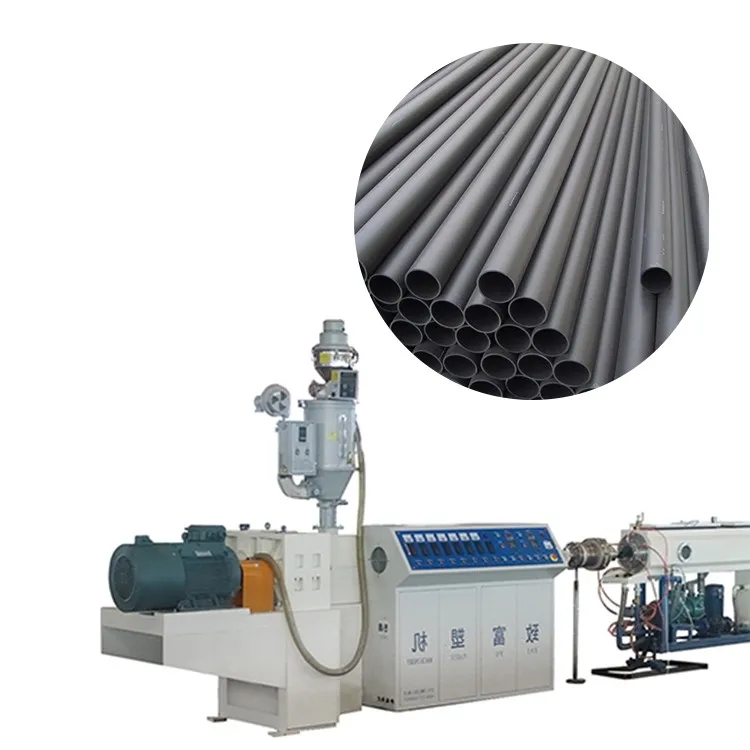

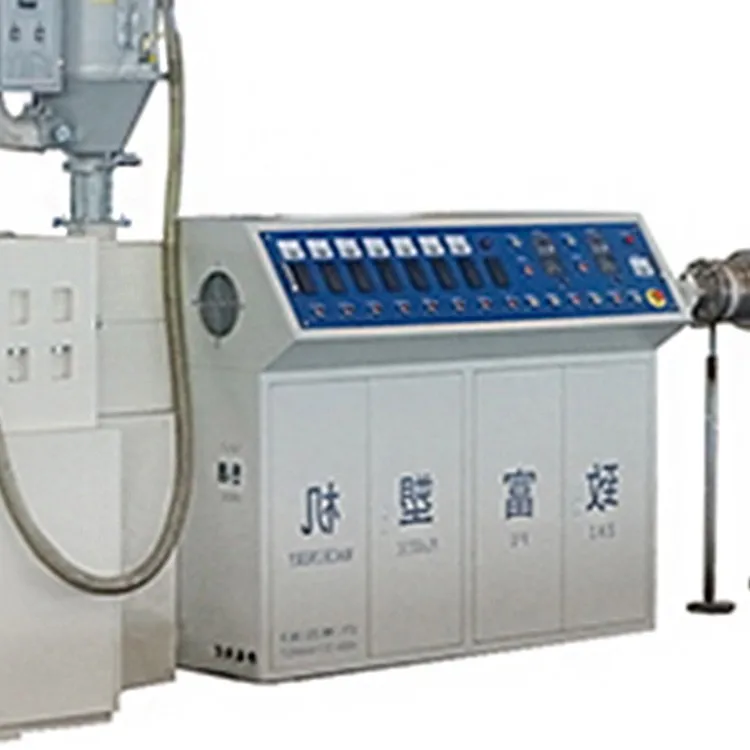

1. The extruder adopts frequency converter control which has the features of easy adjustment, reliable running, stable working and low energy consumption. It adopts independent electric cabinet and it is easy for the whole machine’s centralized control and operation.



2. The screw bolt and barrel of the extruder is made of good quality nitriding steel. The design is reasonable and the plasticizing effect is excellent and it features stable production.

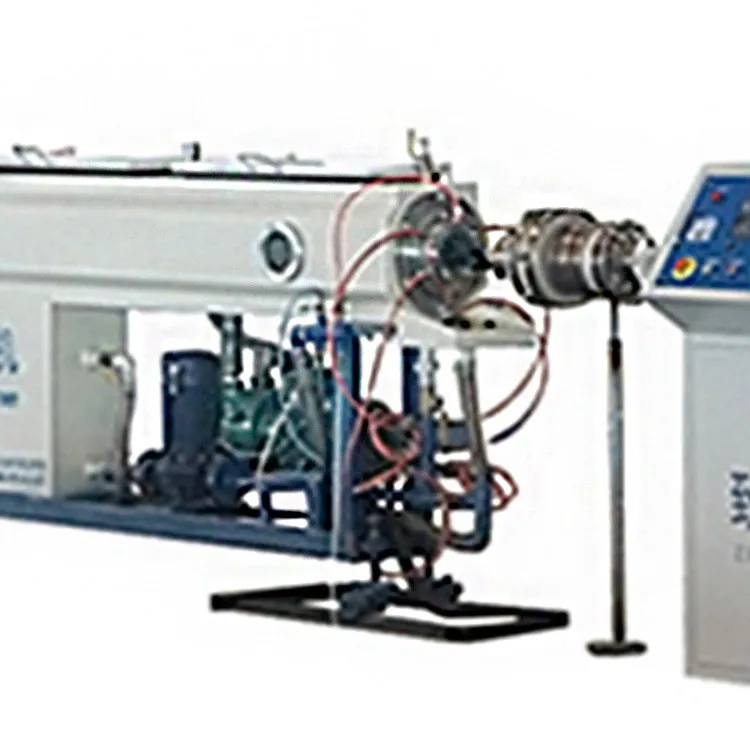

3. Shaping of the pipe adopts center material feeding mold and vacuum sizing. Cooling method is the combination of spraying and leach so the precision of the pipe size is high and the outlook is good.



4. It adopts special-purpose roller type tractor and the pipe will not deform easily due to plasticity.



5. Soft pipe rolling machine adopts torque motor control which overcomes disadvantage of tension. It adopts independent electric cabinet control which is convenient for independent control and operation during production.



6. When producing small diameter pipe change winder to coiler for hard pipe and equip the line with suitable extruding mold, hard pipe can be produced. When producing big diameter pipe, it shall adopt caterpillar type tractor and change winder to pipe rack and equipped with suitable extruding mold and pipe cutting device to produce hard pipe.
