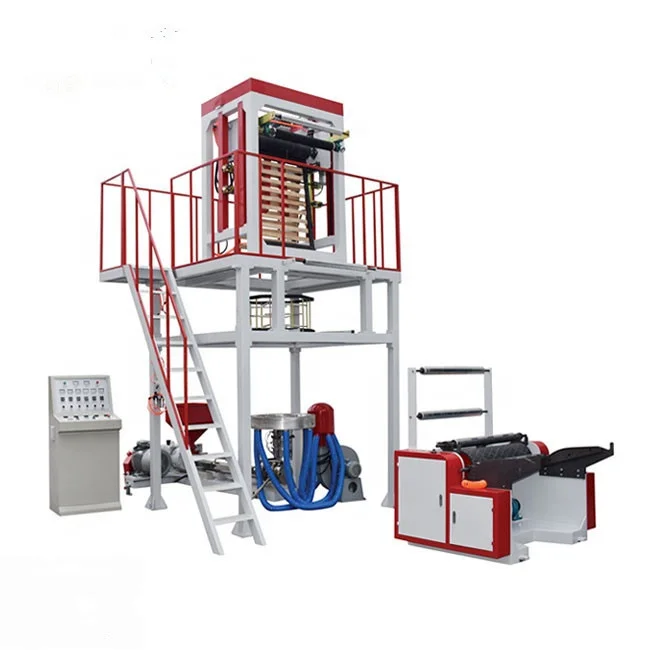

     Taiwan Quality Plastic PE Film Making Machine



1. Machine Introduction

Taiwan Quality Plastic PE Film Making Machine extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed

 in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like

low density polygene (LDPE), high density polygene(HDPE) and linear low density polygene (LLDPE).

It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.



2. Machine Advantages

1, We use stronger steel plate for machine body, which make machine more stable

2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials,  it is very hard.  Copied from Taiwan

3, Hard surface gearbox, the life can be more 5 years.

4, Motor with CE standard, more 10 years life, Siemens Brand.

5, Electric parts is CHINT, best supplier in China.

6, Easy to operate and one worker can run 3 sets

7,  Temperautre Controller:  Omron Brand

8,  Inverter:  LG Brand

9,  Ceramic Heater: Heating faster and Keep warm longer



3. Machine Parameters

Model	SJ-50/MB600	SJ-55/MB800	SJ-60/MB1000	SJ-65/MB1200
Screw Diameter (mm)	Φ50	Φ55	Φ60	Φ65
Screw Length (L/D)	30:1	30:1	30:1	30:1
Film Width(mm)	200-600	300-800	400-1000	600-1200
Film Thickness(mm)	0.006-0.10	0.006-0.10	0.006-0.10	0.006-0.10
Max.Extrusion Output (kg/h)	60kg/h	70kg/h	80kg/h	90kg/h
Die Size(mm)	Φ60/80	Φ80/100	Φ100/120	Φ100/150
Cylinder Cooling (Kw)	0.25	0.25X1	0.25X2	0.25X2
Driving Motor(kw)	15	18.5	22	30
Total power(kw)	28	36	42	48
Cover Dimension(m)	5.0*2.1*3.8	5.0*2.3*4	5.5*3.3*4.2	5.8*3.6*4.5
Weight of Machine(kg)	2000kg	2400	2800	3000

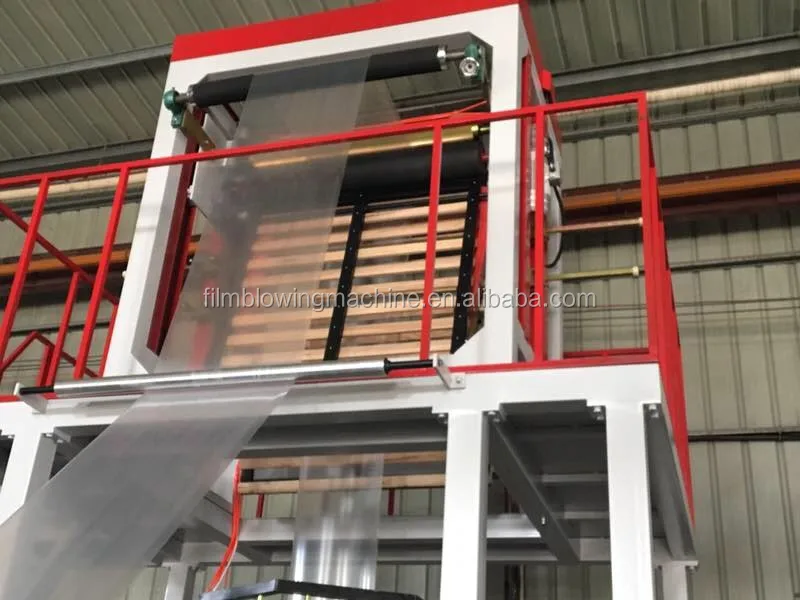

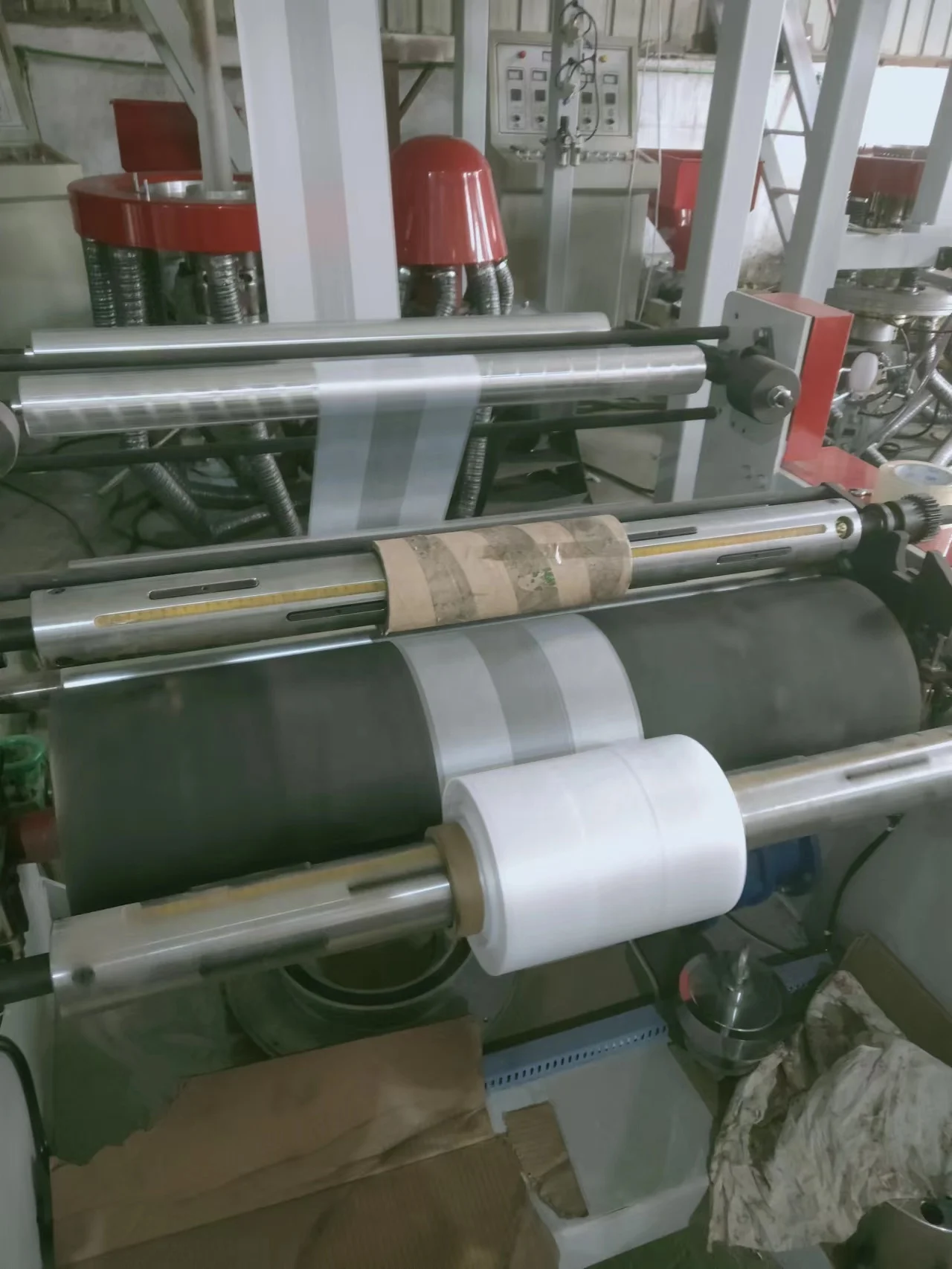

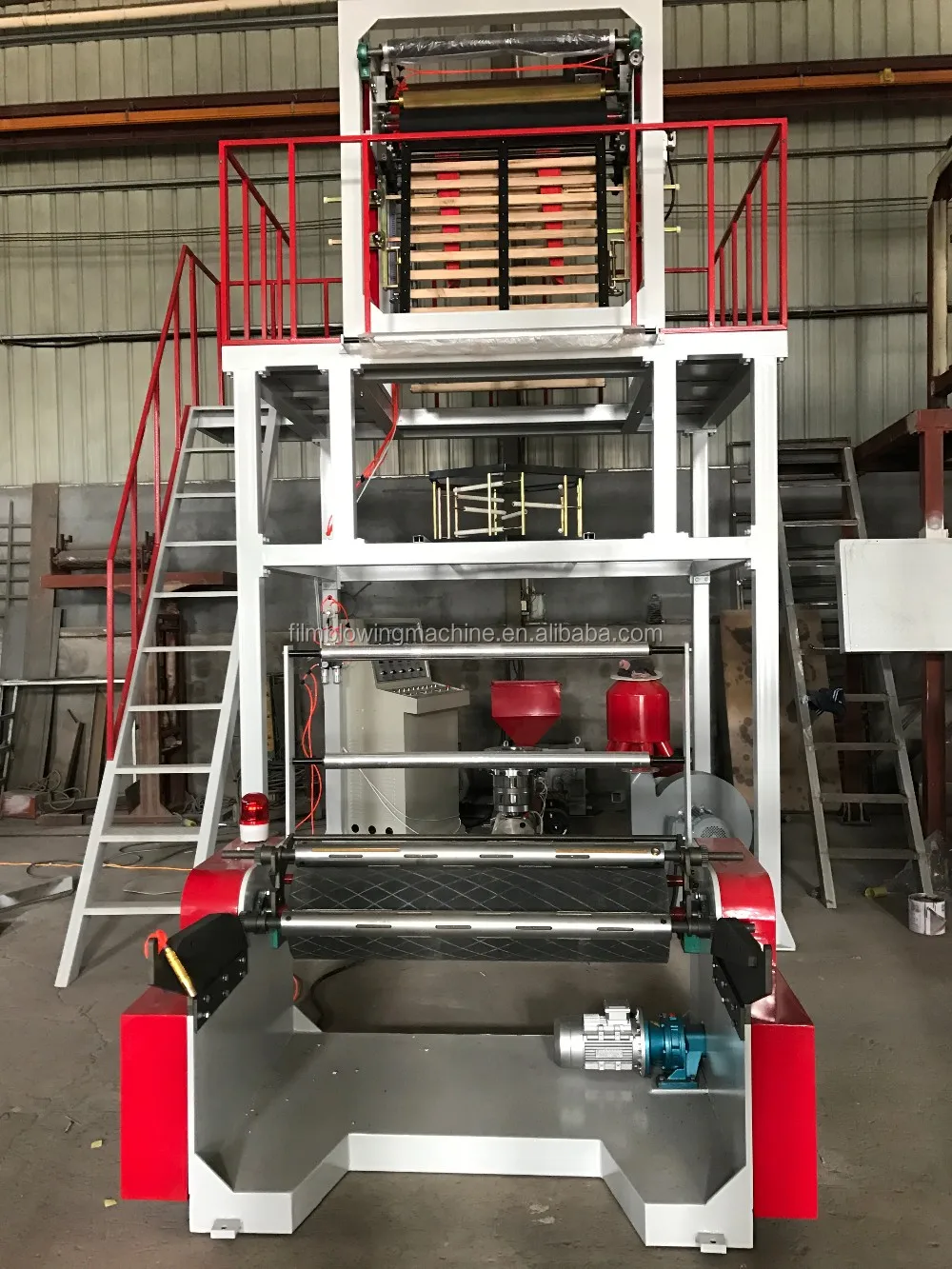

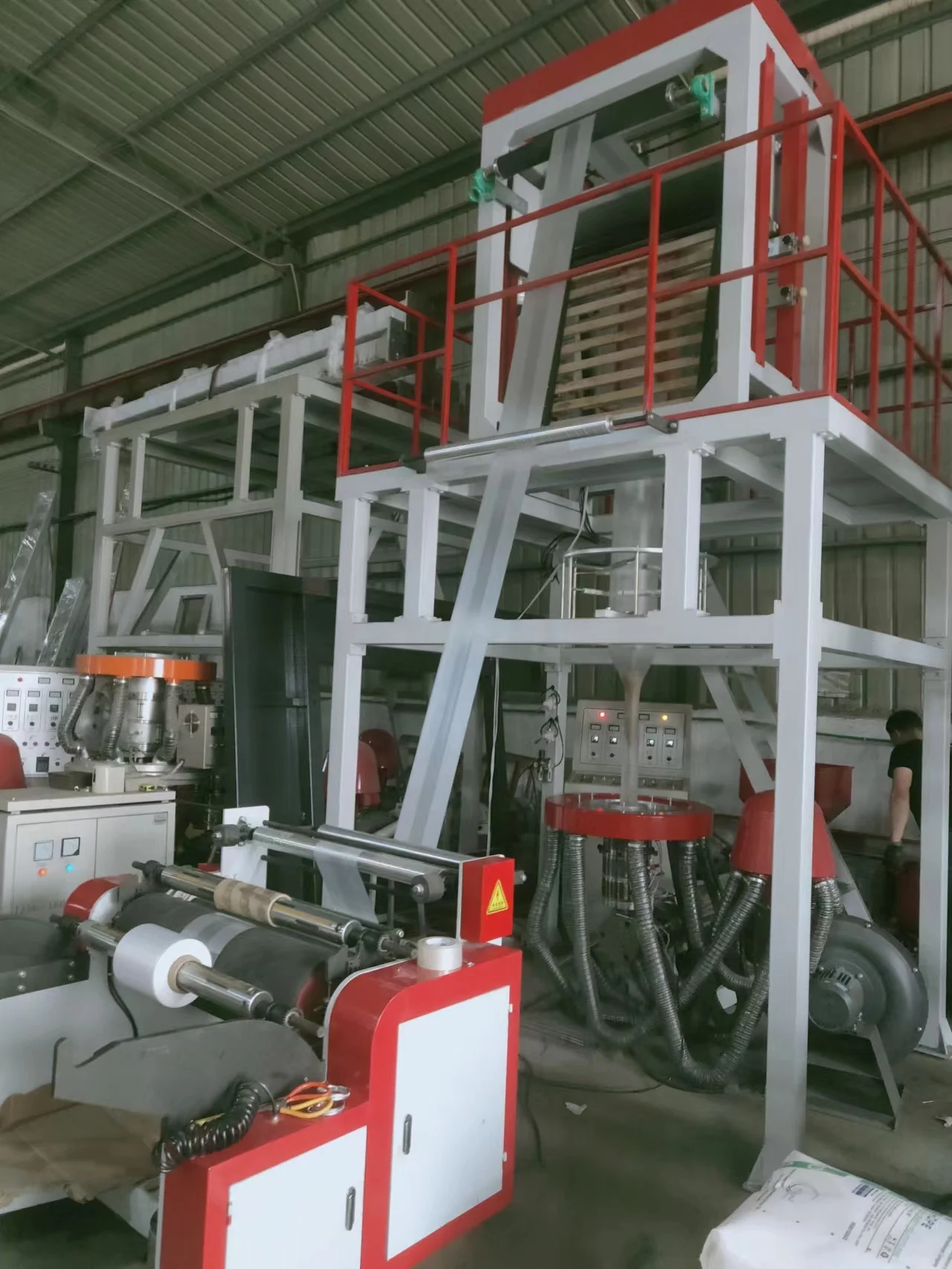

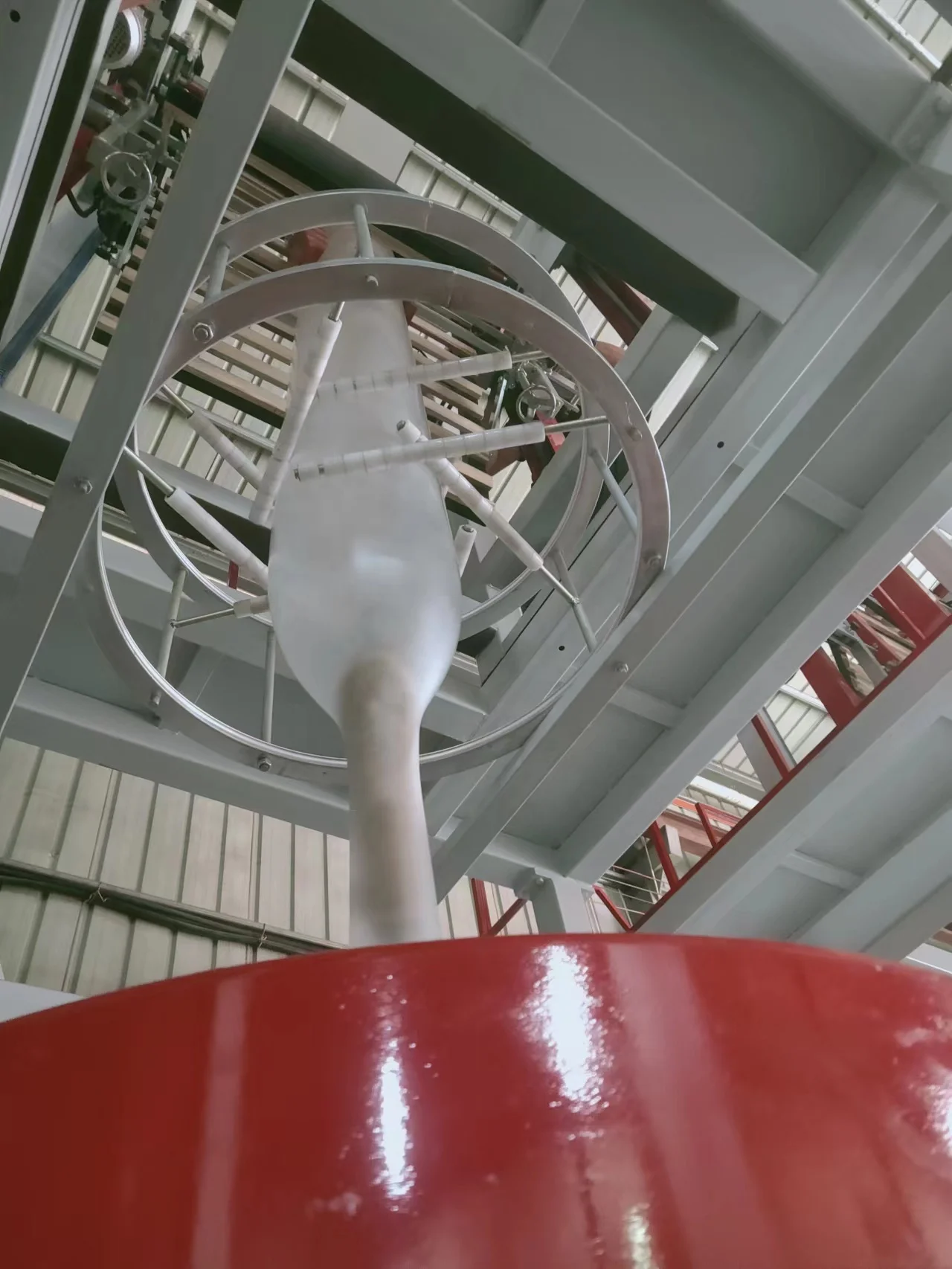

4. Machine Details



We also have other products,If you interest Please Click it

Film blowing machine

Plastic bag making machine

Plastic Printing machine

Recycling machine

1,Q: Your factory is trading company or factory?

A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.

We are Factory, so we have cost advantage than others



2, Q: How do your company control the machine quality?

A: First we control the raw materials quality.

Second, we control the quality of machine when we are processing.

Third, Our installment engineer will test machine.



3, Q: How about payment term, payment safety and delivery time?

A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.

Delivery time is 20 to 30 days. It is according to order quantity.



4,Q: What is your company after sale service?

A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.

Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
