Kitchen and bathroom basket CNC forming machine 3D WIRE BENDING
- Категория: Spring Coiling Machine >>>
- Поставщик: Union,Spring
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 76160.98 $* | 79968.21 $* |
| Aug-18-2025 | 75520.65 $* | 79296.86 $* |
| Jul-18-2025 | 63360.12 $* | 66528.66 $* |
| Jun-18-2025 | 74240.77 $* | 77952.64 $* |
| May-18-2025 | 64640.64 $* | 67872.18 $* |
| Apr-18-2025 | 72960.76 $* | 76608.93 $* |
| Mar-18-2025 | 72320.61 $* | 75936.79 $* |
| Feb-18-2025 | 71680.26 $* | 75264.93 $* |
| Jan-18-2025 | 71040.14 $* | 74592.63 $* |
Характеристики
Product Description
UNION SPRING 7-axis 3D CNC Wire Bending Machine
Model | US-3D708 |
Axis | 7 |
Wire Diameter | 4-8 mm |
Wire Wheel Sets | 3 sets |
Wire Feeding Axis | 4.5KW |
Rotary Wire Axis | 2.0KW |
Cutting Axis | 2.7KW |
External Torsion Axis | 2.7KW |
Internal Torsion Axis | 2.7KW |
Torsion Head Lift Axis | 1.2KW |
Platform Lifting Axis | 0.75KW |
Machine Size | 3400*1400*1700mm3 |
Machine Weight | 2400kg |

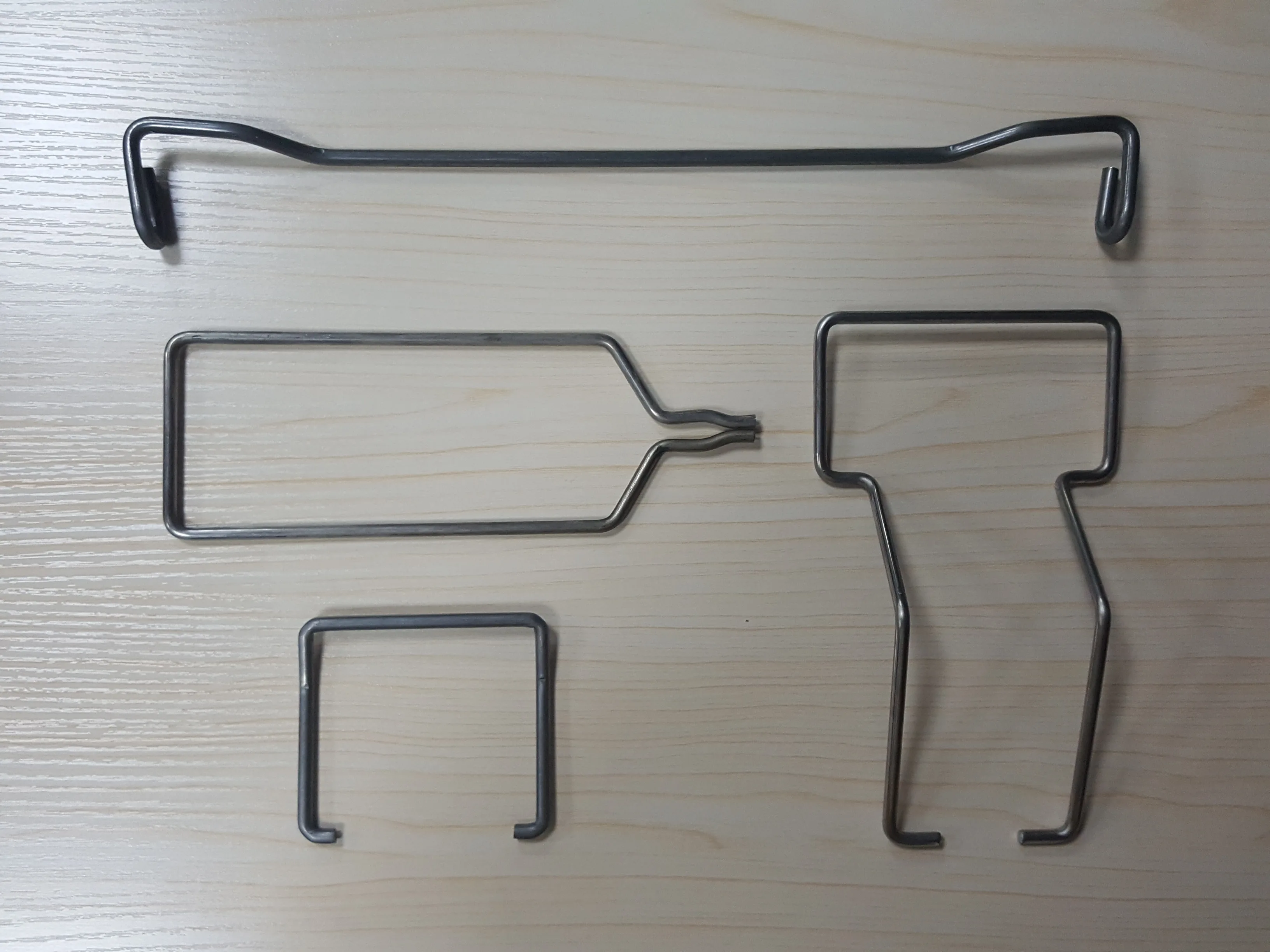

Sample

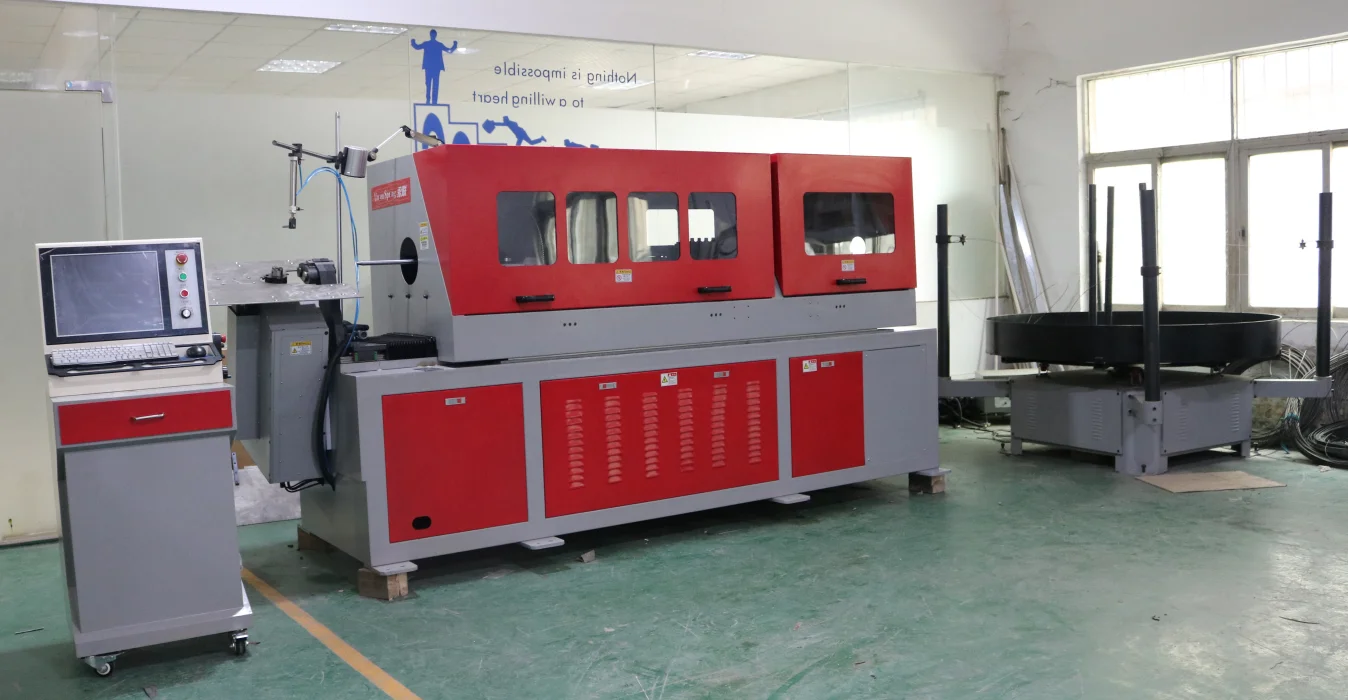

Details Images

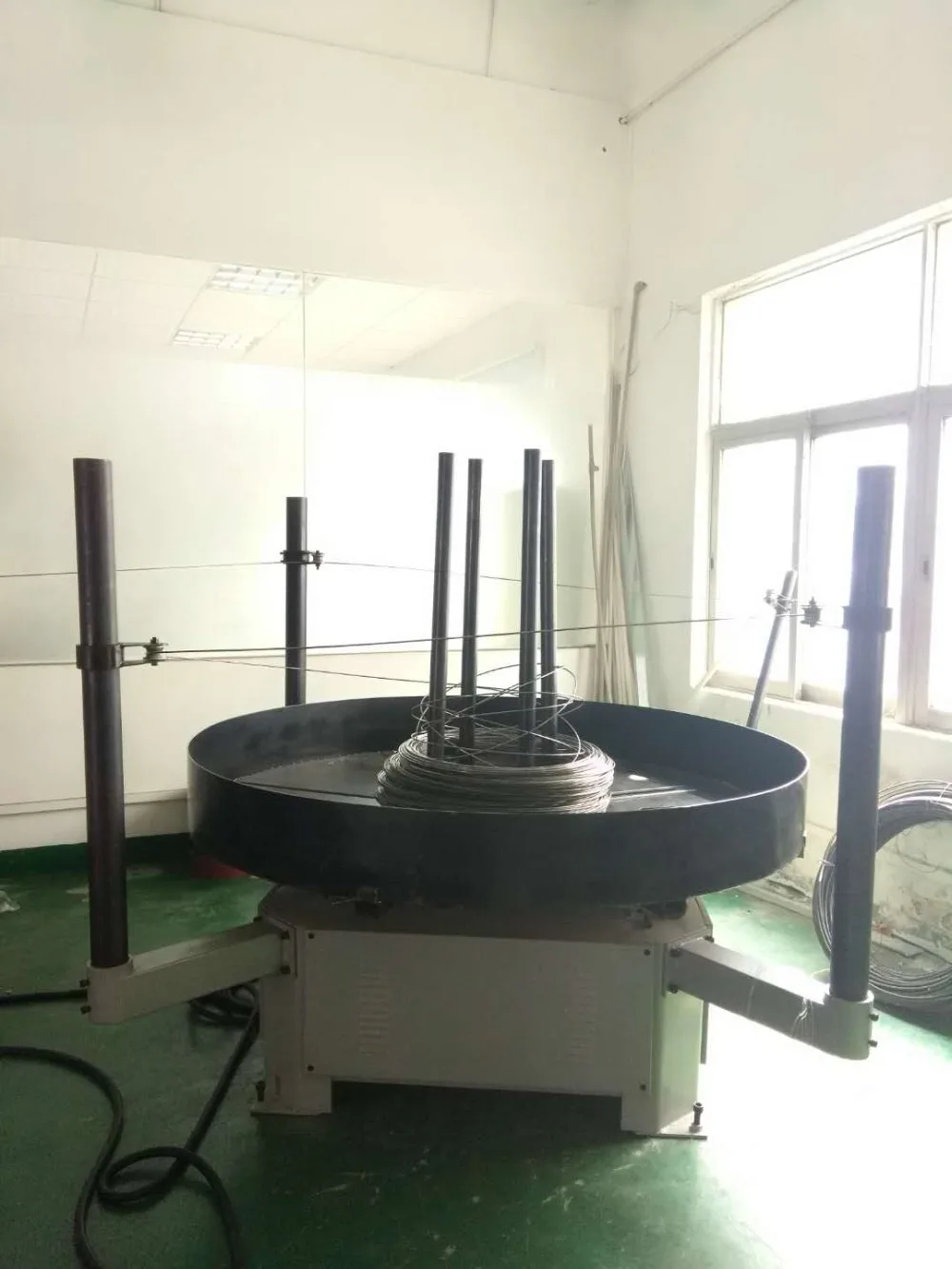

The automatic wire feeder adopts Japanese Panasonic inverter control technology, which has the characteristics of accurate wire feeding, automatic adjustment of wire feeding speed, automatic alarm shutdown, and novel appearance.
Transformer can be used for direct voltage conversion in different countries, the standard is 220V to 380V Customized
The straightening device ensures that the steel wire after straightening has no internal stress and the steel wire is smooth, which facilitates the subsequent processing work.
The wire feeding box adopts an integrated precision casting structure, and the wire feeding precision is high.
Japan imported Sanyo Electric .Features: high precision motor, good stability, maintenance free, long use time
Packing&Shipping
Stretch film winding
Exempt wooden box
After Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*Hlep adjust sample

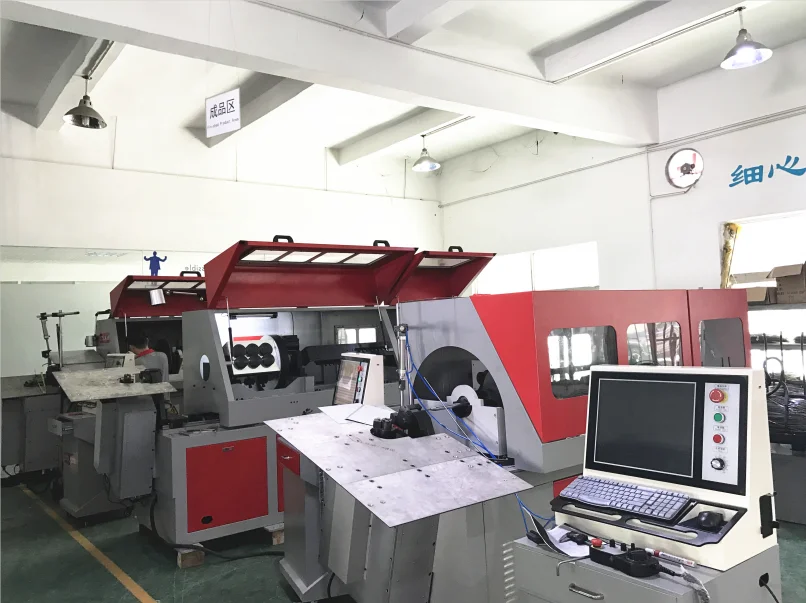

Company Introduction
UNION SPRING is a high-tech enterprise specializing in R&D, design, manufacture and sales of CNC spring machine, has nearly 20 years spring machine manufacturing experience.
Our Services & Strength
Mainly engaged in 2D/3D wire bending machine, camless spring machine, wire rotary spring machine, spring forming machine, high speed coiling machine, screw machine, wire decoiler, tempering furnace etc., is widely used in compression spring, tension springs, torsion springs and wire forming products, can meet the production needs of many industries, including automobiles, kitchen utensils, sanitary ware, carts, supermarket shelves, sports equipment, crafts, lighting, electronics, toys, home appliances and other industries.
FAQ
Q1: How long you can delivery ?
About 30 days after we received the deposit (30%T/T in advance ,70% T/T before shipment )
Q2: How about your equipment quality?
We guarantee that all equipment are CE&ISO standard and one year warranty, We invite you to visit our factory and inspect the equipment before packing
Q3: How is the service that your equipment beyond the warranty period?
Your project salesman and engineer will mail or telephone visit to you at regular intervals after sales, and will provide
equipment’s lifelong service.
