Высокоточная пружинная формовочная машина с ЧПУ для металла и пластика
- Категория: Spring Coiling Machine >>>
- Поставщик: Zhejiang,Omnipotent,Spring,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 72590.48 $* | 76220.85 $* |
| Aug-16-2025 | 71980.51 $* | 75579.12 $* |
| Jul-16-2025 | 60390.92 $* | 63410.61 $* |
| Jun-16-2025 | 70760.65 $* | 74298.41 $* |
| May-16-2025 | 61610.99 $* | 64691.14 $* |
| Apr-16-2025 | 69540.55 $* | 73017.24 $* |
| Mar-16-2025 | 68930.63 $* | 72377.92 $* |
| Feb-16-2025 | 68320.12 $* | 71736.12 $* |
| Jan-16-2025 | 67710.6 $* | 71096.14 $* |
Характеристики
PRODUCT PARAMETERS
1. Equipped with the computer-controlled system imported from Taiwan and servo motor imported from Japan .
2. It has four axes, three of them are interconnected and the rest of them are an assistant axis. It can have eight work
positions working continuously
3. A precious inspection tracer device is installed; it will stop working automatically when the unqualified product is found
4. The parameters such as major diameter and angle can be modified at any time according to the working status displayed on the fluorescence screen .

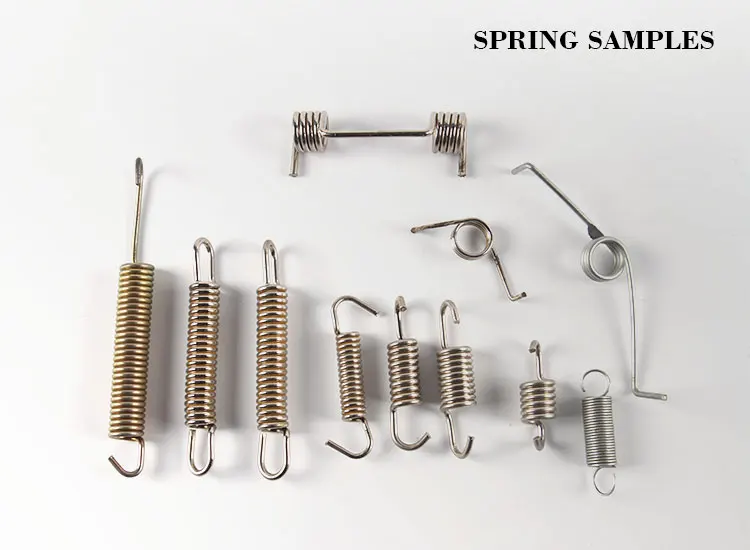

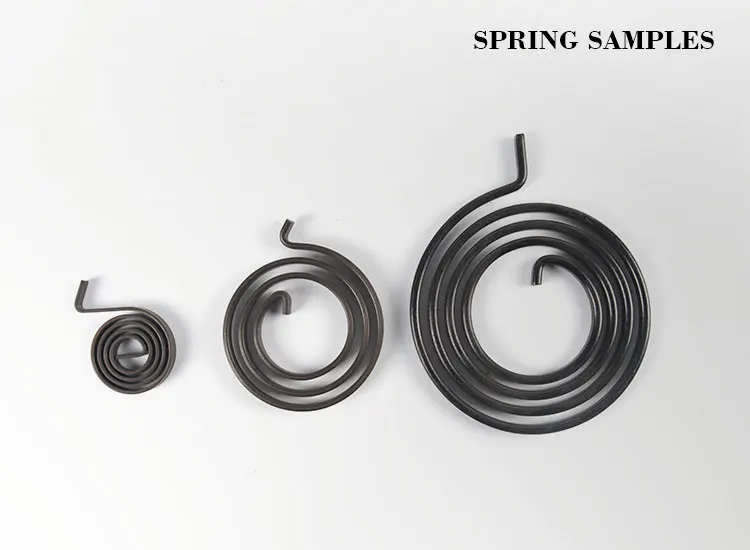

5. It is suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, swirl spring and other different spring and special-shaped spring etc .
2. It has four axes, three of them are interconnected and the rest of them are an assistant axis. It can have eight work
positions working continuously
3. A precious inspection tracer device is installed; it will stop working automatically when the unqualified product is found
4. The parameters such as major diameter and angle can be modified at any time according to the working status displayed on the fluorescence screen .
5. It is suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, swirl spring and other different spring and special-shaped spring etc .
PRODUCT SPECIFICATIONS

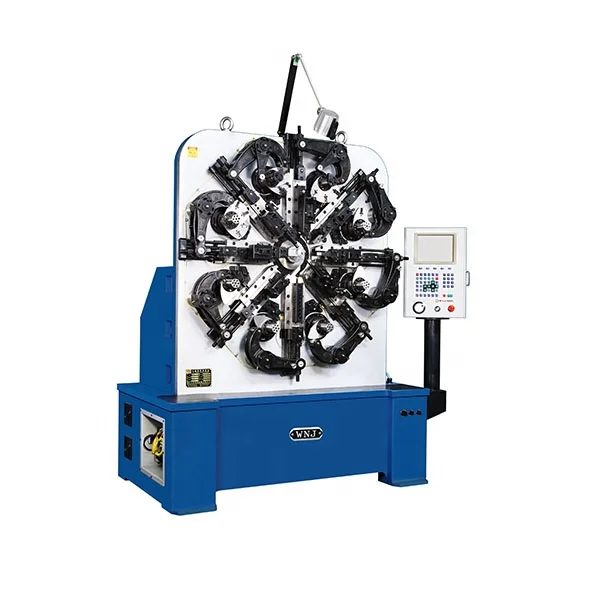

Item Name | Spring Coiling Machine |
Style | CNC-650 |
Color | Grey/Blue |
Machining Wire Diameter (mm) | Φ2- Φ5 |
Maximum Machining Outside Diameter(mm) | Φ100 |
Motor Power(KW) | X-Y Axis 11KW Z Axis 1KW |
Machine Size (mm) | 2000*1080*2250 |
Machine Weight(kg) | 1500 |
Power | Three phase 380V.AC.50HZ |
PRODUCT CONFIGURATION
Spring Coiling Machine

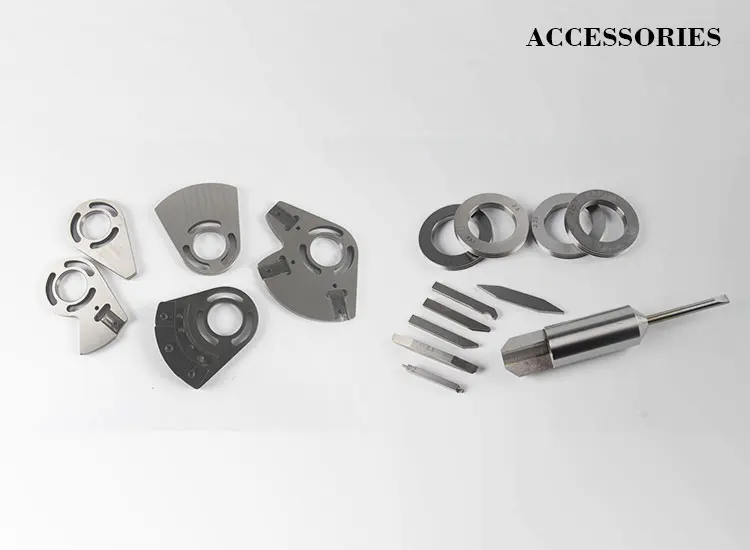

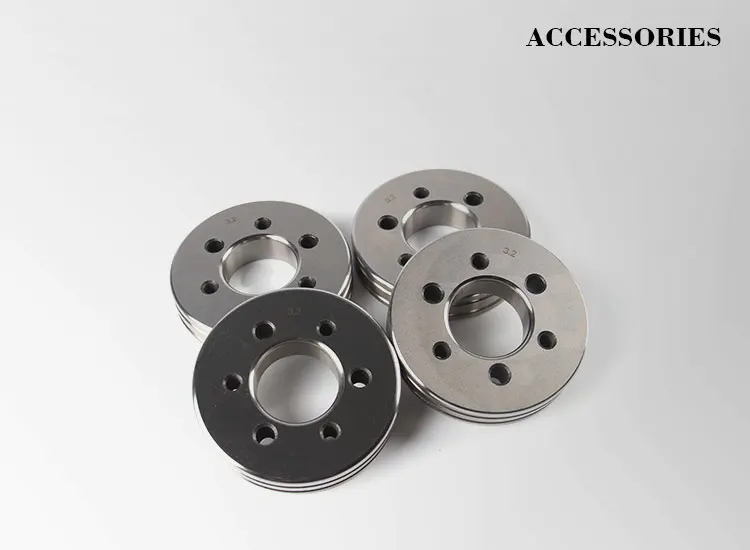

Machine Knives
Coiling Spring
