Product Description

Instruction

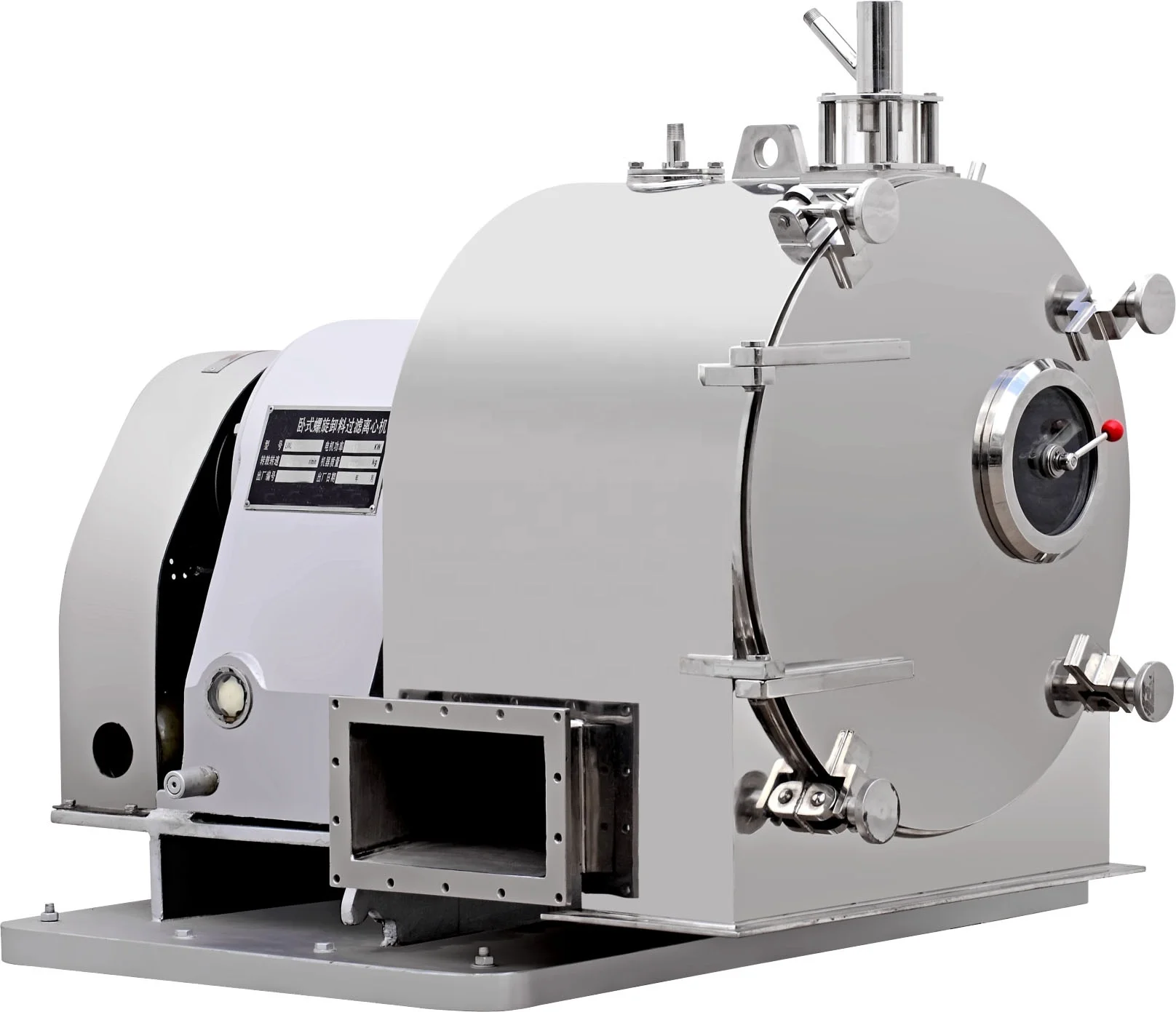

LWL centrifuge is a horizontal spiral discharge filtering centrifuge. It has the advantages of smooth rotation, good washing results, large treatment capacity and high production efficiency. It can feed, wash, dewater and discharge automatically and continuously during the rotation at full speed. It’s efficient separating equipment of separating solid from liquid. It is widely used in chemical, pharmaceutical, food ,metallurgy, mine etc .It is suitable for separation of suspension materials with 10-80% density and
crystal or lineal grain with diameter between 0.13mm and 5mm (0.2mm is better), such as citrate, salt, fruit juice, sulphuric ammonium and urea etc.

The machine design corresponds to GMP requirements.

It can run continuously and deal with materials greatly.
Several various drums and spiral roll canisters make wide use.
Reasonable power setting and low consumption.
The parts touching separated materials are made of Austenite stainless steel.
Imported bearing and sealed components and independent cycle oil lubrication system are equipped. Sealed shell can protect operator and environment.
Small volume ,easy installation need no complex foundation.
Running safety and using the devices of V type sliding unloading burden and overloading protection equipment.

Reference standard

1.  Main standard of the national machinery industry.

JB/T502-2004 "spiral discharge sedimentation centrifuge"

JB/T9095-1995 "centrifuge, separator forgings, welding conventional NDT technology standard"  The national main standard

2. GB10894-89 "separation machinery noise sound power level measurement engineering method"

Technical parameters



Model	Feed quantity	Power	Speed	Separation factor	L	W	H	Weight
	(m3/h)	(KW)	(r/min)	(ω2r/g)	(mm)	(mm)	(mm)	(kg)
LWL350	2--5	11	3100	1880	1520	1140	1080	1200
LWL450	3--8	22	2700	1830	1660	1380	1190	1700
LWL520	8--15	30	2400	1670	1480	1920	1470	2500
LWL630	15-20	37	1800	1140	1690	2000	1470	3210

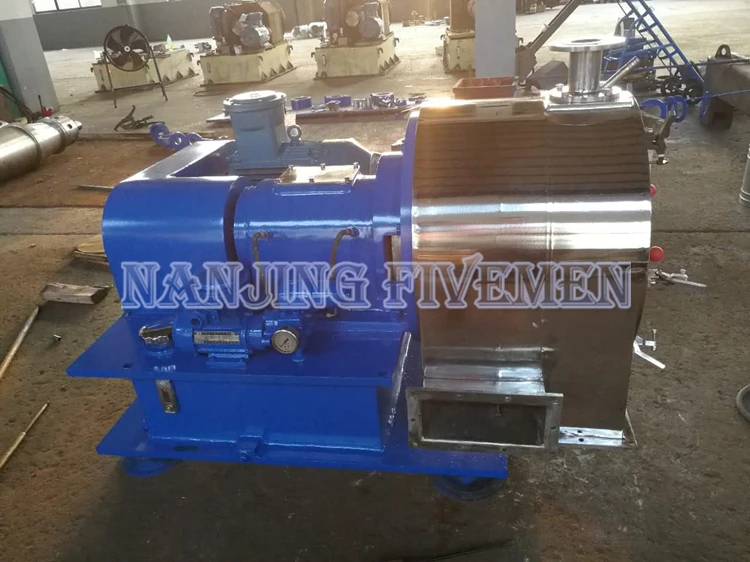

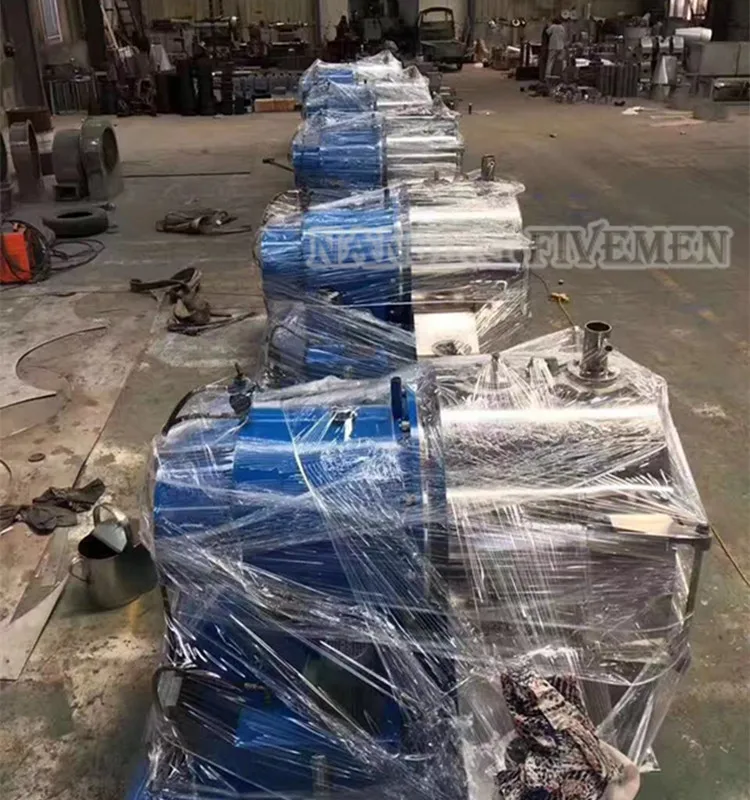

Workshop show
