Сепаратор литий-ионной батареи для обменной мембраны 25 мкм
US $1.00-$4.00
Сепаратор медицинский вертикальный автоматический разделительный экстракт и очищающий
- Категория: Separation Equipment >>>
- Поставщик: Liaoyang,Sinotech,Technology,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 17850.89 $* | 18743.33 $* |
| Aug-15-2025 | 17700.77 $* | 18585.14 $* |
| Jul-15-2025 | 14850.35 $* | 15593.50 $* |
| Jun-15-2025 | 17400.32 $* | 18270.4 $* |
| May-15-2025 | 15150.13 $* | 15908.66 $* |
| Apr-15-2025 | 17100.29 $* | 17955.70 $* |
| Mar-15-2025 | 16950.8 $* | 17798.10 $* |
| Feb-15-2025 | 16800.86 $* | 17640.61 $* |
| Jan-15-2025 | 16650.28 $* | 17483.20 $* |
Характеристики

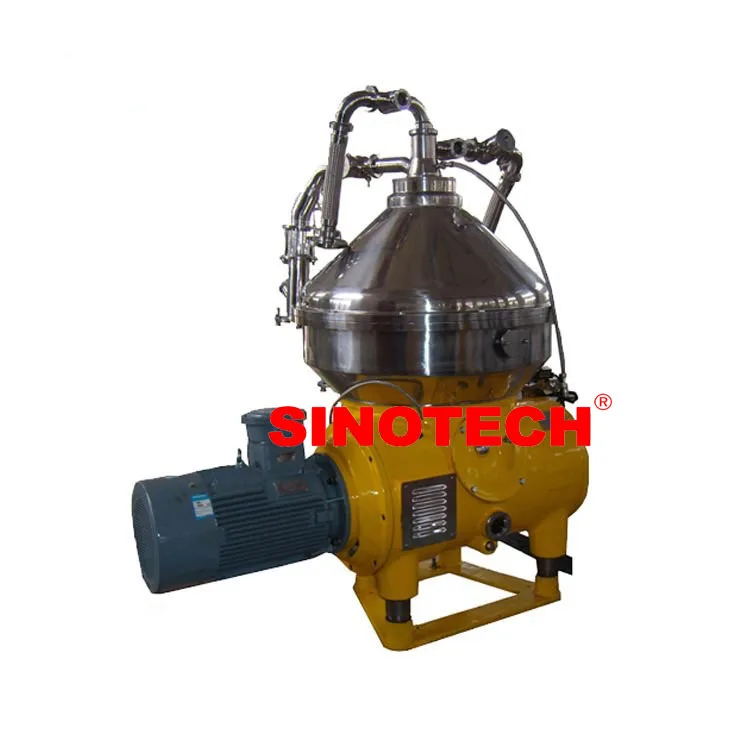

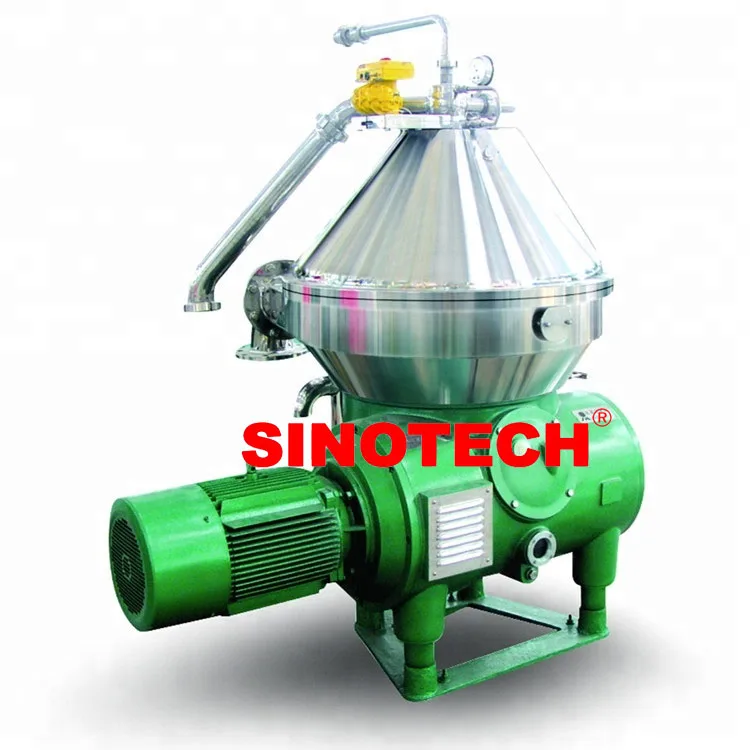

Beer yeast Disc Centrifuge Separator
Phone/Whatsapp/Wechat: +86 15140990256
Product Description
A beer yeast centrifuge is a self-cleaning disc-stack centrifuge that uses centrifugal force to separate the yeast particles from beer. With a Relative Centrifugal Force (RCF) of over 7,000 Gs, this food-grade centrifuge separates all fine particles down to 0.5 microns to produce clear beer.Beer Yeast Barm Disc Separator Centrifuge,can widely used in the area of the separation of many kinds of oils, just like oils,plant oils, animal oils, fish oils, and various fuel oils, etc; The clarification of milk products, the fruit juices and separation of beer, as well as separation and clarification of fermentation liquids during fermentation brewing.
Main Features: It can realize liquid-solid separation. This machine has better separation. It can be operated manually or automatically or remotely with PLC control to timer the process of working and solid discharge to save lots of labour work. It is simple in structure and easy in maintenance.
Main Purposes: This machine is widely used for many industries, such as dairy, beverage, pharmacy, chemicals, petrol, metallurgy and biology, etc.
Structure and Principle: The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentate on the bowl's wall and then will be discharged through nozzle out of the sediment outlet.
Main Purposes: This machine is widely used for many industries, such as dairy, beverage, pharmacy, chemicals, petrol, metallurgy and biology, etc.
Structure and Principle: The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentate on the bowl's wall and then will be discharged through nozzle out of the sediment outlet.
Drawing
Technical parameter
Model | DHC220 | DHC270 | DHC360 | DHC470 | DHC550 |
Diameter (mm) | 220 | 270 | 360 | 470 | 550 |
Motor(kw) | 4 | 4 | 7.5 | 15 | 22 |
Gross weight (kg) | 580 | 600 | 1000 | 1720 | 2500 |

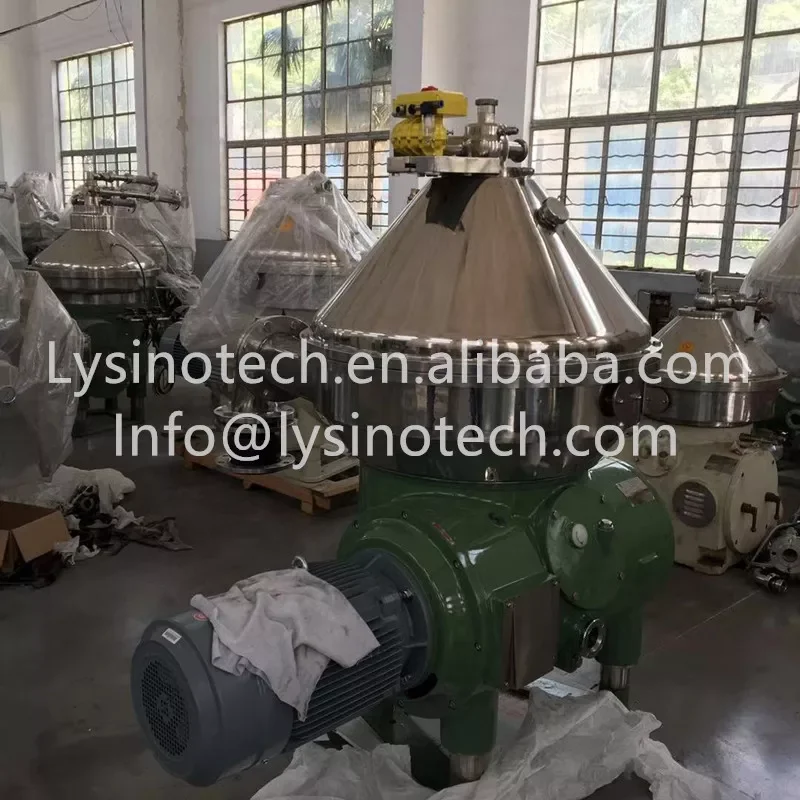

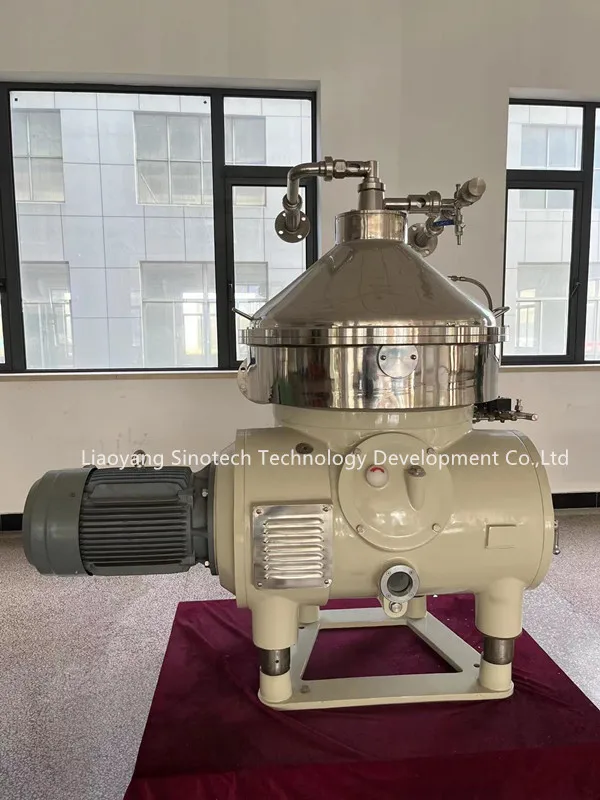

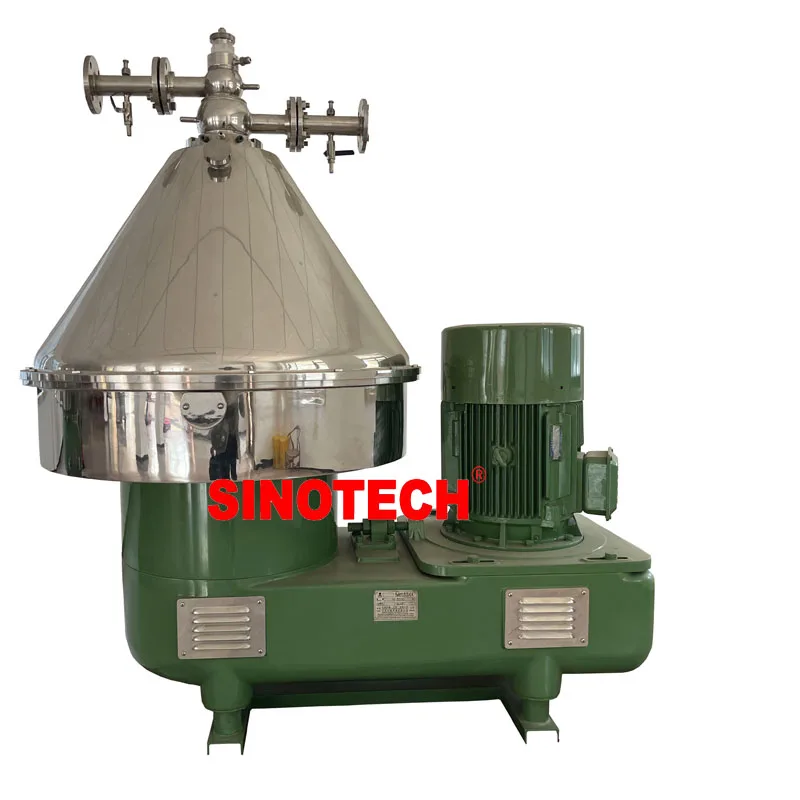

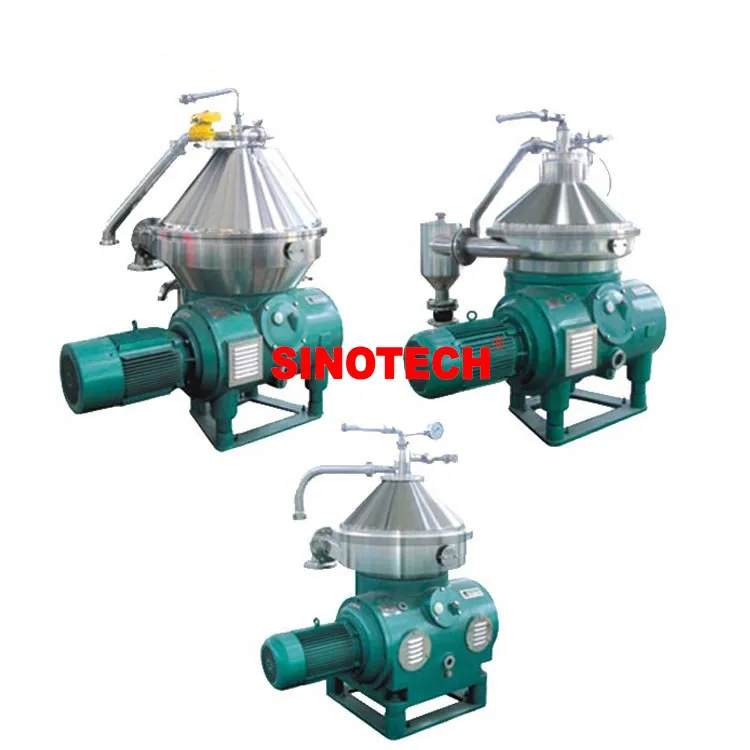

Detail images
Packing & Delivery
Our company
Sinotech Technology Devepment Co.,Ltd, We are the professional manufacturer of pharmaceutical machinery, separation equipment, food machinery, Liquid Filling Machine and packing machine. specializing in provide with the whole set of technology and equipment. we have professional technology team to design, research and development for customer according to customer’s requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our main area are the food and pharmacy project. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries.
Company Profile
FAQ
1. What certificates do you have?
We can provide CE, ISO 9001, etc
2. What is the warranty period of the equipment?
Normally 1 year warranty.
3. Can we visit your factory?
Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
telephone video conference.
4. What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
5. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
We can provide CE, ISO 9001, etc
2. What is the warranty period of the equipment?
Normally 1 year warranty.
3. Can we visit your factory?
Of course, we sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by
telephone video conference.
4. What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
5. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.
