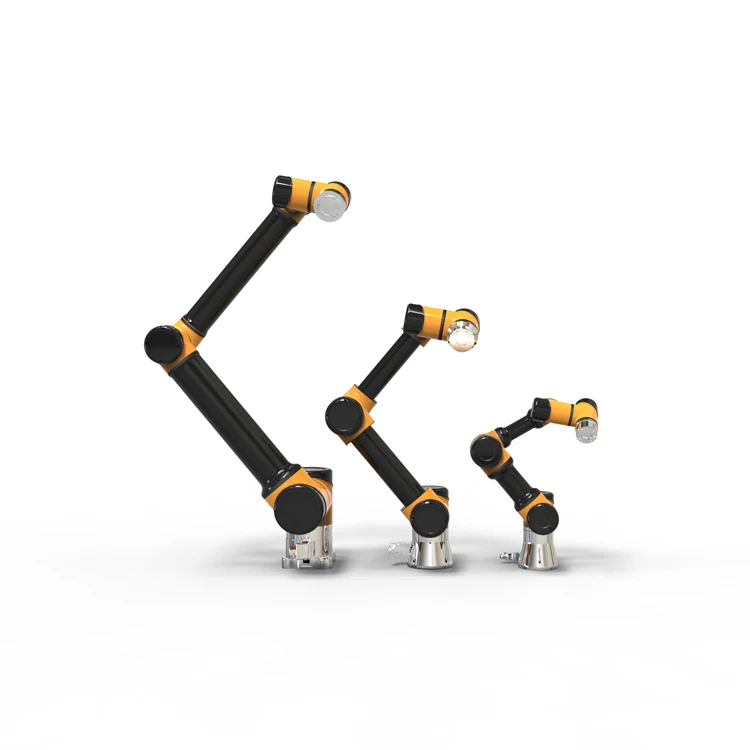

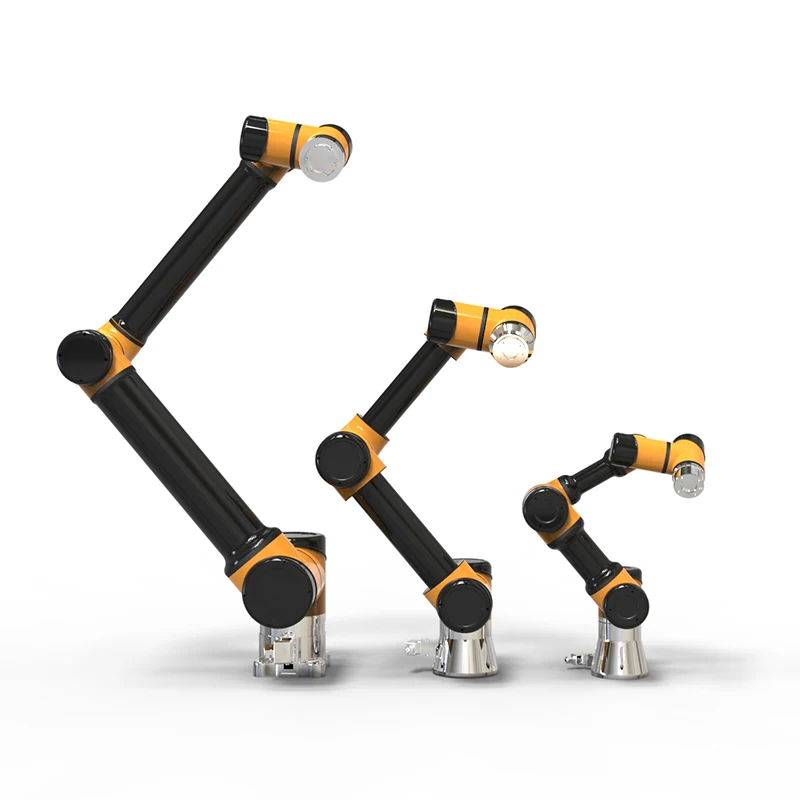

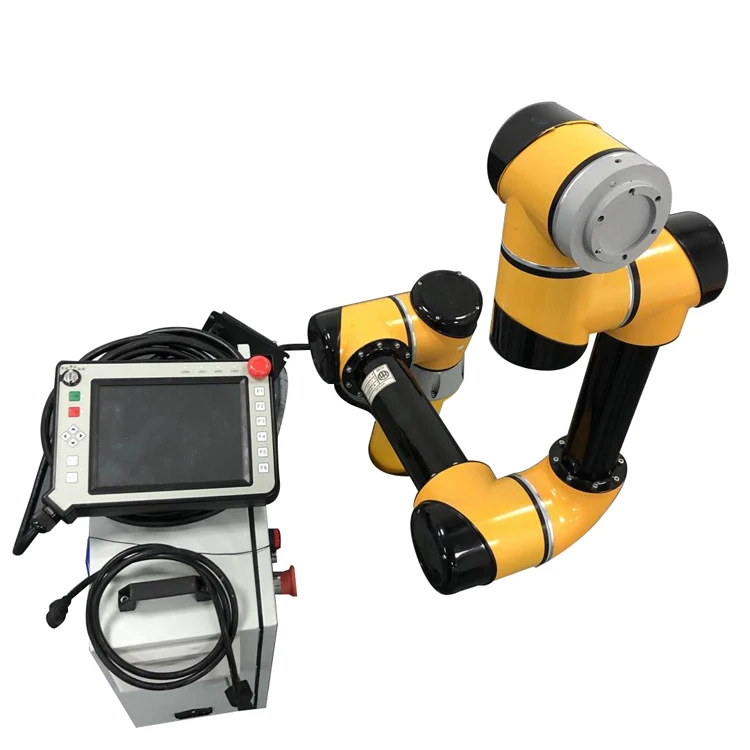

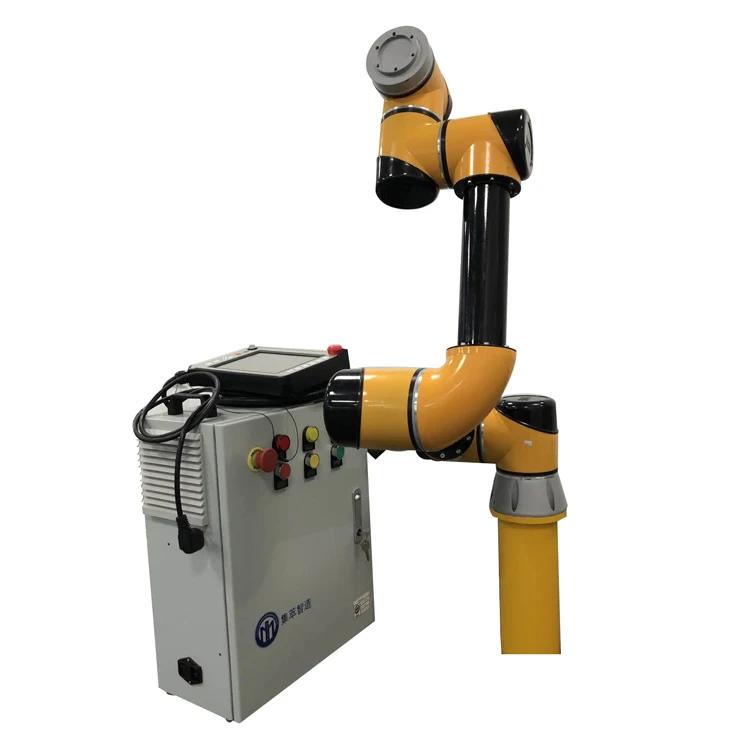

6 оси cobot Многофункциональный для фабрики в Китае (стандарты CE IIMT-CR низкая
- Категория: Other Machinery & Industry Equipment >>>
- Поставщик: Jiangsu,Jitri,Intelligent,Manufacturing,Technology,Institute,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.47 $* | 0.14 $* |
| Aug-16-2025 | 0.91 $* | 0.6 $* |
| Jul-16-2025 | 0.68 $* | 0.10 $* |
| Jun-16-2025 | 0.94 $* | 0.35 $* |
| May-16-2025 | 0.14 $* | 0.66 $* |
| Apr-16-2025 | 0.56 $* | 0.78 $* |
| Mar-16-2025 | 0.52 $* | 0.58 $* |
| Feb-16-2025 | 0.61 $* | 0.8 $* |
| Jan-16-2025 | 0.85 $* | 0.44 $* |
Характеристики
Type | Parameters | ||||||
Model | IIMT-CR-03 | IIMT-CR-05 | IIMT-CR-10 | IIMT-CR-16 | |||
Payloads (kg) | 3 | 5 | 10 | 16 | |||
Working Radius (mm) | 600 | 900 | 1300 | 1000 | |||
Weight (kg) | 13 | 20.4 | 23.7 | 25 | |||
Speed | Joint side: 180 deg/s Tool side: 0.9 m/s | Joint side: 150 deg/s Tool side: 1.5 m/s | Joint side: 120 deg/s Tool side: 2 m/s | Joint side: 120 deg/s Tool side: 1 m/s | |||
Repeat-abilty | ±0.03mm ( ISO 9283 standard) | ±0.03mm ( ISO 9283 standard) | ±0.05mm ( ISO 9283 standard) | ±0.05mm ( ISO 9283 standard) | |||
Collision Sensitivity | 30N | 30N | 50N | 50N | |||
Collision Response Time | ≤ 0.1s | ≤ 0.1s | ≤ 0.1s | ≤ 0.1s | |||
Rated Power | 200W | 300W | 500W | 500W | |||
Programm-ing | Graphical human-machine interface 12-inch touch-screen TCP/IP script programming C/C++programming language | Graphical human-machine interface 12-inch touch-screen TCP/IP script programming C/C++programming language | Graphical human-machine interface 12-inch touch-screen TCP/IP script programming C/C++programming language | Graphical human-machine interface 12-inch touch-screen TCP/IP script programming C/C++programming language | |||
HMI | 5 security configurations According to EN ISO 13849-1:2008 PLD | 5 security configurations According to EN ISO 13849-1:2008 PLD | 5 security configurations According to EN ISO 13849-1:2008 PLD | 5 security configurations According to EN ISO 13849-1:2008 PLD | |||
Axis Range | ±360° | ±360° | ±360° | ±360° | |||
DOF | 6 | 6 | 6 | 6 | |||
Materials | Aluminum, ABS plastic | Aluminum, ABS plastic | Aluminum, ABS plastic | Aluminum, ABS plastic | |||
Communica-tion Interface | TCP/IP 100Mbit | TCP/IP 100Mbit | TCP/IP 100Mbit | TCP/IP 100Mbit | |||
I/O Ports | 16 digital in 16 digital out | 16 digital in 16 digital out | 16 digital in 16 digital out | 16 digital in 16 digital out | |||
Cabinet Dimensions | 400mm × 210mm × 500mm | 400mm × 210mm × 500mm | 400mm × 210mm × 500mm | 400mm × 210mm × 500mm | |||
IP Classifica-tion | IP54 | IP54 | IP54 | IP54 | |||
Temperature Ambient | 5 ～ 50℃ | 5 ～ 50℃ | 5 ～ 50℃ | 5 ～ 50℃ | |||
Power Input | 220VAC，50Hz | 220VAC，50Hz | 220VAC，50Hz | 220VAC，50Hz | |||
