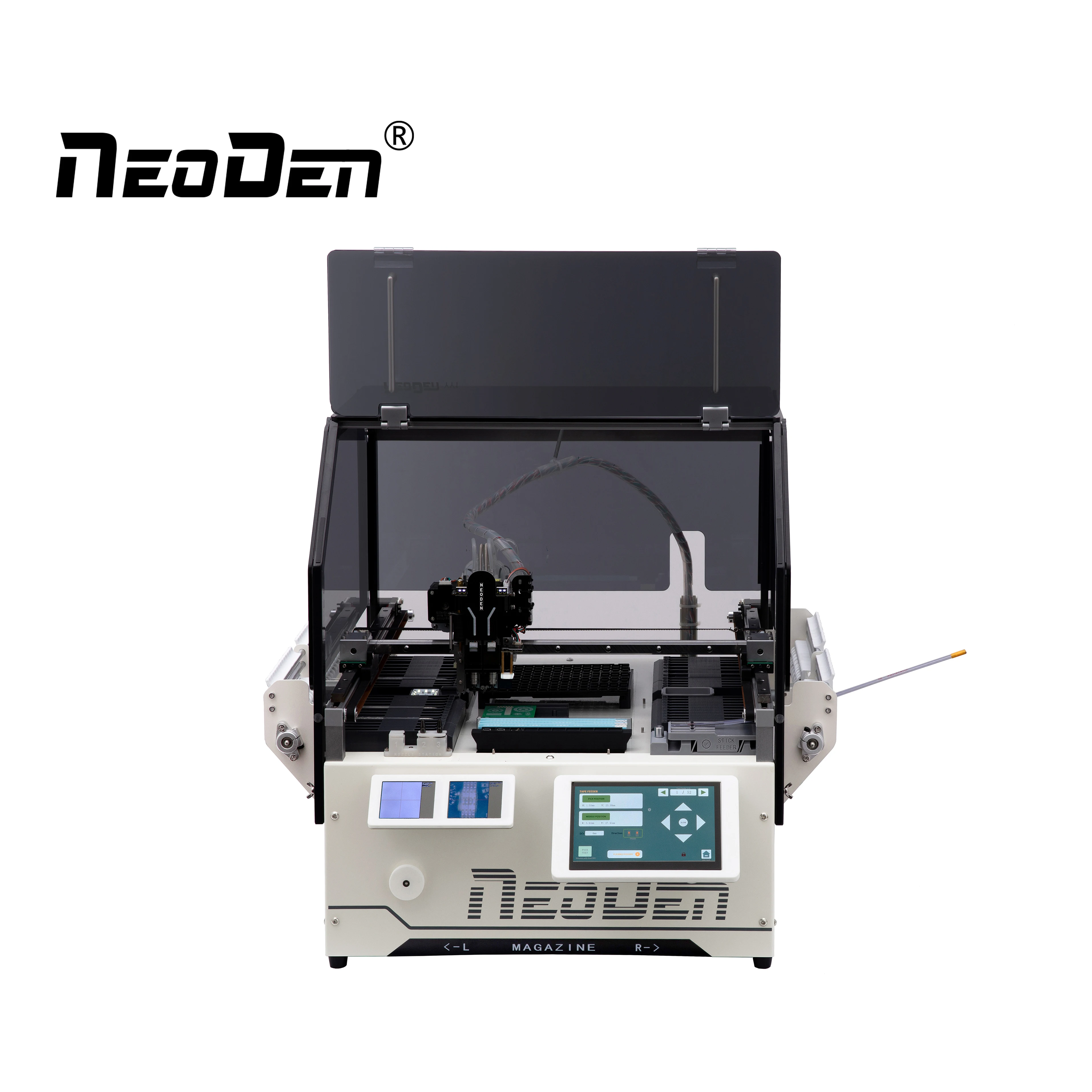

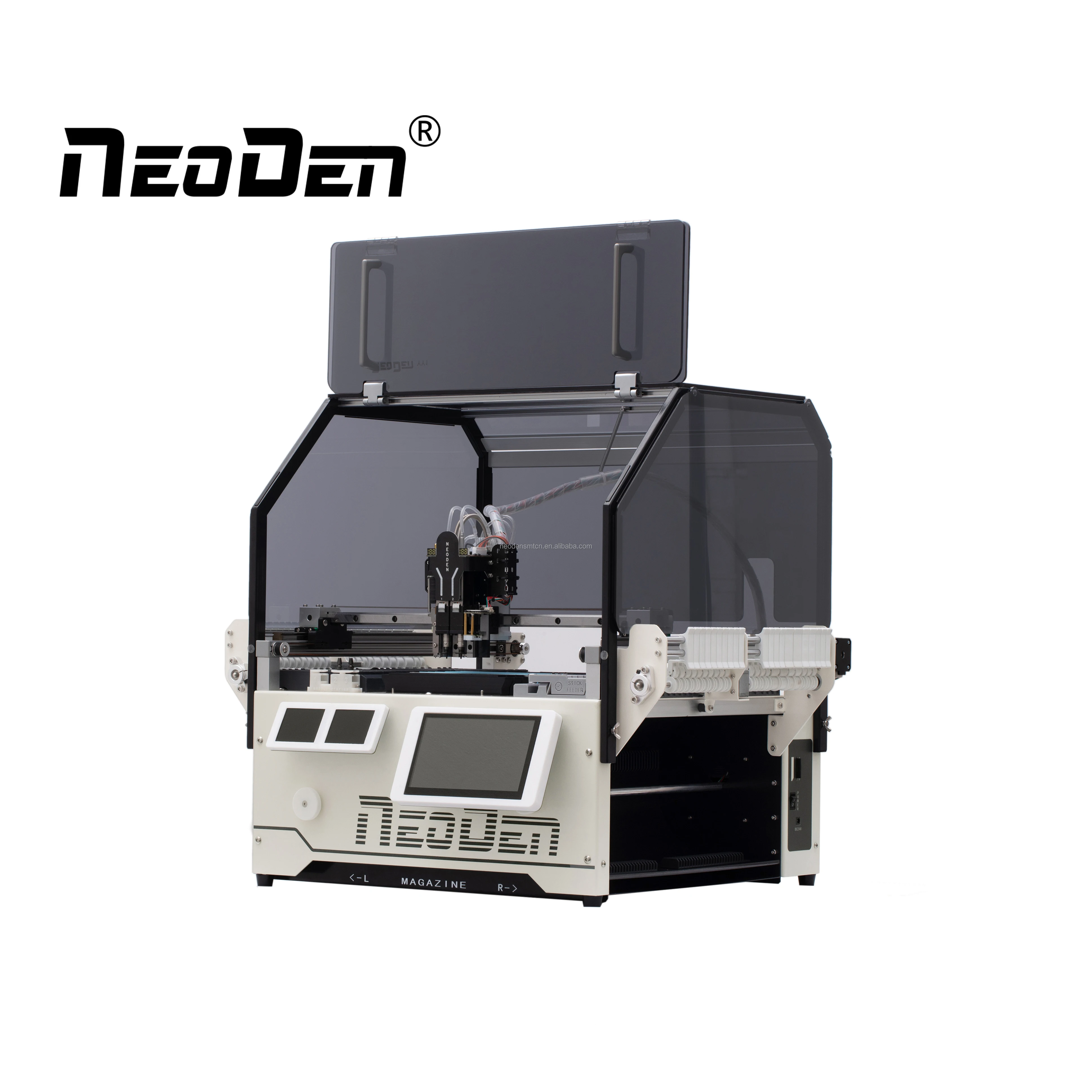

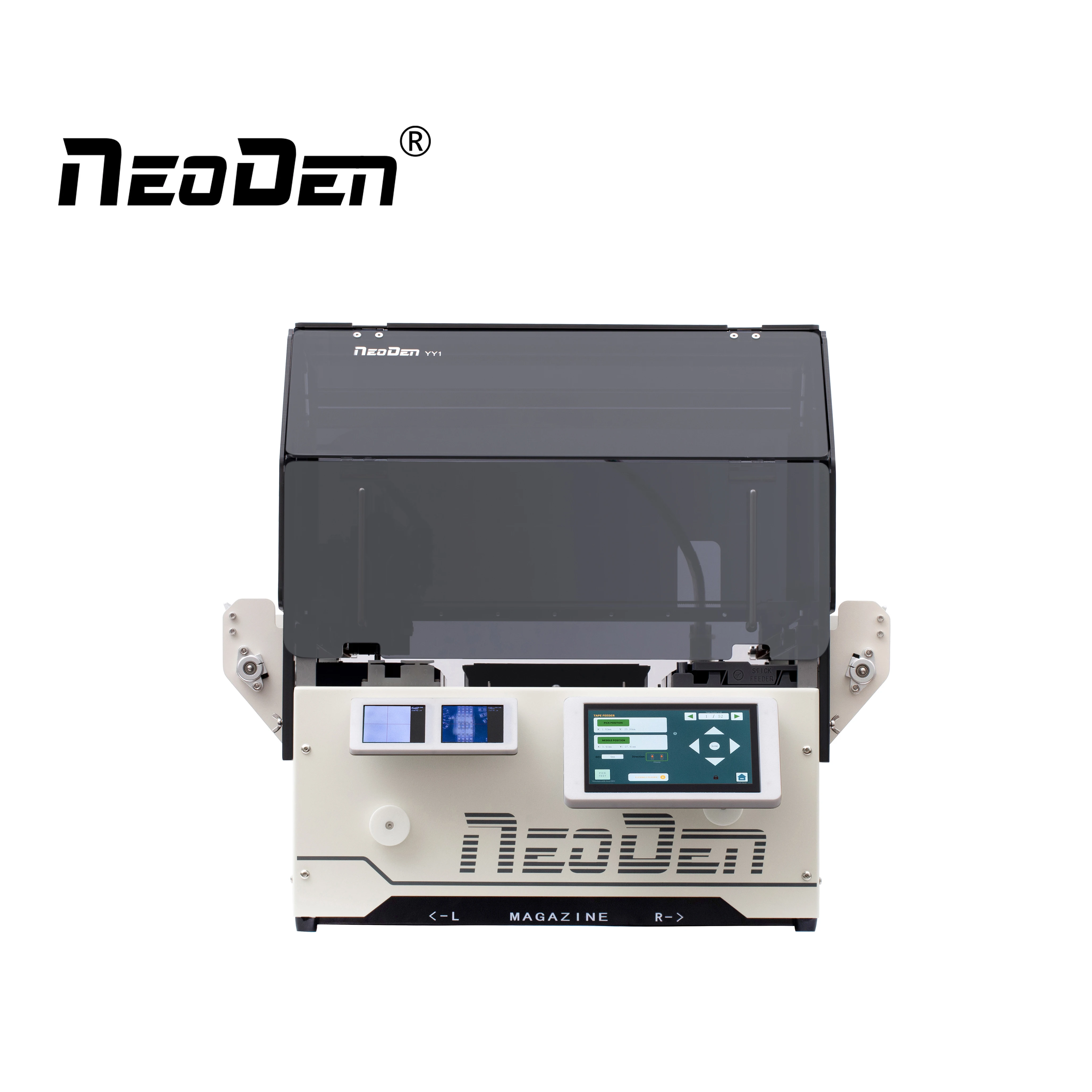

Настольный визуальный Универсальный SMT LED захвата и установки поверхностного монтажа расстановка машина neoden


Поделиться:


Цена:3 034,00 $ - 3 052,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 3610.2 $* 3791.14 $*
Aug-15-2025 3580.94 $* 3759.21 $*
Jul-15-2025 3004.25 $* 3154.32 $*
Jun-15-2025 3519.58 $* 3695.40 $*
May-15-2025 3064.97 $* 3217.85 $*
Apr-15-2025 3459.72 $* 3632.81 $*
Mar-15-2025 3428.45 $* 3599.48 $*
Feb-15-2025 3398.67 $* 3568.8 $*
Jan-15-2025 3368.16 $* 3536.16 $*

Характеристики





Product parameters


Model Number
NeoDen YY1
Machine Style
Single Gantry With 2 Heads
Alignment
Vision & Vacuum

Placement Rate
Vision On
3000CPH
Vision Off
4000CPH



Feeder Capacity
Tape Feeder: 52 (all 8mm)
Stick Feeder: 4
Flexible Feeder: 28
Bulk Feeder: 19
Nozzle Change Capacity
3 Nozzles


Component Range
Smallest Size
0201
Largest Size
18x18mm
Max Height
12mm
Rotation
±180°
Placement Accuracy
±0.02mm
X-Y Repeatability
±0.02mm
Z-axis Max Movement Range
28mm

PCB Applicable Dimension(mm)
Maximum 249 x 350(dual sides tape feeder)
Maximum 315 x 350(single side tape feeder)
Electricity Supply
AC100V-240V
Software System
Independent Development
Control System
One-board Integration
Drives System
Stepper Motor
Positioning System
Fiducial Mark
PCB Handling
Manual PCB Loading/Unloading
Power
50W

External Dimensions(mm)
Machine Size
643(L)x554(W)x601(H)
Packing Size
700(L)x610(W)x595(H)(wooden box)

Weight
Net Weight
35.5kgs
Gross Weight
47kgs(wooden box)


Product Description



Advantages & Highlights



Automatic nozzle changer help realizing nozzles changed flexibly.

Supports bulk component feeder,strip feeder and IC tray feeder.


Independent high-definition & high-speed dual vision recognition systems,as well as dual cameras for real-time display the working status.

Newly designed software system & UI for visual programming and placement, which allows fast programming on the machine, friendly interface & easy operation.



Linear rail design for X, Y axis to ensure accuracy and stability,and reduce noise at the same time.





Patent-protected & new needle module is specially designed based on the linear rail with high reliability and durability


Small size with powerful magazines and newly designed tape feeders to support large tape reels configuration flexibly,easy to install and replace tape reels conveniently,to ensure the most excellence solution among all of the entry level machines with lower budget but higher stability.



The newly-designed stick feeder with its compact shape, is perfectly compatible with the tape feeder system.





Fully transparent acrylic covers with magnetic mode for a high level of ease of disassembly.



Comes with a high-definition capacitive touch screen, which can be adjusted up and down to meet the needs of different viewing angles and enhance the user experiences.




Equipped with a vacuum detection function,can set standard vacuum detection values on placement head flexibly,all information can be displayed visually on the placement head.


Nozzle Information





SMT Line




Placement Effect




Related Products


Manual Solder Printer FP2636

SMT Pick and Place Machine
NeoDen4
SMT Pick and Place Machine
NeoDen9


Our Service


Trade show and sales service
We will provide the sales service though e-mail and exhibitions to communicate face to face , let you feel the real competitive products.
After sales service
10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours, professional solutions can be offered within 24 hours both workday and holidays.


Our Show

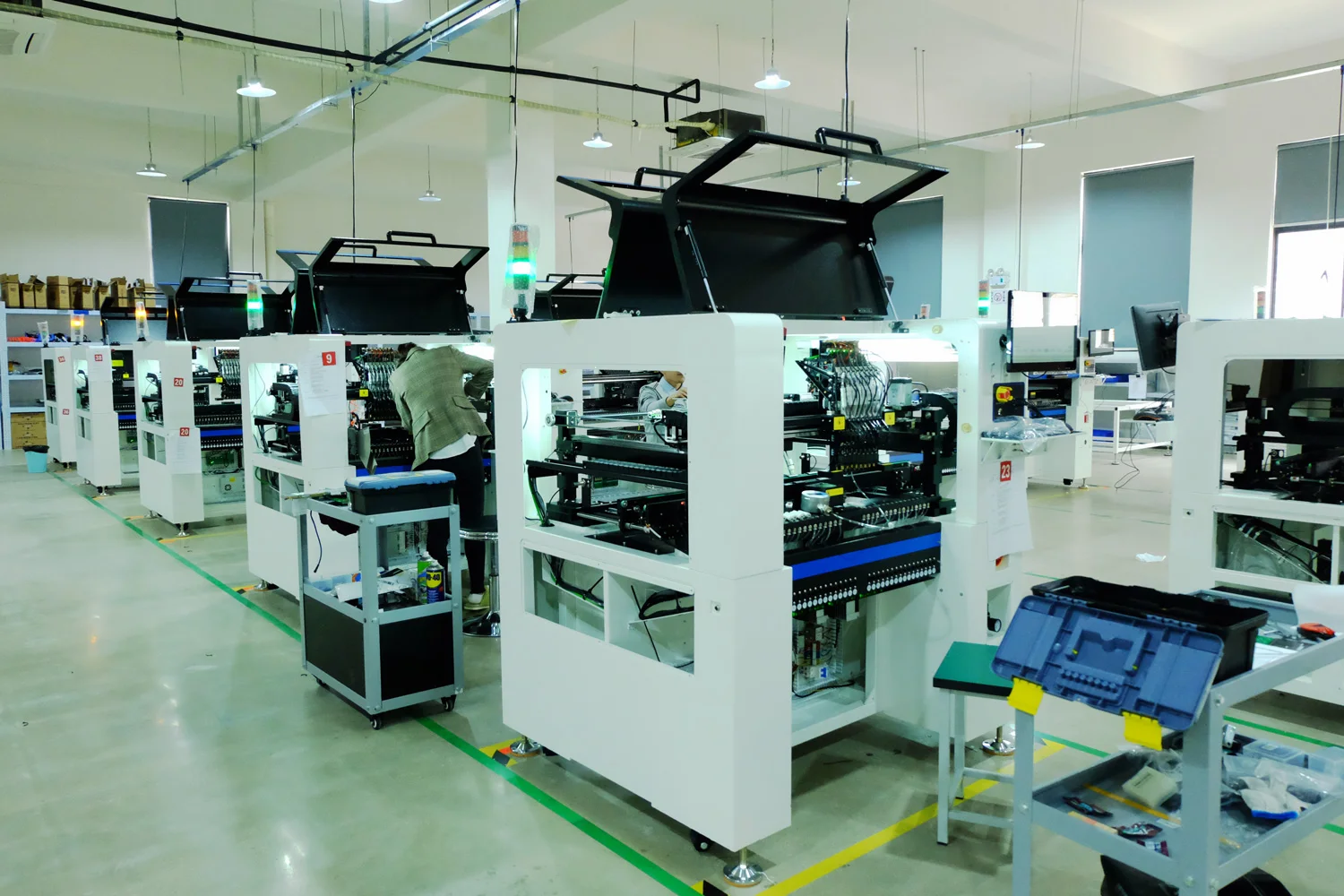

Workshop





Exhibition





Certification

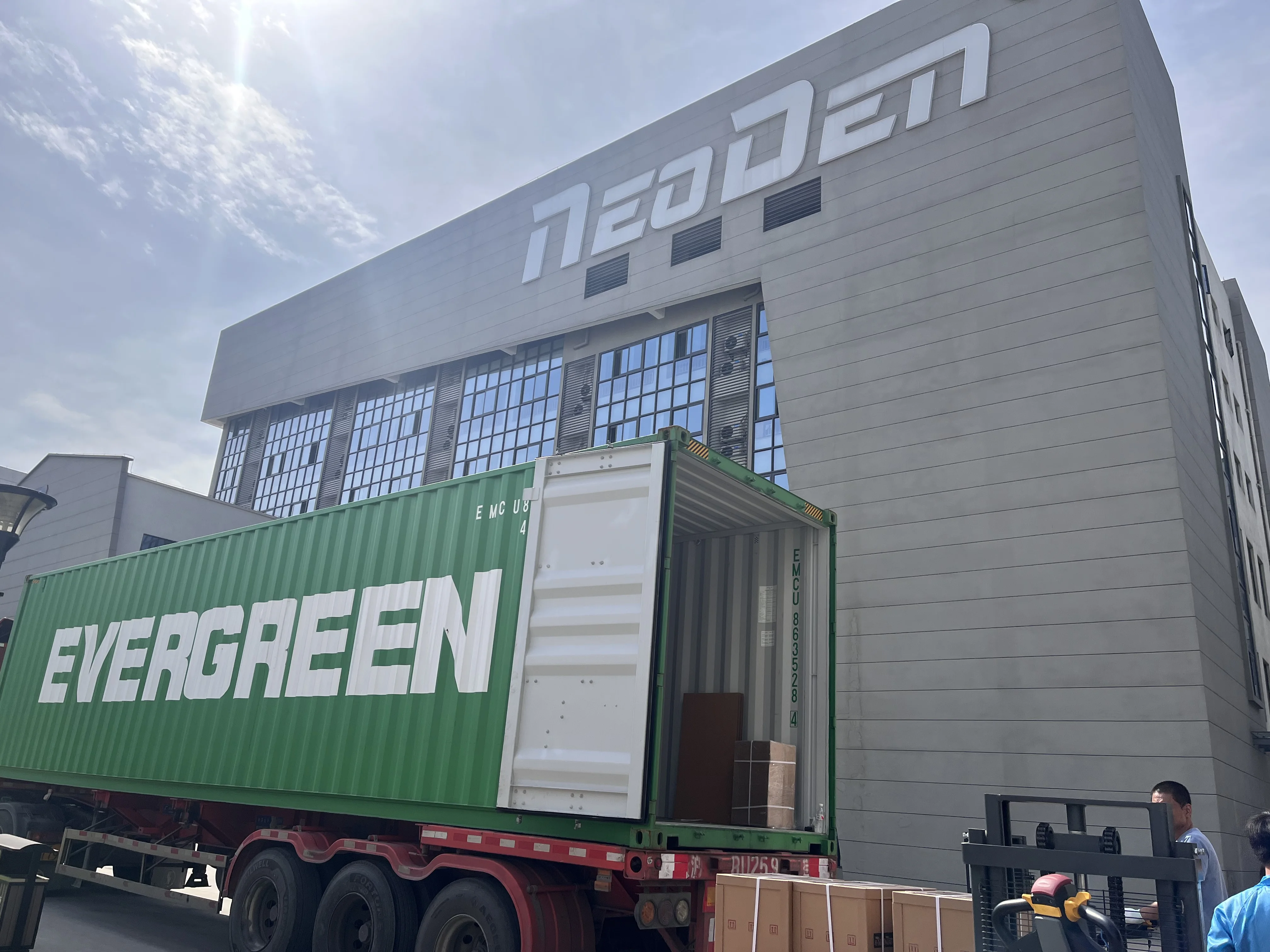

Payment & Shipping




FAQ


Q1:This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.

Q2:How about the warranty?
We have 2 years warranty for NeoDen YY1, NeoDen4, K1830, NeoDen9, NeoDen10, In6, IN12 and 1 year for all other models with lifetime after-sale support.

Q3:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms;
(3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6)Send your order via express or by air or by sea.
