Прецизионная машина для резки дисковых ножей С опциональной штамповкой 6-24 мм сепаратора и
- Категория: Other Machinery & Industrial Equipment >>>
- Поставщик: Xiamen,Aot,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 824.19 $* | 840.92 $* |
| Jul-15-2025 | 668.36 $* | 681.30 $* |
| Jun-15-2025 | 811.56 $* | 827.72 $* |
| May-15-2025 | 805.40 $* | 821.48 $* |
| Apr-15-2025 | 643.20 $* | 656.89 $* |
| Mar-15-2025 | 792.17 $* | 808.21 $* |
| Feb-15-2025 | 785.75 $* | 801.58 $* |
| Jan-15-2025 | 779.33 $* | 795.11 $* |
Характеристики
Product Description
Specification

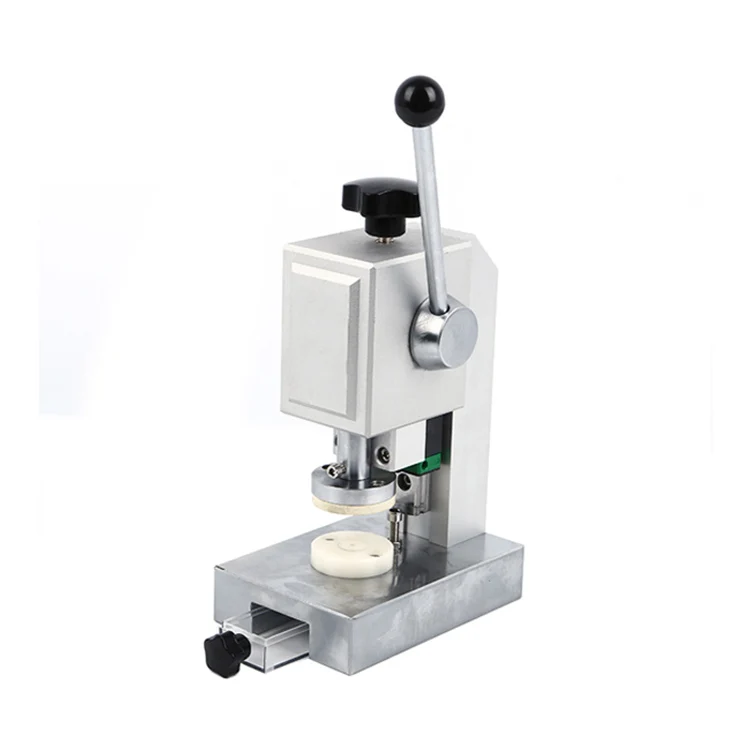

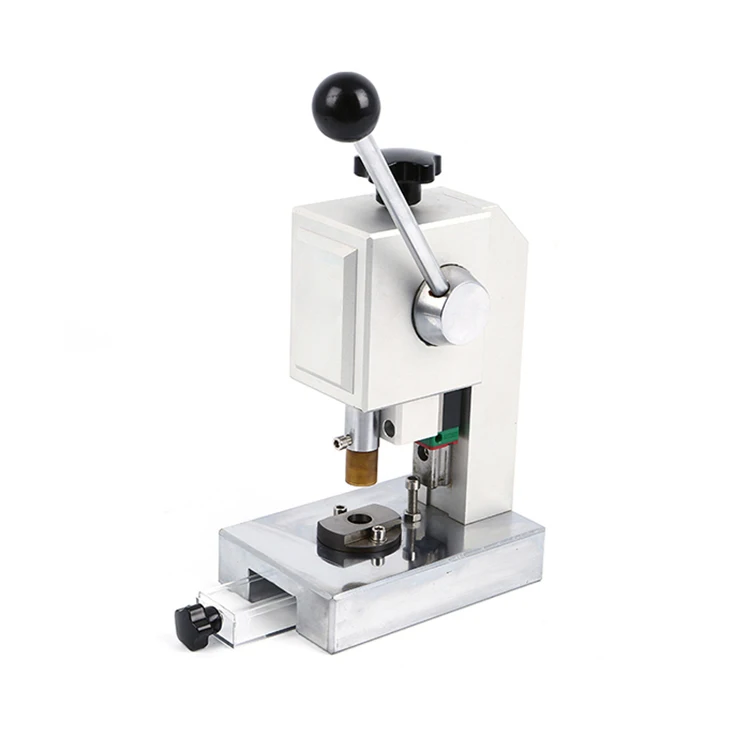

This machine is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box via a transition chamber which the diameter larger than 230mm.

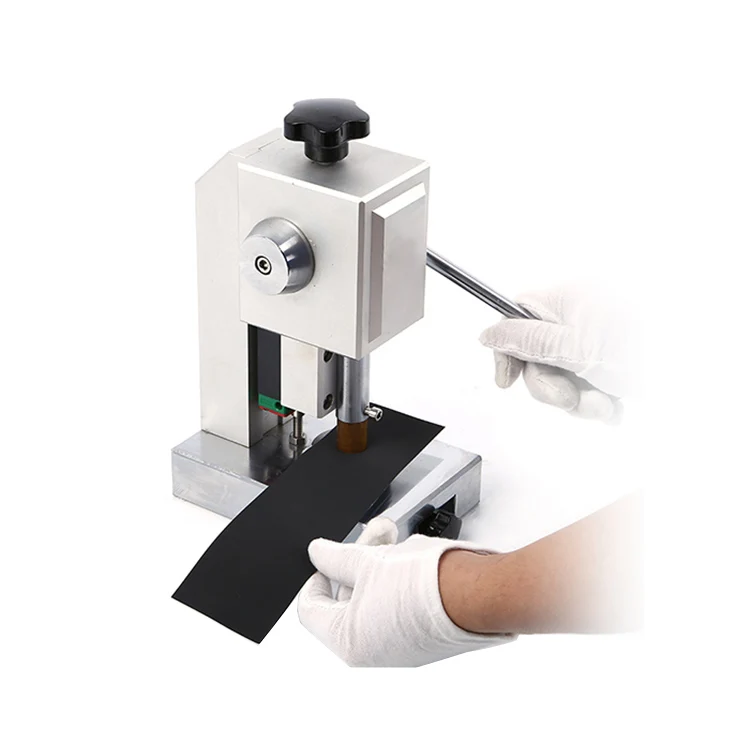

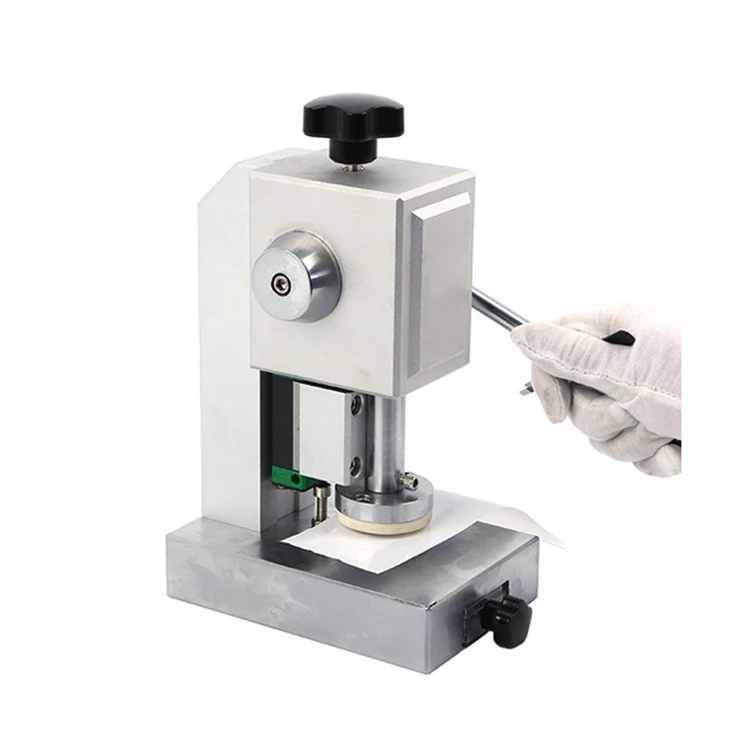

This tool is manually operated and is designed for cutting round discs from a thin metal sheet /foil (< 0.5 mm) or separator film (<30um). The finished discs can be used as electrode and separator discs for split test cell and coin cell, it is good for battery researchers as well as TEM sample preparation.
Features :
1. High accuracy ,no burrs,rags and dents .
2. It can cut various of battery materil with thinkness 0.005-0.5mm .
3. Small dimension, convenient operation, quick and flexible use into glovebox.
4. The machine body is made of anti-corrosion material that is anti-rust forever and has a nice appearance.
This tool is manually operated and is designed for cutting round discs from a thin metal sheet /foil (< 0.5 mm) or separator film (<30um). The finished discs can be used as electrode and separator discs for split test cell and coin cell, it is good for battery researchers as well as TEM sample preparation.
Features :
1. High accuracy ,no burrs,rags and dents .
2. It can cut various of battery materil with thinkness 0.005-0.5mm .
3. Small dimension, convenient operation, quick and flexible use into glovebox.
4. The machine body is made of anti-corrosion material that is anti-rust forever and has a nice appearance.
Machine model | Disc cutter for coin cell electrode and separator punching AOT-DC60 |
Operating | Manual/Hand press |

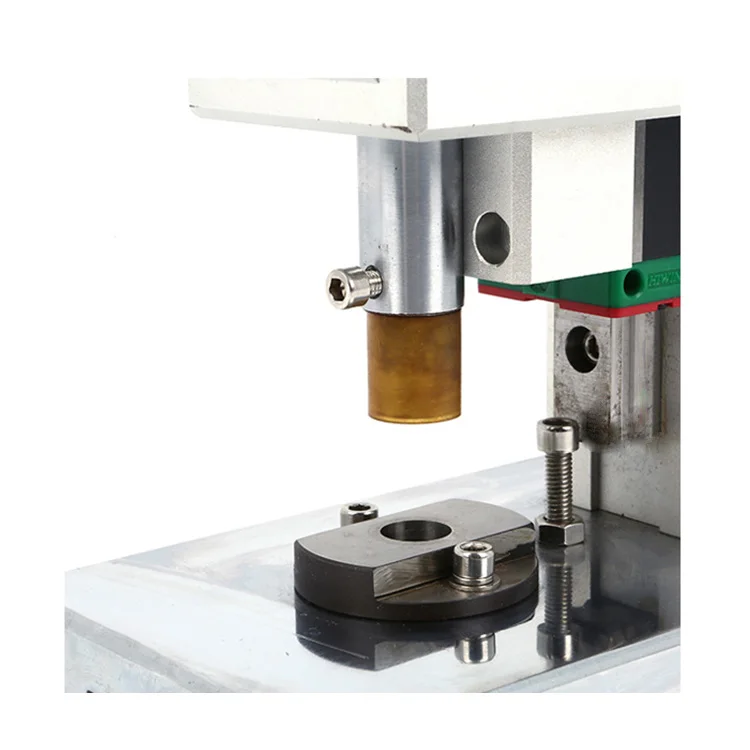

Punching size | Standard configuration: 15mm diameter die for electrode punching and 19mm diameter die for separator cutting. (φ6-24mm customized) |
Application Notes | For make CR2016, CR2025 and CR2032 coin cell batteries, we will need at least three cutting dies: A 15mm (for negative side case, which is 16.5mm in diameter) B 19mm (for positive side case, which is 20mm in diameter) C 20 mm (for separator to fully separate the electrodes) For CR2450 coin cell: 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die for either electrode or separator disc. |
Punching stroke | 25mm |
Punching thickness | 0.005-0.5mm electrode and separator |
Advantages | Easy operation Compact size and light weight Can both cut electrode and separator by changing the cutting die |
Dimension | 110*150*235mm |
Weight | About 7kg |
Warranty | One Year |
Packing & Delivery
1.Standard exported package: Internal anticollision with foam protection , external export wooden box packaging.
2.Responsible for the damage during the shipping process, will change the damage part for you for free.
Company Profile
Certifications
FAQ
1.How long do you need to prepare my goods?
3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
2.Can we have our logo or company name to be printed on products or package?
Sure. your logo could be printed on your products by hot stamping, printing, embossing, uv coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
3.How can I install and operate the machine by myself?
Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
4.How to get technical support after purchasing?
Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
5.What's the warranty for the items?
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
2.Can we have our logo or company name to be printed on products or package?
Sure. your logo could be printed on your products by hot stamping, printing, embossing, uv coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
3.How can I install and operate the machine by myself?
Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
4.How to get technical support after purchasing?
Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
5.What's the warranty for the items?
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge.
