Экструдер для пластиковых нитей с маленькой 3D печатью
US $400.00-$700.00
Производственная линия для экструзии пластиковых
- Категория: Экструдеры для пластика >>>
- Поставщик: Zhangjiagang,Shangyi,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.2 $* | 0.20 $* |
| Aug-15-2025 | 0.61 $* | 0.35 $* |
| Jul-15-2025 | 0.38 $* | 0.89 $* |
| Jun-15-2025 | 0.26 $* | 0.49 $* |
| May-15-2025 | 0.24 $* | 0.37 $* |
| Apr-15-2025 | 0.32 $* | 0.49 $* |
| Mar-15-2025 | 0.11 $* | 0.12 $* |
| Feb-15-2025 | 0.28 $* | 0.40 $* |
| Jan-15-2025 | 0.19 $* | 0.51 $* |
Характеристики
Product Description
Color | selectable |
Production Capacity | 1-10m/min |
Pipe range | 16-630mm |
Length | 24-72m |
Material | stainless steel |
Temperature controller | OMRON |
Converter | ABB Inventer |
Motor brand | SIMENS |
Plastic Processed | HDPE |
Voltage | 3phase 380v 50hz |
Product Display

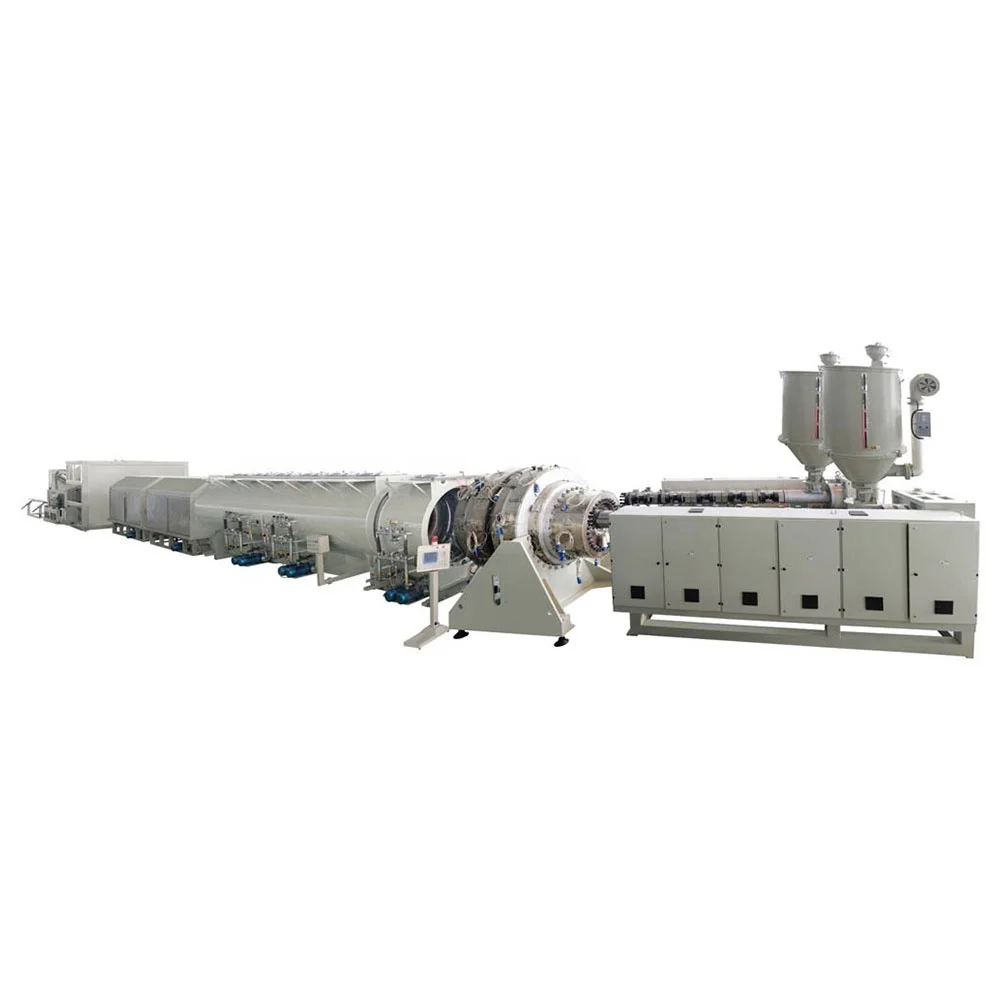

This PE Pipe Extrusion Line can be used in PE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on.
So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb.

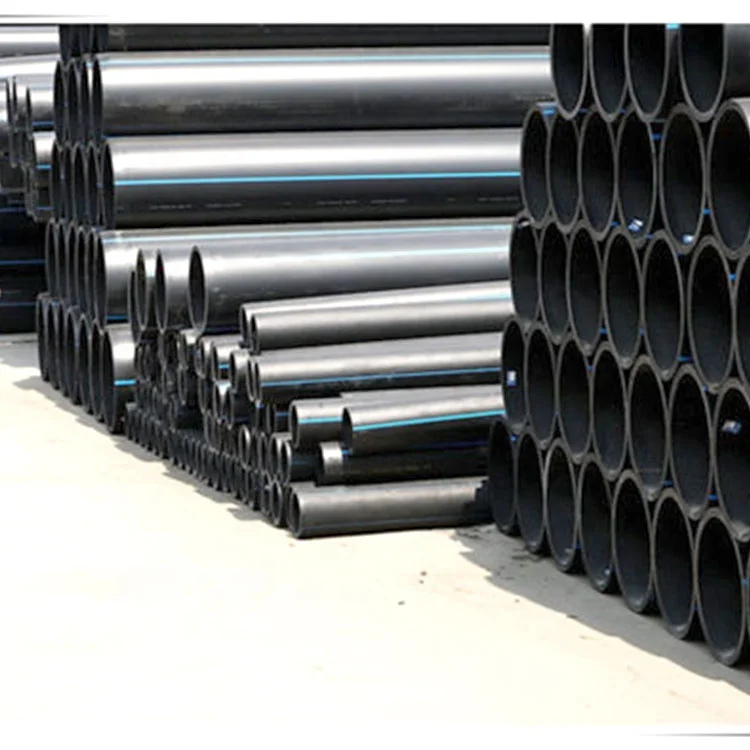

Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb.
Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
Process Flow of PE Pipe plant HDPE Plastic pipe making machine:

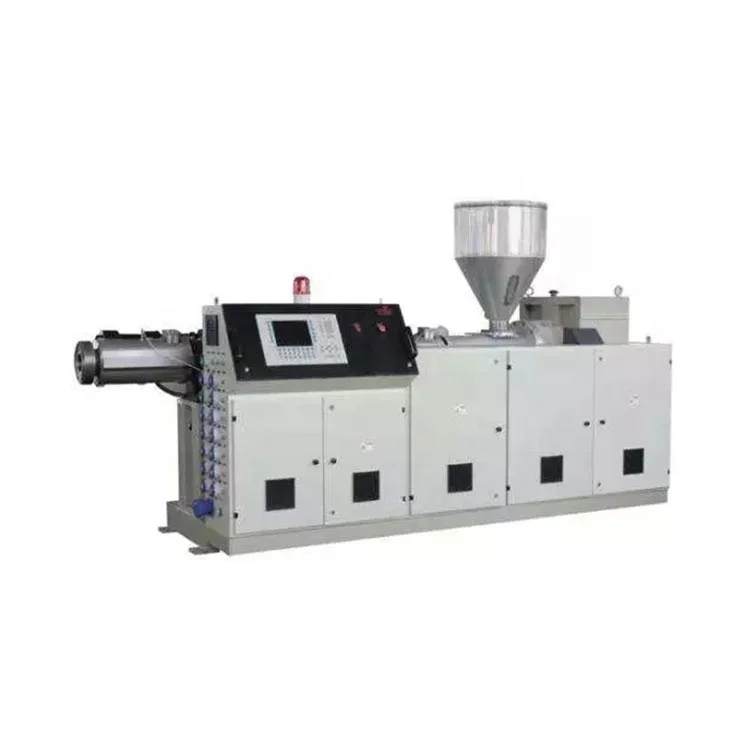

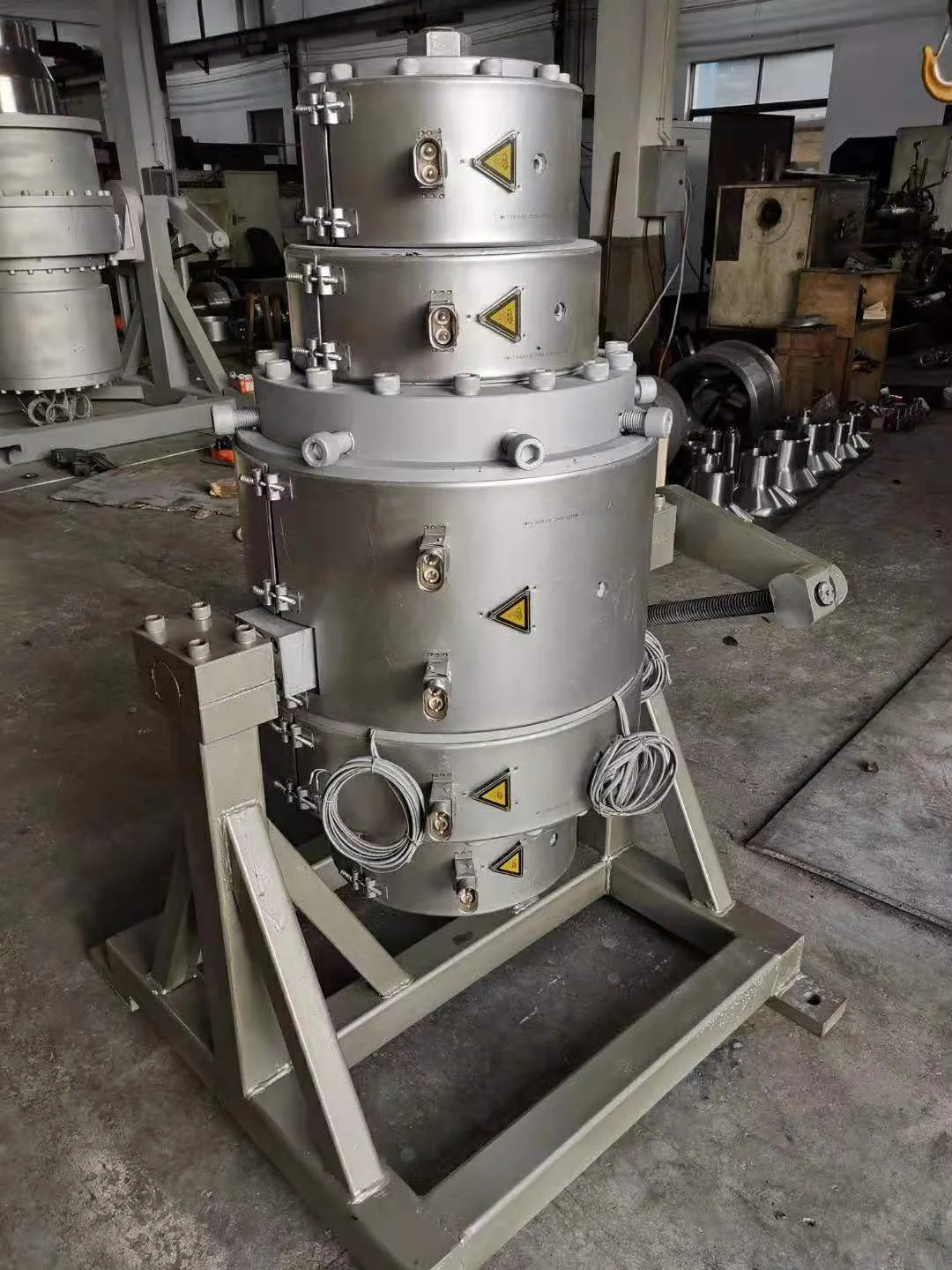

Raw material + master batches → mixing → vacuum feeding → material dryness → single screw extruder → basket co-extrusion mould →

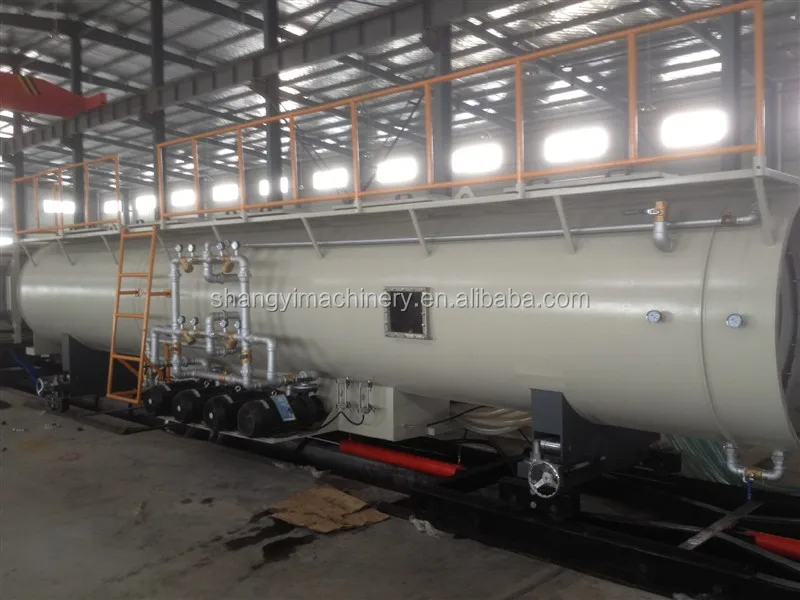

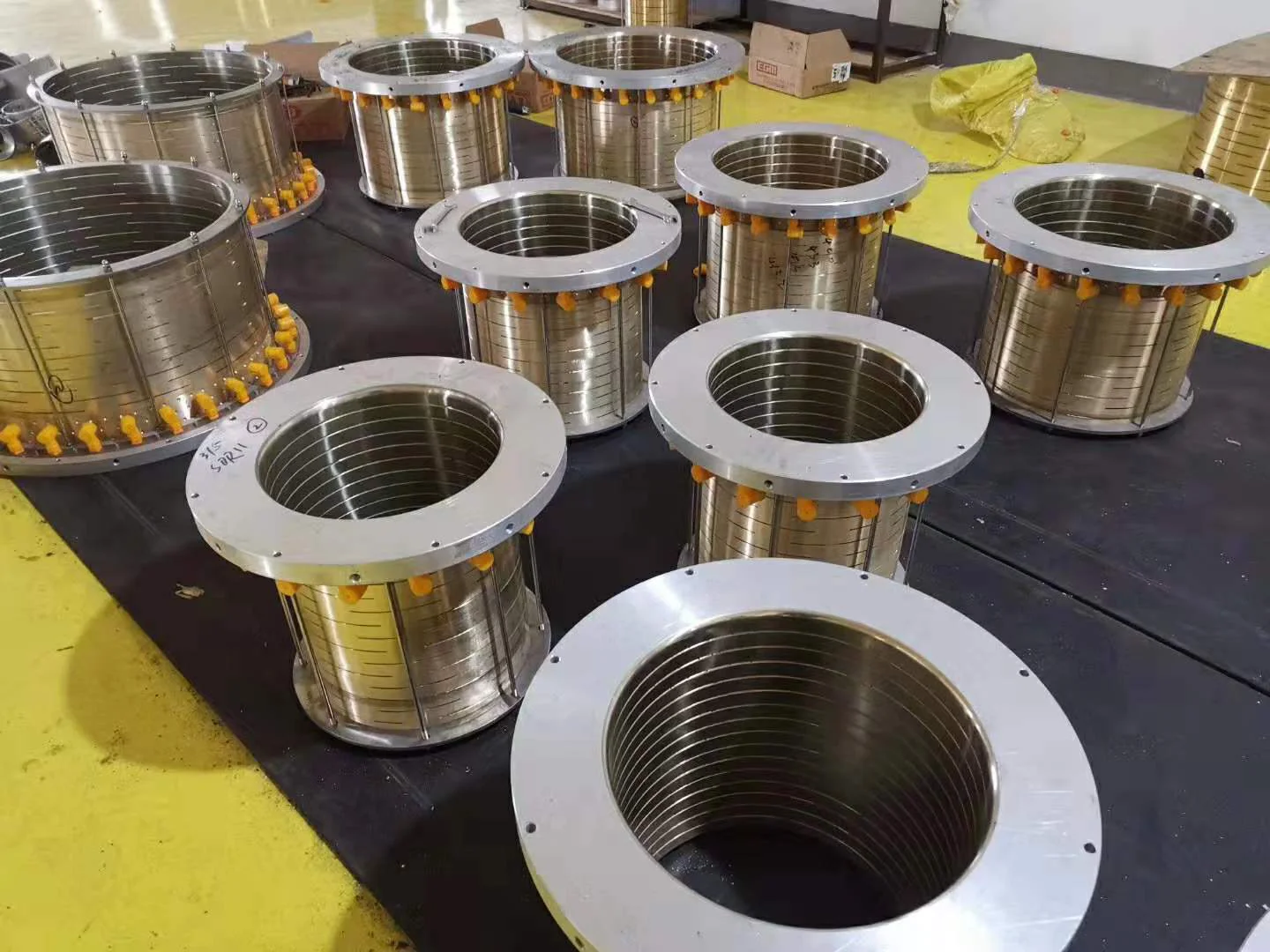

calibrator → spray vacuum calibration tank → spray cooling water tank → belt haul-off → single screw glue extruder → winder →
winding roller forming → water cooler → cutter → pipe rack → finished product inspecting & packing
Raw material + master batches → mixing → vacuum feeding → material dryness → single screw extruder → basket co-extrusion mould →
calibrator → spray vacuum calibration tank → spray cooling water tank → belt haul-off → single screw glue extruder → winder →
winding roller forming → water cooler → cutter → pipe rack → finished product inspecting & packing
Details Images
Model | Screw diameter | L/D | Pipe range | Machine motor power | Total power | line length |
mm) | mm | kw | kw | m | ||
HDPE-63 | 65mm | 33:01:00 | 16-63 | 37 | 80 | 24 |
HDPE-110 | 65mm | 33:01:00 | 75-110 | 55 | 110 | 30 |
HDPE-160 | 75mm | 33:01:00 | 90-160 | 90 | 150 | 32 |
HDPE-250 | 75mm | 33:01:00 | 110-250 | 110 | 200 | 42 |
HDPE-315 | 90mm | 33:01:00 | 160-315 | 160 | 240 | 44 |
HDPE-400 | 90mm | 33:01:00 | 200-400 | 185 | 300 | 50 |
HDPE-500 | 120mm | 33:01:00 | 250-500 | 280 | 350 | 56 |
HDPE-630 | 120mm | 33:01:00 | 315-630 | 280 | 480 | 56 |
HDPE-800 | 150mm | 33:01:00 | 400-800 | 315 | 550 | 72 |
