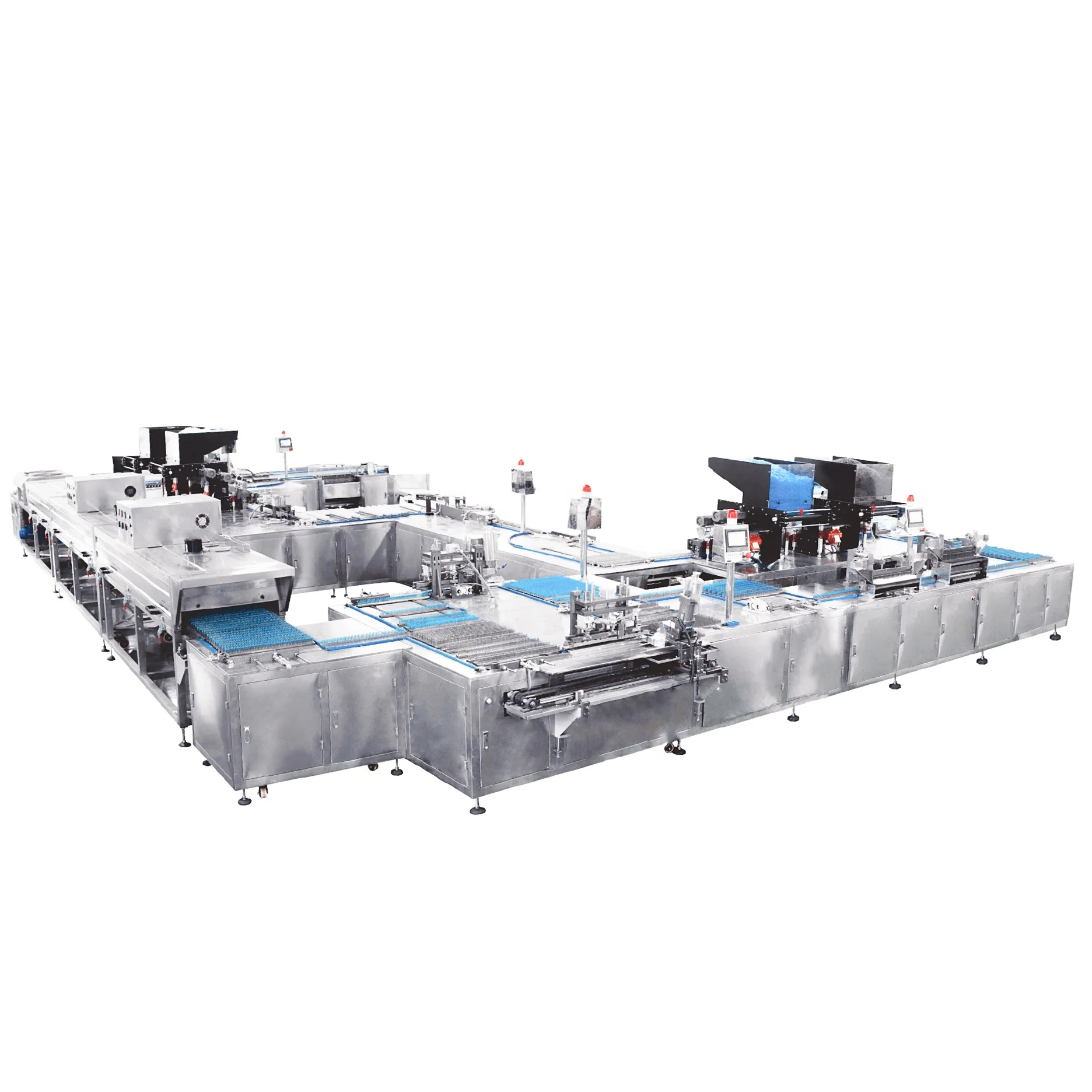

Hypodermic Cannula Automatic Assembly Machine

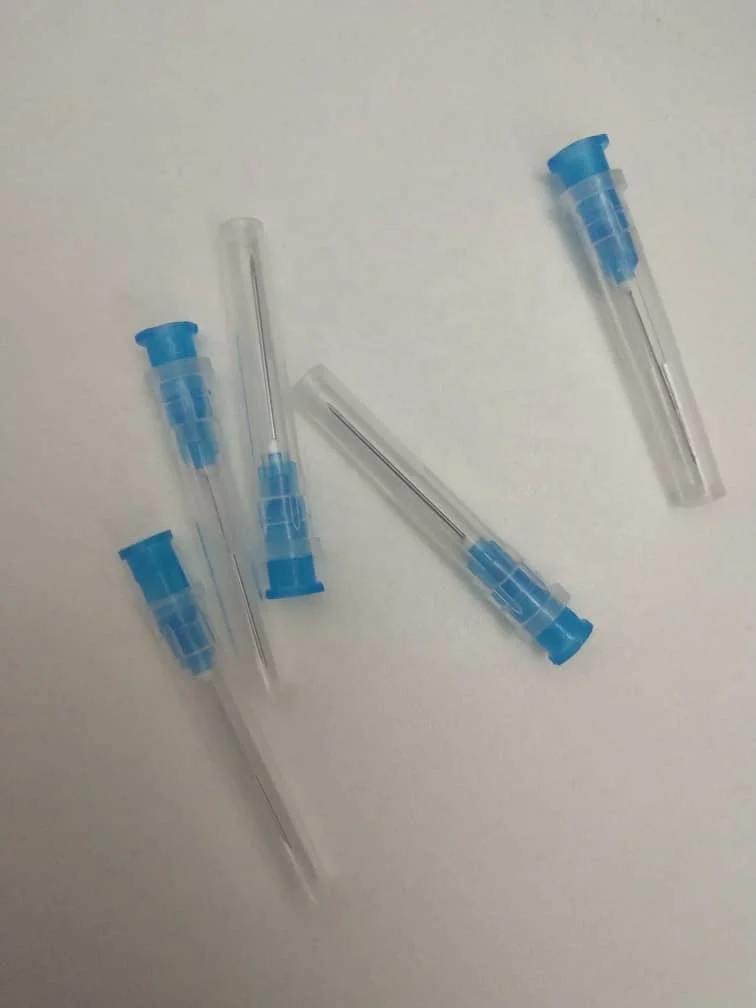

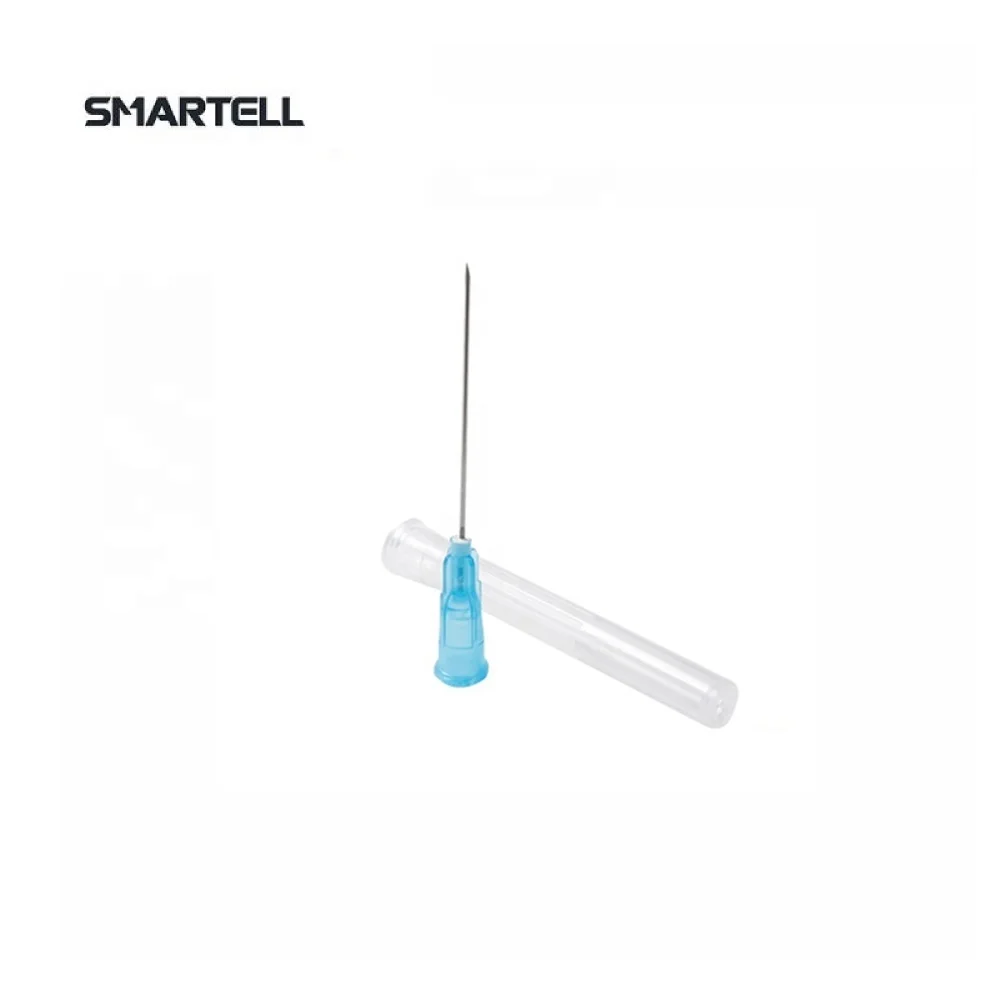

This machine is used to assemble the syringe needle, including hub, cap and needle cannula. The working

process like belowing.

 Automatic needle feeding base station - Automatic needle feeding - Automatic glution - Drying-

Automatic block checking - Automatic waste rejecting - Automatic oil soaking - Automatic jacketing

- Automatic pressing sleeve and blangking





1.Simultaneity assembly 50pcs Cannula each time.

2.It can assembly following size needle with different needle positioning.

3.Small type It applied to diameter range 0.4~0.55mm)

4.Average type (It applied to diameter range 0.6~0.8mm)

5.Large type( It applied to diameter range 0.9~1.2mm)

6.Extra large type( It applied to diameter range1.2~1.6mm)

7.Capacity:25,000~35,000pcs per hour (for master)

8.Operation of worker: 6 person( including 4 operators and 2 inspectors)

9.Extra air pressure: ≥0.60Mpg

10.Extra airflow: ≥800Nl/min

11.Power supply: 380V * 50Hz*15Kw*3P+N+PE

12.8Kw for Normal working time

13.15Kw for working after half an hour

14.Dimension: 7m(L)*2.2m(W)*1.7m(H)

15.Weight: abt. 3ton













 Pre-sales service:

1- Inquiry and consulting support

2- View our factory



After-sales service

1- Traning how to instal the machine, training how to use the machine

2- Engineers available to service machinery overseas.

3- 1 year free warranty( caused by quality problems),from the machine arrived at buyer's factory.

4- Lifetime maintenance and life time spare parts supply.
