Высокоскоростная машина для выпрямления и
- Категория: Metal Straightening Machinery >>>
- Поставщик: Hebei,Kaiye,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 7140.54 $* | 7497.68 $* |
| Aug-19-2025 | 7080.54 $* | 7434.48 $* |
| Jul-19-2025 | 5940.64 $* | 6237.87 $* |
| Jun-19-2025 | 6960.31 $* | 7308.24 $* |
| May-19-2025 | 6060.82 $* | 6363.28 $* |
| Apr-19-2025 | 6840.74 $* | 7182.61 $* |
| Mar-19-2025 | 6780.43 $* | 7119.79 $* |
| Feb-19-2025 | 6720.91 $* | 7056.95 $* |
| Jan-19-2025 | 6660.53 $* | 6993.49 $* |
Характеристики
Product Description

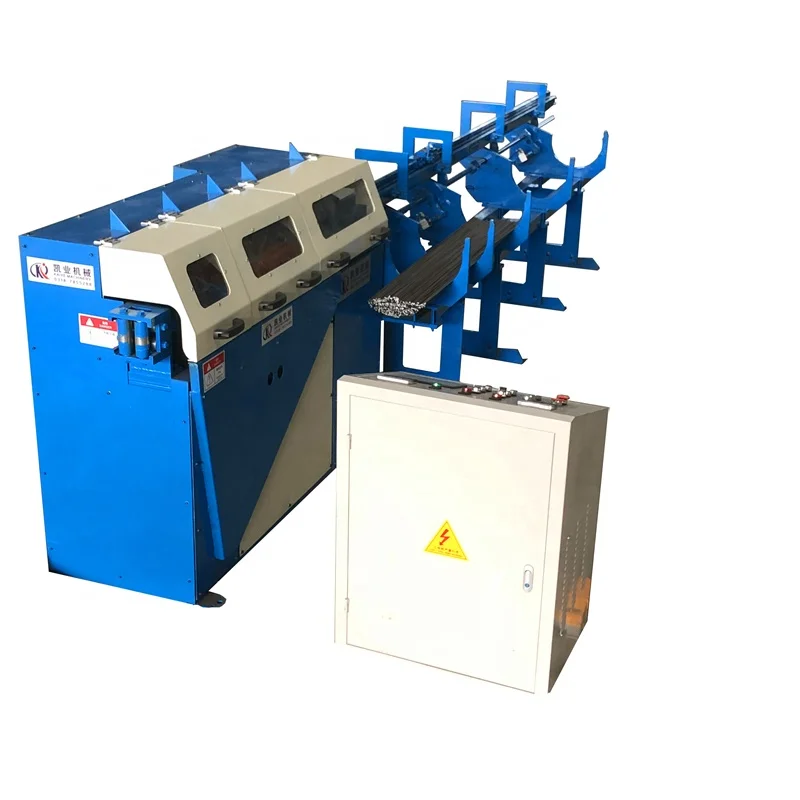

High Speed Wire Straightening and cutting machine
Compared with the ordinary straightening equipment, the structure of high-speed steel wire straightening and cutting machine is more reasonable, and the style also has a new concept, mainly because of a dynamic factor. High power with excellent machinery improves the output and quality of products.High speed steel wire straightening and cutting machine, whether it is gear, straightening wheel, pressing wheel, cutter, casting or other parts, should be more excellent in raw materials and more prominent in manufacturing accuracy.
Machine Advantages
There is no error in the length of cut steel bar.
Double head pull type.
The next one meter of reinforcement is adjusted and pulled out.
Tungsten steel mould is used for construction wire.
The product wire adopts ball end die, and the steel bar will not damage the surface.
Double head pull type.
The next one meter of reinforcement is adjusted and pulled out.
Tungsten steel mould is used for construction wire.
The product wire adopts ball end die, and the steel bar will not damage the surface.
Machine Specification
Model | KY-HSC-3/6 | KY-HSC-6/12 |
Wire diameter (mm) | 3.0-6.0 mm | 6.0-12.0 mm |
Cutting length (m) | 0.8-3.0 m | 0.8-12.0 m |
Straightening speed (m/min) | 80-110 m/min | 80-110 m/min |
Straightening accuracy (mm/m) | ≤1 mm | ≤1 mm |
Length accuracy (mm) | ±1 mm | ±1 mm |
Power (kw) | 5.5KW+2.2KW+2.0KW | 30 KW+7.5 KW+5.0KW |
Detailed Images

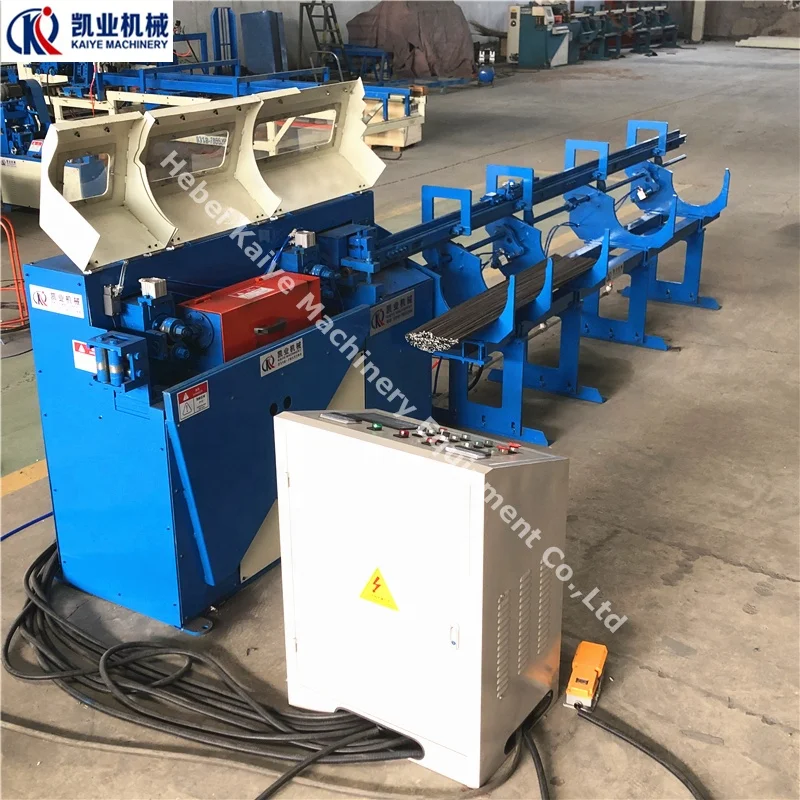

Control cabinet.
The control cabinet can easily adjust the running speed of the machine and the cutting length of the wire.

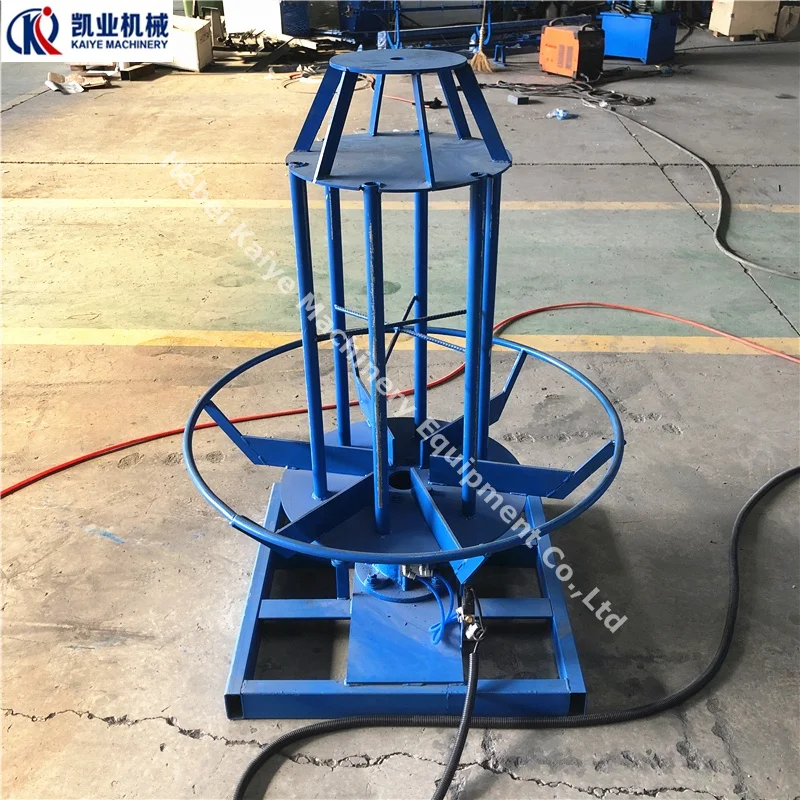

Pay off rack.
At the bottom of the pay off frame, the bearing can bear more than 1000 kg.
Pneumatic components.
Part of the mechanical action using pneumatic control, can achieve better sensitivity.
Main straightener.
After high-tech transformation, the main straightener has low operation noise, no more than 40 dB, and the high-speed operation temperature will be stable in a lower range for a long time.
Mechanical protection modeling.
All high-speed mechanical parts are covered with protective cover to avoid danger to operators.

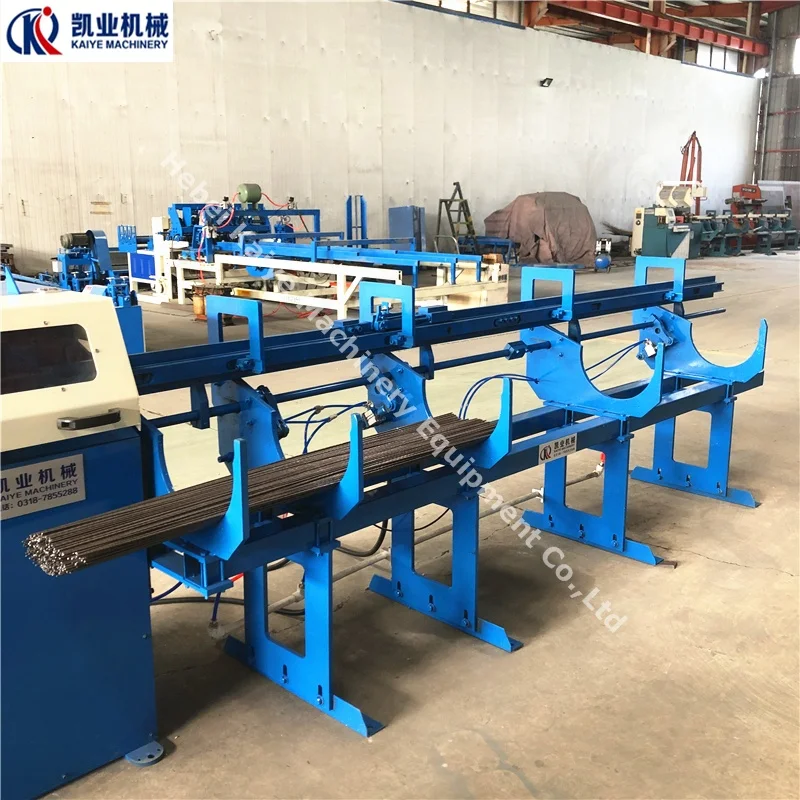

Wire collection rack.
The standard length of steel wire collection shelf is 3 meters, we can customize the length of 6 meters and 12 meters, or even longer according to customer requirements
Company Introduction
Company Profile
Hebei Kaiye Machinery Equipment Co., Ltd.(formerly Jiasheng Welding Equipment Factory, Anping City, China) was established in 1998. It is a professional manufacture and exporter which is concerned with the design, development and sale of wire mesh welding equipment. Our products comply with international quality standards and they're greatly appreciated in a variety of different markets throughout the world. With huge R&D team, excellent sales staff and professional after-sale service, our company can solve all the worries for customers.
Hebei Kaiye Machinery Equipment Co., Ltd.(formerly Jiasheng Welding Equipment Factory, Anping City, China) was established in 1998. It is a professional manufacture and exporter which is concerned with the design, development and sale of wire mesh welding equipment. Our products comply with international quality standards and they're greatly appreciated in a variety of different markets throughout the world. With huge R&D team, excellent sales staff and professional after-sale service, our company can solve all the worries for customers.
Our Services & Strength
We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.Our main products: wire mesh welding machine, 3D panel production line, reinforcement mesh welding machine, EPS panel production line, Gabion mesh machine, hexagonal mesh weaving machine, expanded metal machine, razor wire machine, Diamond mesh machine, pneumatic spot welding machine and straightening & cutting machine.
Packing&Shipping
After Sales Service
Certifications
FAQ
Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
