Машина для выпрямления
- Категория: Metal Straightening Machinery >>>
- Поставщик: Xingtai,Judu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2142.19 $* | 2249.21 $* |
| Aug-15-2025 | 2124.89 $* | 2230.83 $* |
| Jul-15-2025 | 1782.15 $* | 1871.88 $* |
| Jun-15-2025 | 2088.0 $* | 2192.6 $* |
| May-15-2025 | 1818.22 $* | 1909.34 $* |
| Apr-15-2025 | 2052.5 $* | 2155.8 $* |
| Mar-15-2025 | 2034.39 $* | 2136.65 $* |
| Feb-15-2025 | 2016.42 $* | 2117.72 $* |
| Jan-15-2025 | 1998.22 $* | 2098.23 $* |
Характеристики
bar straightening and cutting machine Full automatic servo wire straightening and cutting machine
Product Description
The straightening section cutting machine adapts to a wide range of wire diameters. The wire diameter of 1.2mm~7mm can be selected. The shortest section that can be cut is 50mm and the longest is unlimited. Suitable for all kinds of wire such as iron Steel stainless steel. Copper aluminum And so on all kinds of wire rod straightening and cutting section product processing. The accuracy is plus or minus 0.5mm, the straightening efficiency is fast, and the fastest speed can reach 120m/ min, which is equivalent to the speed output of 10 old-fashioned mechanical straightening machines, with stable performance and simple operation. In the working state, the wire rod shall not be twisted and broken, the notch shall be flat, and the surface shall not be scratched and damaged. The precise straightening speed of flying shear cutting can adopt stepless speed change according to the toughness of wire material, and automatically track the straightening speed to automatically compensate the straightening loss and wear.
product show

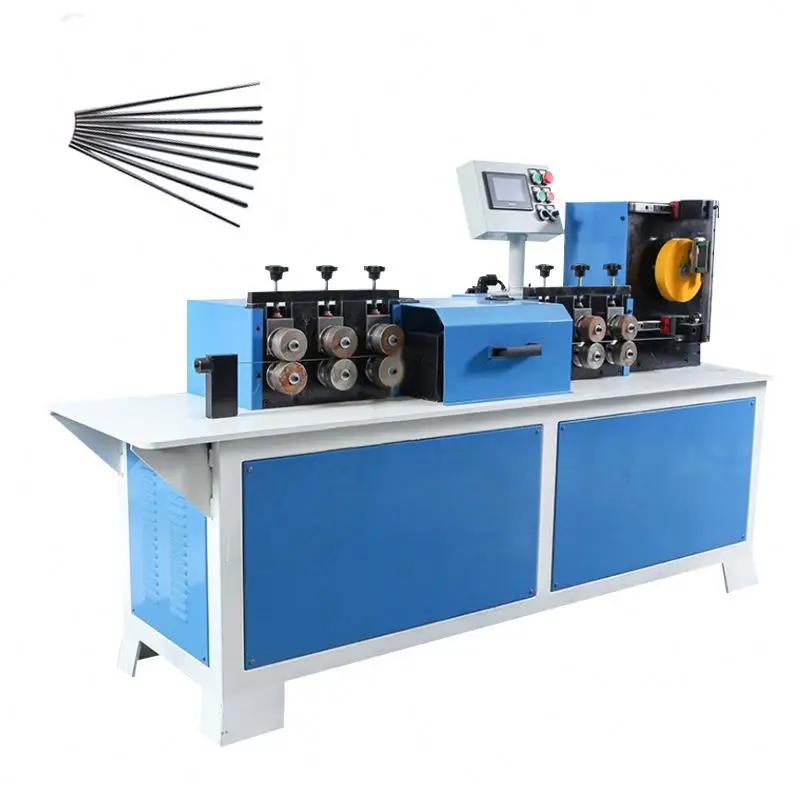

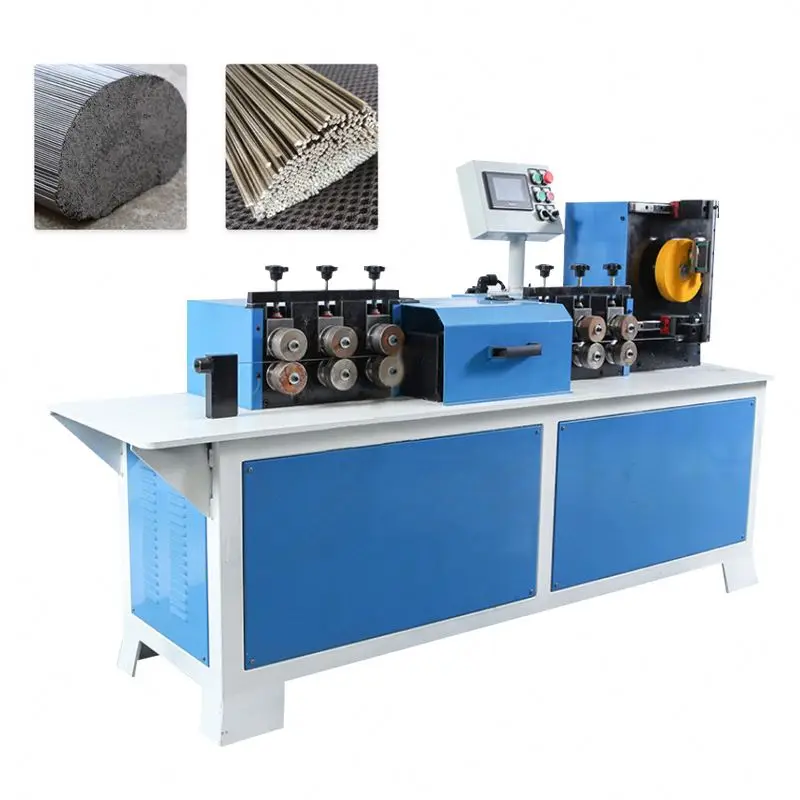

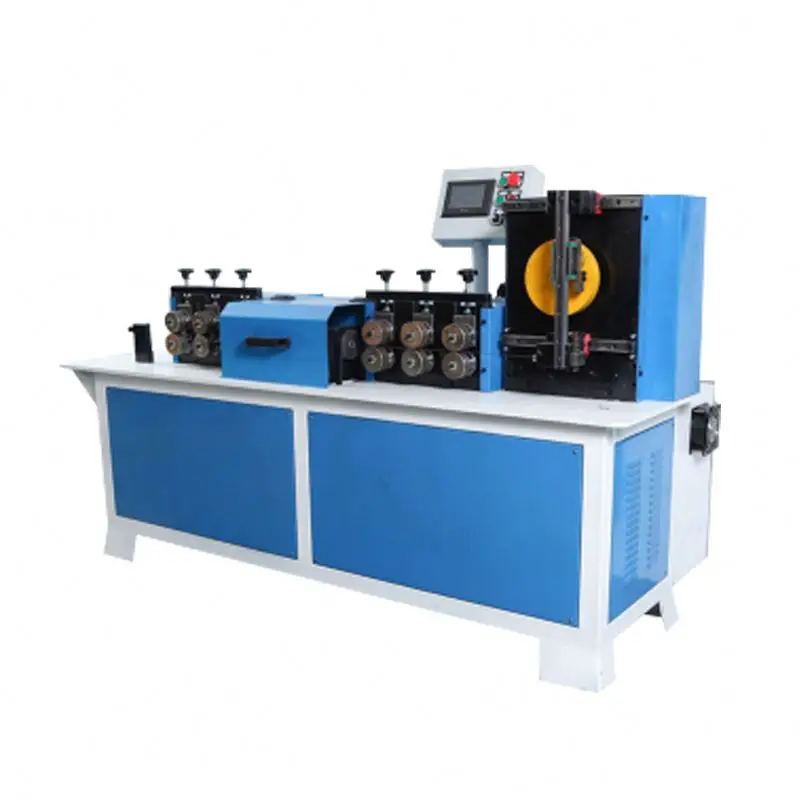

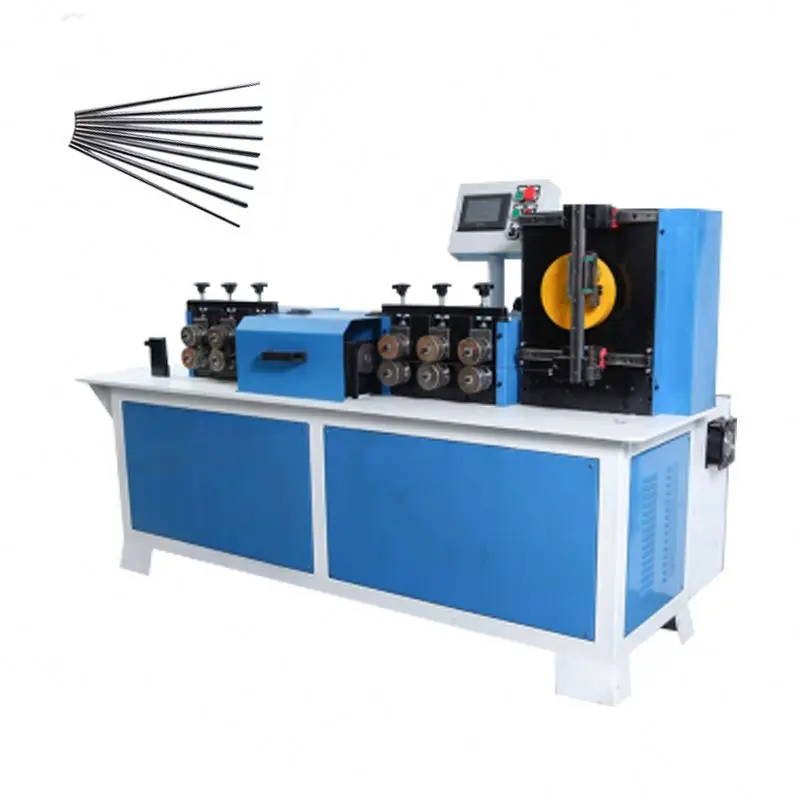

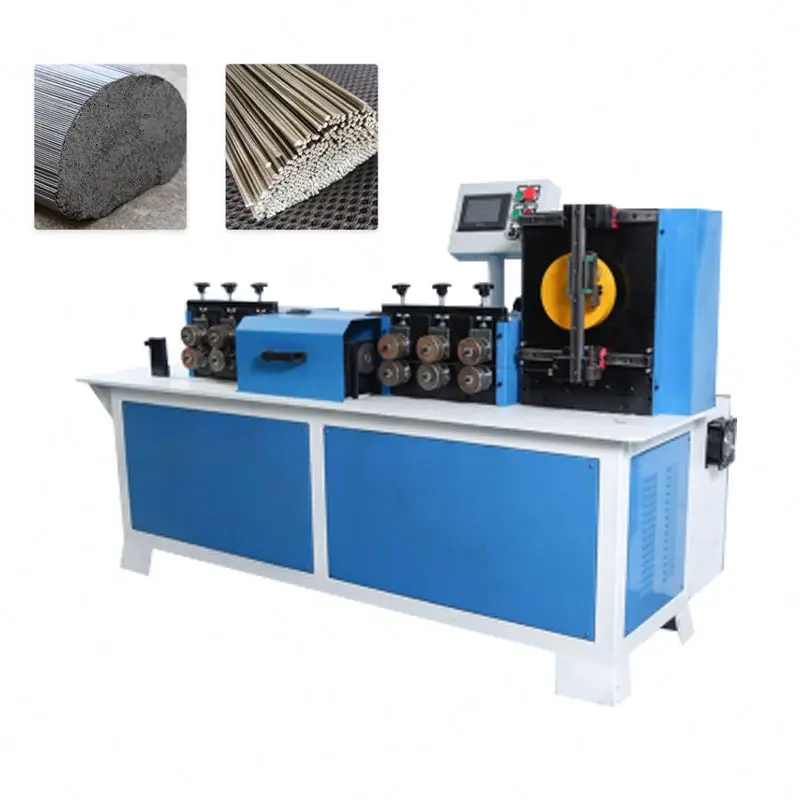

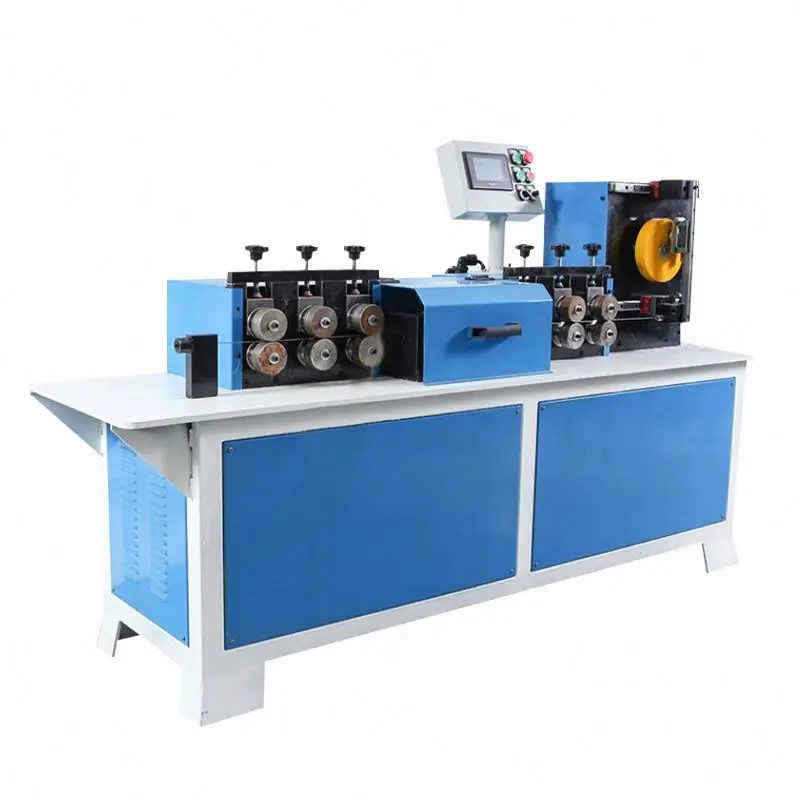

bar straightening and cutting machine Full automatic servo wire straightening and cutting machine photos
Technical Parameter
bar straightening and cutting machine Full automatic servo wire straightening and cutting machine parameter
Model | FJJ-130 |
Overall power | 6.7kw |
Input voltage | three-phase 380V |
Wire feeding motor | 1.5kw |
Cut off motor | 2.2kw |
Straightening motor | 3.0kw |
Guide rail | Taiwan Shangyin |
Straightening bearing | imported from Japan |
Straightening die | Alloy |
Applicable diameter range | 1-3m |
Maximum cutting speed | 350 pieces per minute |
Length accuracy error | ± 0.5am |
Cutting length | above 100A |
Appearance dimension length × wide × Height) | 1700*1900*1450 |
our company
Certifications
our company main product are wire bending machine and
high speed CNC wire cutting machine steel wire straightening and cutting machine
contact me
more details on wire straightening and cutting machine, contact us
