XCMG official DG22C2 22 м Новый пожарный автомобиль сухой порошок двигатель для
- Категория: Fire Trucks >>>
- Поставщик: XCMG,E-Commerce,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 59500.80 $* | 62475.77 $* |
| Aug-19-2025 | 59000.8 $* | 61950.71 $* |
| Jul-19-2025 | 49500.37 $* | 51975.33 $* |
| Jun-19-2025 | 58000.76 $* | 60900.63 $* |
| May-19-2025 | 50500.42 $* | 53025.47 $* |
| Apr-19-2025 | 57000.47 $* | 59850.30 $* |
| Mar-19-2025 | 56500.20 $* | 59325.82 $* |
| Feb-19-2025 | 56000.8 $* | 58800.59 $* |
| Jan-19-2025 | 55500.84 $* | 58275.41 $* |
Характеристики
Product Description

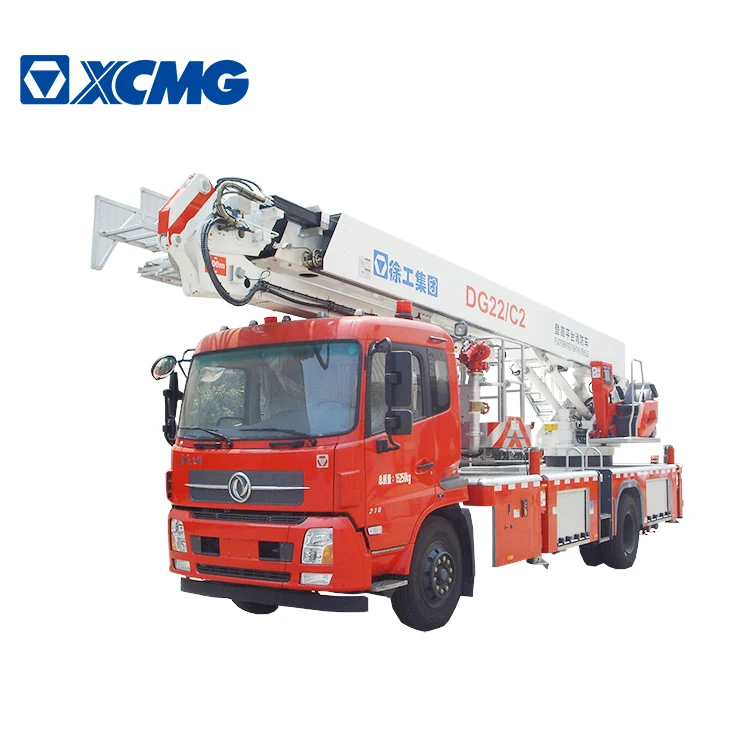

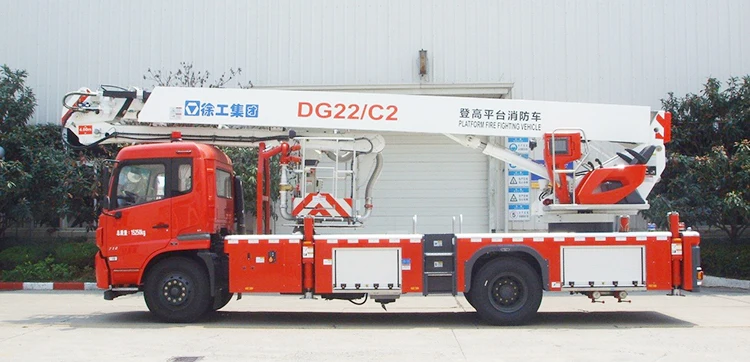

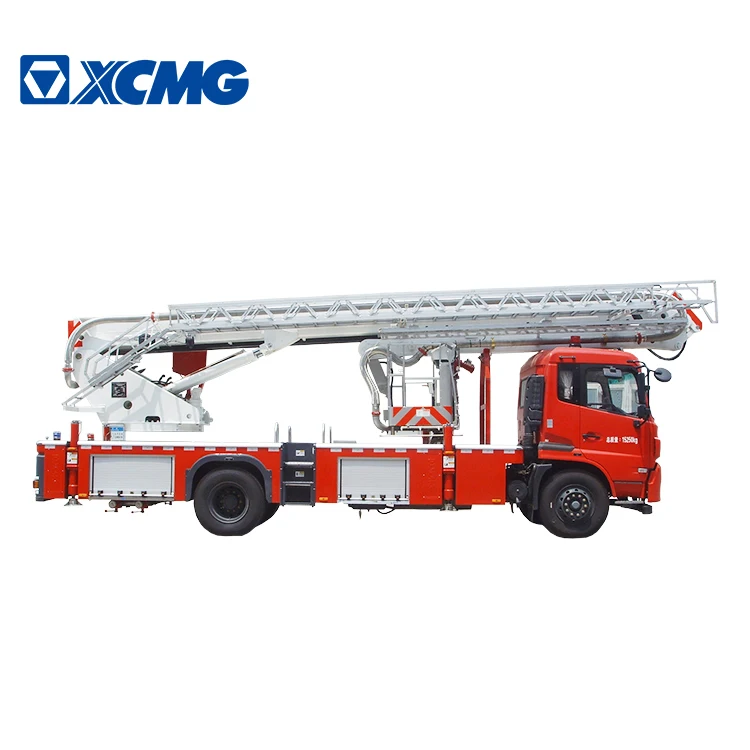

XCMG official DG22C2 22m new dry powder fire truck fire fighting engine for sale

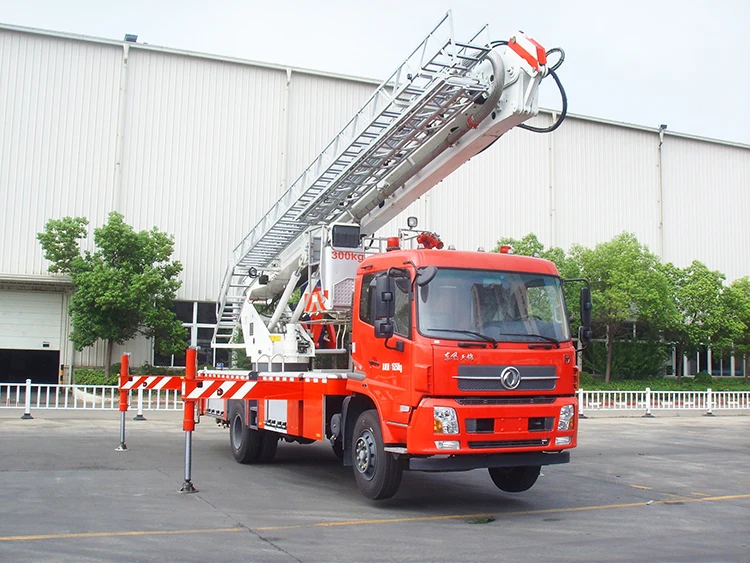

The DG22C2 ladder truck is a multi-purpose main battle fire truck that is fully hydraulically driven, full-slewing, and a combinedarm type, and is equipped with a high-spray truck, a platform-lifting vehicle, and a rescue vehicle.
The vehicle is widely used inhigh-altitude fire rescue operations in cities, factories, mines, ports, and other places. It is the first choice forextinguishing high-rise building fires, rescue personnel in distress and rescue of property.

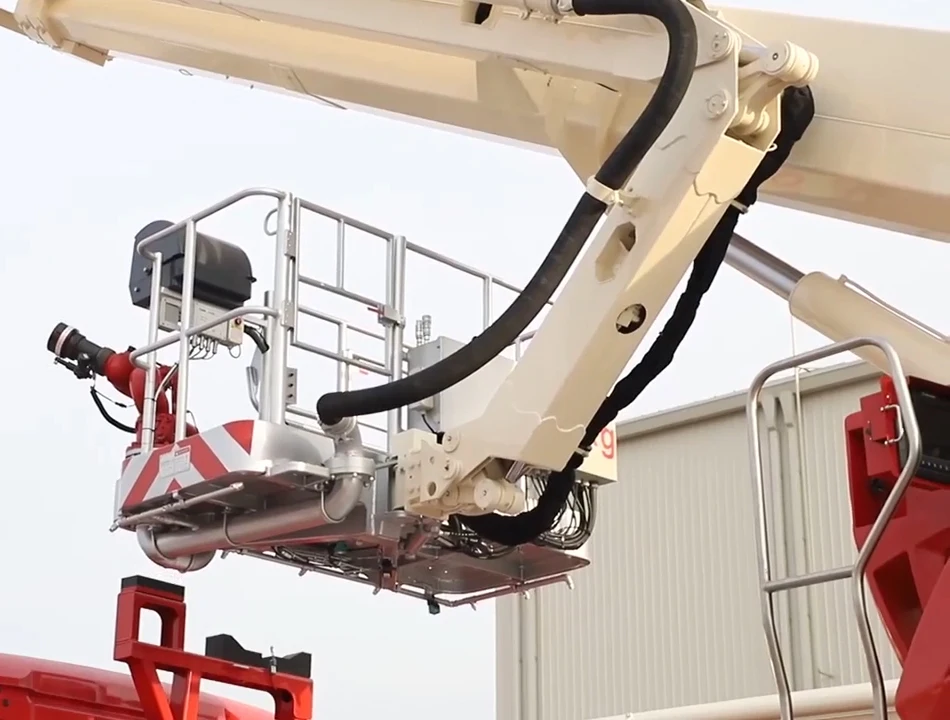

The upper vehicle is equipped with two sections of synchronous telescopic arms and one section of crank arm. The head of the crankarm is hinged to the working platform. The PSKD40D electronically controlled fire water monitor is installed on the workingplatform.
The upper vehicle is equipped with two sections of synchronous telescopic arms and one section of crank arm. The head of the crankarm is hinged to the working platform. The PSKD40D electronically controlled fire water monitor is installed on the workingplatform.

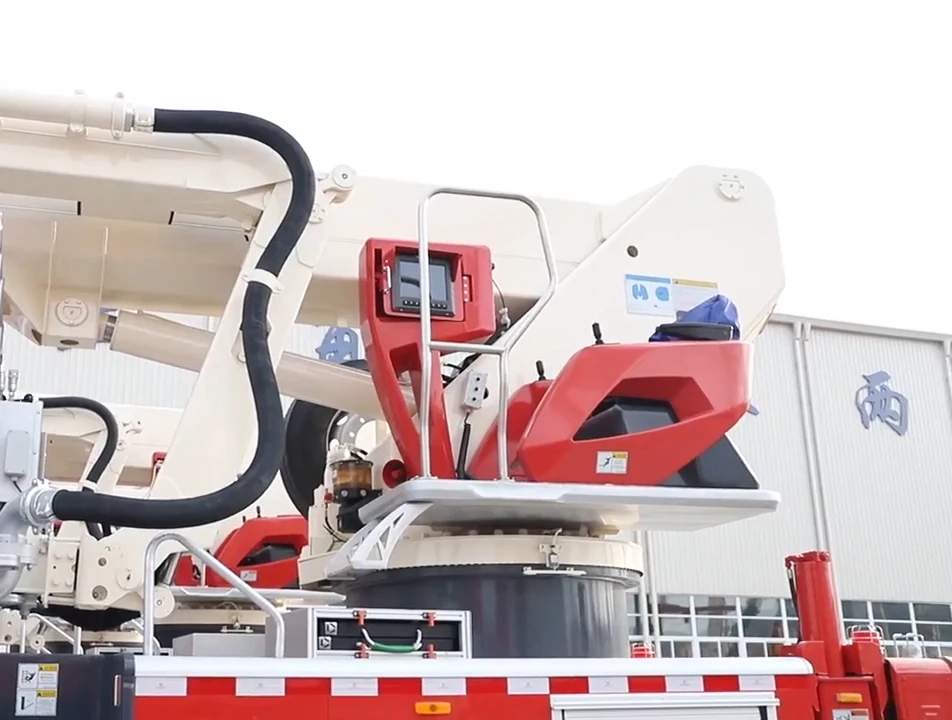

The water pipe of the fire protection system is fixed on the right side of the telescopic arm and stretching with thetelescopic arm; through the double-cylinder front support luffing and H-type legs, the vehicle can achieve 360 ° full swingoperation; the vehicle has a complete safety protection device; the whole machine can operate the upper vehicle on the turntableand work platform.
Specification
Boundary dimension: (Length × width × height) | 10190×2500×3800 mm | ||
Full mass | 15325 kg | ||
Maximum speed | ≥90 km/h | ||
Minimum turning diameter | ≤19 m | ||
Approach angle | ≥17° | ||
Departure angle | ≥9° | ||
Maximum gradeability | ≥25% | ||
Outrigger span | Longitudinal span | 5500 mm | |
Horizontal span | 5500 mm | ||
Work platform load | 300 kg | ||
Maximum working height | 22 m | ||
Maximum working range | 14 m | ||
Elevating angle of boom | The elevating angle of telescopic boom is -3°—+80° The elevating angle of folding boom and telescopic boom is 0°—+175° | ||
Rotation scope | 360° full-rotation | ||
Spread time of outrigger | ≤30 s | ||
Time for lifting the boom to rated height and rotating 90° | ≤150 s | ||
Maximum slewing speed | 0.5~1.5 r/min | ||
Fire fighting gun | Model | PSKD40D | |
Rated flow | 40 L/s (±8%) | ||
Rated pressure | ≤0.9 MPa | ||
Range | ≥65 m | ||
