Пожарная машина японского бренда водяной насос бак пожарная горячая

Цена:*

Количество:

Product Description

Chassis parameters
Chassis model		QL1180XMFRY	Chassis brand	ISUZU
Overall dimensions		7570×2490×2810mm	Wheel base	4500mm
Front/rear wheel track		1960/1855mm	Front/rear suspension	1335/2225mm
Approach/departure angle		15/17°	Maximum speed	95km/h
Chassis Manufacturer		QingLing Motors (Group) Co., Ltd.
Cab	Configuration	FVR,double rows cab,allowable 3+3 passengers,with air conditioner, central locking, electric windows, USB audio, cab can be flipped.
	Color	Red,other color is optional
Engine	Model	6HK1-TCL
	Emission	Euro 5
	Type	6 cylinders, in-line, 4-stroke, Exhaust gas turbo, air-to-air inter-cooling, diesel engine
	Rated power	240hp
	Displacement	7790ml
	Manufacturer	Isuzu Engine (Chongqing) Co., Ltd.
Tire	Size	295/80R22.5 tubeless tyre
	Number	6+1 nos
Front axle	6.3 tons
Rear axle	13.0 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V,DC
Transmissions	Isuzu MLD six speed transmission,6 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Upper-Body specification
Water tank	Volume	5500L
Water tank	Material	high quality carbon steel plate, anti-rust treatment inside.
Fire fighting pump	Model	Shanghai Rongshen CB10/40
	Max working pressure	1.251Mpa
	Max allowable entrance pressure	0.4Mpa
	Flux:	Water 40L/S
	Suction depth	≥ 7m
	Suction time	≤35s
Fire knozzle	Model:	Shandong Yunhu PS40
	Range:	≥ 55m
	working pressure	≤1.0(Mpa)
	Horizontal rotation angle	360 º
color	The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck

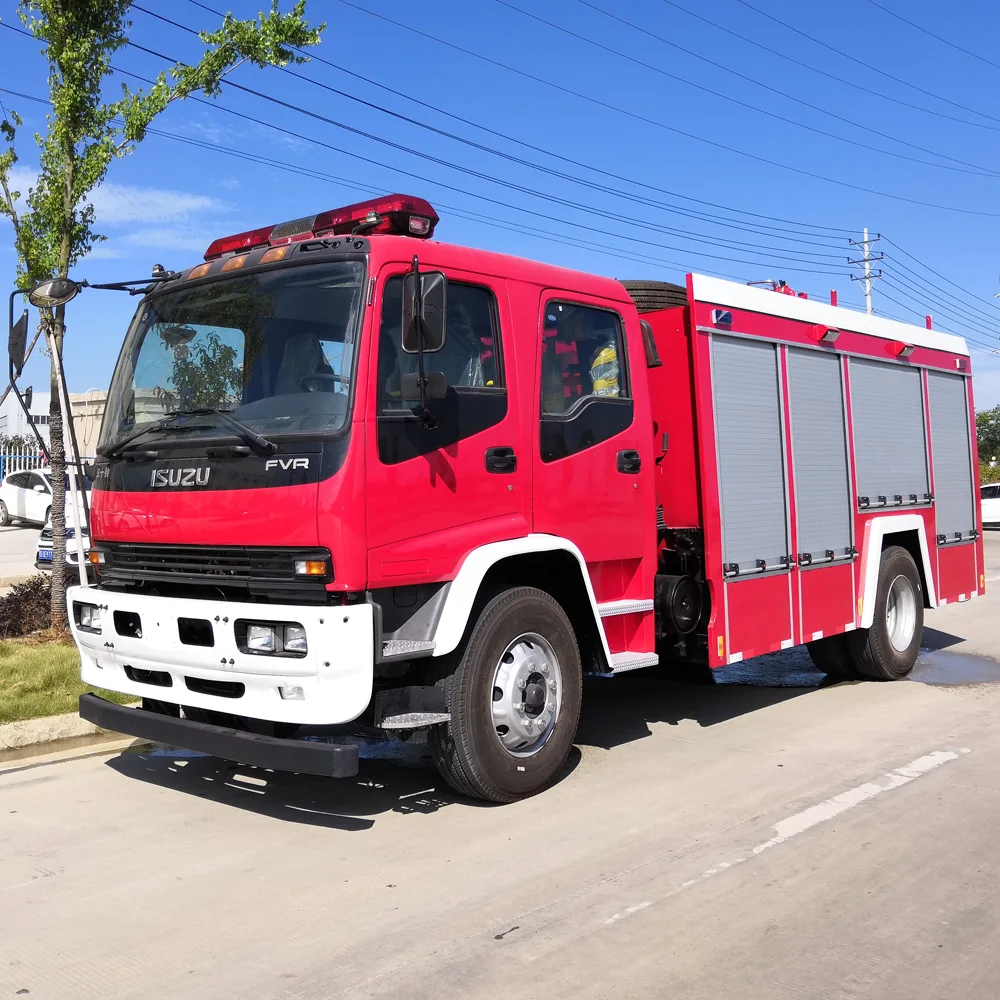

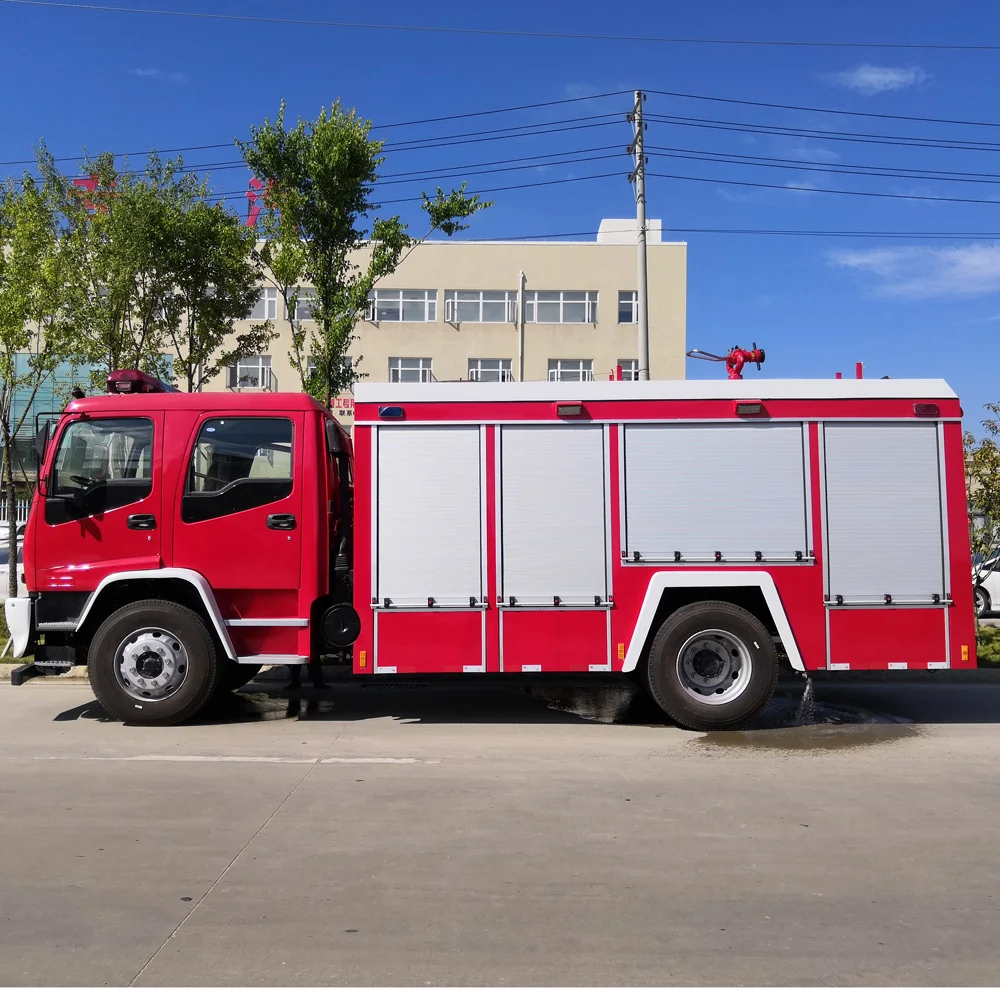

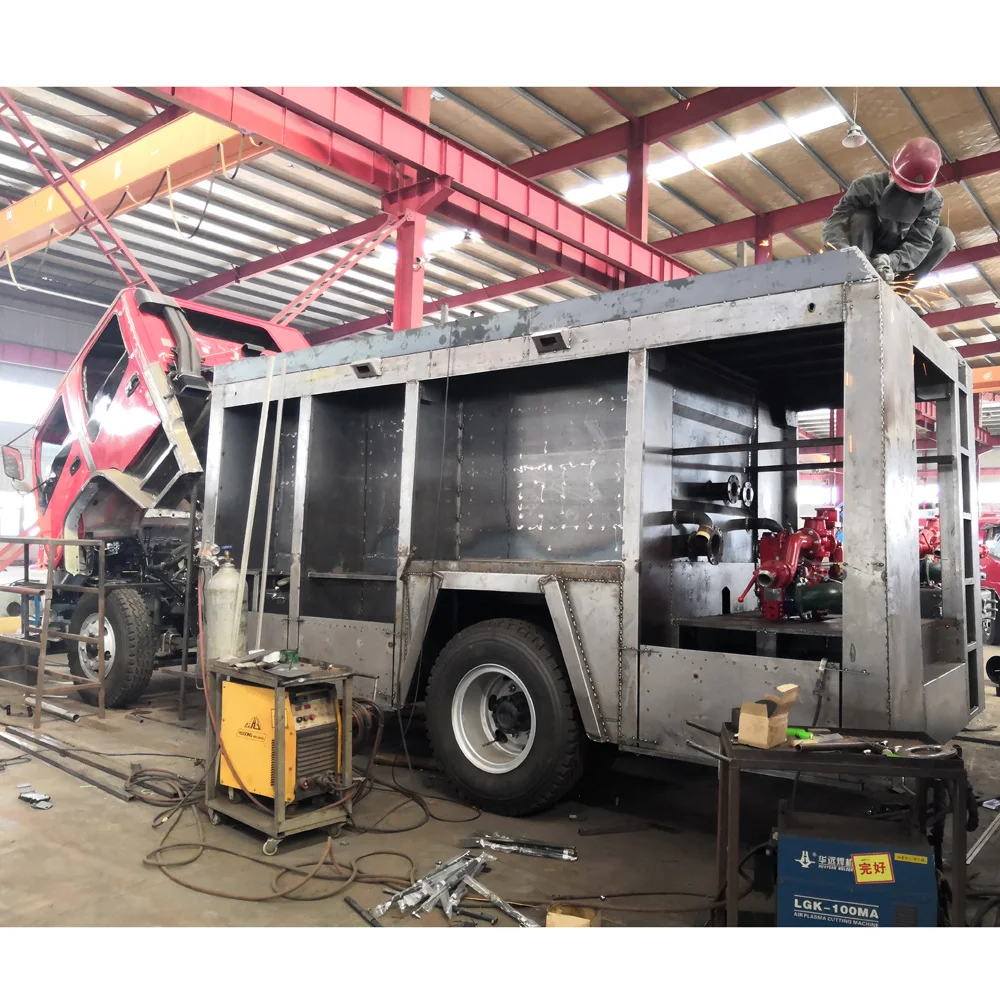

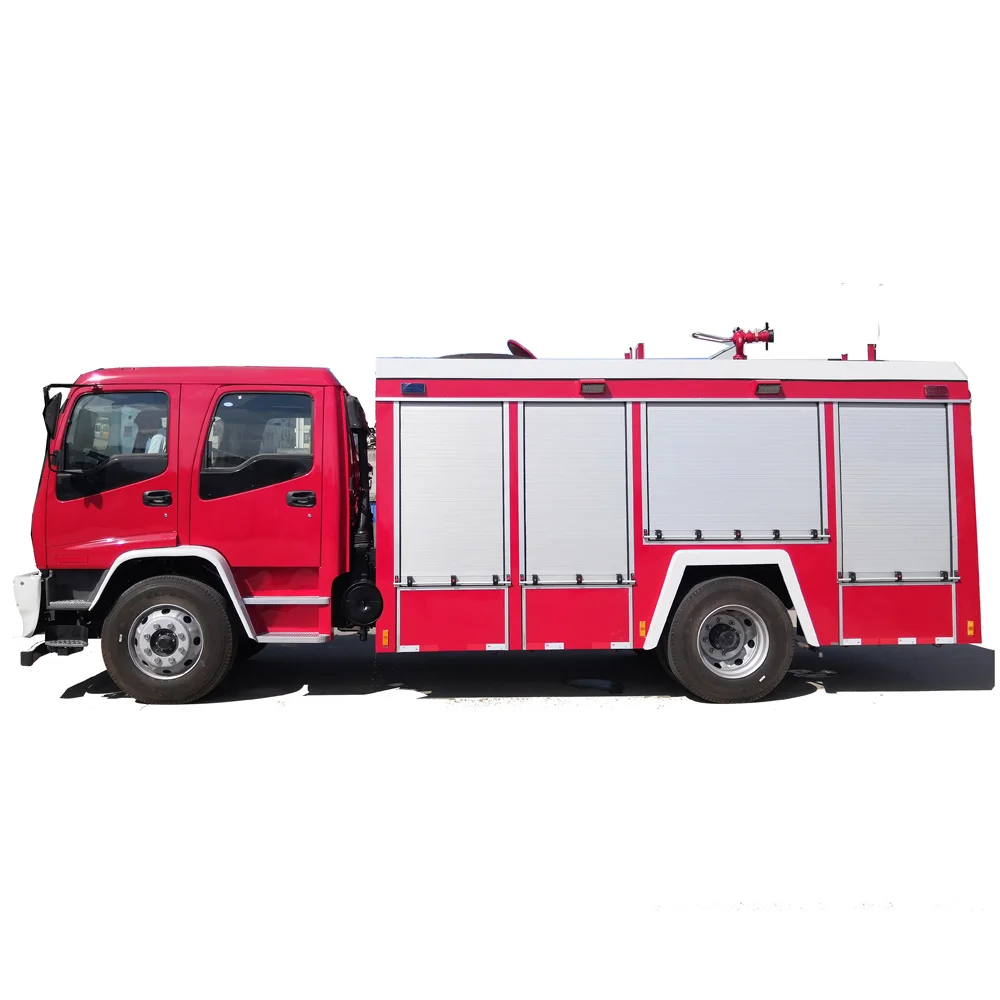

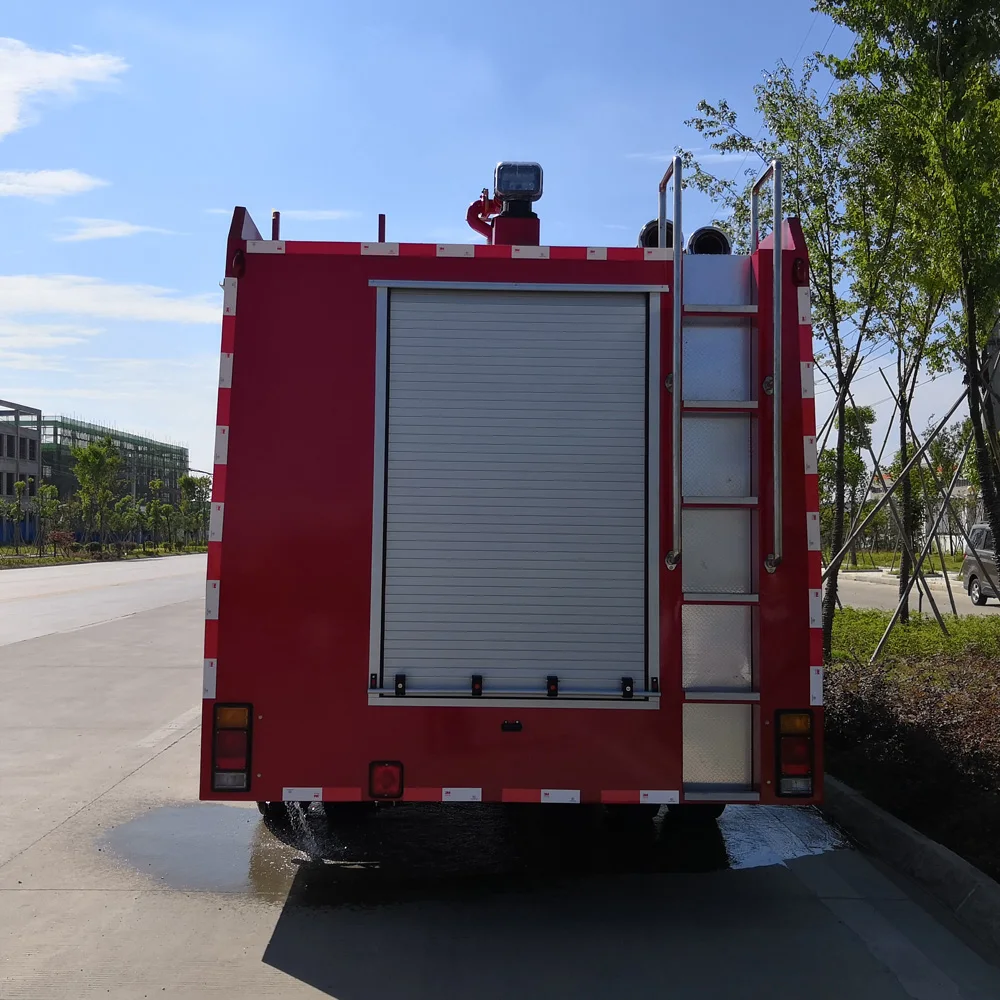

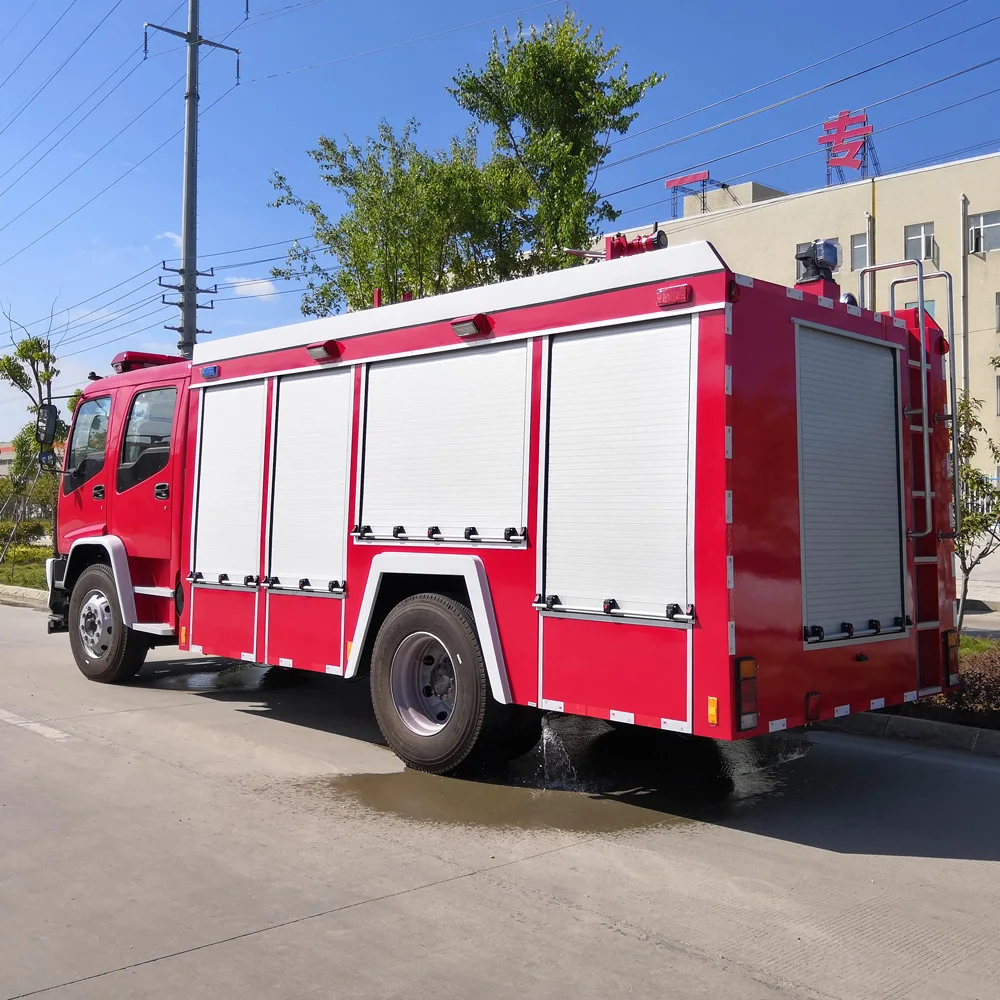

Product Images
