 Original sinotruk howo 6x4 fire truck with foam and water tank

Features of sinotruk fire truck:

With extended cab of double rows and four doors, this vehicle can carry six people including the driver (two sit in the front and four in the rear). The rear row is equipped with four sets of air breathing apparatus supports. Designed according to the structure of ‘cab—equipment compartment—tank—pump house’, the vehicle has reasonable overall layout, scientific structural design and nice appearance. This vehicle adopts the most advanced integrated class A foam extinguishing system in China. The compressed air foam system is easy to operate. According to complicated fire situations, the firemen can rapidly choose different foam extinguishing ways through function buttons, such as dry foam, wet foam and medium expansion foam. This system is equipped with both class A  and class B foam concentrate, thus it can effectively put out fire caused by A and B material.

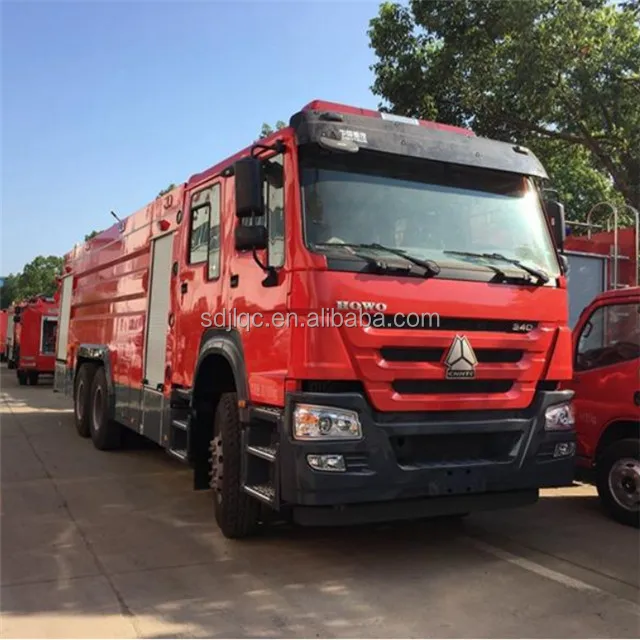

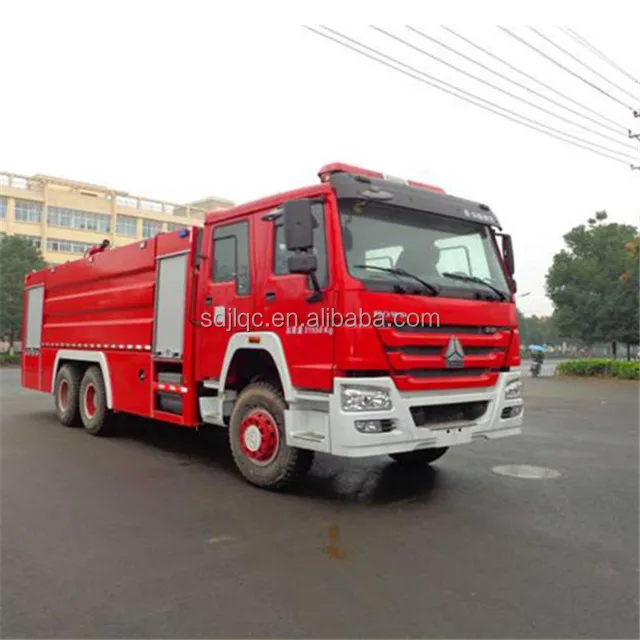

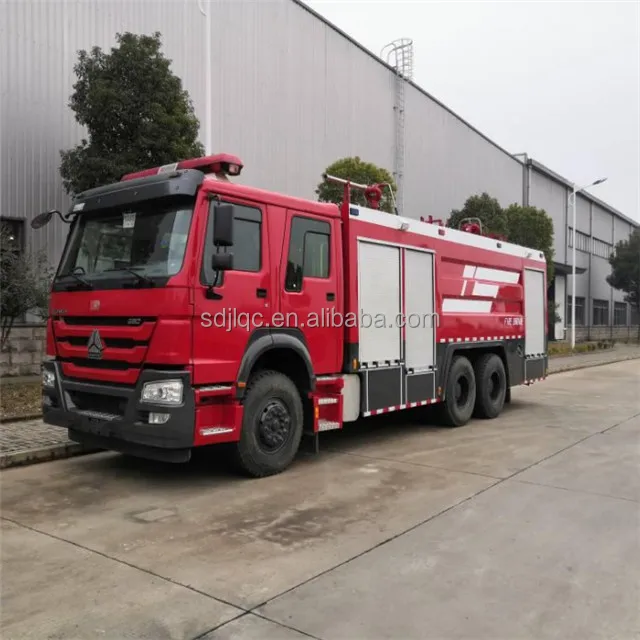

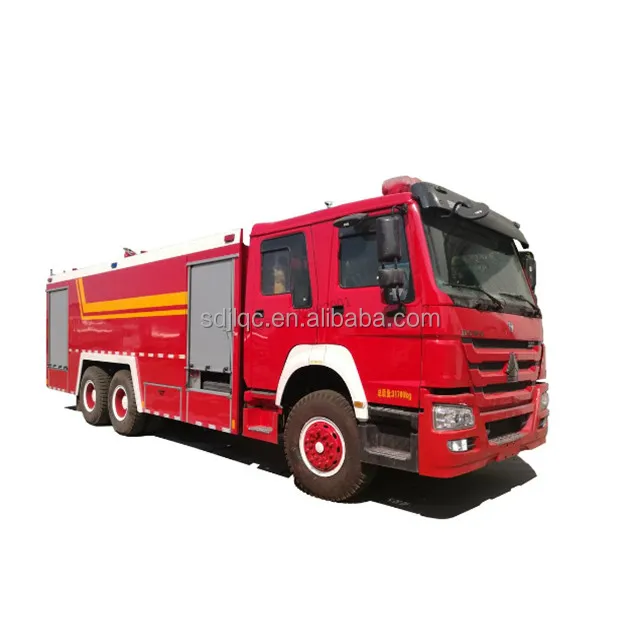

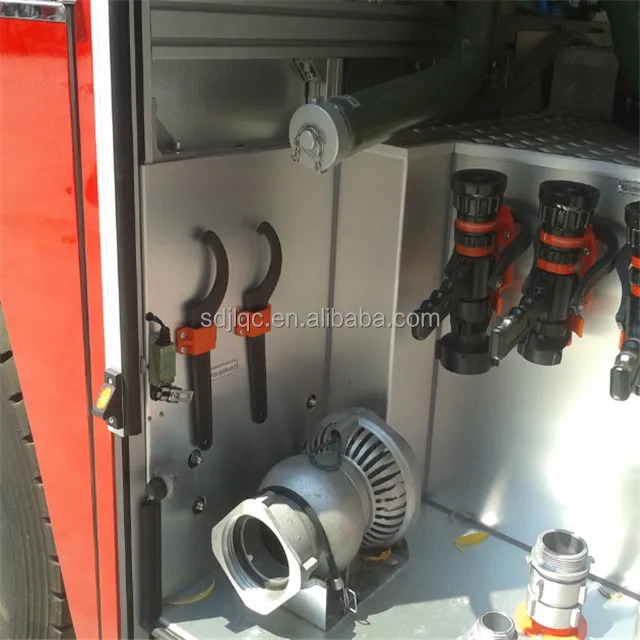

Photos of howo fire fighting truck:

Basic configurations:

Fire pump: CB20.10/30.60
Fire monitor: PL48
Container: water 5500kg (carbon steel tank)
Foam 2000kg (stainless steel tank)

Specifications of howo fire fighting truck:

Product name		Class A+B foam fire truck	Class A foam truck
Product model		TAZ5300GXFAP125A	TAZ5300GXFAP125B
Chassis model		ZZ1257N4347C(6×4)
Engine (stage Ⅲ emission )	Model	WD615.95
	Power(KW)	247
Max. speed(km/h)		90
Overall dimensions(mm)L×W×H		9830×2490×3680
Tank capacity (kg) Tank material: carbon steel	Water	9000	12000
	Class A foam	500	500
	Class b foam	3000	——
Fire pump	model	CB10/60
	Flow(L/S)	60
	Pressure(Mpa)	1.0
Fire monitor	Model	PL48	PS50W
	Flow(L/S)	48	50
	Pressure(Mpa)	1.0	1.0
	Model	≥60	≥65
Class A foam system	Model	AMS50
	Flow(L/S)	270
	Pressure(Mpa)	0.8
	Range(m)	≥25
