Китай тяжелый автомобиль HOWO 4x2 абсолютно новый пожарная машина 8000L возникновение транспортных

Item

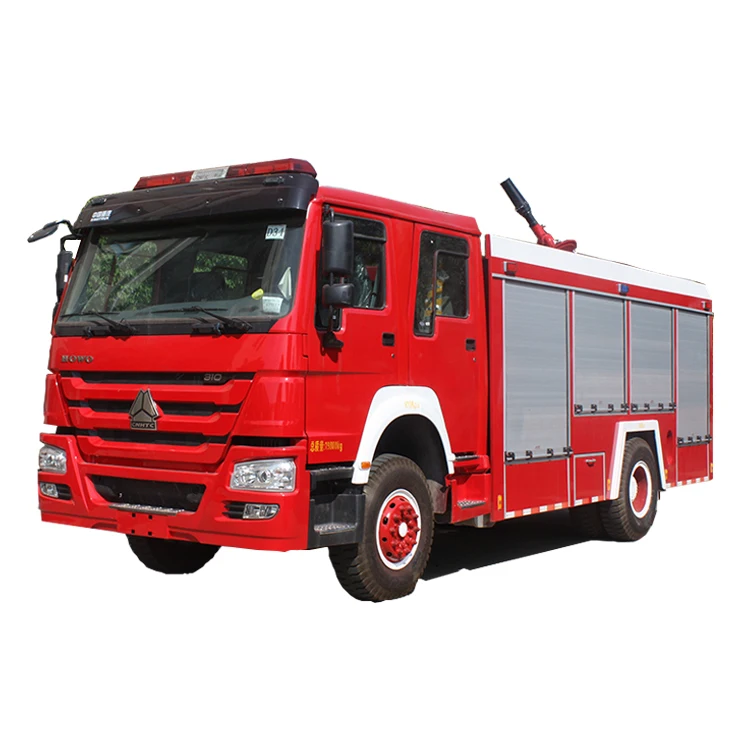

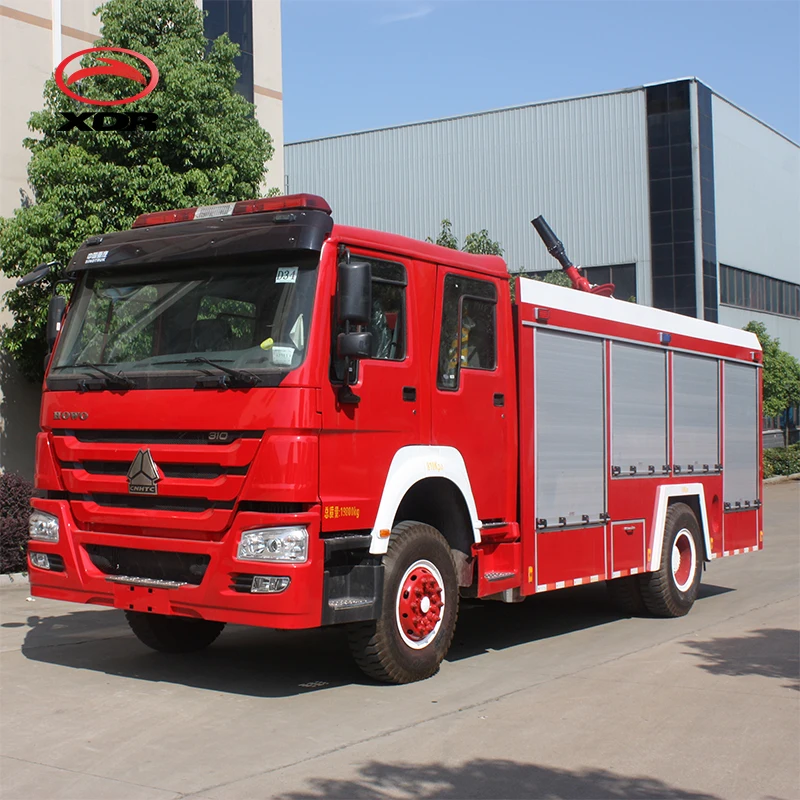

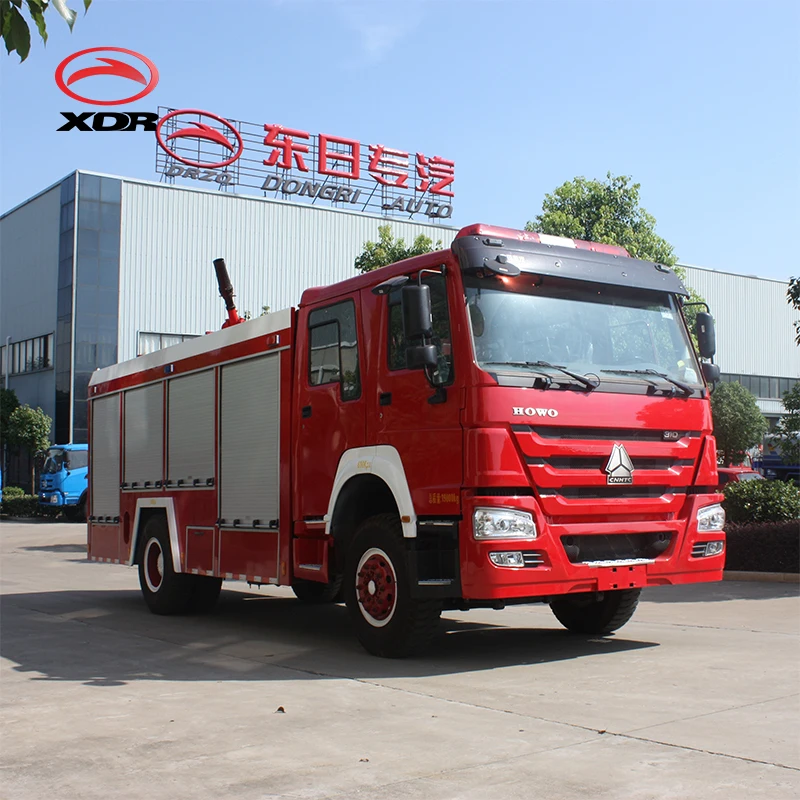

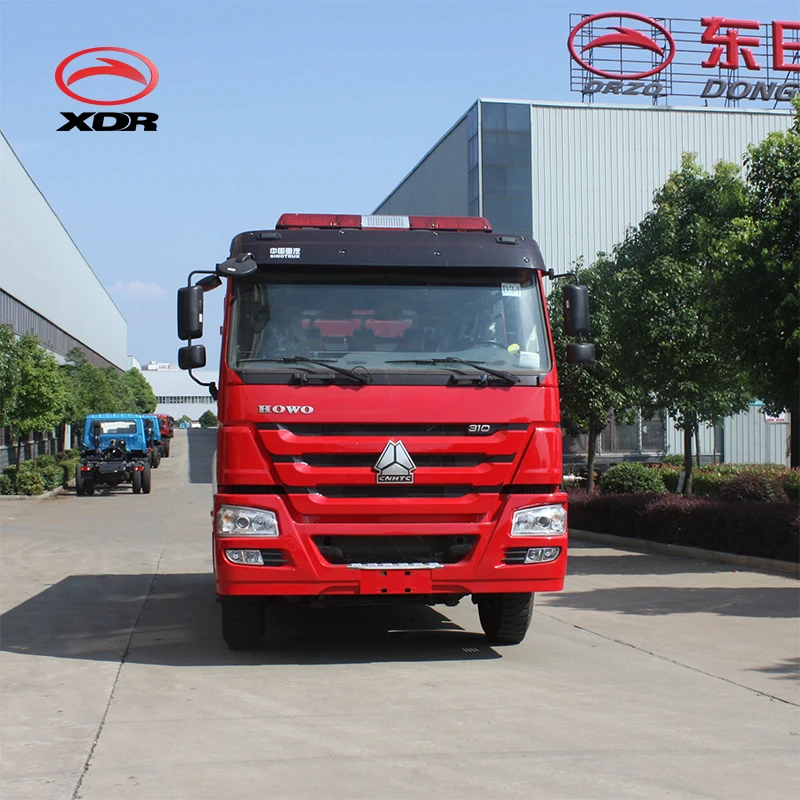

Fire Truck

Chassis Model

ZZ1167M4611

Vehicle parameters

GVW(kg)

19850

Overall Dimension (mm)

8470*2500*3640

Rated load (kg)

7510

Steering Wheel

LHD

Curb weight (kg)

11890

Wheelbase (mm)

4600

Driving Type

4*2

Engine parameters

Model

D10.28-40

Emission Standard

Diesel, Euro 4

Horse Power(hp)

280

4 stroke,4-cylinders in line, water cooling

Gear box

5 forward and 1 reverse

Performance Parameter

Max Speed (km/h)

95

Wheel Tread(mm)

Front Axle

2022

Cab Seat

2+3

Rear Axle

1830

Leaf Spring

6/6+5

Suspension (mm)

Front Suspension

1500

Tire No.

6+1

Rear Suspension

2370

Tire Specification

295/80R22.5

Driving Angle(°)

Approach Angle

14

Axle No.

2

Departure Angle

14

Special Function

Capacity

Water tank 8000L

Fire Pump

1. CB10/60, 60L/S,pressure:1.0MPa

2.Suction time≤ 35s(7m suction depth )centrifugal pump

Fire Monitor

1.PS50, 50L/S, pressure: 1.0Mpa

2. Fire nozzle range: water≥60m

Performance Description

Double row cab with 4 doors;

Hidden tank, material is carbon steel Q235A,with thickness 4 mm;

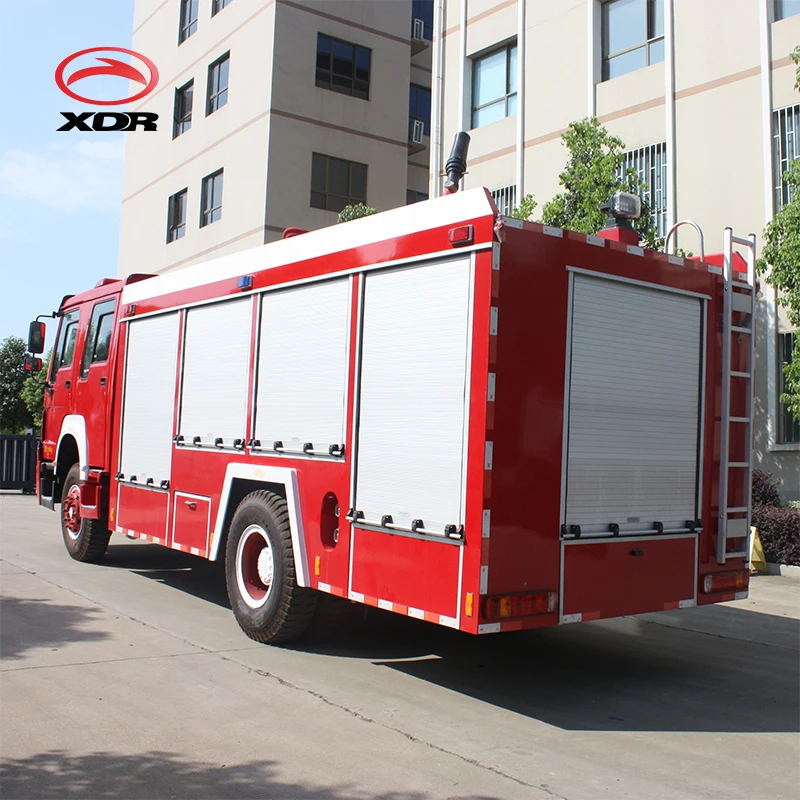

Truck body with aluminum alloy rolling door;

PTO control indicator installed in cab, also with 100W siren, LED alarm lamp, sign light, lighting switch, rear lighting and etc.

See the below equipment table
