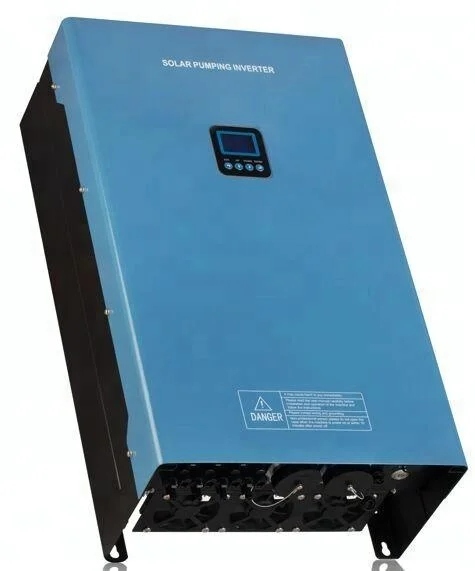

 15KW 3phase AC Solar Pump Inverter

1.solar pumping system consists of 3 components:





 1.Solar panels

 2.Solar pump inverter

 3.AC water pump













2.Product Introduction:



    Solar pumping inverter main function:It convert the DC power into Ac Power to drive the pump, and real-time adjust the output frequency to achieve the maximum power point tracking.







3.Product feature:

    1.      applies to the use of three-phase asynchronous motor pump;

    2.      with maximum power point tracking algorithm for dynamic VI, fast response speed, good stability, the efficiency of MPPT 99%;

    3.      fully automatic operation, can according to the actual situation to set free the speed range of pumps

    4.      using efficient SVPWM algorithm, the main circuit and high reliability, the highest conversion efficiency up to 98% ;

    5.      intelligent recognition of input voltage range, without the need to manually adjust the open circuit voltage, maximum power point voltage

    6.      no button set to run automatically, only a switch control stop and boot;

    7.      the maximum flow support manually controlled, prevent  stop and boot repeatedly when water less or less needs of water

    8.      The function of protecting the motor complete, can choose the upper and lower water level monitoring and control circuit, to prevent dry or over flow‘s pumping;

    9.      aluminum alloy shell, protection grade IP65, use environment temperature: -10 c~ +60 c

   10.    allows a wide range of input voltage, L type 200-450Vdc, H type of 400-780V

   11.    with over-voltage, over-current, over temperature protection

   12.    input anti reverse function

   13.    small size and lower weight











4.Product Advantages

Solar pump off-grid inverter converter DC(from solar panel) into AC to drive the pump

 1.   MPPT(99.9%) + VFD (Variable Frequency Drive) to improve AC pump's efficiency

 2.   Using efficient SVPWM algorithm(98%)

 3. Fool-style operation ,Do not need to set any parameter ,just one knob

 4. Wide range of input voltage

 5. GPRS communication ,phone / computer monitor control

 6.Support AC switch , hybird dc and ac input.

 7. Over-voltage, over-current, over temperature , short-circuit function to protect pump

 8. The OEM service ,design service ,buyer label service















5.Applications include:

a) residents living water

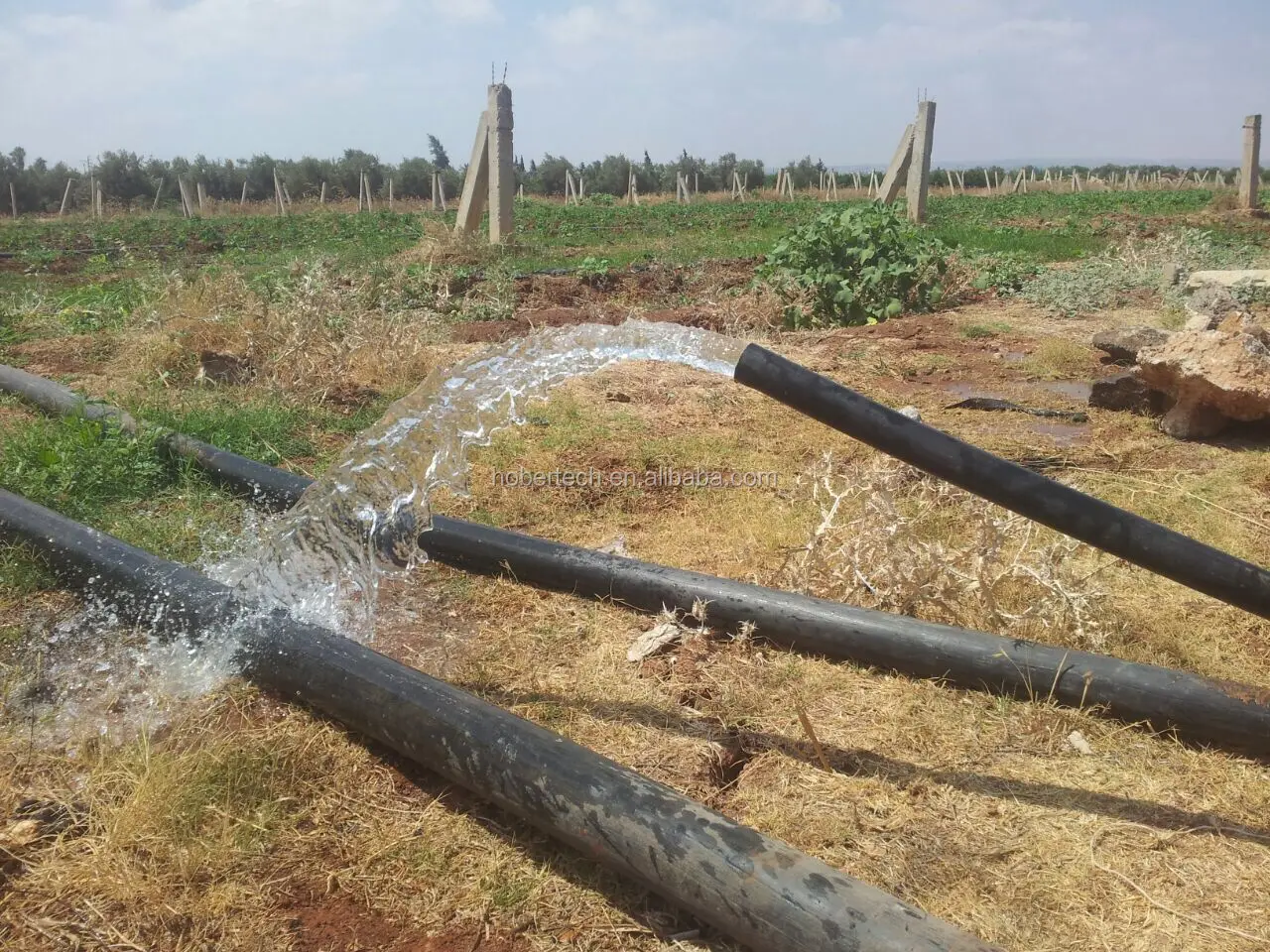

b) irrigation

c) desert control

d) animal husbandry

e) water apply for sea island

f) livestock watering

g) water treatment projects,etc.

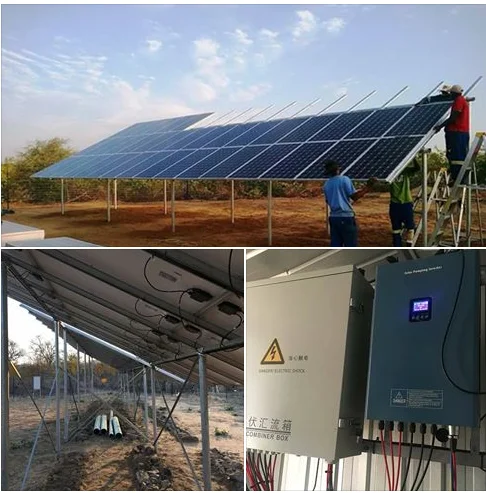

6.Application:

























7.Product Parameter:





Technical Parameters		HSPH15KH
Solar Panel DC input	Rated Power(W)	15000W
	Min DC Input Voltage(V)	400V
	Max DC Input voltage(V)	900V
	Recoomend Vmp	≥500V
	MPPT efficiency	>99%
Hybrid AC Input	voltage	380V 3-Phase
	AC switching	Automatic
Hybrid Battery Input	voltage	480V
AC output	Output voltage	380V 3-Phase
	Output frequency(Hz)	0~50~60
Water level sensor(water tank)		Yes
GPRS Monitor&Controller		Optional
Display		LCD display  Show Pin/Iin/Vin/Iout/Freq
Protection degree		IP65
Protection type		DC input Low/Over Voltage DC Input Reverse Polarity Output Overload, Output short circuit Over temperature  Tank sensor for Empty /Full  ( Water empty of Tank and Water full of Tank ) Lightning                                                                                                                                                                             Phase lose                                                                                                                                                                               Dry run automatic
Operating environment:	Noise(1 m)	<50dB
	Operating environment temperature	-10 to 60 Degree   Two fans start runing at 50 degrees inside
				Humidity	15%-+95%RH
	Using altitude(m)	<4000Altitude higher than 1000m pls consider to use less loads )
	Others	Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid.etc
	Adapted Pump	20HP	≤5HP
Rated Power(W)		≤15000W
Rated Frequency (Hz)		0~50~60
Rated voltage(Vac)		AC-380V -3 phase
