China bonding machine TV screen lcd led screen repair machine, please contact



Thermocouple Type

K type  OMEGA wire

Model:	OL-1285DH

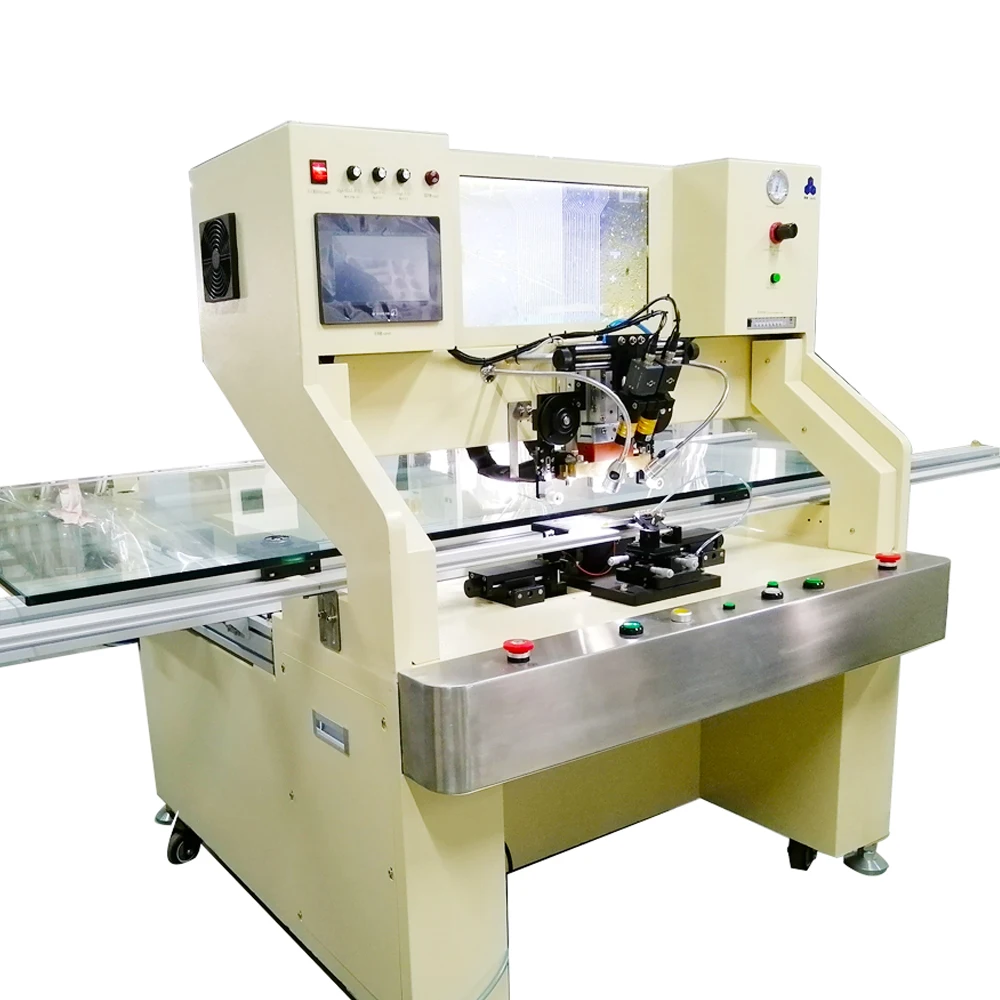

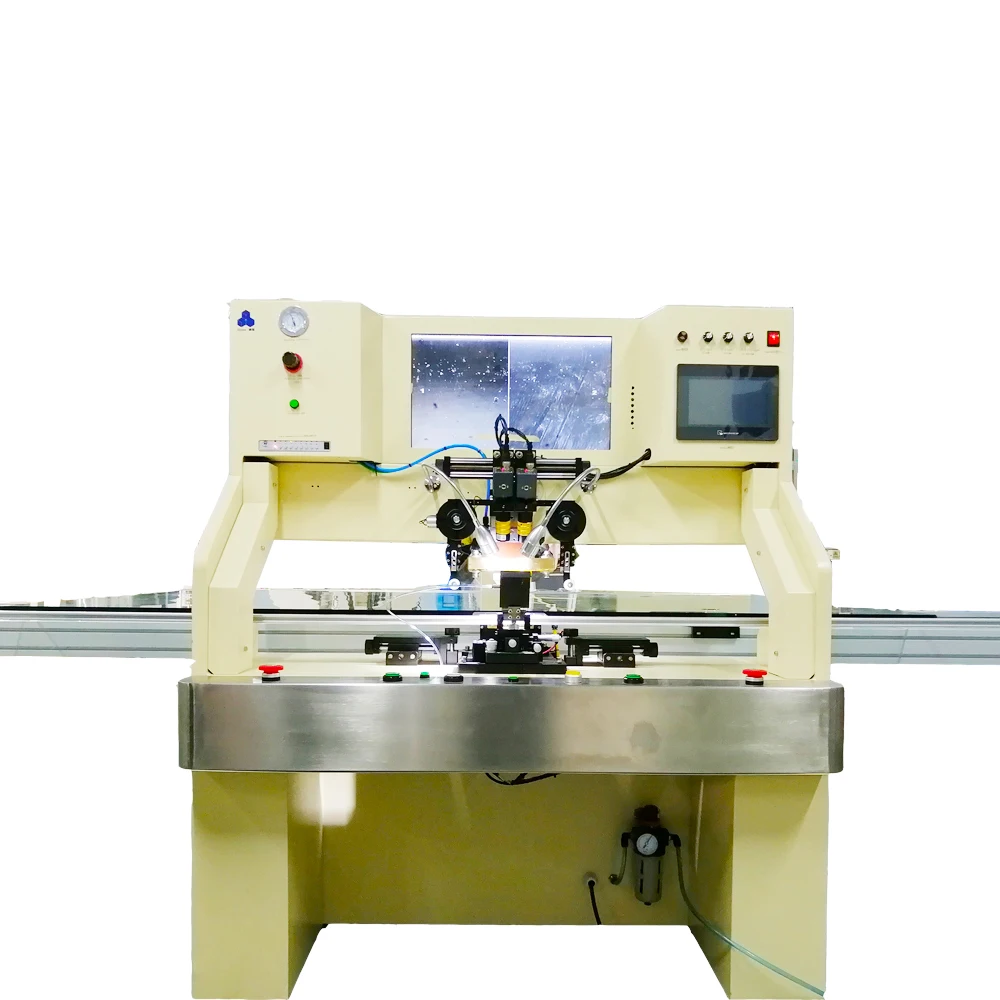

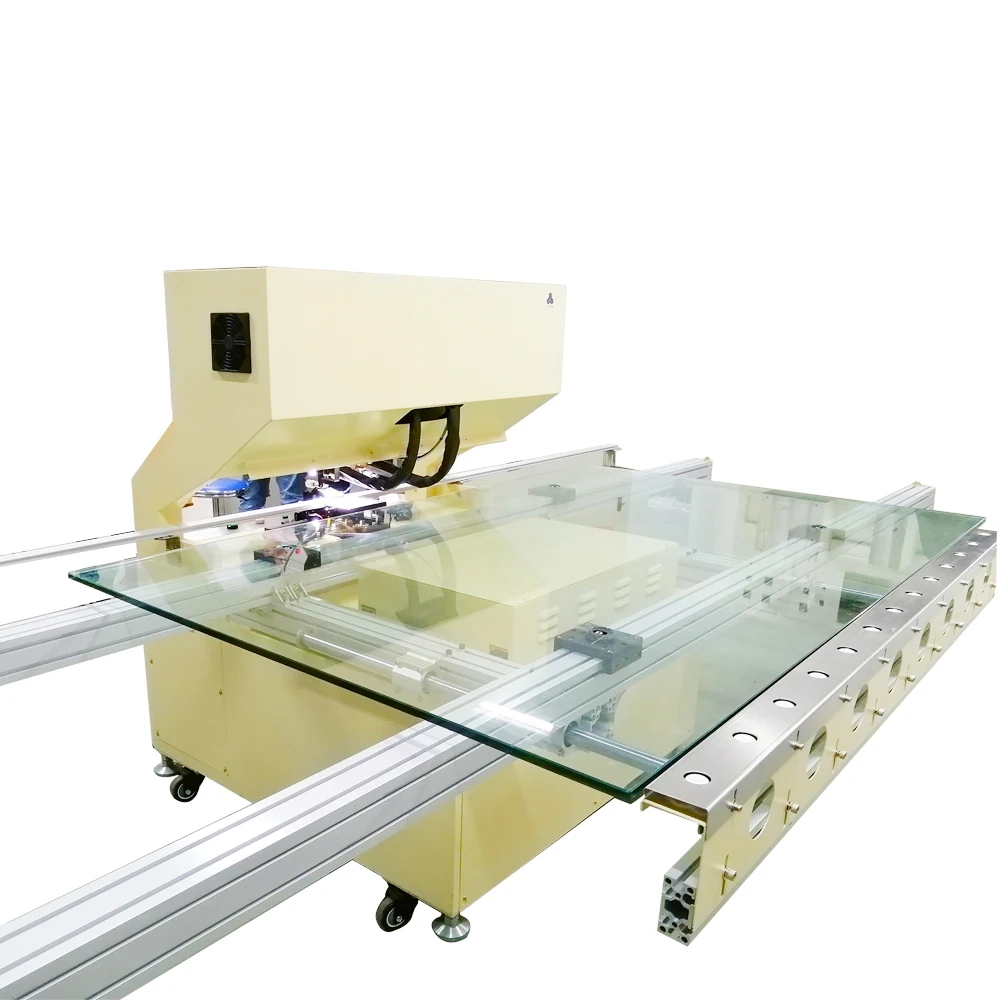

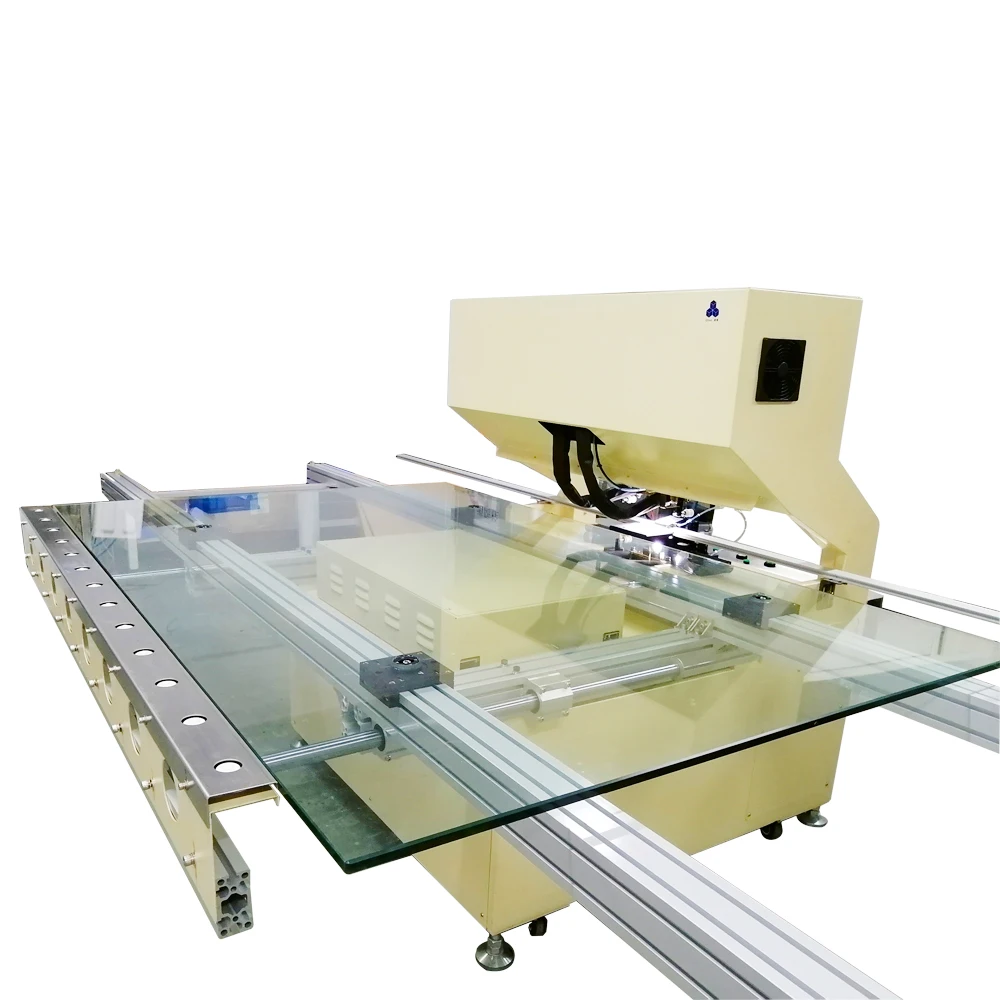

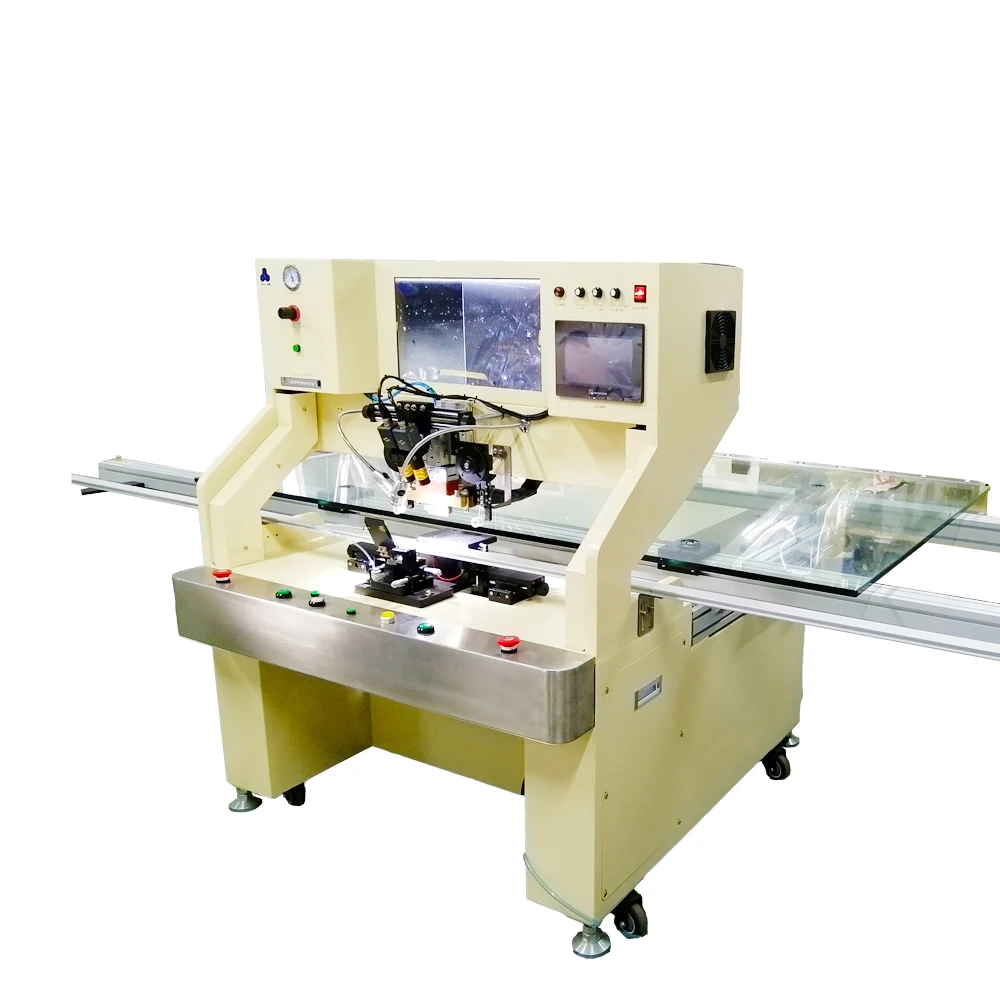

Product Name:	FOF single station Pulse Heating Bonding machine
Suitable For:	Suitable for FPC/COF Contraposition bonded to LCD which attached ACF,Used for COF repair
Size Range:	12-85inch
Bonding Precision:	X±0.01MM ,Y±0.01MM
Machine Capacity:	12S/Pcs,2500pcs/day
Indenter Qty:	1PCS
Power Supply:	220V±10%,50HZ,1200W
Air Supply:	0.4~0.7MPa,dry air
FPC size:	Max:L80*W60MM Min:L10*W15MM
Platform Precision:	±0.01MM
Pressure Head Size:	80*1MM (customizable)
Temp Range:	RT~400℃
Time Range:	1~99.9sec
Product Size:	W1200*1200*H1380MM
N.W:	About 550kg
Packing Size:
G.W:	About 550kg 6CBM



• This equipment Simi-automatic Pre-bonding machine, is position and pre-bonding IC on well attached ACF, Panel taking is manuel, position and pre- bonding is automatic. Applied for 1"-8" panel.


• Adopt high-granularity visual control system and positioning system (panasonic and FAST are optional)


• More user-friendly interface design, so that the learning staff more easy to use


• Adopt modular design and variety function, shorten product switching time and new product debugging time


• IC suction nozzle and prepress head separate design, greatly improve the machine capacity
