45 мм 55 мм 77 мм Изолированная машина для формовки затвора двери
US $57500-$59500
Новая технология 2019 года оборудование для бетонных домов портативных
- Категория: >>>
- Поставщик: Hubei,Tengcang,Building,Materials,Technology,Co.,Ltd.Hubei,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 50575.67 $* | 53104.73 $* |
| Aug-19-2025 | 50150.21 $* | 52658.82 $* |
| Jul-19-2025 | 42075.31 $* | 44179.47 $* |
| Jun-19-2025 | 49300.19 $* | 51765.66 $* |
| May-19-2025 | 42925.53 $* | 45071.91 $* |
| Apr-19-2025 | 48450.80 $* | 50873.28 $* |
| Mar-19-2025 | 48025.98 $* | 50426.88 $* |
| Feb-19-2025 | 47600.72 $* | 49980.5 $* |
| Jan-19-2025 | 47175.95 $* | 49534.7 $* |
Характеристики
Product Paramenters
Parameters | House Forming machine |
Type | TC7010 |
Principle | Hydraulic |
Automation | Semiautomatic |
Production Method | RC Filling |
Forming Time | 2-3Hours |
Machine Material | Full Steel |
Side Sheet | Slidable |
Inner Box | Shrinkable |
Weight | 17000-23000KG |
Size | 3*6m, 3.3*6.6m, 3.6*7.2m |

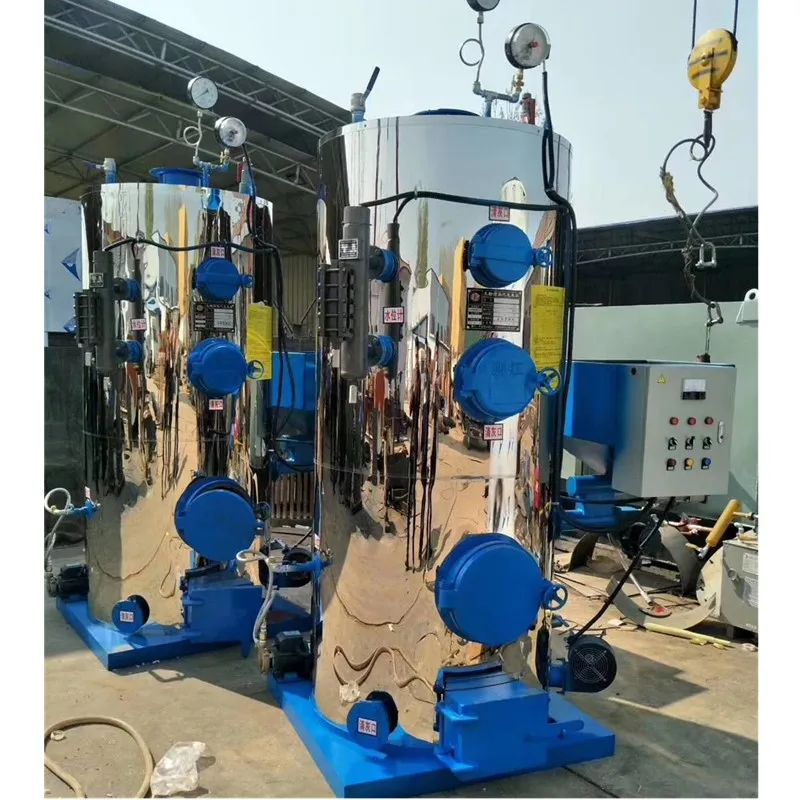

Parameters | House Quick-solidifying Machine | ||
Type | A( TC7020) | B(TC7021) | |
Efficiency | 500kg/h Evaporation | 1000kg/h Evaporation | |
Preset Pressure | 0.7Mpa | 0.7Mpa | |
Temperature | 170celsius | 170celsius | |
Voltage | 380V | 380V | |
Power | 1.4kw | 3.3kw | |
Weight | 2500kg | 4500 kg | |
Size | Diameter 1m, Height 2.6m | Diameter 1.5m, Height 2.8m | |

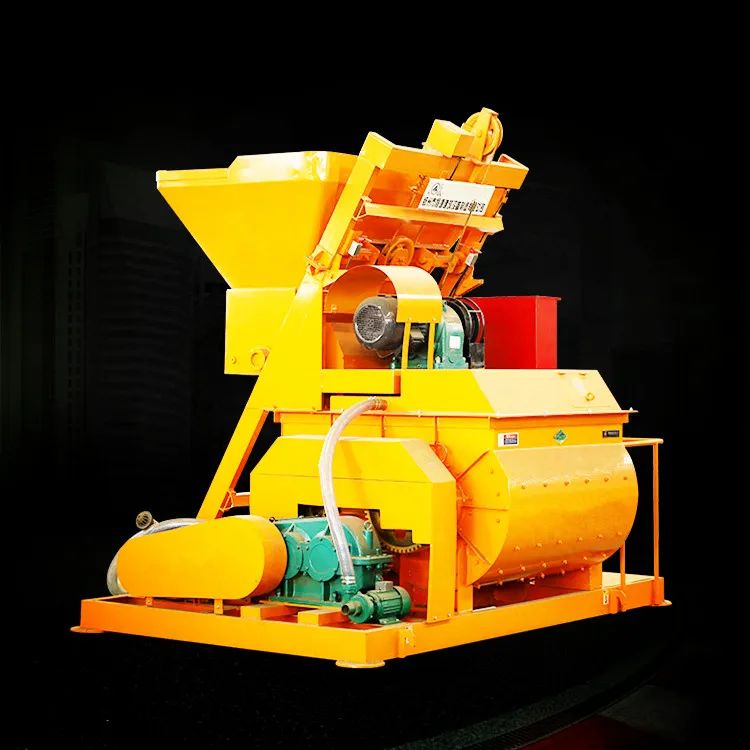

Parameters | Concrete Mixer | ||
Type | A( TC7031) | B(TC7032) | |
Feed Volume | 800L | 1600L | |
Discharge Volume | 500L | 1000L | |
Efficiency | 25m³/h | 50m³/h | |
Rotating Speed | 35r/min | 25r/min | |
Aggregate Size | Max 80mm | Max 80mm | |
Blades | 14 PC | 20 PC | |
Voltage | 380V | 380V | |
Power | 18.5kw | 37kw | |
Machine Size | 428*279*651mm | 877*344*654cm | |
Weight | 3900kg | 8750kg | |
Parameters | Batching Machine | ||
Type | A( TC7041) | B(TC7042) | |
Weighing Volume | 800L | 1200L | |
Storage Hopper | 5m³ | 7m³ | |
Efficiency | 48m³/h | 60m³/h | |
Batching Error | ±1% | ±1% | |
Max Weighing Value | 3000kg | 4000kg | |
Transfer Speed | 1m/s | 1.25m/s | |
Voltage | 380V | 380V | |
Power | 12kw | 16kw | |
Machine Size | 560*183*270cm | 900*250*350cm | |
Weight | 2450kg | 4500kg | |

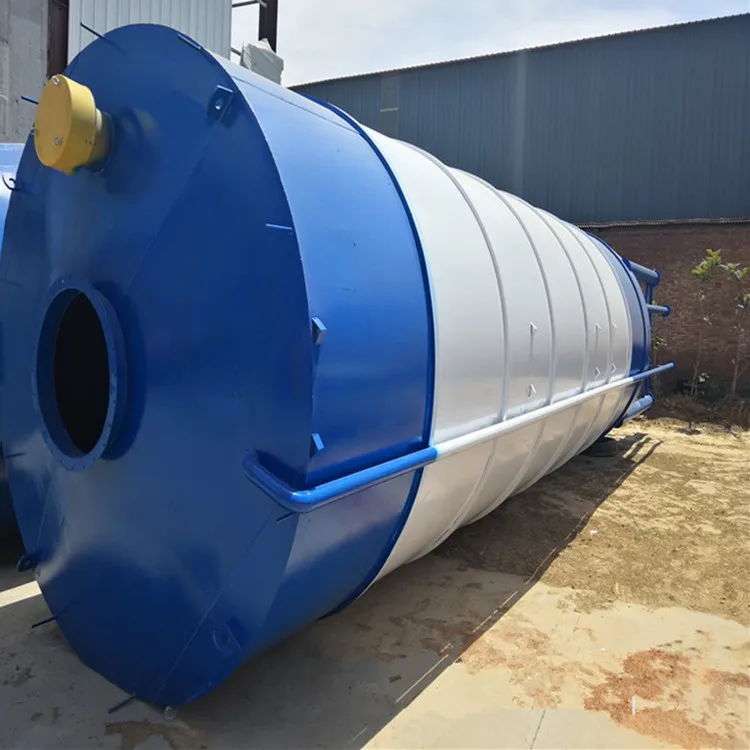

Parameters | Assembled Storage Tank | ||
Type | A( TC7051) | B(TC7052) | |
Storage Weight | 80 ton | 150 ton | |
Tank Volume | 60m³ | 111m³ | |
Tank Diameter | 280cm | 320cm | |
Straight Segment height | 900cm | 1350cm | |
Tank Total Height | 1105cm | 1584cm | |
Trestle Height | 300cm | 300cm | |
Steel Thickness | 6mm | 8mm | |
Parameters | CNC Rebar Processing Machine |
Type | TC7021 |
Processing Speed | 20-40m/min |
Processing Diameter | 4-14mm Rebar |
Principle | Hydraulic |
Control System | CNC |
Voltage | 380V |
Power | 9kw |
Machine Size | 200*75*110cm |
Weight | 900kg |
Product Description
The forming machine is used for the production of concrete modular house.
The production process of concrete house
2, Producing the concrete by the concrete machines.
3, Adjust the forming machine, and use the gantry crane and hopper to hoist the concrete and pour into the machine until it's full.
4, Cover the forming machine with the cover of quick-solidifying machine, and then turn on quick-solidifying machine to make the concrete solidify quickly.
5, After 2-3 hours, a unit modular house is finished, pull open the side sheet of forming machine, adjust inner chassis shrink to detach the wall of house. Use the gantry crane hoist the house and store it.

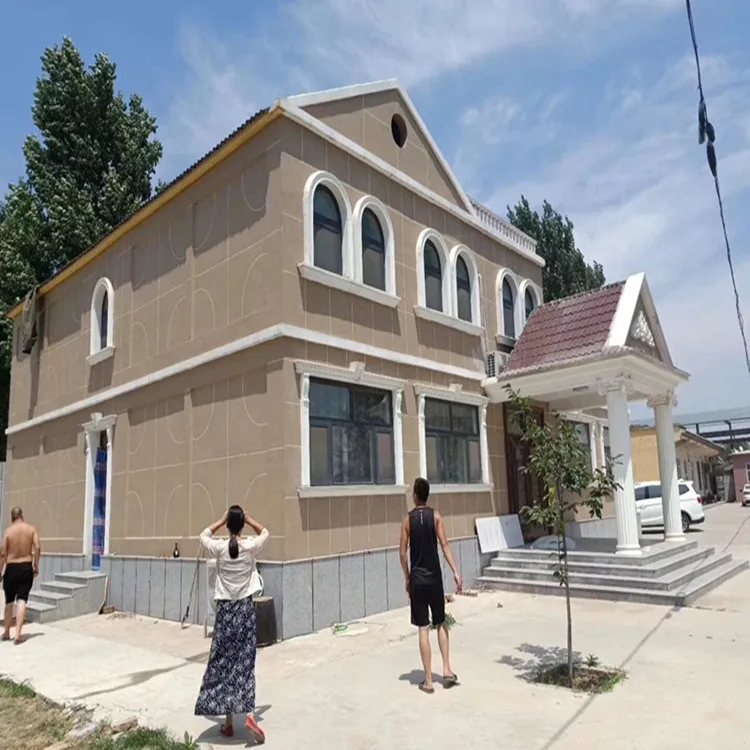

Concrete modular house features
1, The cost of building houses is low: the construction cost of this house is only half of traditional brick and concrete house.
2， Extreme speed of construction: high level of prefabrication, fast construction speed, 500 square meters per day, greatly improving construction speed.
3， Earthquake resistance: It can withstand a magnitude 9 earthquake and will not collapse as a whole due to local damage during an earthquake.
4，Wind-resistant: It can withstand a hurricane of 200km/h. The weight of each unit module is 20 tons (the weight of 10 cars).
5，Long life: Lifetime of main structure with reinforced concrete can reach more than 100 years
6，Fire retardant: Reinforced concrete structure solid wall, fire resistance time is long.
7，Sound insulation: the amount of sound insulation of the wall can reach more than 65dB.
8，Insulation: Reinforced concrete structure solid wall, good thermal insulation
9， Energy-saving and environmental protection: new green buildings, doesn’t produce construction rubbish during construction and can be removed again during demolition and reuse.
10，Flexible assembly: Can be assembled into all kinds of styles houses and buildings, each room can be assembled by one or more units modules , up to five floors.
4，Wind-resistant: It can withstand a hurricane of 200km/h. The weight of each unit module is 20 tons (the weight of 10 cars).
5，Long life: Lifetime of main structure with reinforced concrete can reach more than 100 years
6，Fire retardant: Reinforced concrete structure solid wall, fire resistance time is long.
7，Sound insulation: the amount of sound insulation of the wall can reach more than 65dB.
8，Insulation: Reinforced concrete structure solid wall, good thermal insulation
9， Energy-saving and environmental protection: new green buildings, doesn’t produce construction rubbish during construction and can be removed again during demolition and reuse.
10，Flexible assembly: Can be assembled into all kinds of styles houses and buildings, each room can be assembled by one or more units modules , up to five floors.
Size Information
The general sizes of unit module
Width*length | 3*6m, 3.3*6m , 3.3*6.3m , 3.3*6.6m , 3.5*7m , 3.6*6m , 3.6*6.6m , 3.6*7.2m | S | M | L | XL | ||||
Height | 2.8m,3m,3.2m, | 26 | 27.9 | 29.9 | 31.9 | ||||
Length of eaves | 0-1.5m | 15.3 | 15.9 | 16.5 | 17.1 | ||||
Detailed Images
Packing&Shipping
After Sales Service
Service Guarantee
1, remote training or send engineers to guide the installation, commissioning equipment, training workers to operate.
1, remote training or send engineers to guide the installation, commissioning equipment, training workers to operate.
2, provide customers with complete production process and other technical information, training technical personnel.
3, provide raw materials procurement channels.
4,provide product installation and construction materials.
5, provide electronic product Atlas.
6.provide all accessories and parts of machines .
7, free to provide follow-up improvement of the project, such as the development of new products, technology upgrades.
3, provide raw materials procurement channels.
4,provide product installation and construction materials.
5, provide electronic product Atlas.
6.provide all accessories and parts of machines .
7, free to provide follow-up improvement of the project, such as the development of new products, technology upgrades.
Company Introduction
"Dingao" is the new type brand of building material from Hubei Tengcang Technology. Hubei Tengcang technology have built a new five-star Industrial Park, covering 23,000 square meters, located in the "Dongyong hometown"Wuhan city circle Hubei Xiaogan city National High-tech Development Zone, with research buildings, office buildings, standardized plant and automation equipment and other hardware facilities .we have more than 100 Scientific and technical staff, are specialized in producing the new decorative materials, construction materials, building materials ,building equipment and opto-electrical devices entity enterprise.
