45 мм 55 мм 77 мм Изолированная машина для формовки затвора двери
US $57500-$59500
Оборудование для производства сэндвич-листов из минеральной ваты
- Категория: Other Construction Material Making Machinery >>>
- Поставщик: Zhengzhou,Hokang,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 32130.81 $* | 33737.22 $* |
| Aug-15-2025 | 31860.48 $* | 33453.94 $* |
| Jul-15-2025 | 26730.67 $* | 28067.62 $* |
| Jun-15-2025 | 31320.80 $* | 32886.15 $* |
| May-15-2025 | 27270.78 $* | 28634.94 $* |
| Apr-15-2025 | 30780.87 $* | 32319.56 $* |
| Mar-15-2025 | 30510.67 $* | 32036.59 $* |
| Feb-15-2025 | 30240.92 $* | 31752.37 $* |
| Jan-15-2025 | 29970.88 $* | 31469.95 $* |
Характеристики
Products Overview
Eps Sandwich Panels Making Machinery Sandwich Panel Production Line
This EPS sandwich panel line is one continuous and automatically line which integrate mechanism , electrical controlling ,
hydraulic system and polyurethane chemical reaction technology. The line adopts advanced international roll forming technology, HCFC polyurethane foaming technology, digital servo technology, frequency conversion vector technology and hydraulic controlling technology,automatic stacking technology. The whole line only needs 7-8 operators. The features of this line are following:
hydraulic system and polyurethane chemical reaction technology. The line adopts advanced international roll forming technology, HCFC polyurethane foaming technology, digital servo technology, frequency conversion vector technology and hydraulic controlling technology,automatic stacking technology. The whole line only needs 7-8 operators. The features of this line are following:
A. High automatization. The whole line adopts one full computer integration controlling system of digital servo technology,
frequency conversion vector technology and hydraulic controlling technology, which realizes whole connection, collecting control and collecting management. Adopt cutting style of cut to length without machine stop, so that realize full automatically.
frequency conversion vector technology and hydraulic controlling technology, which realizes whole connection, collecting control and collecting management. Adopt cutting style of cut to length without machine stop, so that realize full automatically.
B. High efficiency. The production speed is 3~7m/min(adjustable steplessly according to product forming requirement ) The annual product capacity of this line can reach up to 800000㎡(counting on the base of 250work days per year and 10 work hours per day) .
C. Easy operation. Adopt collecting controlling system, using man-machine conversation. After preparing for the raw material and finishing other production requirements, input required parameters, then machine can make product automatically.
D. Low production cost .Developing the machine’s automatization, the whole line only needs 7-8 operators to operate the machine fully, which saves much labor cost and productioN management cost for enterprises.
E.Economizing investment. The technical performances of this line reach the international advanced level. It can replace the international product completely while its price is much lower than international product, so that economize your investment.
Process flow:
Composite Decoiler—Roll Forming—laminating system (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer)—cutting system—Runout Table
Composite Decoiler—Roll Forming—laminating system (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer)—cutting system—Runout Table

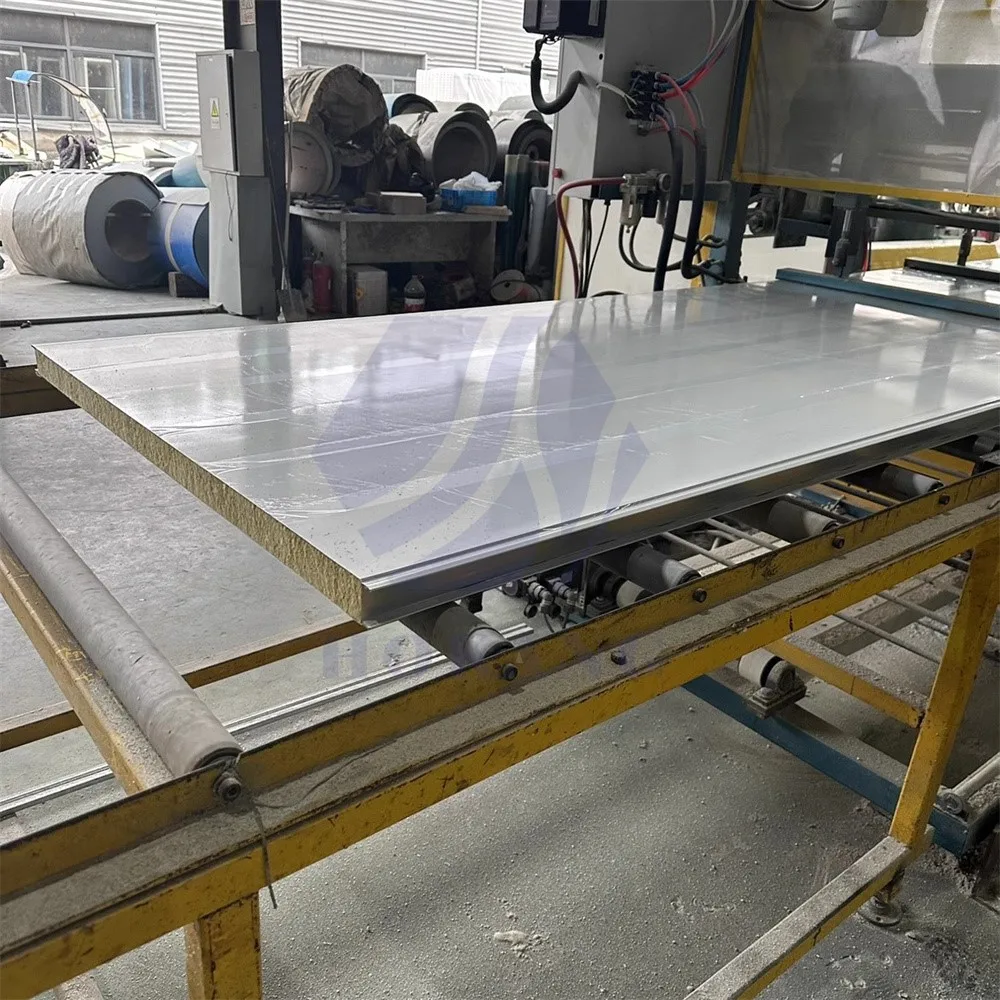

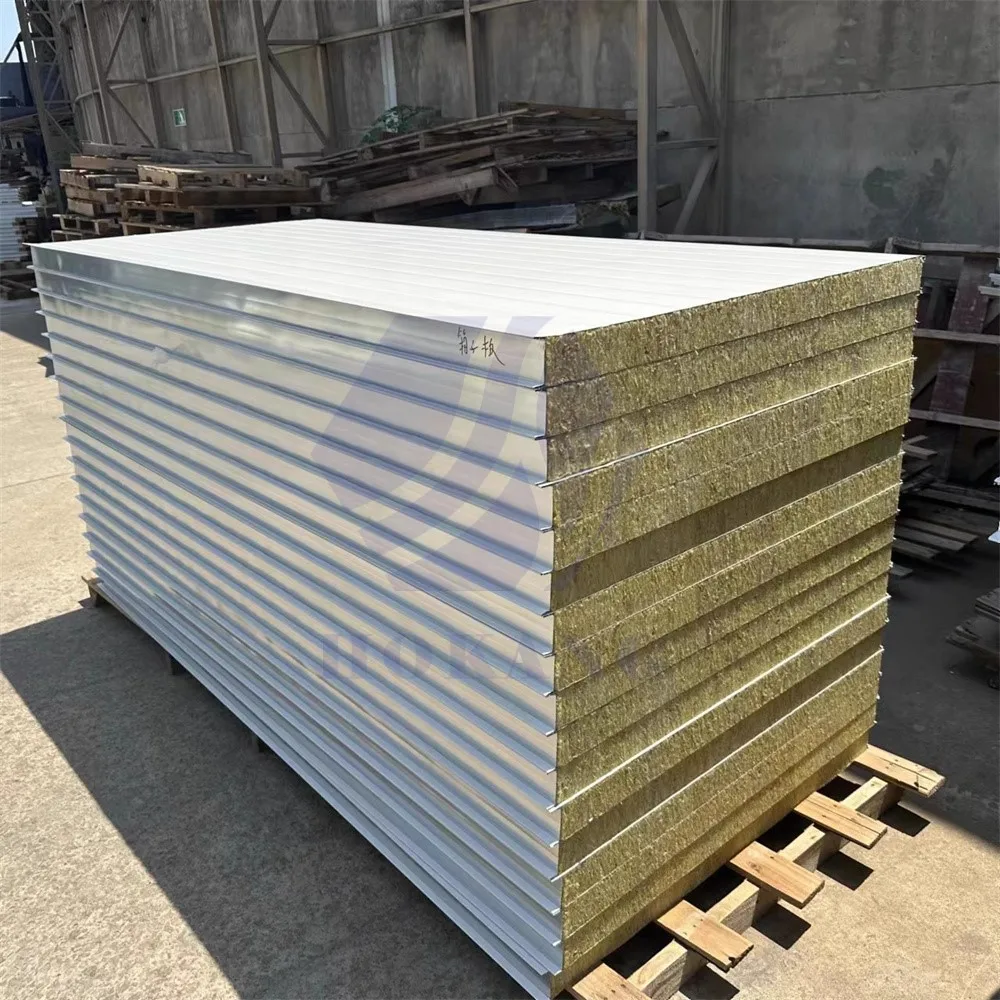

product name | rock wool purification color steel plate |
Product Size | Effective width 1150mm; thickness 50/75/100/150mm; no limit to length |
Board form | Flat or profiled |
Steel plate thickness | 0.3-0.6mm galvanized color-coated steel plate |
weight | The weight of 5cm sandwich panel is 10-14kg/m; the bulk density of rock wool is 70-120kg/cubic meter. |
Bond strength | Not less than 0.06Mpa |
advantage | Strong stability, good fire resistance, no pollution, good sound insulation effect, easy installation |
Design of Machine

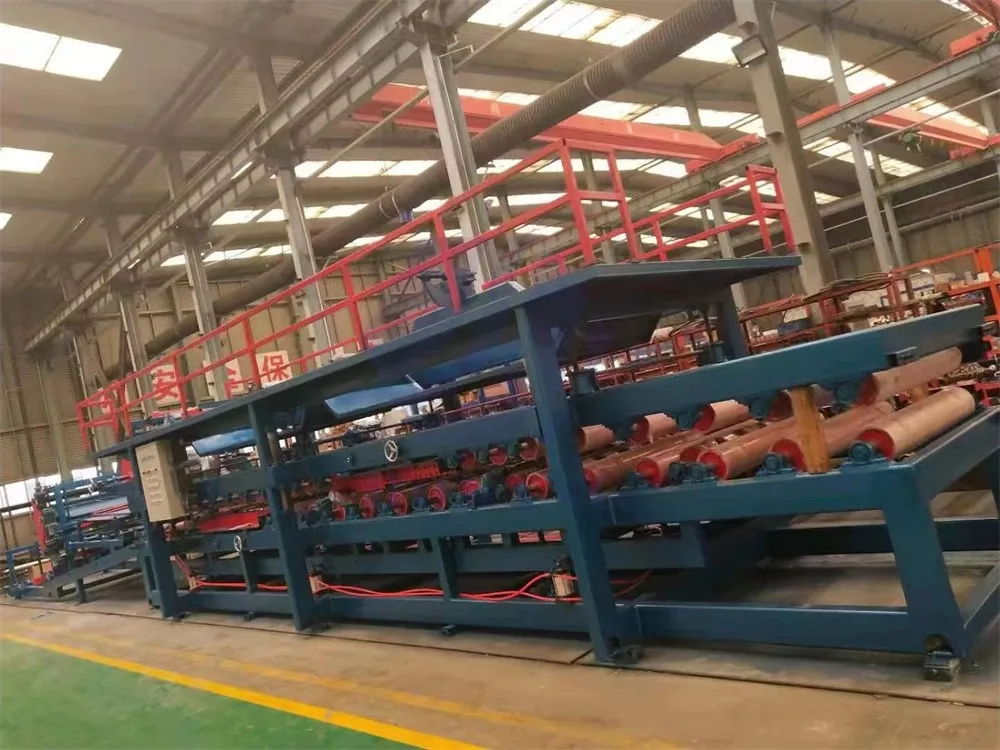

Sandwich panel production line
Expandable Polystyrene Sandwich Panel Machine maily consist of a roll forming machine and a sandwich panel laminating system. both roll forming machine of the line consists of feeding system, roll forming system and cutting system, while the laminating system is made up of such equipment as uncoiler, feeding, squeezing,gelatinizing, heating,laminating,edge rolling, edge turnover, groove-making,edge pruning, pneumatic device, automatic cutting and PLC. The whole machine possesses advanced working crafts, merging mechanical and electrical equipments into an organic whole.

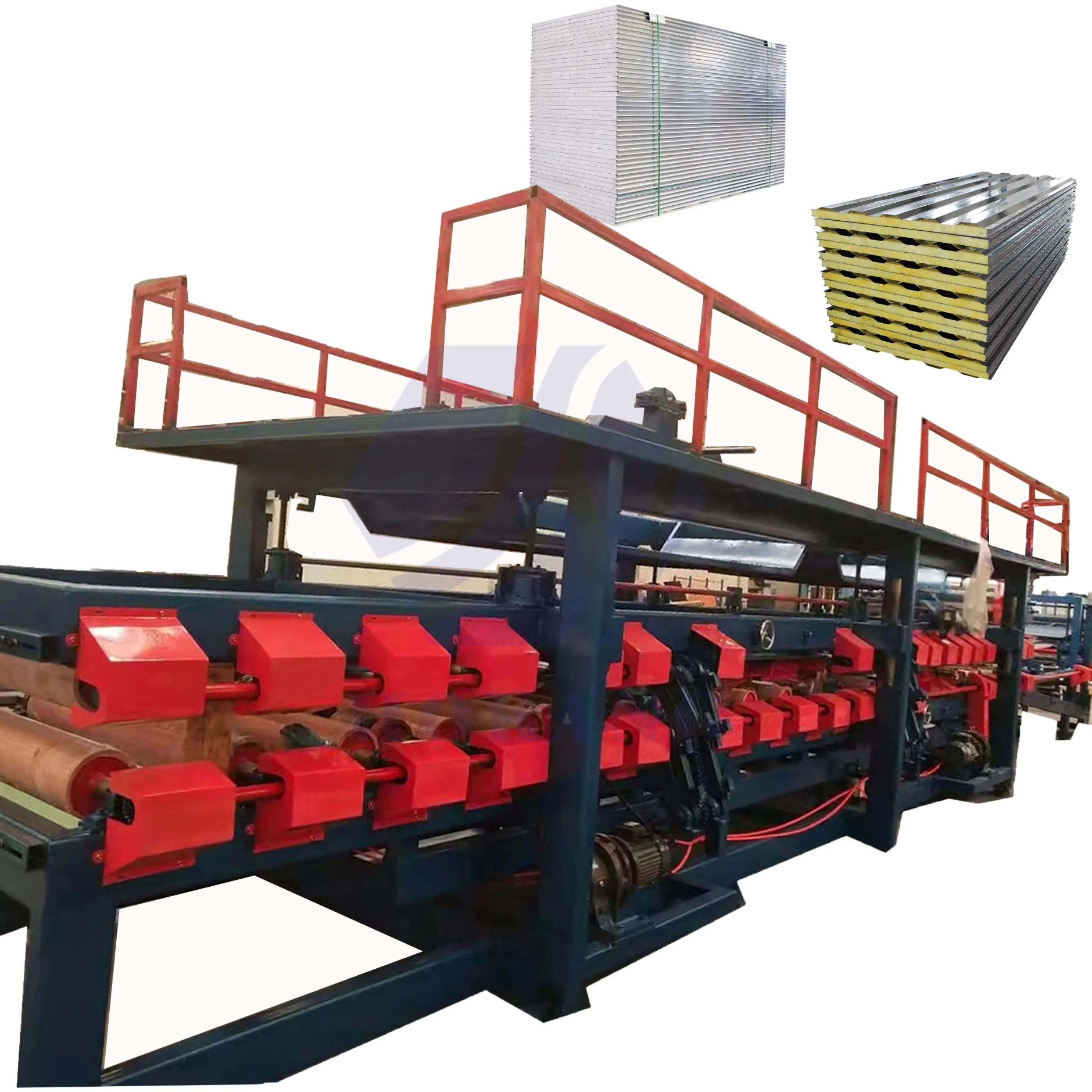

Sandwich panel production line
Sandwich panels have the feature of light (weigh only 1/40 to 1/10 of common brick), high strength, warm conservation, water proof, convenient for construction, short construction period, admirable appearance ,can stable and long time working to satisfied high quantity .

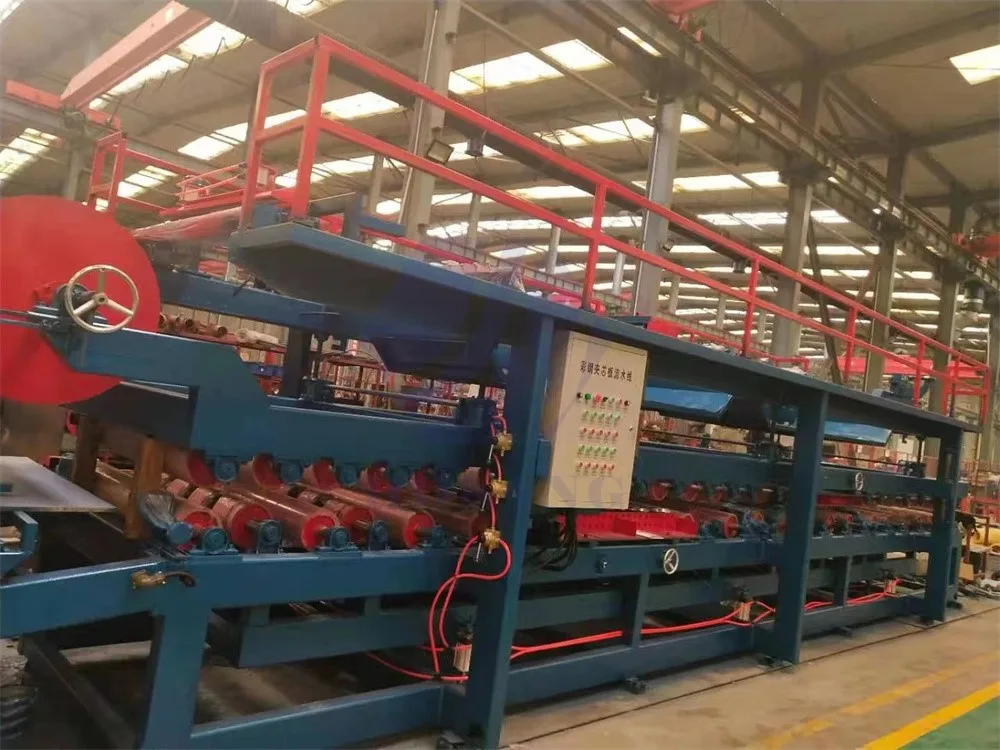

Sandwich panel production line
Sandwich panel production line is used for the special purpose of producing the new type constructional material (EPS Sandwich panel), with the function of compounding EPS or rock wool of different size to the color steel sheets. coil width can use 1200mm and 1250mm,EPS thickness from 50-250mm.It is adjustable.
1. Forming machine

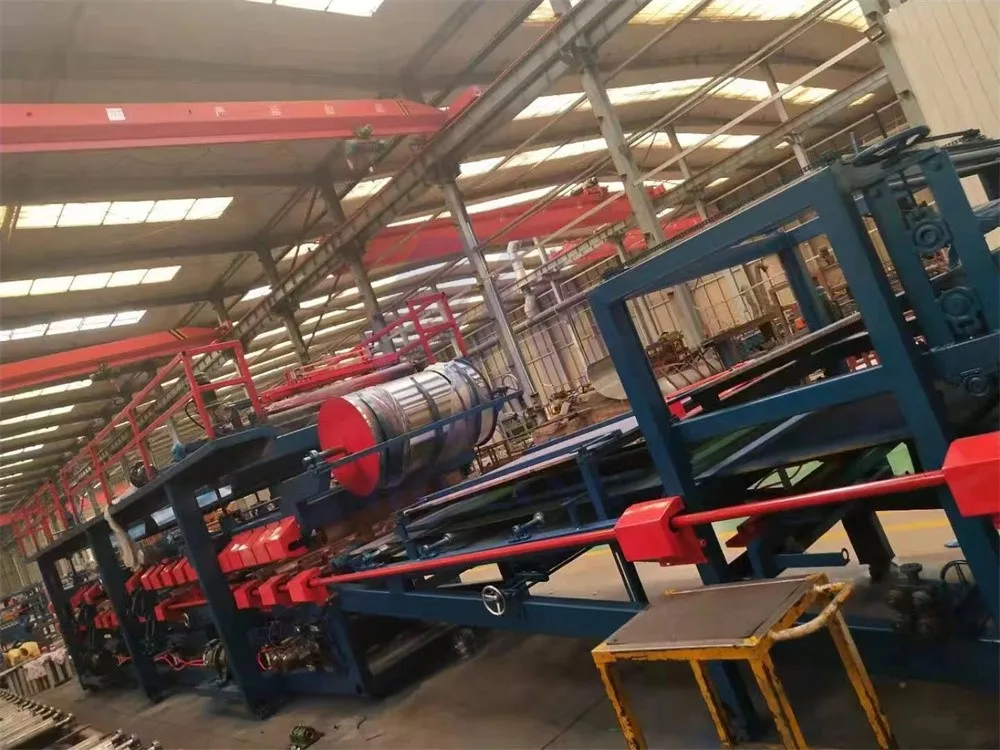

a. Decoiler
(1)Inner Diameter: Φ508 – Φ610 mm
(2)Out Diameter: 1250mm
(3)Max. Loading Capacity: 5000 kgs
(4)Type:manual
b. Pre-cutting device
(1)Type of Shearing: Electrical Shearing
(2)Driven Power: 0.75kw
(3) Roof sheet machine
(1)Material Thickness: 0.3-0.8mm
(2)Rollers: 13 groups
(3)Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
(4)Material for shaft: #45 steel after treatment
(5)Diameter of shaft: 70mm
(6)Frame panel thickness: 14mm
(7)Speed:about 8m/min
(8)Motor Power: 3kw
(9)Driven type: 0.6"Chain
Electrical Voltage:380V/3Ph/50Hz
Type of controlling:PLC (DELTA Taiwan)
Transducer: 0.4KW
2. Panel machine
1.Composite rubber rollers
(1) Roller diameter: 180mm
(2)Thickness of composite rubber layer: 10mm
(3)Hardness of composite rubber layer: 60
(4)Number of rollers: 36
2.Glue section
a.Glue section
(1) Numbers of pump: 4 sets (top and bottom each 2)
(2) Driven power: 0.37KW
(3) Flow volume of glue: 0~0.4 kg per pump
(4) Type of flow volume control: Change frequency
(5) Scale of glue: (white): (Black) 1.5
(6)Gule name: PUA and PUB
(7)Speed of spreading:80times/min
(8)Driven power:0.5KW x 3
b.Apply Guard Film:
(1) Type of apply guard film: Automatic
c.Groovingformingdevice
(1) Grooving: according to the design requirement
(2) Depth of groove: 0.5~1.0mm
d.EPSgrooving cutter andEPSwaste collector
(1) Type of cutting: electrical heat cutting
(2) Numbers of heater: 3
(3) Power of heater: 2.5kw×6
(4) Driven power:0.75KW
(5) Type of collecting: Vacuum
(6) Driven power:2.2kw
e.Sandwich panel cutting device
(1)Material:EPS
(2) Type of cutting:shearing cutter
(3) Driven power: 1.5kw×2
(4) Thickness of panel: 40-300mm
(5) Length of panel: 1200~30000mm
(6) Movement of cutter:1800mm(cylinder distance)
(7) Type of operating:touch screen
f.Electrical system:
(1)Electrical Voltage:380V/3Ph/50Hz
(2)Type of controlling: PLC (Delta,Taiwan)
(3) Encorder: Omron
a. Decoiler
(1)Inner Diameter: Φ508 – Φ610 mm
(2)Out Diameter: 1250mm
(3)Max. Loading Capacity: 5000 kgs
(4)Type:manual
b. Pre-cutting device
(1)Type of Shearing: Electrical Shearing
(2)Driven Power: 0.75kw
(3) Roof sheet machine
(1)Material Thickness: 0.3-0.8mm
(2)Rollers: 13 groups
(3)Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
(4)Material for shaft: #45 steel after treatment
(5)Diameter of shaft: 70mm
(6)Frame panel thickness: 14mm
(7)Speed:about 8m/min
(8)Motor Power: 3kw
(9)Driven type: 0.6"Chain
Electrical Voltage:380V/3Ph/50Hz
Type of controlling:PLC (DELTA Taiwan)
Transducer: 0.4KW
2. Panel machine
1.Composite rubber rollers
(1) Roller diameter: 180mm
(2)Thickness of composite rubber layer: 10mm
(3)Hardness of composite rubber layer: 60
(4)Number of rollers: 36
2.Glue section
a.Glue section
(1) Numbers of pump: 4 sets (top and bottom each 2)
(2) Driven power: 0.37KW
(3) Flow volume of glue: 0~0.4 kg per pump
(4) Type of flow volume control: Change frequency
(5) Scale of glue: (white): (Black) 1.5
(6)Gule name: PUA and PUB
(7)Speed of spreading:80times/min
(8)Driven power:0.5KW x 3
b.Apply Guard Film:
(1) Type of apply guard film: Automatic
c.Groovingformingdevice
(1) Grooving: according to the design requirement
(2) Depth of groove: 0.5~1.0mm
d.EPSgrooving cutter andEPSwaste collector
(1) Type of cutting: electrical heat cutting
(2) Numbers of heater: 3
(3) Power of heater: 2.5kw×6
(4) Driven power:0.75KW
(5) Type of collecting: Vacuum
(6) Driven power:2.2kw
e.Sandwich panel cutting device
(1)Material:EPS
(2) Type of cutting:shearing cutter
(3) Driven power: 1.5kw×2
(4) Thickness of panel: 40-300mm
(5) Length of panel: 1200~30000mm
(6) Movement of cutter:1800mm(cylinder distance)
(7) Type of operating:touch screen
f.Electrical system:
(1)Electrical Voltage:380V/3Ph/50Hz
(2)Type of controlling: PLC (Delta,Taiwan)
(3) Encorder: Omron
Company Profile
Zhengzhou Hokang Machinery Co., Ltd.
Zhengzhou Hokang Machinery Co., Ltd. is a manufacture specializing in custom cold roll forming equipment and automatic production lines,we can manufacture hundred types roll forming machines and all kinds of architecture profliles.Engineers and technicians are rich in experience of designing developing and manufacturing of machines to provied customers with customized designs.Our products and sold to many countries and regions around the world.and we have established long-term cooperative relationships with customers.
