Product Overview

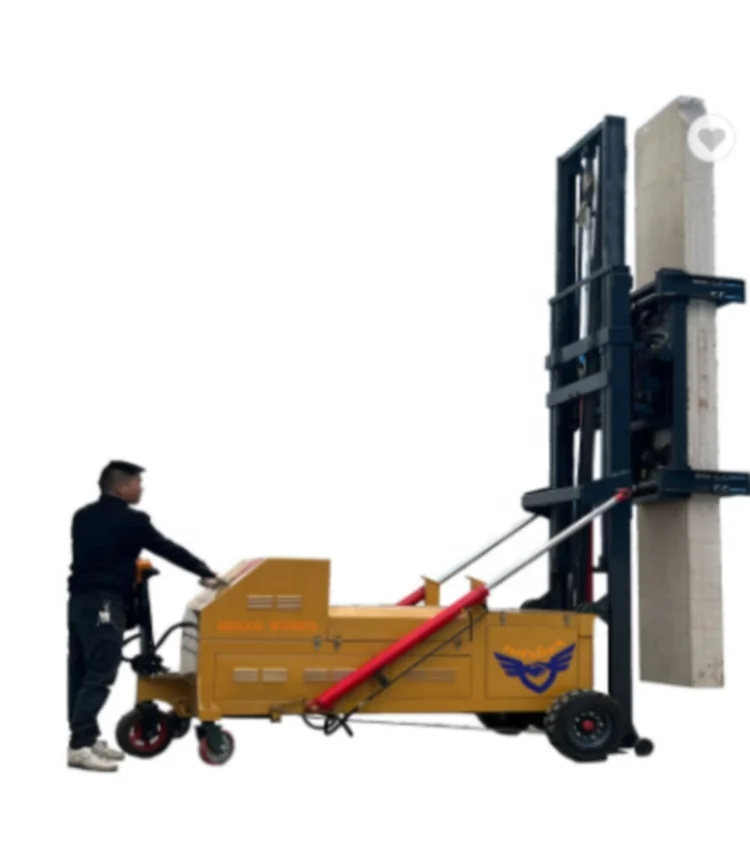

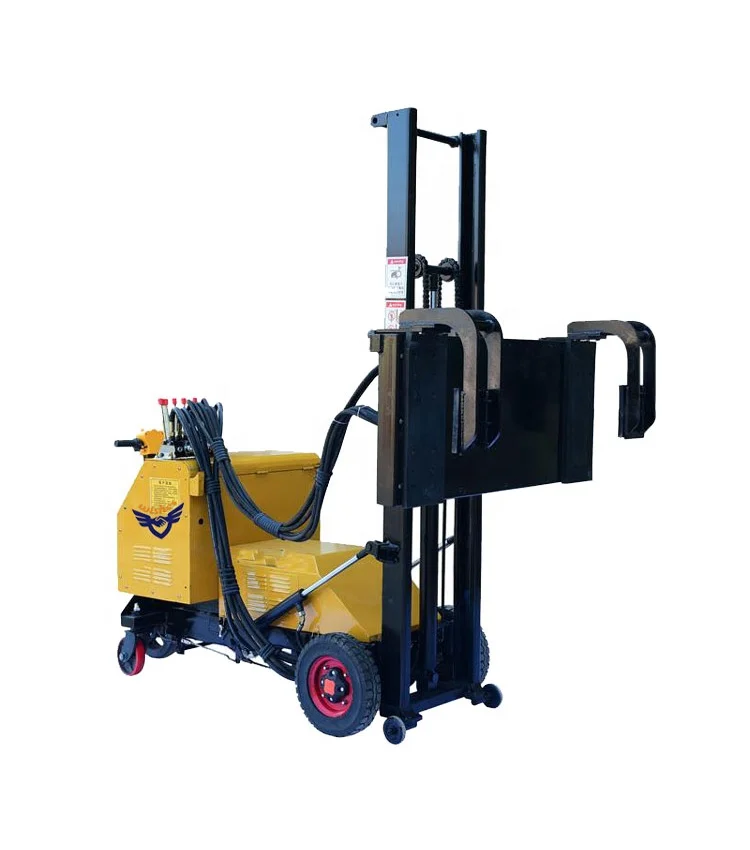

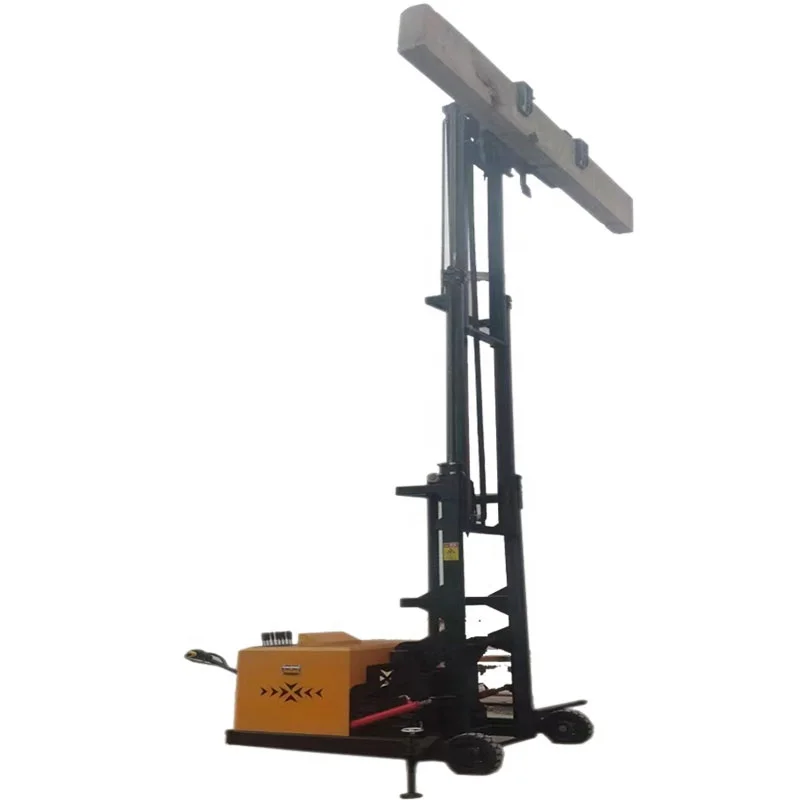

Hydraulic Wall Panel installation and lifting Machine
This wall panel installation machine is specially used to carry and erect precast lightweight concrete|Acotec|EPS|ALC|AAC wall panels and other types of interior and exterior partition wall panels. It is a very practical wall panel lifting machine
equipment, which is widely loved by construction and installation contractors.
equipment, which is widely loved by construction and installation contractors.
FEATURES AT A GLANCE
FEATURES
* Wall panel Alignment, * Horizontally picking-up wall panels etc.
* Jointing panels: upper panels 3meters+lower panels 3 meters
* Wall panel 360°Rotation
* Side- shift clamping arm
Advantages of wall panel installing machine
* Reduce the labor intensity by using hydraulic oil cylinders to complete the grasping, handling, and installation of the panel.
* Reduce the damage to the panel by using hydraulic clamps and left and right hydraulic side shift systems to complete the
installation and splicing at the same time.
* Improve work efficiency, save labor
* Ensure the personal safety of installation workers
* Reduce the labor intensity by using hydraulic oil cylinders to complete the grasping, handling, and installation of the panel.
* Reduce the damage to the panel by using hydraulic clamps and left and right hydraulic side shift systems to complete the
installation and splicing at the same time.
* Improve work efficiency, save labor
* Ensure the personal safety of installation workers

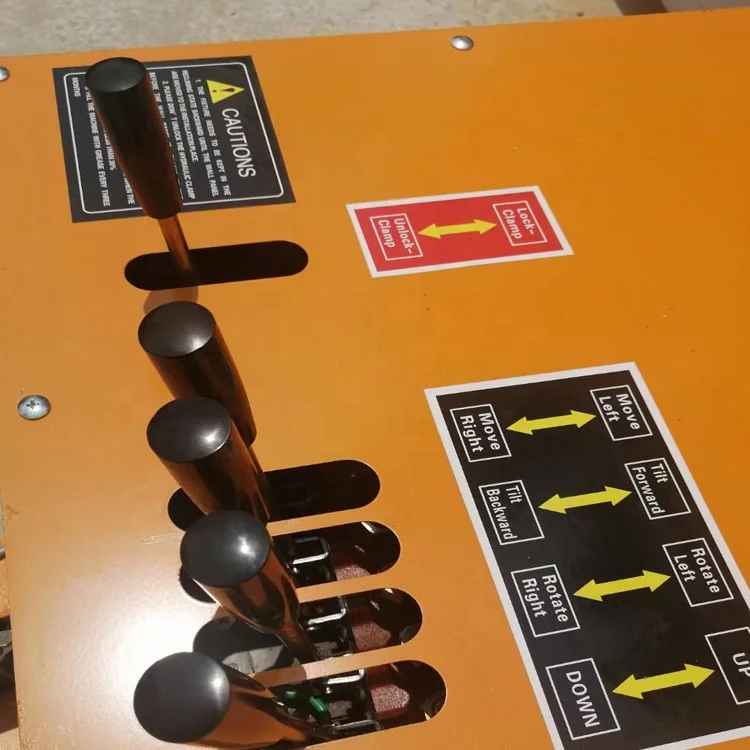

These hydraulic handles control the tightening, lifting, flipping, tilting back and forth, and side shifting of the wall panels
respectively.
respectively.

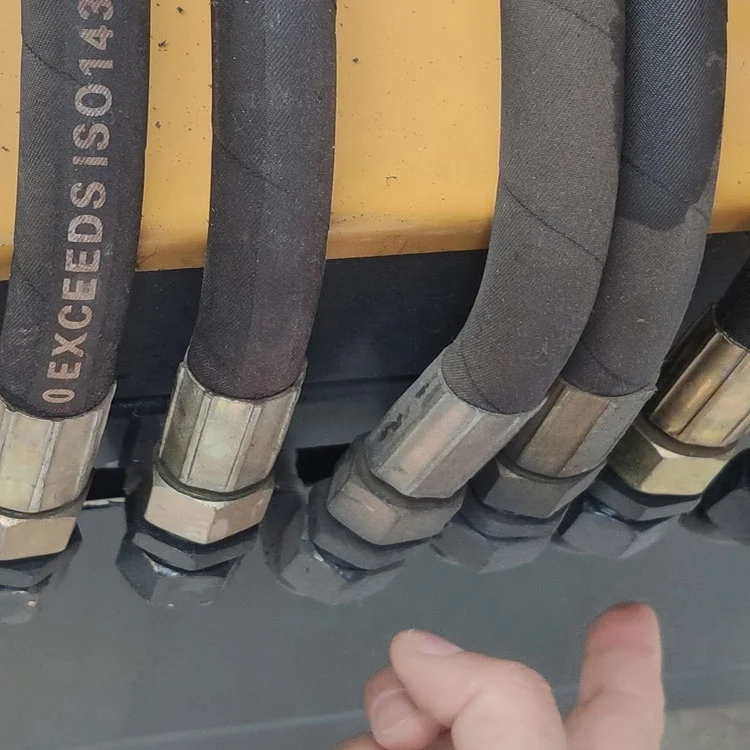

he hydraulic cylinder produces high-pressure oil to operate the five-link hydraulic directional valve to control the
lifting,support, left and right side shift, 360- degree rotation, and the hydraulic clamp of the wall panel installation machine.
lifting,support, left and right side shift, 360- degree rotation, and the hydraulic clamp of the wall panel installation machine.

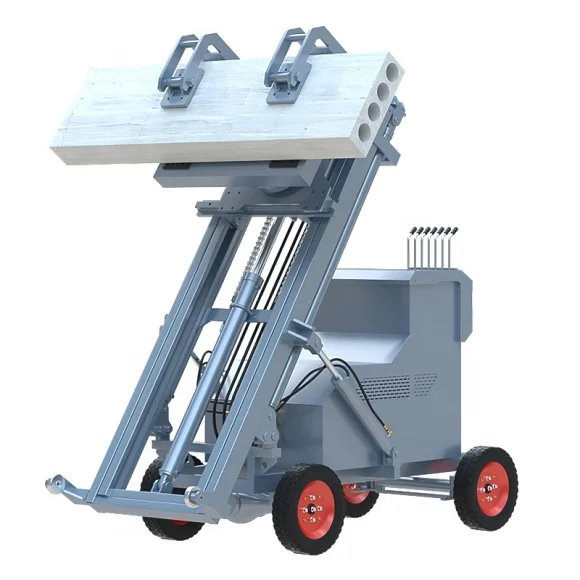

The 360-degree rotating device enables the panels to be installed horizontally or vertically. So the wall panel installation
machine works more flexibly
machine works more flexibly
PRODUCT SPECIFICATIONS
Model No. | Max. Panel length | Max. Panel Weight | Machine Weight | Remark |
WZY-3 | 3.3 meter | 300kgs | 680kgs | *panel 360°Rotation *Side- shift clamping arm |
WZY-3A | 3.3 meter | 300kgs | 680kgs | *panel 360°Rotation *Side- shift clamping arm *Horizontally picking-up |
WZY-3B | 3.3 meter | 300kgs | 680kgs | *panel 360°Rotation *Side- shift clamping arm *Horizontally picking-up * Wall panel Alignment |
WZY-4 | 4.5 meter | 650kgs | 890kgs | *panel 360°Rotation *Side- shift clamping arm |
WZY-4A | 4.5 meter | 650kgs | 890kgs | *panel 360°Rotation *Side- shift clamping arm*Horizontally picking-up |
WZY-4B | 4.5 meter | 650kgs | 890kgs | *panel 360°Rotation *Side- shift clamping arm*Horizontally picking-up * Wall panel Alignment |
WZY-6 | 6 meters | 900kgs | 1100kgs | *panel 360°Rotation *Side- shift clamping arm |
WZY-6A | 6 meters | 900kgs | 1100kgs | *Jointing panels: upper panels 3meters+lower panels 3 meters *Wall panel 360°Rotation *Side- shift clamping arm |
WZY-6B | 6 meters | 900kgs | 1100kgs | * Wall panel Alignment, * Horizontally picking-up wall panels etc. * Jointing panels: upper panels 3meters+lower panels 3 meters * Wall panel 360°Rotation *Side- shift clamping arm |
WZY-7 | 7.5 meteters | 1100kgs | *1500kgs | *Jointing panels: upper panels 4.5meters+lower panels 3 meters * Wall panel 360°Rotation *Side- shift clamping arm |
WZY-10 | 10 meters | 1100kgs | 2300kgs | *Joining panels: upper panels 6 meters+ *lower panels 4 meters * Wall panel Alignment, * Horizontally picking-up wall panels etc. * Wall panel 360°Rotation * Side- shift clamping arm |
Successful Project
Project in Austria
Project in India
Project in China
SALES AND SERVICE NETWORK
Related products
Henan wishes machinery equipment Co., Ltd is integrated by a team of professions with wide and deep technology experiences in the precast concrete machinery industry. The company was founded in 2001 and since then, it has been a leading manufacturer of single machine and complete plants for the precast concrete industry. Especially, we are the earliest designer and manufacturer of precast wall panel extrusion machines, hollow core slab machines, concrete hollow core wall panel extruder machines in Henan Province, even all over China. Our precast concrete extruder machines is widely used all over the world.
FAQ
Q1：What type of wall panel your machine can work fore ? A1： Acotec panel ,EPS panels, ALC panels, AAc panels etc.
Q2: What is your delivery time ?
A2：0-15days depend on the model of machines ordered
Q3: How is this machine packed and shipped
A3：wood case for LCL or nude packed in the container
For more questions, please inquiry to us , we will reply you immediately .
Q2: What is your delivery time ?
A2：0-15days depend on the model of machines ordered
Q3: How is this machine packed and shipped
A3：wood case for LCL or nude packed in the container
For more questions, please inquiry to us , we will reply you immediately .
