Машина для резки профиля машина
- Категория: Pipe Cutting Machines >>>
- Поставщик: Zhangjiagang,Jiurun,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.84 $* | 0.77 $* |
| Aug-16-2025 | 0.13 $* | 0.5 $* |
| Jul-16-2025 | 0.87 $* | 0.96 $* |
| Jun-16-2025 | 0.83 $* | 0.90 $* |
| May-16-2025 | 0.56 $* | 0.73 $* |
| Apr-16-2025 | 0.75 $* | 0.54 $* |
| Mar-16-2025 | 0.28 $* | 0.1 $* |
| Feb-16-2025 | 0.4 $* | 0.53 $* |
| Jan-16-2025 | 0.73 $* | 0.54 $* |
Характеристики
Product Description
It is adapted for sawing aluminum extrusion material, aluminum doors and windows, radiating rib, wooden material, water pipes and sound faceplate.
It is suitable for cutting various materials, such as aluminum, brass, heat sink, PVC, plastic steel, Bakelite, acrylic plastic, honeycomb board, wood and other non-ferrous metals.It is adapted for sawing aluminum extrusion material, aluminum doors and windows, radiating rib, wooden material, water pipes and sound faceplate.
It is suitable for cutting various materials, such as aluminum, brass, heat sink, PVC, plastic steel, Bakelite, acrylic plastic, honeycomb board, wood and other non-ferrous metals.
It is suitable for cutting various materials, such as aluminum, brass, heat sink, PVC, plastic steel, Bakelite, acrylic plastic, honeycomb board, wood and other non-ferrous metals.It is adapted for sawing aluminum extrusion material, aluminum doors and windows, radiating rib, wooden material, water pipes and sound faceplate.
It is suitable for cutting various materials, such as aluminum, brass, heat sink, PVC, plastic steel, Bakelite, acrylic plastic, honeycomb board, wood and other non-ferrous metals.
Feature
1.When operating the machine, just step on the foot switch, the machine will automatically clamp and cut, easy to operate.
2.Hidden blade up and down can be very safe work.
3.Vertical slide way for advance and retreat blade up and down.
4.The cutting feed is stable, the service life of the cutter is long, and the sawing accuracy is high.
2.Hidden blade up and down can be very safe work.
3.Vertical slide way for advance and retreat blade up and down.
4.The cutting feed is stable, the service life of the cutter is long, and the sawing accuracy is high.
Feature
5.Cooling liquid and lubricating liquid spray out automatically during cutting to ensure smooth cutting surface and prolong the service life of saw blade.
6.The cutting feed is driven by the cylinder so the cutting speed is extremely stable.
7.The saw blade Angle is fixed and the cutting precision is improved.
8.The shelves have a positioning panel, which is more convenient to cut the material.
6.The cutting feed is driven by the cylinder so the cutting speed is extremely stable.
7.The saw blade Angle is fixed and the cutting precision is improved.
8.The shelves have a positioning panel, which is more convenient to cut the material.

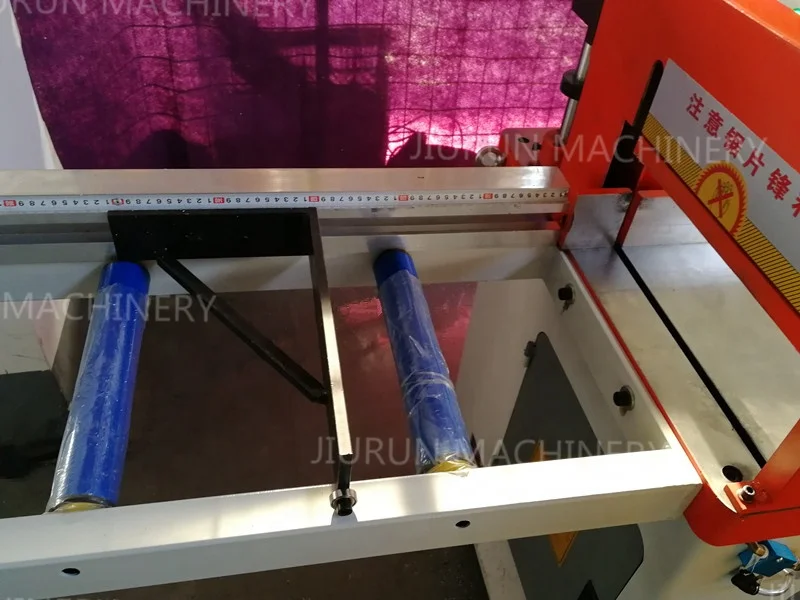

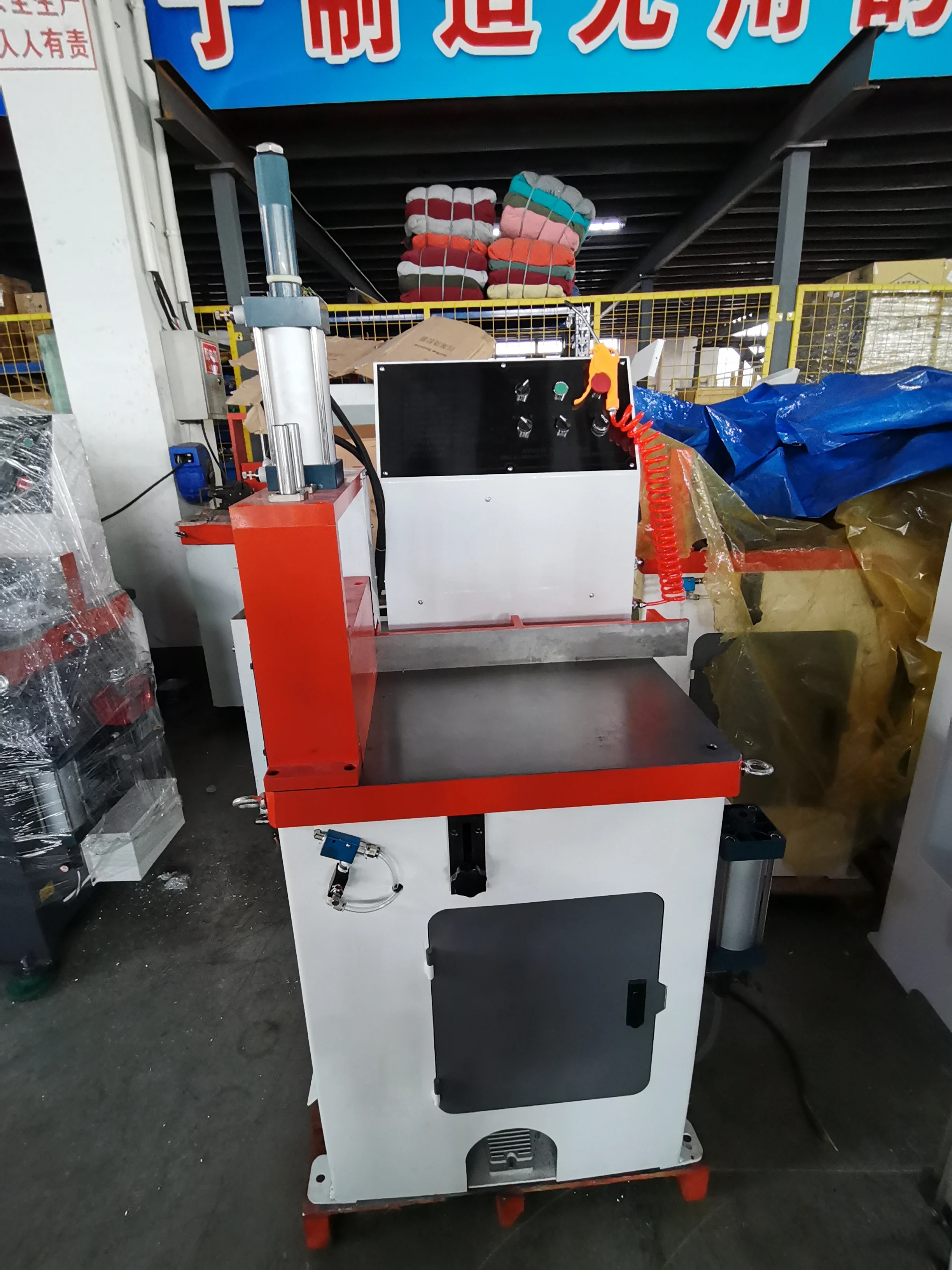

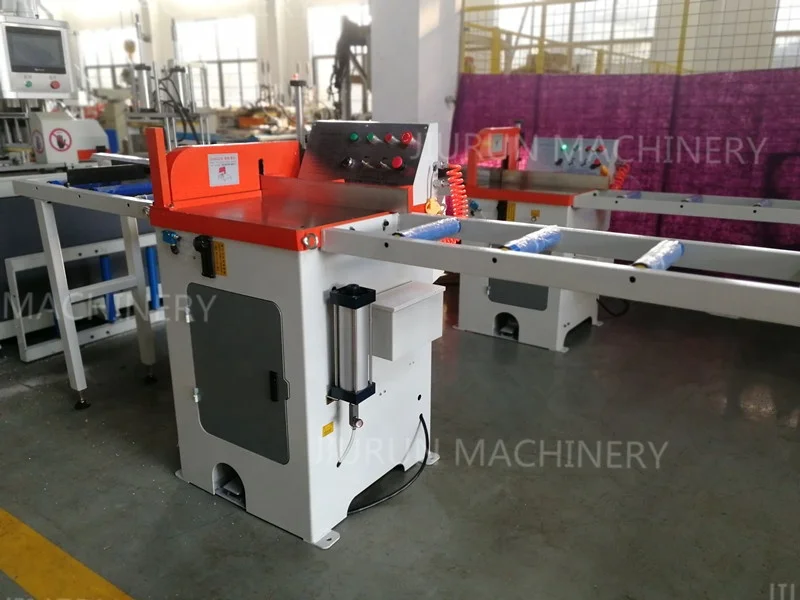

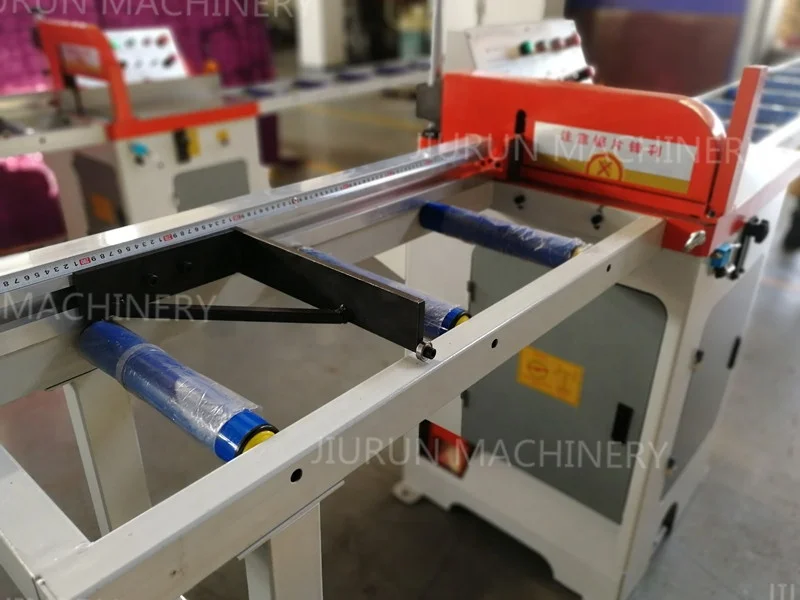

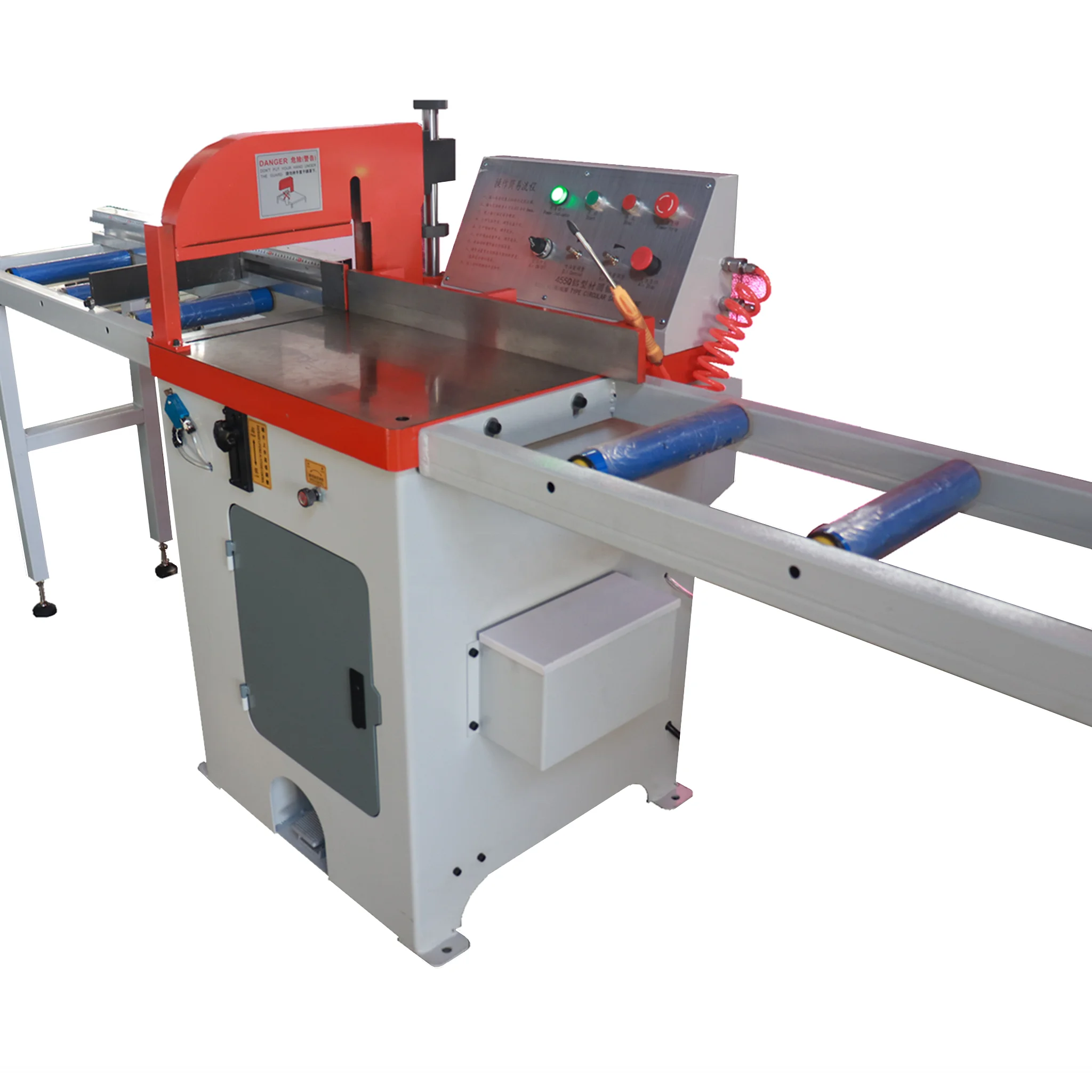

Detailed Images
For sawing aluminum extrusion, aluminum windows and doors, heat sinks, wood, water, sound panel
Product Paramenters
Model | JR-S455 |
Cutting Angle | 90 ° |
Cutting Capacity(HxW) | 120*300mm |
Spindle Speed | 2800-3300 R.P.M. |
Saw Blade Size | φ355-455mm |
Table Area | 645*668mm |
Table Height From Floor | 850mm |
Motor Power | 4 kw |
Air Pressure | 4-6 kg/cm² |
Conveyor Length (opt.) | According to customer’s requirements |
Voltage | 380V or customized |
Feed Mode | Up and down |
Weight | 300 kg |
Packing&Shipping
Packaging Details:
Packed in plywood case. If the customer has special requirements in packing, we can meet them.
Port:
Packed in plywood case. If the customer has special requirements in packing, we can meet them.
Port:
Shanghai
Lead Time:
Lead Time:
30-35 working days after receiving the deposit
After Sales Service
We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.
Our company can send our engineer to the customer’s factory install, commission and training freely. The customer has to provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our company to learn the operation and maintains freely.
Our company provides the service for the customer forever, if the customer need operation help, you can contact us by Skype, Email and Telephone at any time.
Company Introduction
Zhangjiagang jiurun machinery factory is a professional production and processing company of metal forming equipment, gear grinding machine, aluminum cutting machine, pipe cutting machine, chamfering machine, pipe forming machine.Zhangjiagang jiurun machinery factory is a professional production and processing company of metal forming equipment, gear grinding machine, aluminum cutting machine, pipe cutting machine, chamfering machine, pipe forming machine.
