Волоконно-лазерная машина для резки труб с точностью в Китае поставщик
- Категория: Pipe Cutting Machines >>>
- Поставщик: Maanshan,Durmapress,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 34367.61 $* | 36085.40 $* |
| Aug-15-2025 | 34078.19 $* | 35782.9 $* |
| Jul-15-2025 | 28591.10 $* | 30021.22 $* |
| Jun-15-2025 | 33501.29 $* | 35176.57 $* |
| May-15-2025 | 29169.81 $* | 30627.36 $* |
| Apr-15-2025 | 32923.87 $* | 34569.63 $* |
| Mar-15-2025 | 32634.9 $* | 34266.67 $* |
| Feb-15-2025 | 32346.60 $* | 33963.44 $* |
| Jan-15-2025 | 32057.20 $* | 33660.24 $* |
Характеристики
Product Description

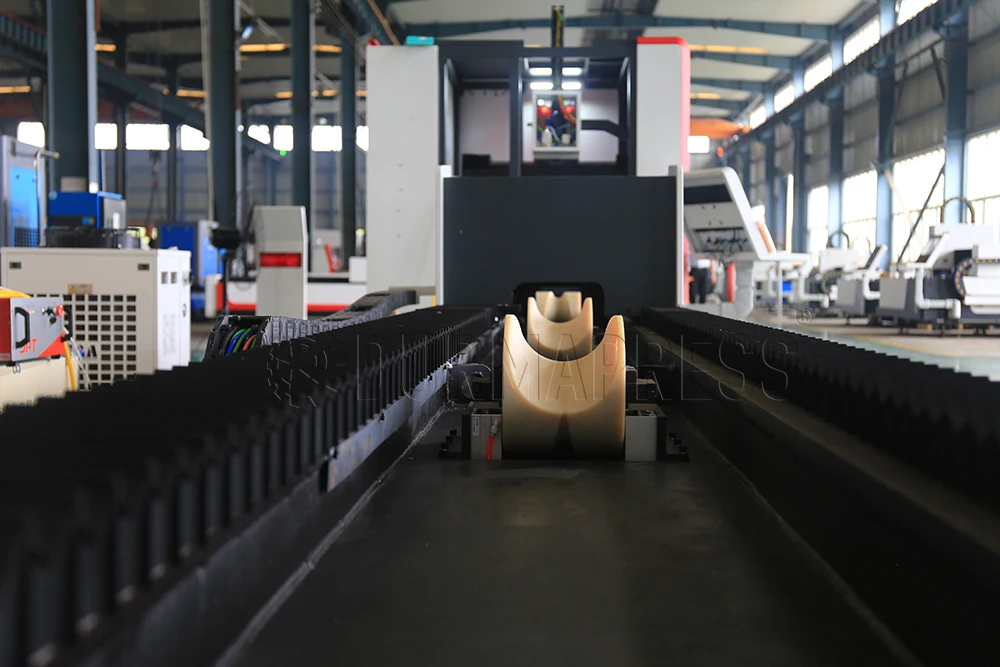

BS6020T automatic Laser tube cutting machines
(automatic fiber tube laser cutting machine tube laser cutting machine)
introduced German fiber laser cutting equipment solutions, equipped with FSCUT numerical control system. The frame adopts a welded structure, and the X axis is driven by a precision rack and pinion; the self-centering chuck is designed with stable structure, good rigidity, light weight, and high dynamic response. Provide customers with a fiber laser cutting system with high dynamics, high efficiency and low energy consumption to improve efficiency. lt is a fully automatic laser tube cutting machine with excellent performance
Manufacturing Technique
Working Area (L*W) | 6500mm*Dia460mm | Round tube/Square tube |
X axis distance | 6520mm | |
Y axis distance | 350mm | |
Z axis distance | 240mm | |
X/Y axis position precision | +0.03mm/m | |
X/Y axis re-position precision | +0.02mm | |
X/Y axis Max. speed | 80m/min | |
A、B axis travel / position precision | Infinite rotation/ +0.03mm | |
Pipe Diameter | 中20mm-中460mm | Complete Pneumatic chuck |
Pipe Length | 300mm-6500mm | |
Max. Loading Weight | 1500KG | |
Dimension | 16900mm*4300mm*2400mm | |
Weight | 9000KG |
Details Images
Optical fiber automatic focusing fiber cutting head NC30B
1. This cutting head has strong advantages in the application of medium-power large-format fiber laser cutting
2. The internal structure of the laser head is completely sealed to prevent the optical part from being polluted by dust.
3. The laser head adopts two-point centering adjustment, and the focusing is driven by an imported motor, which is efficient in perforation Significantly improved.
4.The protective lens is installed in a drawer type, which is easy to replace.
2. The internal structure of the laser head is completely sealed to prevent the optical part from being polluted by dust.
3. The laser head adopts two-point centering adjustment, and the focusing is driven by an imported motor, which is efficient in perforation Significantly improved.
4.The protective lens is installed in a drawer type, which is easy to replace.
JPT single mode fiber laser500w-2000W
It is the optimal combination of optica mechanical, electrical and software components. Through the controlling ports and the controlling software, the operating status of the laser can be monitored in real time, alarm messages can be received in time, and data can be collected.The laser uses water-cooling and shelf case design, with competitive
Yaskawa Reducer
Advantages:
High startability and short acceleration time; the reducer runs smoothly and has low noise;
Easy to install, save space and weight; reducer
Gears and racks can be adjusted to accuracy; Good structure design low moment of inertia;
The equipment can bear axial radial thrust under heavy load;
High startability and short acceleration time; the reducer runs smoothly and has low noise;
Easy to install, save space and weight; reducer
Gears and racks can be adjusted to accuracy; Good structure design low moment of inertia;
The equipment can bear axial radial thrust under heavy load;
The output shaft of the reducer is equipped with a set of high-strength rolling cone bearings;

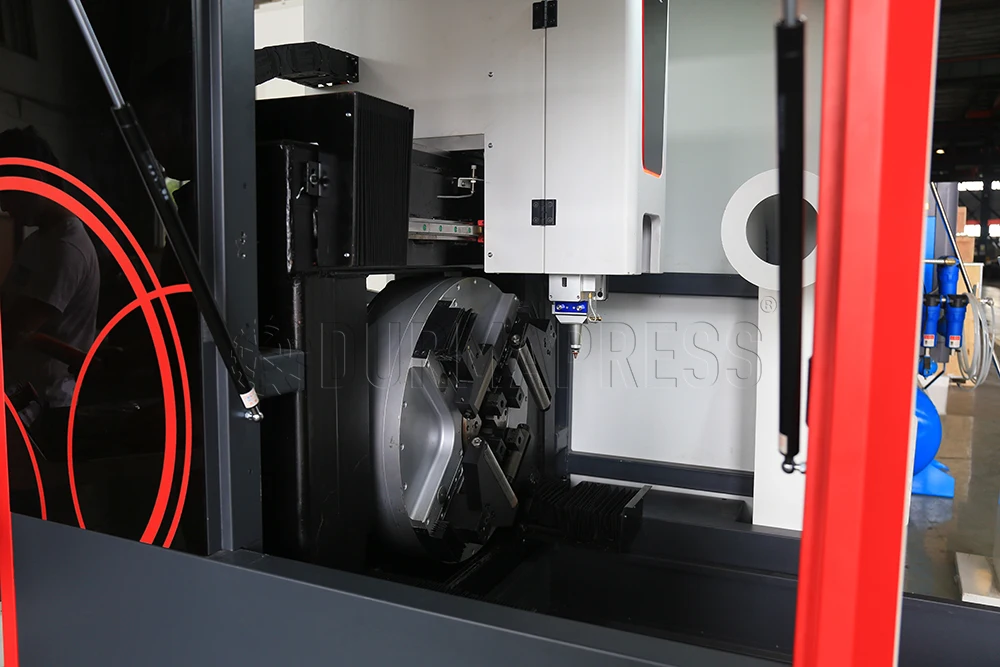

Automatic Chuck
1. The characteristics of the electric chuck are: fast speed, high precision and long life.
2. Through the switch on the electric control box the clamping and unclamping of the power chuck driven by the motor can be realized, and the forward and reverse rotation of the motor can be controlled. Adjust the voltage adjustment knob on the electric control box to adjust the drive voltage. changing the output torque of the motor and adujsting the clamping force of the chuck make it more convenient to use.
2. Through the switch on the electric control box the clamping and unclamping of the power chuck driven by the motor can be realized, and the forward and reverse rotation of the motor can be controlled. Adjust the voltage adjustment knob on the electric control box to adjust the drive voltage. changing the output torque of the motor and adujsting the clamping force of the chuck make it more convenient to use.
Dust extraction device
Pipe diameter
Air drag
Back plate
hydraulic press brake
fiber laser cutting machine
Company Profile
Certifications
Customer feedback
Packing & Shipping
FAQ
Q: How to get a accurate quotation from us ?
A:Please provide us the details of material , max thickness and max width .
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with
postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the video directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
A:Please provide us the details of material , max thickness and max width .
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with
postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the video directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
