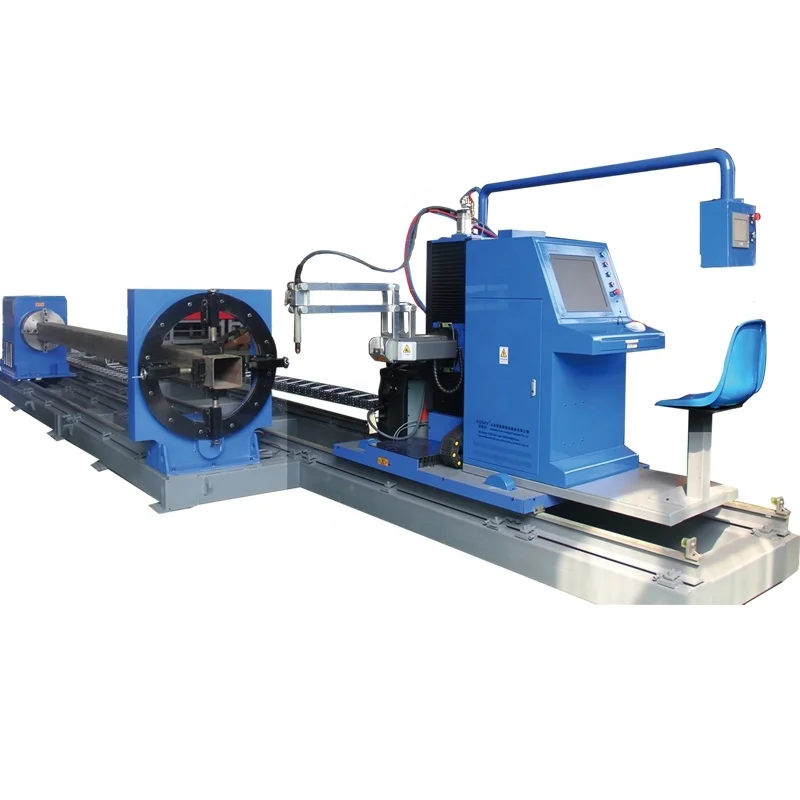

Kasry Special CNC Round Square Rectangular Tube Cutting Machine All Metal Pipes Cutting Machine



Brief Introduction:



This machine is specially developed to cut all kinds of pipes, including round pipe, square pipe and rectangular pipe. It can cut carbon steel, stainless steel, aluminum, widely used in steel structure construction, shipbuilding, marine engineering, bridge, the elevator industry, building walls, bridges, towers and mechanical engineering industries, etc.



Machine Features:



1. Adopt welding platform, heavy rail and improve the overall bearing weight, human design human-computer exchange more convenient and reasonable, stable operation and increased life expectancy.

2.Independent research development to optimize CNC pipe systems, auto CAD version of the engineering design can generate standard G code directly, three-dimensional simulation of the operation, node expansion, long split pipe, fittings optimization, over sized EGES DXF SAT and STL software compatibility and lifetime free upgrade process can be modified according to user needs

3.Taiwan’s Advantech industrial computer can be programmed directly on the machine. Using menu-select input cutting parameters such as diameter, wall thickness, bevel angle deviation compensation data. By KASRY professional pipe cutting applications for a seamless connection.

4. Maximum and minimum cutting diameter and pipe length can be designed according to user requirements.



Application:



Material :Carbon steel , stainless steel ,aluminum

Type :round pipe , square tube , rectangular tube

Industry :Especially for steel structure construction, shipbuilding, marine engineering, the elevator industry, building walls, bridges, pipeline system, towers and mechanical engineering industries.



Technical parameters:



Model	8 axis pipe square tube CNC cutting machine
Square tube/rectangular pipe	Width 50-400mm , cutting length 12000mm
Round pipe	Diameter 50-630mm ,cutting length 12000mm
Cutting method	Plasma & flame
Plasma power	Hypertherm 125A plasma power , For 1-25mm
Flame cutting thickness	6-60mm
Plasma cutting speed	500-3500mm/min
A axis Bevel angle	±45 degree
B axis Bevel angle	±45 degree
Plasma bevel thickness	6-14mm
Flame bevel thickness	6-40mm
Control system	Kasry control system
Computer	Taiwan Advantech Industrial Computer
Driving motor	Servo motor
Software	KASRY Pipe Nest software
Load	8t
Weight and size
Size	(Length *width*height) 12000*2200*2100mm
Weight	7t
Shipping	40ft container
Working condition
Working pressure of compressed gas	Above 7mpa
Require gas flow of plasma	4500L/H
Working environment	Ventilation ,no concussion
The acceptable temperature around	-20℃~50℃
Voltage	Machine :220/380V ,50/60HZ
Power wattage	5KW
Types of gas	Plasma :Air , Flame :Oxygen + Acetylene /propane

































































































Software advantages:

1. We are the first company developing the square tube cutting and beveling machine in china.

2. It’s easy to operate as model making is easy . with simple training , the user can operate. You just need to input wall thickness , bevel angle , threading length on the software, it can cut directly with the graphics in the gallery .

3.Our software has good compatibility , support TEKLA, AutoCAD, 3D ,3S, STCAD.

  Compatible with the famous Steel structure software TEKLA, simple operation, to avoid the design and secondary modeling.

4. optimized nesting method can save 1-2% of the material.

5. Support continuous cutting.

6. Support small angle cutting and twist angle.

7. With Rich graphics database ,free offer to the customer.

8. Kasry software can enjoy lifetime updates for free.



Cutting videos on Youtube:



https://youtu.be/NqqAz4IFeoA

https://youtu.be/nAkvRQcETwc

https://youtu.be/l4ZE8VI2jzs

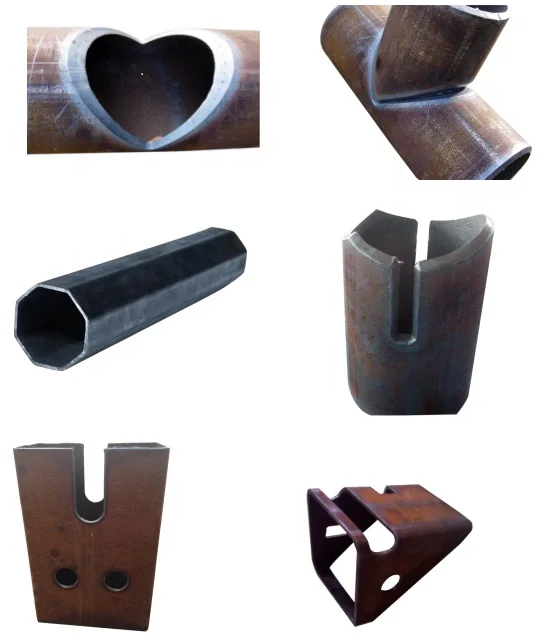

Cutting Samples:





Customer Case and Visit:





Company Profile:



Shandong Kasry Intelligent Equipment Co. Ltd. is a high-tech enterprise integrating research, design, production and marketing. It’s committed to intelligent CNC equipment, providing overall design and solution including material budget - Logistics transportation - process cutting- group welding. With advanced technology, complete service system, strong capital strength and rich experience in the industry, Kasry sets up a worldwide network of sales, and is striving to become one of the most influential brands among the automation equipment companies.





our certificate:





After-sales service:



1.Two years warranty,  free maintenance throughout service time. And in warranty if spare parts are broken, we can provide free maintenance or change new parts for free.

2.Free technical support through Email ,chat-online tools ,Teamviewer and telephone. especially the Teamviewer, this is our system’s remote assistance application. Our engineer can help solve your problem directly on your computer through this remote tool.
