Haiwell IIOT terminal Box to connect with MQTT server ERP system MES system







IoT Cloud Box = IoT Gateway + DTU + HMI (Use mobile as local screen)

• Integrated functions as IoT gateway + DTU + HMI all in one, saving cost and space. Small box, Big use.


• No need to develop the remote control interface twice, all projects are developed at one time, what you see is what you get. The display screen can be directly monitored through the mobile phone/PC terminal instead of the HMI screen, and the control is flexible and convenient.


• Support MQTT protocol. It can be connected to database server/ERP/MES and other systems to easily realize data collection and reporting. Support millions of terminal concurrent networks.











Model	Configuration		Size (mm)  width x height x depth

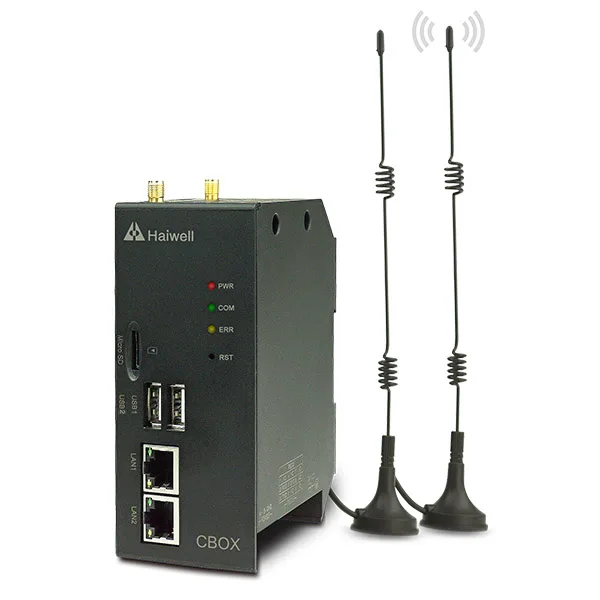

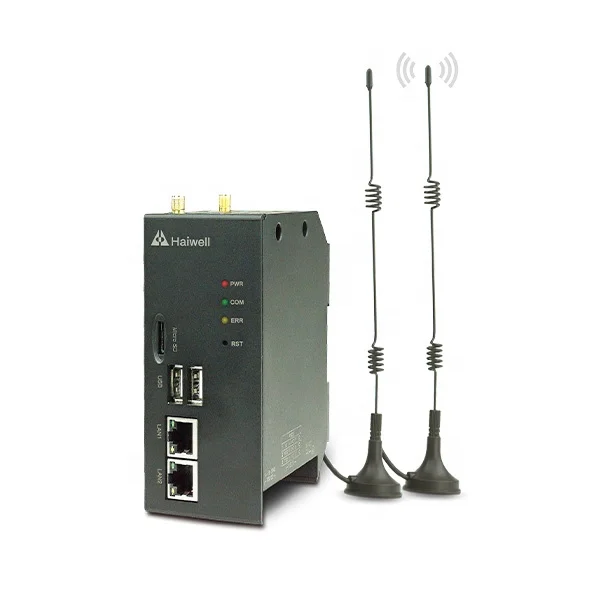

CBOX-E	A7 696MHZ, 512M Flash, 256M RAM, 2*RJ45 (10/100MB),  RS232+RS485, 2*USB, with wifi, support SD card		50x120x85





Cloud box CBOX-E features:

• 256M Flash+256M DDR3, small size, multi-function, cost-effective


• Built-in Haiwell cloud engine, integrated Haiwell cloud service, support cloud/mobile access control


• Integrated HMI function, it can monitor the display screen directly by mobile phone /PC instead of HMI screen, which is flexible and convenient to control


• Support A/B Key security mechanism, multi-unit network, database, multi-screen interaction, cloud camera remote monitoring and other functions


• Support Haiwell Could SCADA cloud configuration software


• Connect to Haiwei Cloud via Ethernet/WIFI , viewing and monitoring equipment remotely in real-time


• Two Ethernet interfaces, support star, tree, and bus Ethernet networking


• Standard 2xRJ45 interface, 2xUSB, 2x serial port, WIFI, SD card, SIM card, rail mounting


• Support MQTT protocol, support access to the database server, easily achieve data collection and reporting, connects to ERP/MES and other systems.









Through TVBOX, the pictures of multiple devices can be combined and shown on a large screen and monitored simultaneously in the form of 4/6/9 squares. Haiwell HMI, cbox, IPC and other equipments support this function.
