Двойной рычаг управления вращающийся вокруг
- Категория: >>>
- Поставщик: Yueqing,Omter,Electronic,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 26.97 $* | 27.8 $* |
| Aug-15-2025 | 26.18 $* | 27.95 $* |
| Jul-15-2025 | 22.44 $* | 23.3 $* |
| Jun-15-2025 | 26.80 $* | 27.67 $* |
| May-15-2025 | 22.38 $* | 23.97 $* |
| Apr-15-2025 | 25.28 $* | 26.3 $* |
| Mar-15-2025 | 25.56 $* | 26.28 $* |
| Feb-15-2025 | 25.34 $* | 26.98 $* |
| Jan-15-2025 | 24.55 $* | 25.56 $* |
Характеристики

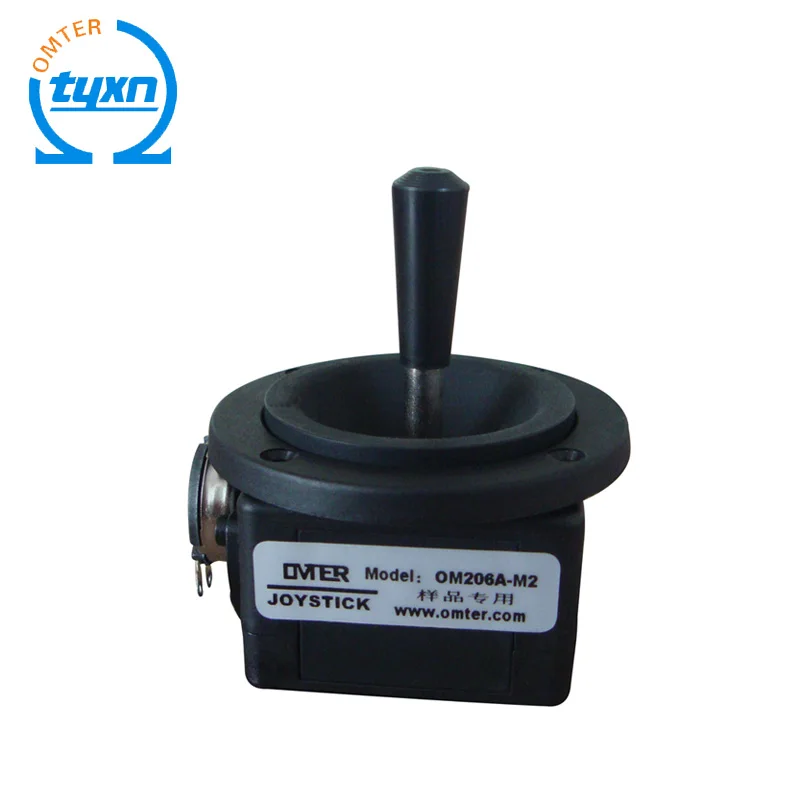

OM206A-M2 two axis potentiometer joystick
M2: The total resistance value also is 5K, but the adjust range is from 0k to 2.5K then from 2.5K to 5K.
Product Description

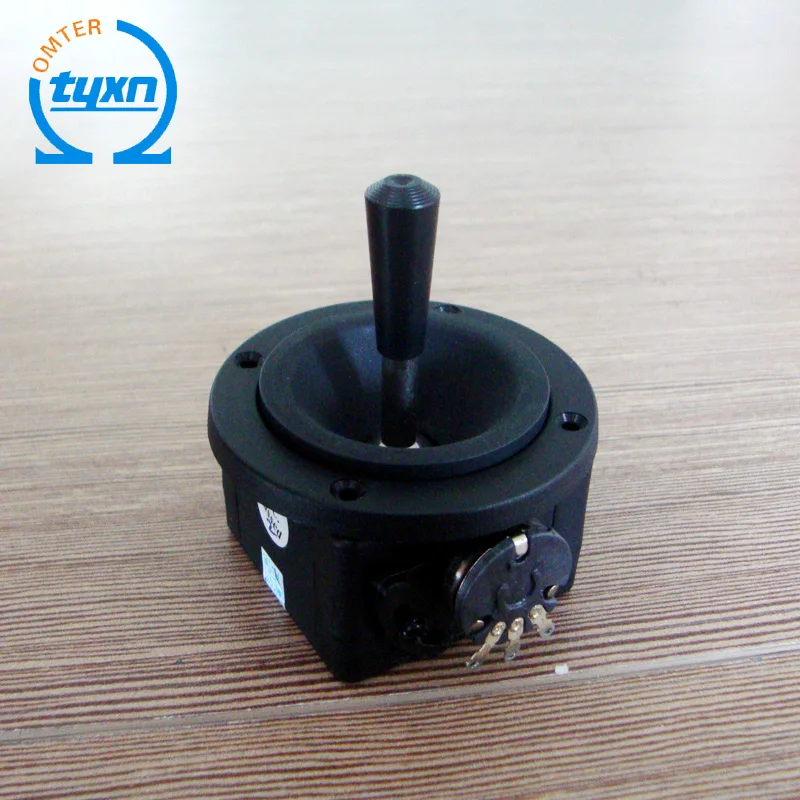

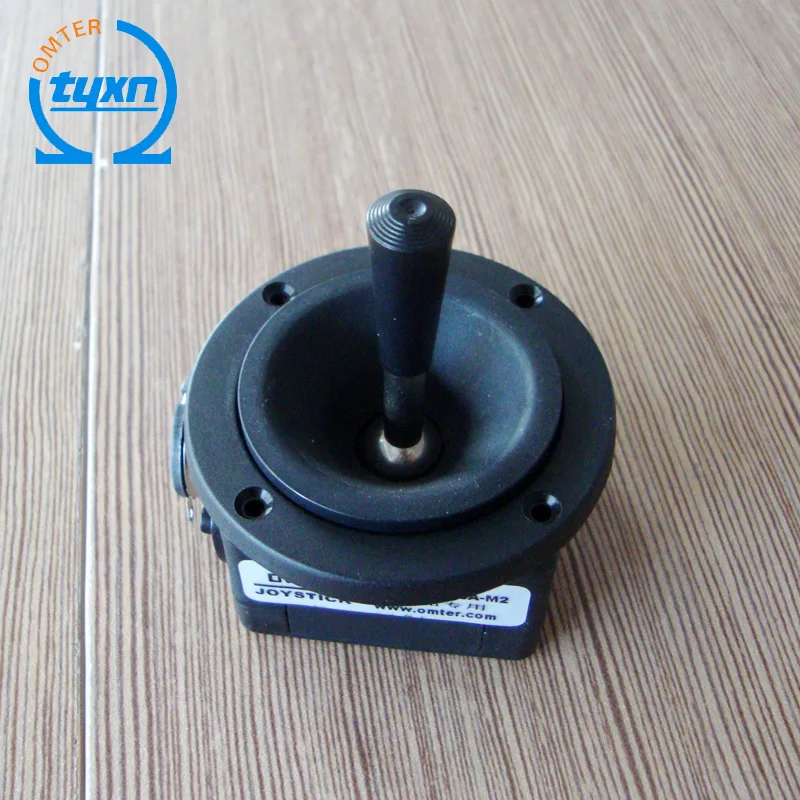

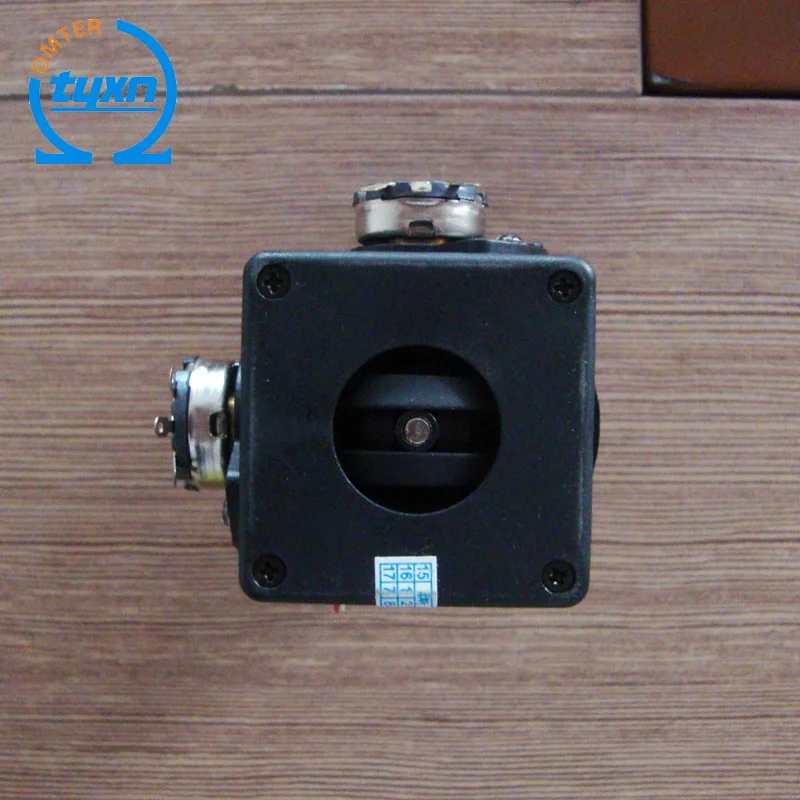

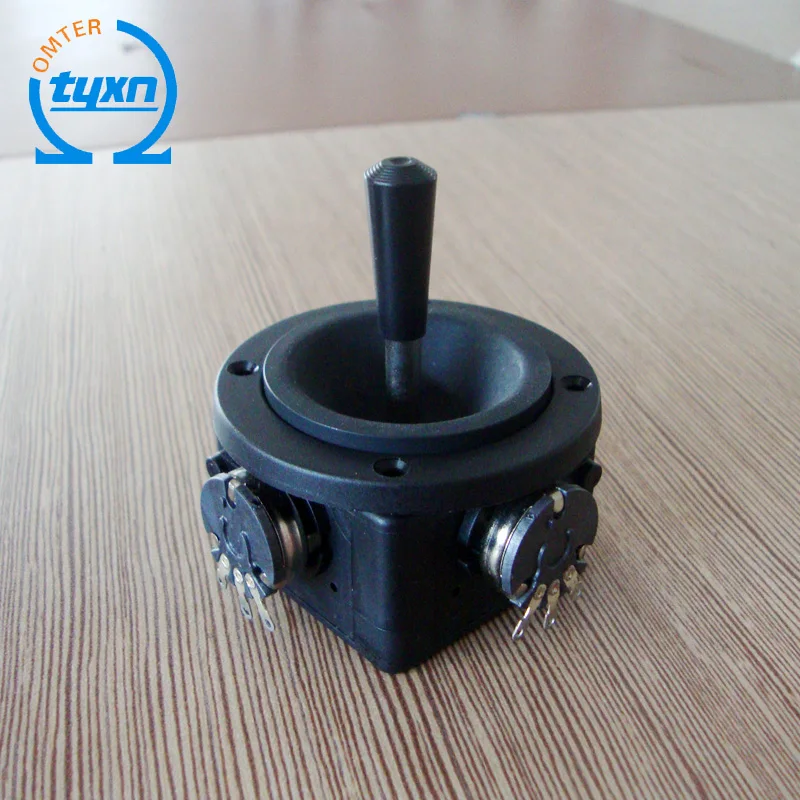

Detailed picture:
Features:Flexible handling ,Small resetting error, Long life-time
Optionals:Terminal type,Lead length,Seal form,Switch,potentiometer,soft or heavy handling
Typical Applications:Move photography cctv controlsystem,Measurement equipments,Medical imaging system,Automative control,Video editing equipments,Industrial Instruments
| Electrical Date | |
| Specification | Unite |
| Resistance value | Standard 5K and 10k, On request |
| Resistance tolerance | ±20% |
| Independent Linearity | ±1% |
| Resloution | Essentially infinite |
| Temperature Coefficient resistance | ±400 ppm/°C |
| Output smoothness | 0.5 Maximum |
| X&Y Axis Electricity Corner | ±25° |
| Z Axis Electricity Corner | ±45° |
| OM300Z,OM400Z ,OM300Z Axis Potentiometers | AWG28 silver plated, PTFE insulated Colorful lead wires standard length100mm or on request |
| Insulation resistance | 50MΩ 500VDA, 60sec |
| Mechanical Date | |
| Specification | Unite |
| Operate Torque | X & Y Axis 90gf & 250 gf,Z Axis 330 gf |
| Restoration Error Rate | ±0.03KΩ |
| Prolepsis Mechanical Lifecycle | 500,000 cycle |
| Operating Temperature Range | -10°C-80°C |
| Potentiometer Selection: |
| M1: The total resistance value is 5K, but the effect adjust resistance range is from 1.8K to 2.5k,then from 2.5k to 3.2K. |
| M2: The total resistance value also is 5K, but the adjust range is from 0k to 2.5K then from 2.5K to 5K. |
| M3: The total resistance value is 10K, the adjust range is from 3.5K to 5k,then from 5K to 6.5K. |
| M4: The total resistance value is 10K, the adjust range is from 0K to 5K, then from 5K to 10K. |
| M5: The total resistance value is 100K, the adjust range is from 36K to 50 k,then from 50K to 64K. |
| M6: The total resistance value is 100K, the adjust range is from 0K to 50 k,then from 50 K to 100K. |
OM200 Series Drawing:
Packaging & Shipping
Package:
Express delivery:
Sample:
1. Samples time: Need 7-10 days to preparing the samples after receiving the payment.
2. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 1PC
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
| 1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
| 7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better . |
Company Picture:
...
