 DIYmall ESP8266 ESP-12S RGB LED Controller WS2812 LED Strip RGB WIFI Microcontroller Dimming Controller Support WiFi, Infrared Wireless Control, MClighting


Description:

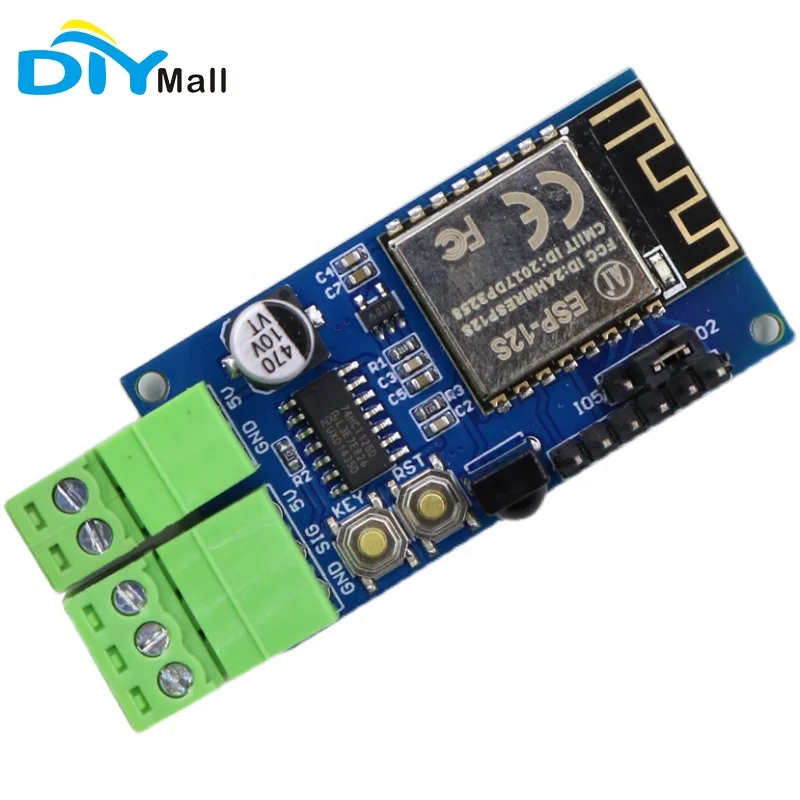

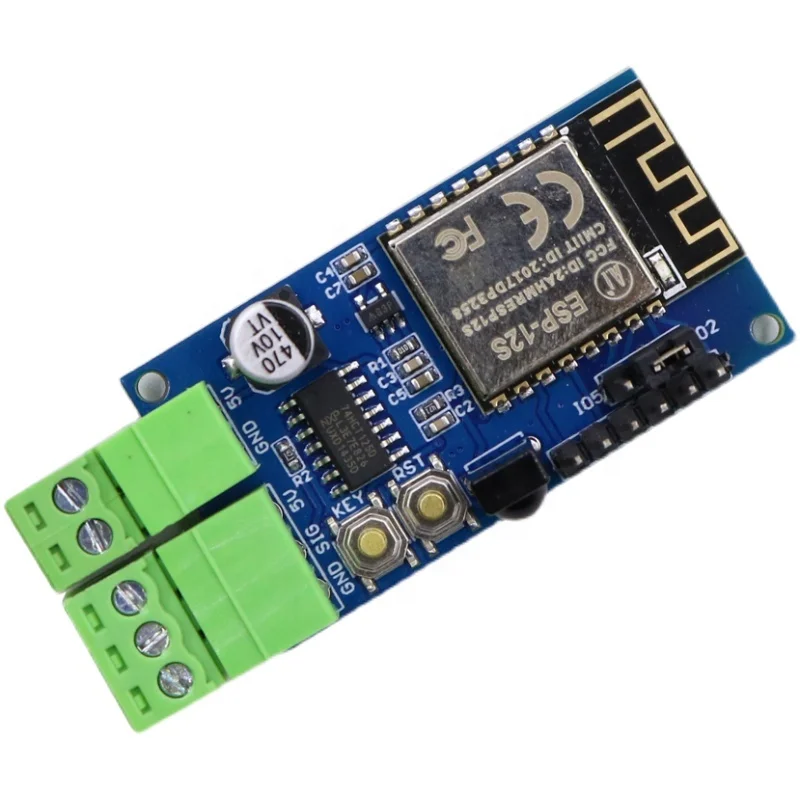

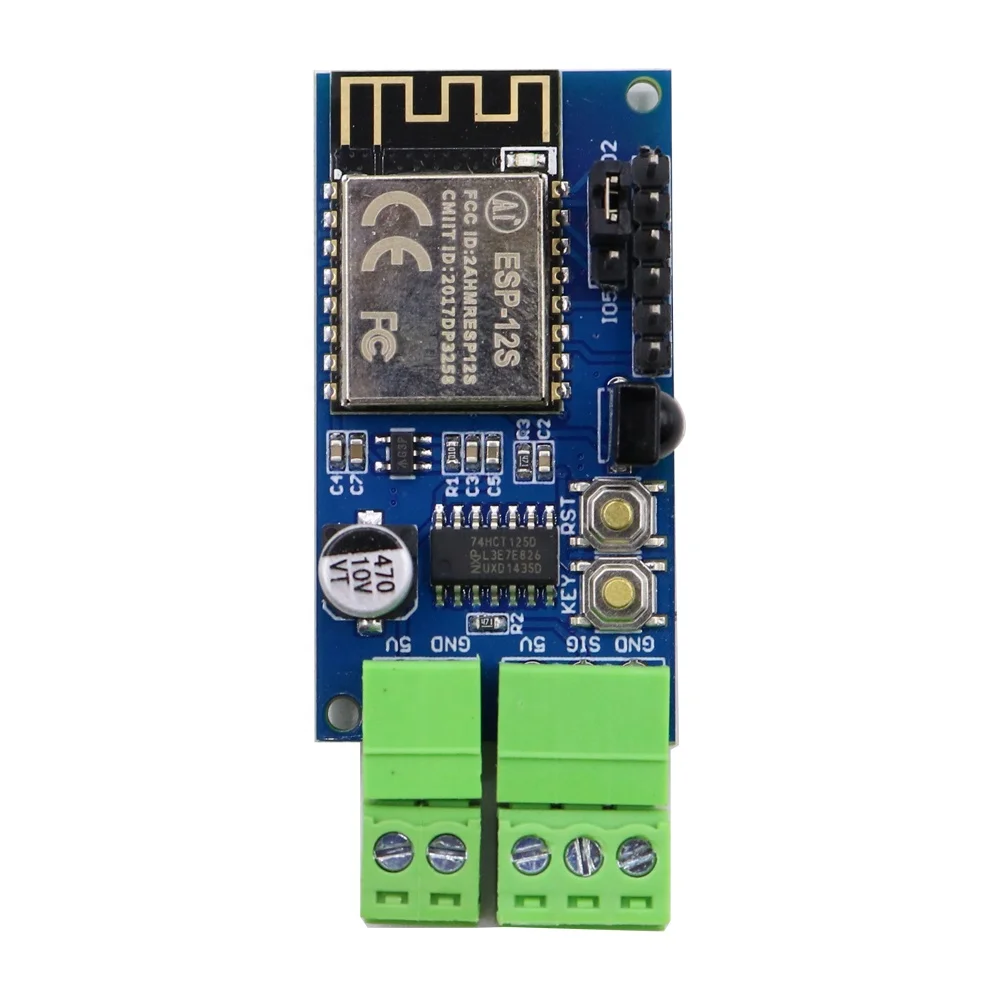

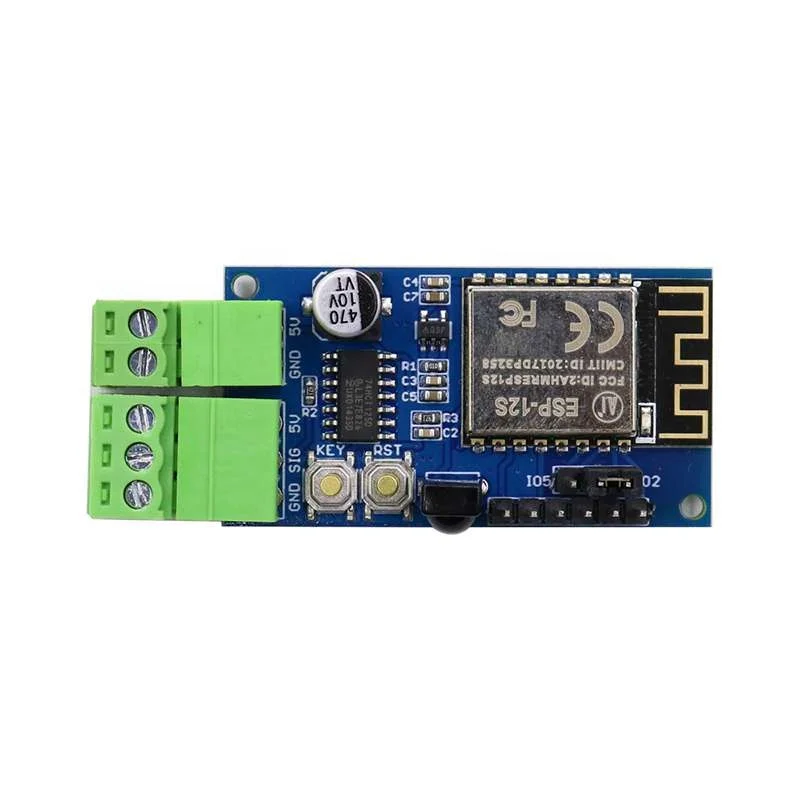

This is a WiFi RGB LED (WS2812) controller based on ESP8266, with a 0038 universal infrared receiver on board. Support WiFi, infrared wireless control. The mobile terminal software supports Blnyk, Mclighting.

MClighting (multi-customer lighting widget) is a very cost-effective Internet controllable lighting solution. Based on ESP8266 microcontroller and WS2811/2812 LED strips. It supports Web-Interface, REST-API and WebSocket etc. Because it is an open source architecture and API, it is easy to build new clients on different platforms (such as i0S, Android, Windows Universal Apps, siri / Cortana Integration,...).

Product parameter

Voltage: 5v

Interface: KF2EDG 3.5MM

Size: 60*25*10mm (length * width * height)

Number of WS2812 that can be connected: up to 4096

onboard one button

Onboard a 0038 universal infrared receiver

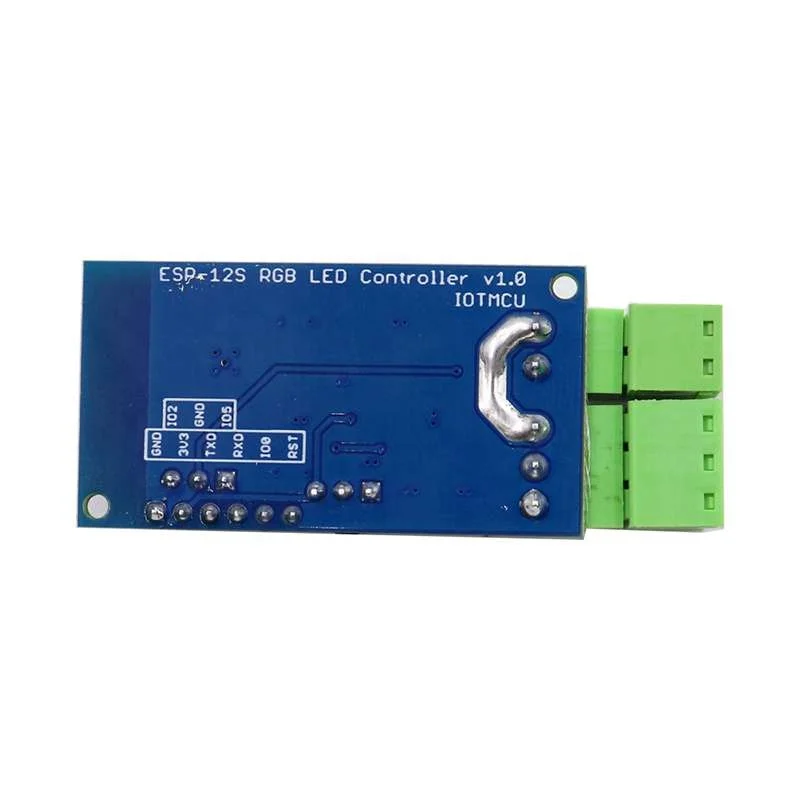

Hardware interface

WS2812 pin: GPIO2 (default) or GPI05 (optional)

Maximum number of connected lights:

Up to 384 in DMA mode (GPI02 port)

up to 4096 in other modes (GPI05 port)

Button KEY: GPI014, low level active

Infrared receiver (0038): GPI013

Tips : This module is just a hardware module with only one test program inside. We provide some basic control cases, you need to simply modify and download the program yourself.


Software link usage: Please contact us at the first time.

Package List

1 x ESP-12S RGB LED Controller
