Промышленная машина для дробления древесины/Измельчитель веток
- Категория: Машины для лесного хозяйства >>>
- Поставщик: Changshu,Shi,Shouyu,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 12699.83 $* | 12953.2 $* |
| Jul-16-2025 | 10299.5 $* | 10505.80 $* |
| Jun-16-2025 | 12499.19 $* | 12749.5 $* |
| May-16-2025 | 12399.33 $* | 12647.12 $* |
| Apr-16-2025 | 9899.64 $* | 10097.47 $* |
| Mar-16-2025 | 12199.58 $* | 12443.63 $* |
| Feb-16-2025 | 12099.73 $* | 12341.12 $* |
| Jan-16-2025 | 11999.63 $* | 12239.23 $* |
Характеристики
Product Overview

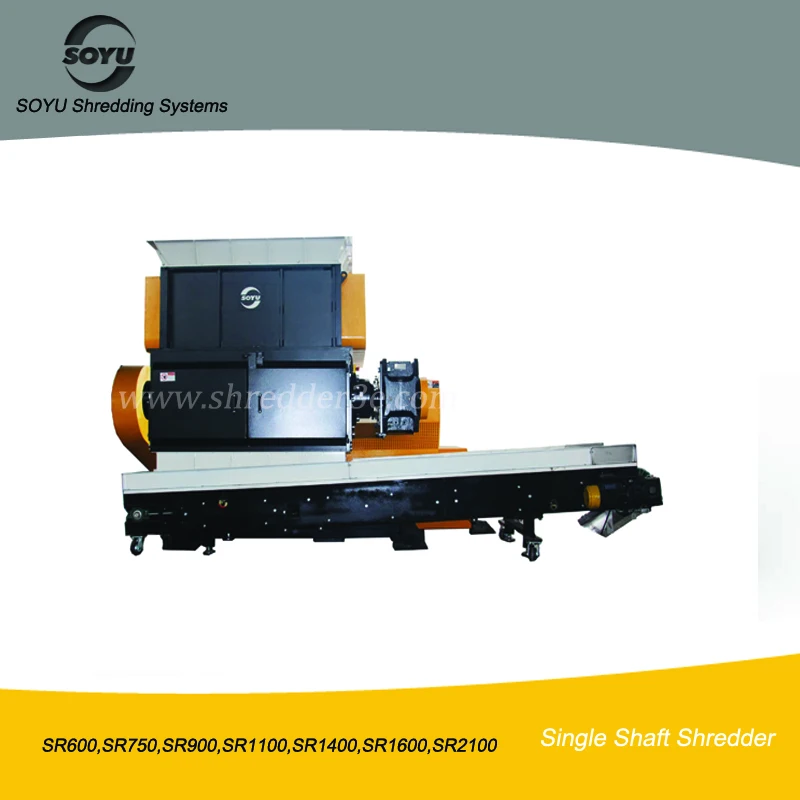

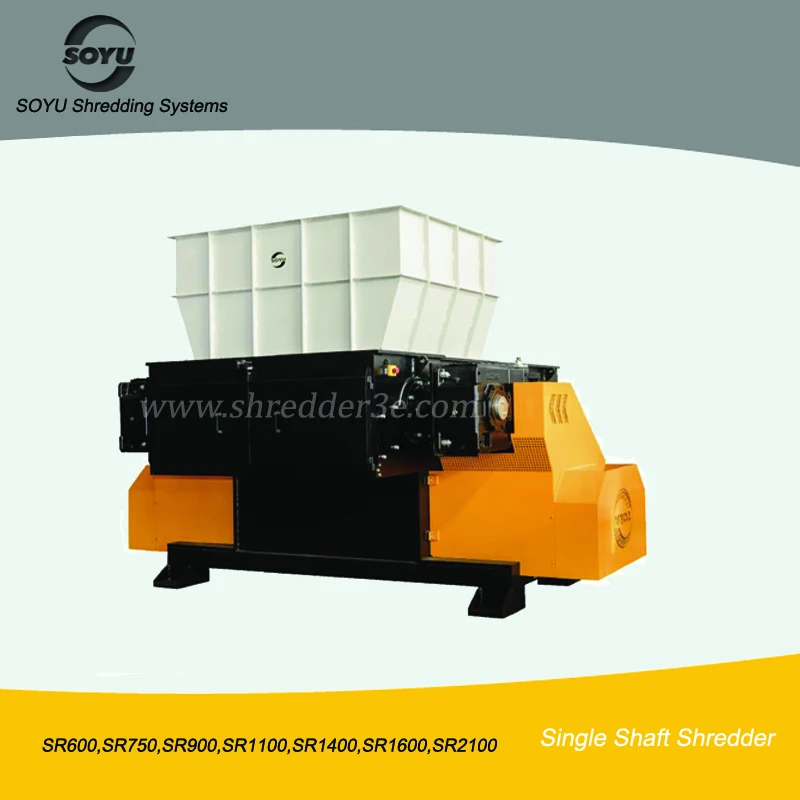

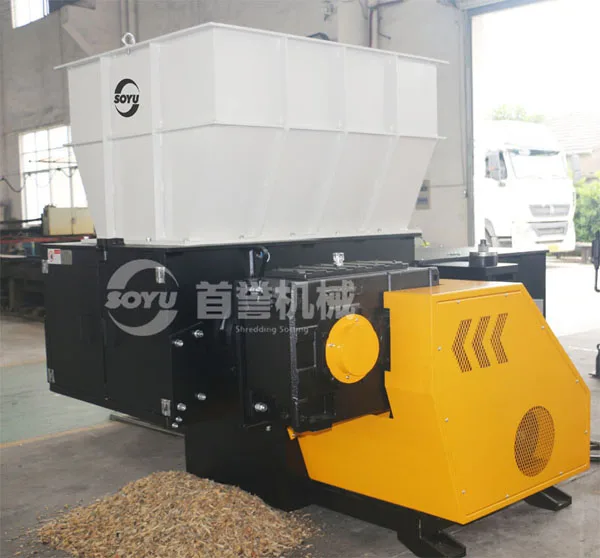

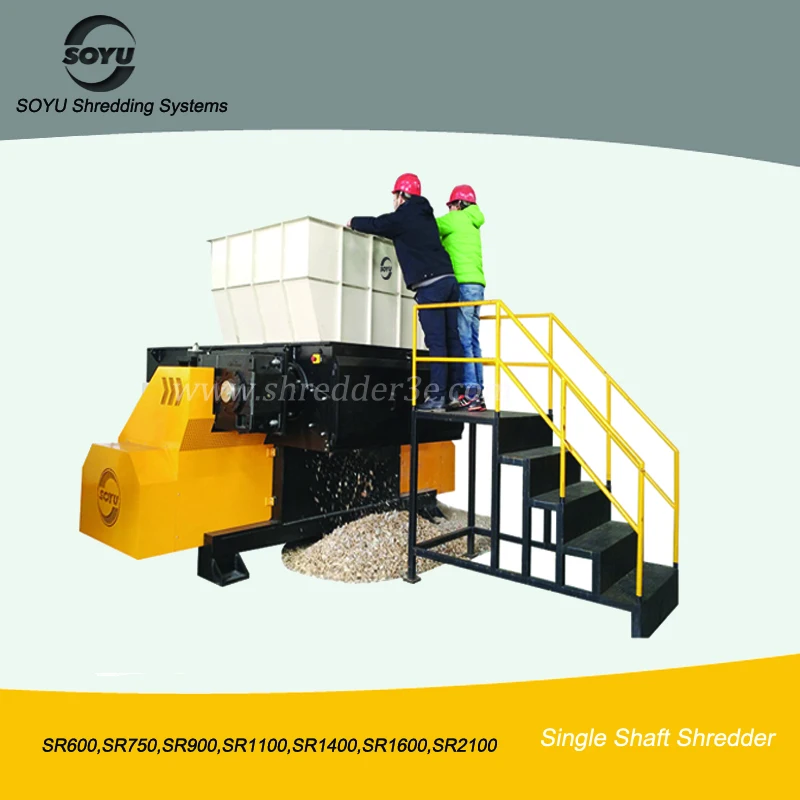

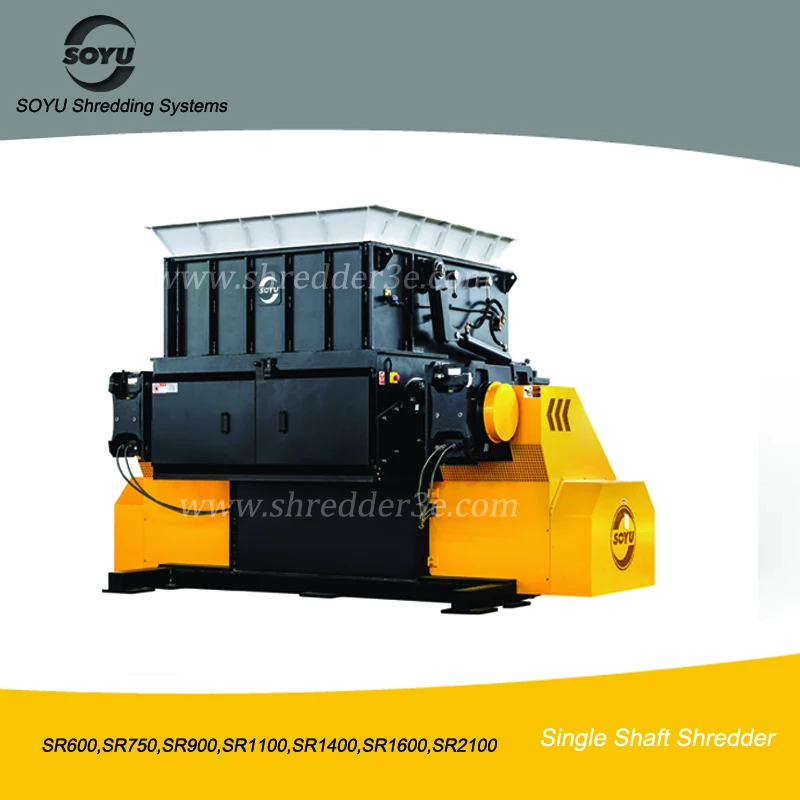

Single shaft shredder
The SR shredders have been designed for the most demanding and high throughput applications in recycling industries,Clients could select the corresponding models according to the material size and quantity. Well as for the different special needs, providing a special knife rotor, for shredded material as film, woven bags or nylon, ABS and PC.
FEATURES AT A GLANCE
- Applications:
- plastic lump and plastic block, like PP, PE, PET, PC, ABS, Nylon.
-Plastic pipes
-PP/PE film,Woven bags
- Living garbage,
- Medical waste
-Electronic Waste
-Copper Cable,Aluminum Cable with steel
- Aluminum cans
-Wood,Pallet,tree root,solid wood etc
-Plastic pipes
-PP/PE film,Woven bags
- Living garbage,
- Medical waste
-Electronic Waste
-Copper Cable,Aluminum Cable with steel
- Aluminum cans
-Wood,Pallet,tree root,solid wood etc
PRODUCT CONFIGURATION
Screen unit: a wide range of screens with a variety of configurations and mesh sizes are replaceable based on customer’s production requirements. The paper shredder will automatically stop while opening the screen unit to ensure operator safety. The screen is produced and mounted in sections, allow for easy maintenance.
Drive train: intelligent hydraulic control. When shredding breakable materials, the oil cylinder will run at the fastest speed; when shredding difficult materials, the pushing speed will slow down to prevent rotor overloading. Every hydraulic system is equipped with a cooling system to increase the durability and stability in long-time operation.
Two different drive systems are available for various shredder models. High-power shredders are all equipped with hydraulic couplers. The safety factor of reducer is >2.0.
Rotor: “V” arrangement rotor with double side edge cutters prevent material build up. The rotating blades are made of CrMoV high alloy wear resistant steel, with different configurations and compositions available. The cutter blades feature a long service
life allowing for multiple reuse before needing to be replaced.
life allowing for multiple reuse before needing to be replaced.
Adjustable fixed blade: the spacing between fixed blades is adjustable to create a broader shredding range. Surface overlaying wear-resistant material is used as the fixed blade, allowing the shredder to handle harder or higher abrasion materials as well as
provide long term, stable operation.
provide long term, stable operation.
Pusher system: reinforced baseplate can reduce the impact caused by material entering the cutting chamber. A dust collection device is equipped at the bottom of the pusher system to guarantee the long-term stable performance of internal components.
TYPICAL APPLICATION RANGE
PRODUCT SPECIFICATIONS
Model | SR600 | SR750 | SR900 |
Main shaft speed(rpm) | 73 | 73 | 73 |
Ram travel(mm) | 500 | 820 | 820 |
Rotor diameter(mm) | Φ220 | Φ400 | Φ400 |
Number of rotor blades(pcs) | 23 | 44 | 52 |
Number of fixed blades(pcs) | 4 | 6 | 6 |
Discharge height(mm) | 500 | 610 | 610 |
Screen holes diameter(mm) | 40 | 40 | 40 |
Motor power(kw) | 18.5 | 37 | 45 |
Hydraulic power(kw) | 1.5 | 2.2 | 2.2 |
Cutting chamber dimensions(mm) | 540x600 | 830x708 | 830x840 |
Overall dimensions(LxWxH)(mm) | 1800x1350x1700 | 2810x2000x2115 | 2810x2100x2115 |
Weight(kg) | Approx 1600 | Approx 4460 | Approx 4560 |
Model | SR1400 | SR1600 | SR2100 |
Main shaft speed(rpm) | 73 | 73 | 73 |
Ram travel(mm) | 820 | 1000 | 1000 |
Rotor diameter(mm) | Φ400 | Φ480 | Φ480 |
Number of rotor blades(pcs) | 80 | 94 | 122 |
Number of fixed blades(pcs) | 10 | 12 | 16 |
Discharge height(mm) | 610 | 950 | 950 |
Screen holes diameter(mm) | 40 | 40 | 40 |
Motor power(kw) | 75~90 | 2x55~2x75 | 2x75~2x90 |
Hydraulic power(kw) | 5.5 | 7.5 | 7.5 |
Cutting chamber dimensions(mm) | 830x1302 | 1000x1533 | 1000x1995 |
Overall dimensions(LxWxH)(mm) | 2810x2890x2115 | 3475x4100x2700 | 3475x4900x2700 |
Weight(kg) | Approx 6200 | Approx 10800 | Approx 13000 |
Model | SRD1600 | SRD2100 | SRD2500 |
Main shaft speed(rpm) | 73-347 | 73-347 | 73-347 |
Ram travel(mm) | 470 | 470 | 470 |
Rotor diameter(mm) | Φ530 | Φ530 | Φ530 |
Number of rotor blades(pcs) | 54 | 69 | 72 |
Number of fixed blades(pcs) | 17+2 | 20+2 | 23+2 |
Discharge height(mm) | 792 | 792 | 792 |
Screen holes diameter(mm) | Φ40 | Φ40 | Φ40 |
Motor power(kw) | 2x75 | 2x90 | 2x110 |
Hydraulic power(kw) | 7.5 | 11 | 11 |
Cutting chamber dimensions(mm) | 1593x1626 | 2055x1626 | 2517x1626 |
Overall dimensions(LxWxH)(mm) | 2190x4100x2442 | 2190x4900x2442 | 2190x5400x2442 |
Weight(kg) | Approx 11000 | Approx 13500 | Approx 16000 |
SALES AND SERVICE NETWORK
Successful Project
Project in Russia
Project in Spain
Project in South Africa
Project in Italy
Project in India
Project in Japan
Project in South Korea
Project in UK
Project in Pakistan
SERVICE
Non-standard customization
Shredder & Crusher customization
1. A suitable shredder is chosen according to the size and features of the materials to be shred and output requirements.
2. A suitable material feeding and discharge method is select according to the material features and production site conditions.
Common material feeding means include: chain conveyor feeding, belt conveyor feeding, elevating conveyor feeding, etc. Special feeding system is also available based on customer’s needs.
3. Machine height and discharge height can be customized.
4. A variety of screens with different mesh hole size are provided to satisfy the discharge particle size requirements.
1. A suitable shredder is chosen according to the size and features of the materials to be shred and output requirements.
2. A suitable material feeding and discharge method is select according to the material features and production site conditions.
Common material feeding means include: chain conveyor feeding, belt conveyor feeding, elevating conveyor feeding, etc. Special feeding system is also available based on customer’s needs.
3. Machine height and discharge height can be customized.
4. A variety of screens with different mesh hole size are provided to satisfy the discharge particle size requirements.
Recycling plant customization
Based on the feeding material size and requirements of subsequent steps, customized recycling plants are provided to meet customer’s expectations. SOYU custom recycling plants are small-footprint, energy saving and environmentally friendly equipment sets.
Installation and debugging
1. Single machine: SOYU standard single shredders are easy to operate and start-up—you only need to connect the power line to the electricity box. In order to save the purchasing cost for customers, SOYU offers off-site technical guidance service.
2. Non-standard complete plant: according to customer’s requirements, we can provide on-site installation and debugging service.We will help customers to train operators and offer routine maintenance service, including operation procedure training, easy failure predication, shaft greasing, hydraulic station oil change, etc.
2. Non-standard complete plant: according to customer’s requirements, we can provide on-site installation and debugging service.We will help customers to train operators and offer routine maintenance service, including operation procedure training, easy failure predication, shaft greasing, hydraulic station oil change, etc.
