Пила для экскаватора с

Категория: Forestry Machinery >>>
Поставщик: Yantai,SC,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.46 $*	0.90 $*
Aug-15-2025	0.29 $*	0.74 $*
Jul-15-2025	0.10 $*	0.54 $*
Jun-15-2025	0.92 $*	0.51 $*
May-15-2025	0.84 $*	0.0 $*
Apr-15-2025	0.70 $*	0.80 $*
Mar-15-2025	0.5 $*	0.19 $*
Feb-15-2025	0.97 $*	0.96 $*
Jan-15-2025	0.46 $*	0.42 $*

Характеристики

SC TREE CUTTER/ TREE SAW

SC tree saw is a hydraulic-driven device with a rotating cutting head for excavator. According to different working enviroment, we design different swing types, it can be 180-degree swing 180 degree horizontally and vertically which offers precision and control to make quick and clean work of trimming and limbing.

PRODUCT SPECIFICATIONS

Specification/Model	SC600	SC1000	SC1500	SC2000
Excavator range(Ton)	5-12	8-20	15-22	25-36
Blade diameter range(mm)	600-1200	900-1500	1500-2200	2000-3200
Flow-max.continuous(Lpm)	80-120	100-150	120-180	150-230
Torque-max.continuous(Nm)	500	630	4300	7300
Pressure-max.continuous(Mpa)	25	25	25	25
Pressure-return line back pressure max(Mpa)	20	20	20	20
Power-max.continuous(Kw)	12.5	30	59	100
Spindel speed-max.continuous(Rpm)	2400	2200	750	420
Cutting depth lose(mm)	90	150	210	265
Operating weight(kg)	125	460	1250	1950

Advantages:

The product is designed with two rotation axes, which are horizontal ± 90 ° rotation, and the cutting range can be expanded without moving the host machine in the horizontal range; the vertical ± 90 ° direction adjustment can cut the vertical branches on both sides of the tree.

The motor is hidden which to avoid accidental damage . A convection hole is left on the side and the oil pipe is stored in the hanging wall.

Three blades can be installed. The maximum effective cutting width is 1430 mm, the maximum cutting diameter is 110 mm, and the maintenance cost is low.

The original Rexroth motor brings higher reliability and the limit speed reaches 8800 rpm. The high rigid drive box design can resist most of the impact, thus prolonging the service life of the motor.

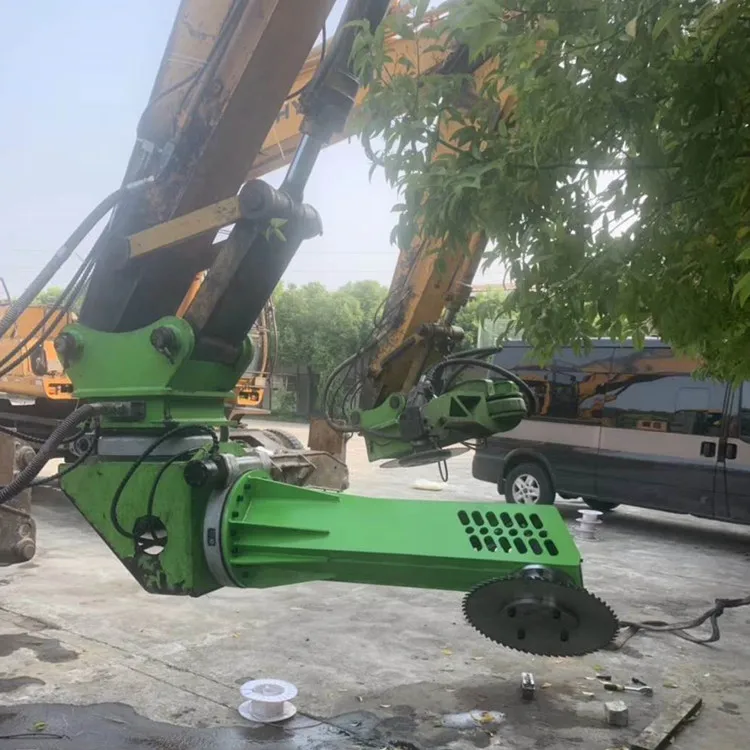

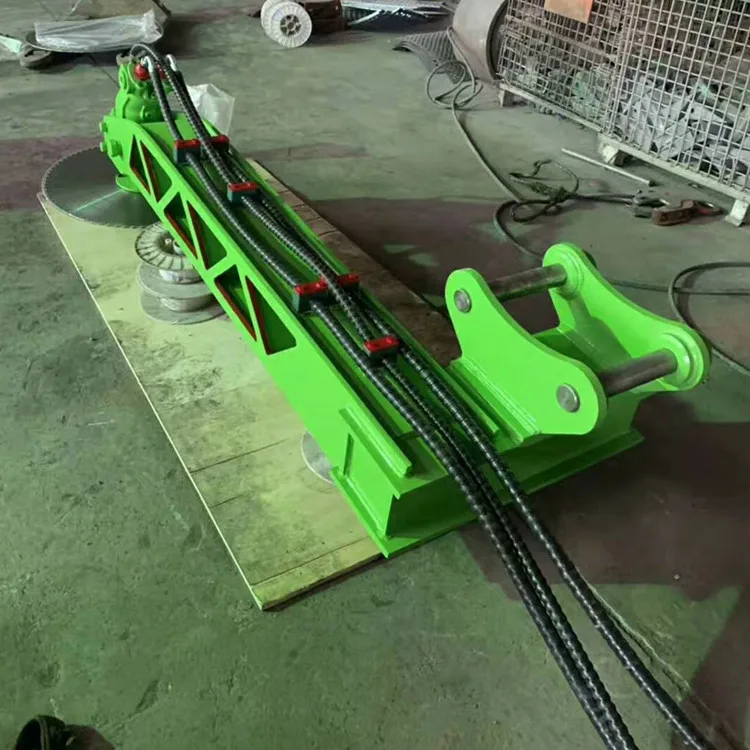

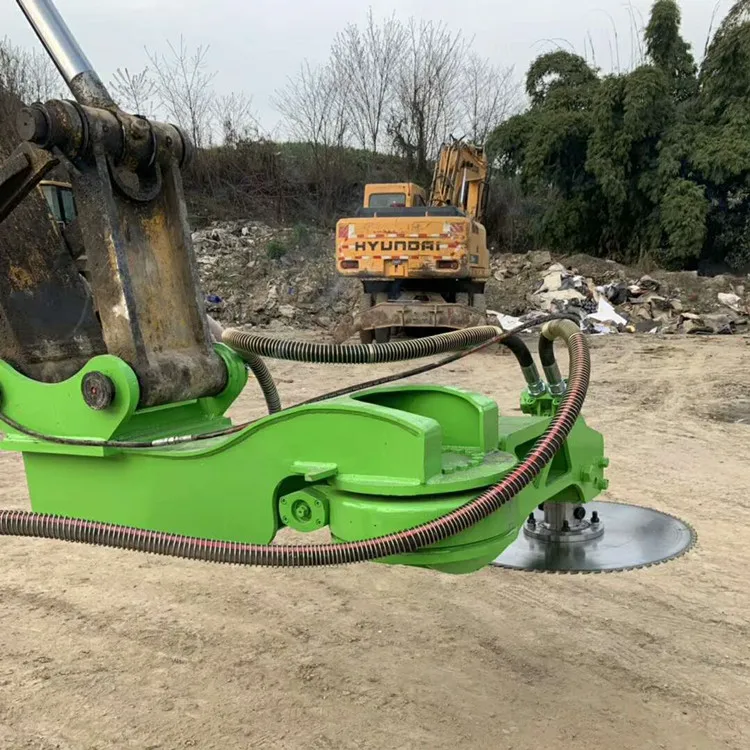

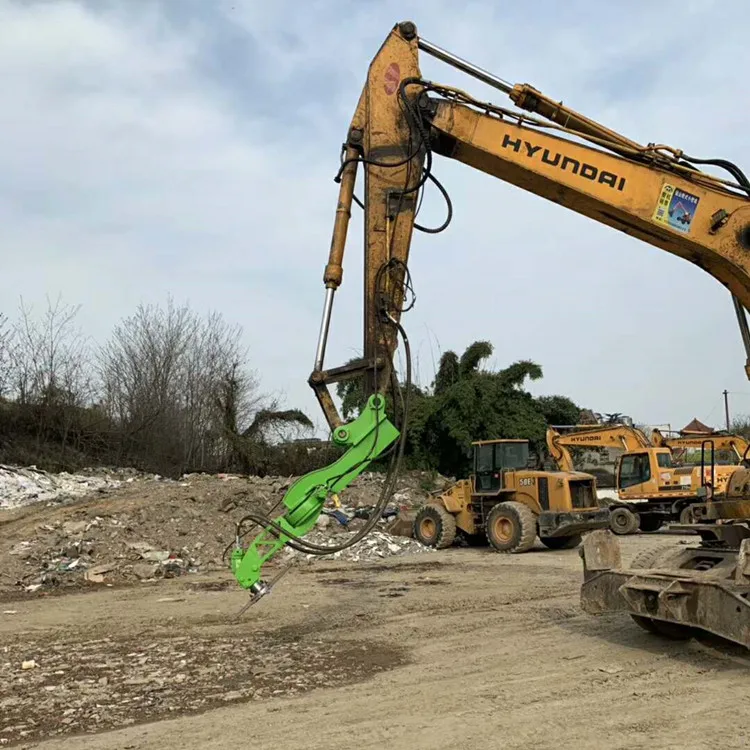

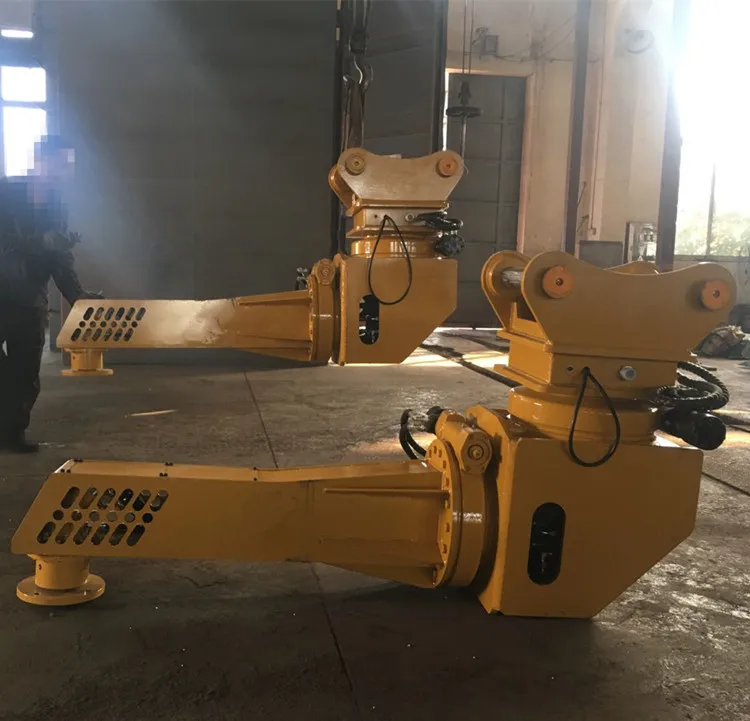

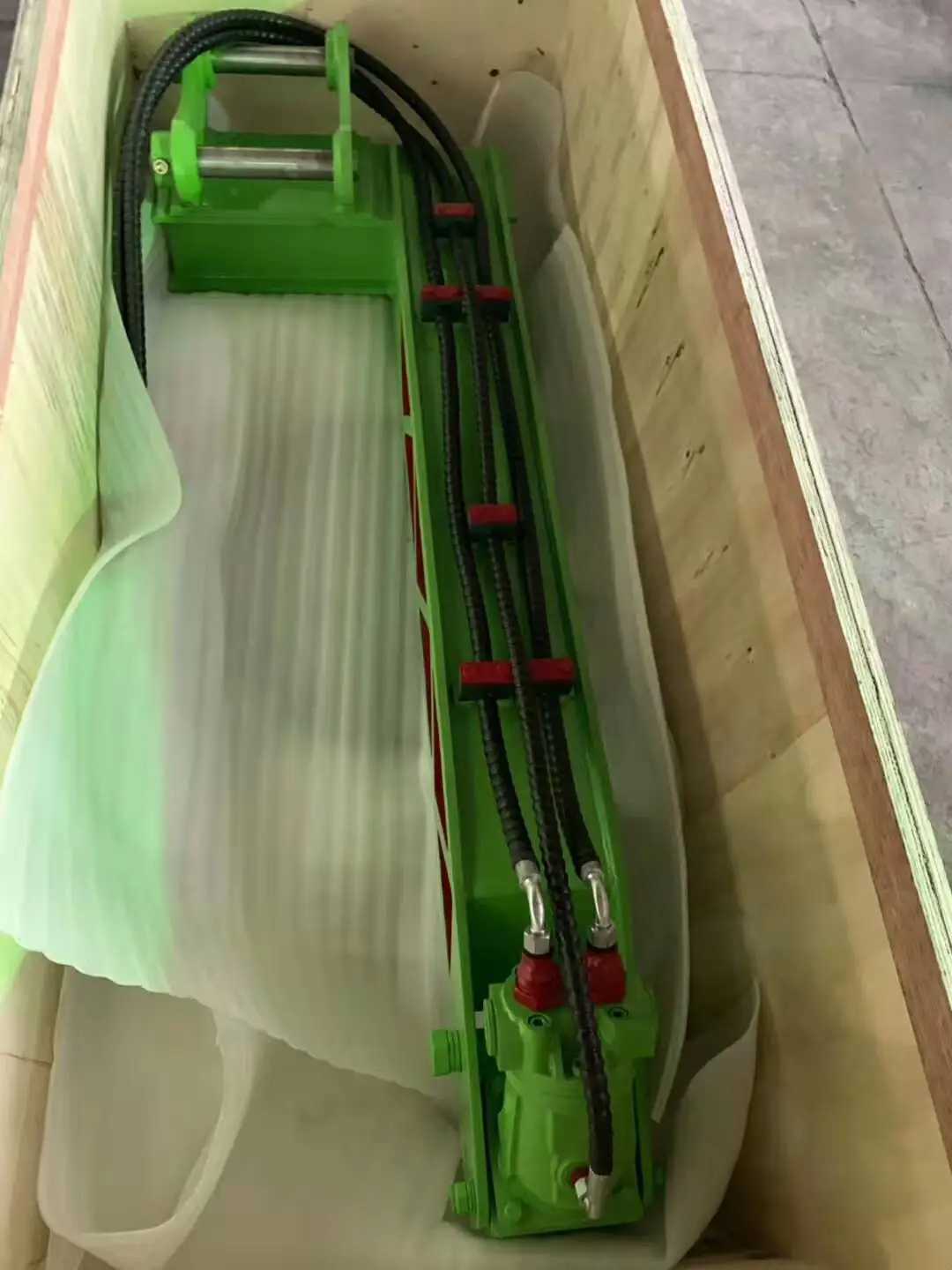

Photo galary
