Сепаратор литий-ионной батареи для обменной мембраны 25 мкм
US $1.00-$4.00
Быстрая доставка Оборудование Для Экстракции Масла cbd короткодорожная молекулярная дистилляция
- Категория: >>>
- Поставщик: Hangzhou,Anyan,Instrument,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 17850.15 $* | 18743.17 $* |
| Aug-16-2025 | 17700.5 $* | 18585.39 $* |
| Jul-16-2025 | 14850.30 $* | 15593.41 $* |
| Jun-16-2025 | 17400.52 $* | 18270.97 $* |
| May-16-2025 | 15150.51 $* | 15908.55 $* |
| Apr-16-2025 | 17100.76 $* | 17955.81 $* |
| Mar-16-2025 | 16950.57 $* | 17798.78 $* |
| Feb-16-2025 | 16800.49 $* | 17640.2 $* |
| Jan-16-2025 | 16650.99 $* | 17483.72 $* |
Характеристики
Product Description
1. Internal Diameter: 60mm, 80mm, 100mm, 150mm, 200mm, 220mm
2. Size: Customizable
3. Processing Flow: 0.1~0.2L./H
4. Certification: ISO9001, CE
Product Name | Quick shipping cbd oil extraction equipment short path molecular distillation cbd distillation |
Material | Glass/Borosilicate Glass |
Evaporation Area | 0.06m2 |
Condensing Area | 0.1m2 |
Internal Diameter | 60mm, 80mm, 100mm, 150mm, 200mm, 220mm |
Motor Power | 120W |
Max. Speed | 450r/min |
Application | Fine Chemical, Lab research, Food industry, Phama Industry, Petrochemical industry and etc. |

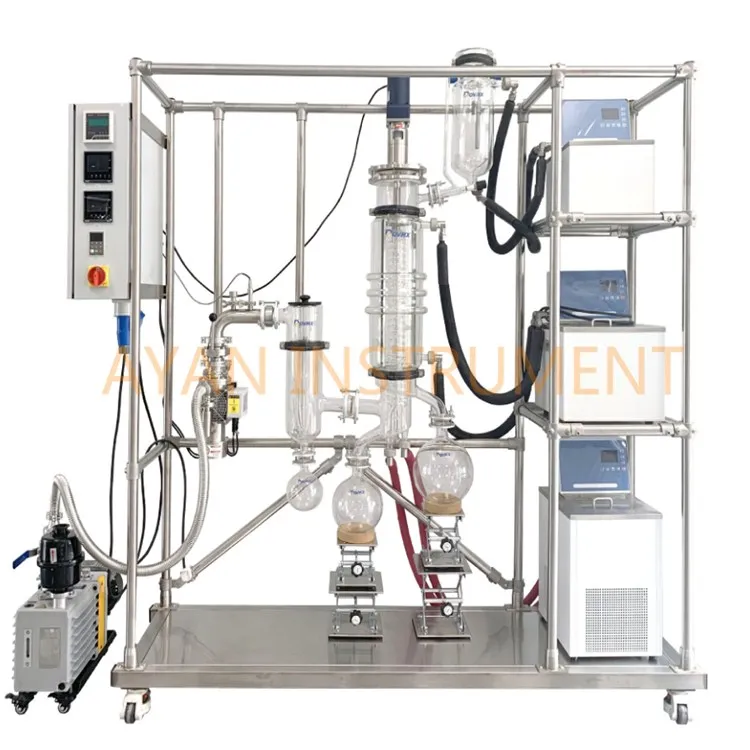

Products Show
1. Jacketed feeding flask with manual feeding valve
2. Magnetic drive rotation with motor

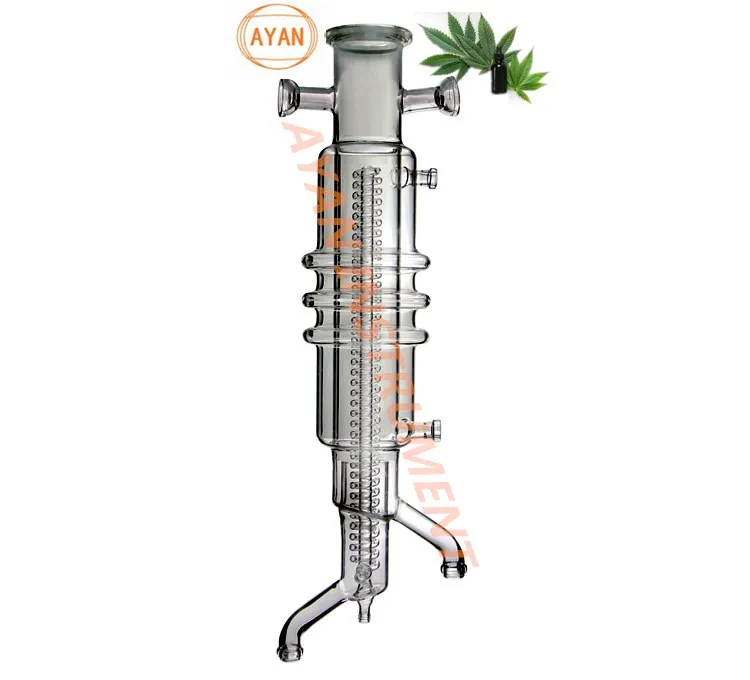

3. Jacketed glass barrel with Internal condenser
4. Cooling coils cold trap (optional: Dry ice cold trap)
5. Heating circulator for jacketed feeding vessel
6. Heating circulator for jacketed glass barrel
7. Heating/cooling circulator for internal condenser
8. Vacuum Pump
9. Control System
10. Receiving flasks (Distillate and Residue)
Technical Feature
Short residence time (separation is finished in seconds, instead of hours)
Very lower operation pressure ensures very low distillation temperature and also a very gentle distillation
Various size options (60mm, 80mm, 100mm, 150mm and etc.) for different throughput
Turkey package which is plug-and-play, technical supports available
The system can be upgraded for continuous distillation process
Industrial grade (>=200mm) products are available upon request
Very lower operation pressure ensures very low distillation temperature and also a very gentle distillation
Various size options (60mm, 80mm, 100mm, 150mm and etc.) for different throughput
Turkey package which is plug-and-play, technical supports available
The system can be upgraded for continuous distillation process
Industrial grade (>=200mm) products are available upon request
Cannabis Distillation

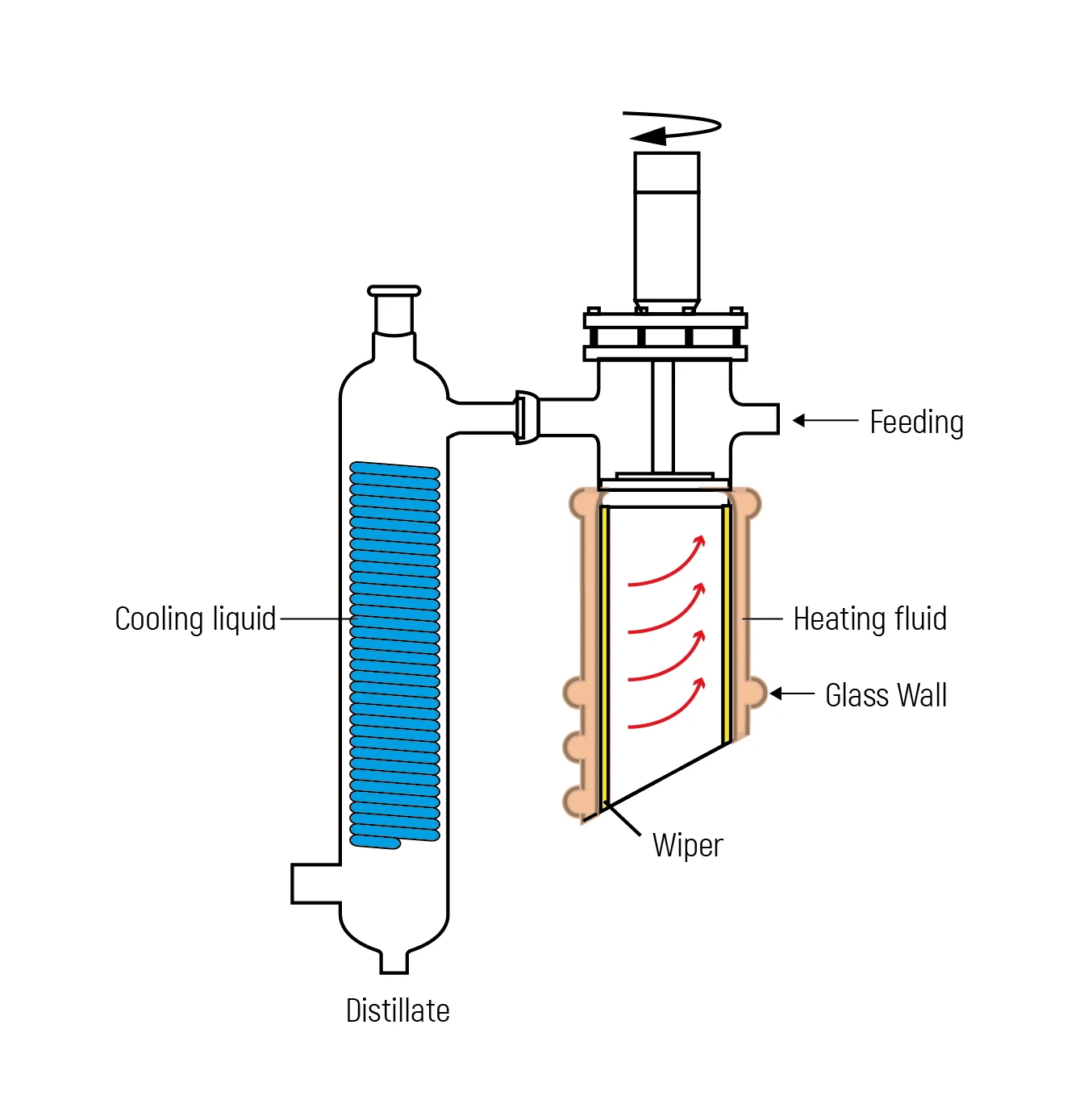

Materials is delivered from a feed flask into a
columniform evaporation section, getting heating, on the outside, (circulating hot fluid jacked type), and a slotted wiper mechanism forcing liquid around and downward in a thin film on the inside. In the center of the body is a wiped film evaporator with internal cooling condenser, providing a short path for vapor molecules traveling from the heated surface to the condenser surface. For cannabinoids, the internal condenser fluid must be kept elevated (~80C) to prevent high viscosity or freeze up
cannabis distillate and the related components. During the itinerary downward, lighter (lower boiling point) fractions of the liquid begin to vaporize, move to the internal condenser and condense, falling down as a liquid into a vaseel that catches and separates the distilled liquid (cannabinoid) which flows into a receiver flask. Heavier residue material (Chlorophyll, salts, sugars, heavy was fractions) does not evaporate and instead travels through the still body and flows into a different receiver flask.
columniform evaporation section, getting heating, on the outside, (circulating hot fluid jacked type), and a slotted wiper mechanism forcing liquid around and downward in a thin film on the inside. In the center of the body is a wiped film evaporator with internal cooling condenser, providing a short path for vapor molecules traveling from the heated surface to the condenser surface. For cannabinoids, the internal condenser fluid must be kept elevated (~80C) to prevent high viscosity or freeze up
cannabis distillate and the related components. During the itinerary downward, lighter (lower boiling point) fractions of the liquid begin to vaporize, move to the internal condenser and condense, falling down as a liquid into a vaseel that catches and separates the distilled liquid (cannabinoid) which flows into a receiver flask. Heavier residue material (Chlorophyll, salts, sugars, heavy was fractions) does not evaporate and instead travels through the still body and flows into a different receiver flask.
CUSTOMER CASES
Dalian Ligong University, Purchased AYAN-F220 in 2015
Zhengzhou University, Purchased AYAN-F200 in 2016
Shanghai Jiaotong University, Purchased AYAN-F150
Donghua University, Purchased AYAN-F100
Zhejiang University, Purchased Short-path Molecular distillation
Lab of Donghua Ligong University purchased Molecular distillation
Institute of nuclear energy, Tsinghua University purchased Molecular distillation
Fudan University purchased Stainless steel Molecular distillation
Shengyuan Food Corp, Purchased AYAN-F80
Our Service
Turnkey Solution
Turnkey solution provider of high quality laboratory processing equipment.
Customizable
Provide different kind solutions, and can customize according to different special requirement
High quality
Passed the ISO9001:2008 quality system authentication and CE certification.
Our Company
Hangzhou Ayan Instrument Manufacturing co., Ltd., is one of the leading manufacturer and turnkey solution provider of high quality laboratory processing equipment & industrial distillation equipments used in the field of Food, Agriculture, Life science, Fine chemicals, Essential oils, Herbal extracts, Oleoresins, Resinoids, Flower/Spice extracts, Absolutes and Concretes.Established in 2005, headquarter moved to Hangzhou from Shanghai in 2017. Has over 14 years R&D and OEM/ODM production experience. Products are well received by clients worldwide.
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing & Delivery
Packing Details: Export carton, Wooden case
Delivery Details: 3-30 days after receiving payment
1. Special logistics packaging
2. Suitable carton size
3. Wooden case
Our Certifications
Working Principle
Short-range molecular distillation is a special liquid-liquid separation technology. Under a high vacuum, the average free path of the vapor molecule is larger than the distance between evaporation surface and condensation surface, so that the liquid mixture can be separated by using the difference of evaporation rate of each component in feed liquid.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for discounted charge.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
