KCP-A4-10 серии автоматический A4 для резки бумаги и

KCP-A4-10 серии автоматический A4 для резки бумаги и

Категория: Paper Processing Machinery >>>
Поставщик: Wenzhou,Kingsun,Machinery,Industrial,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.7 $*	0.60 $*
Aug-16-2025	0.88 $*	0.16 $*
Jul-16-2025	0.70 $*	0.34 $*
Jun-16-2025	0.71 $*	0.8 $*
May-16-2025	0.2 $*	0.7 $*
Apr-16-2025	0.88 $*	0.37 $*
Mar-16-2025	0.9 $*	0.27 $*
Feb-16-2025	0.72 $*	0.70 $*
Jan-16-2025	0.83 $*	0.15 $*

Характеристики

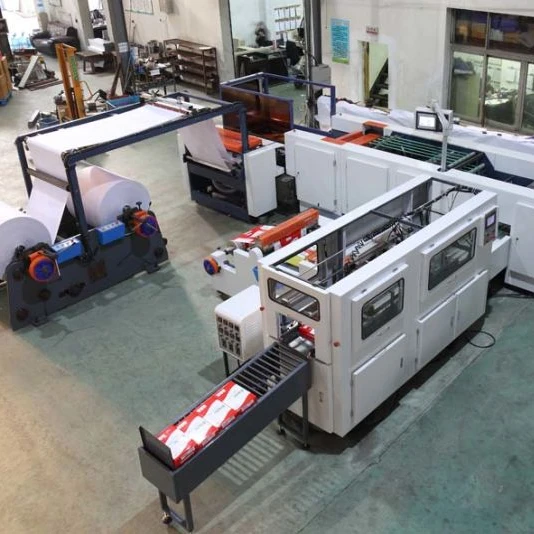

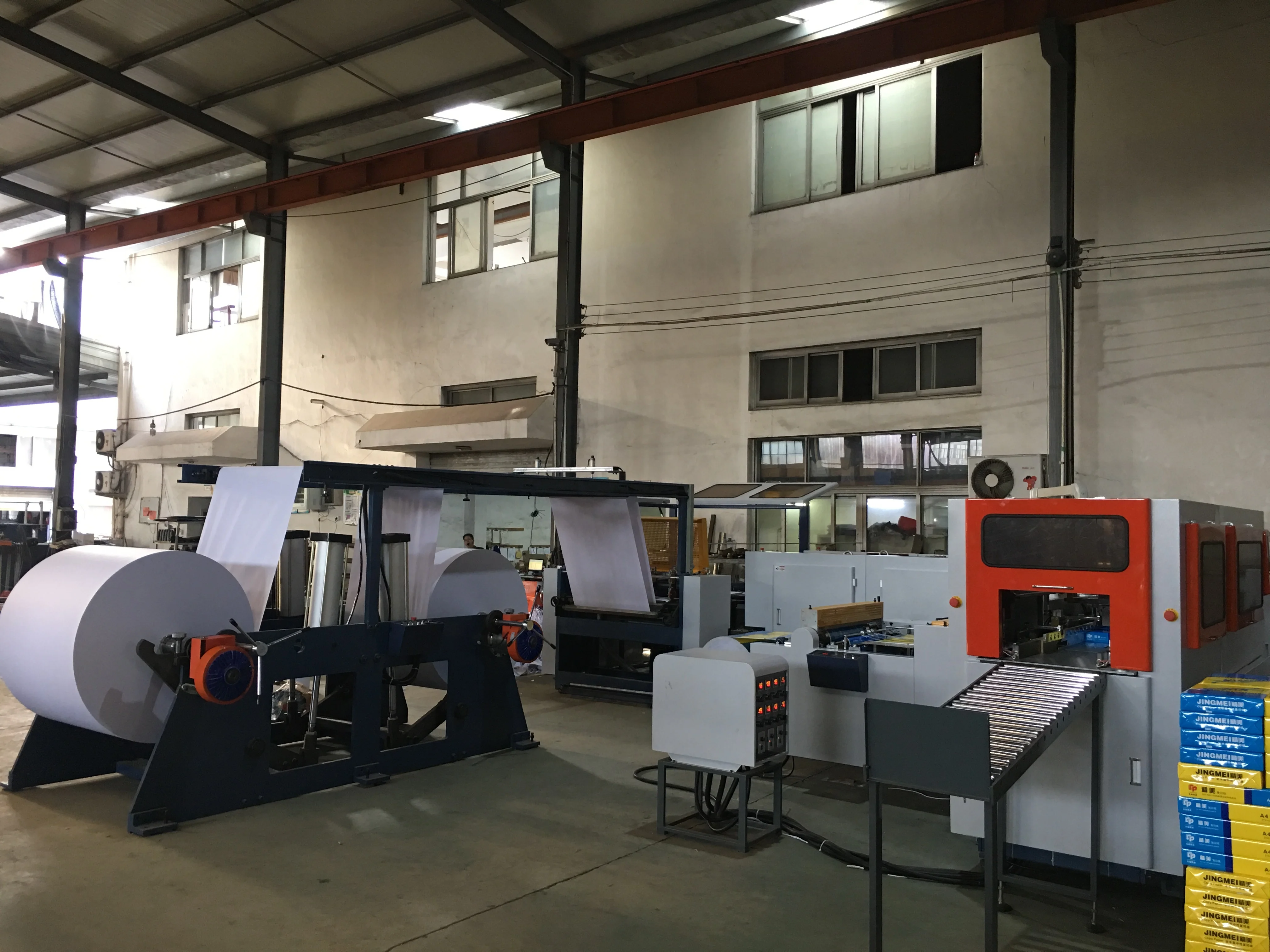

A4 Copy paper cutting and packing machine is new advanced equipment for converting A4 copy paper. With features of high automation and low labor intensity. It is an integration of electric, PLC controlling system and mechanical automation.

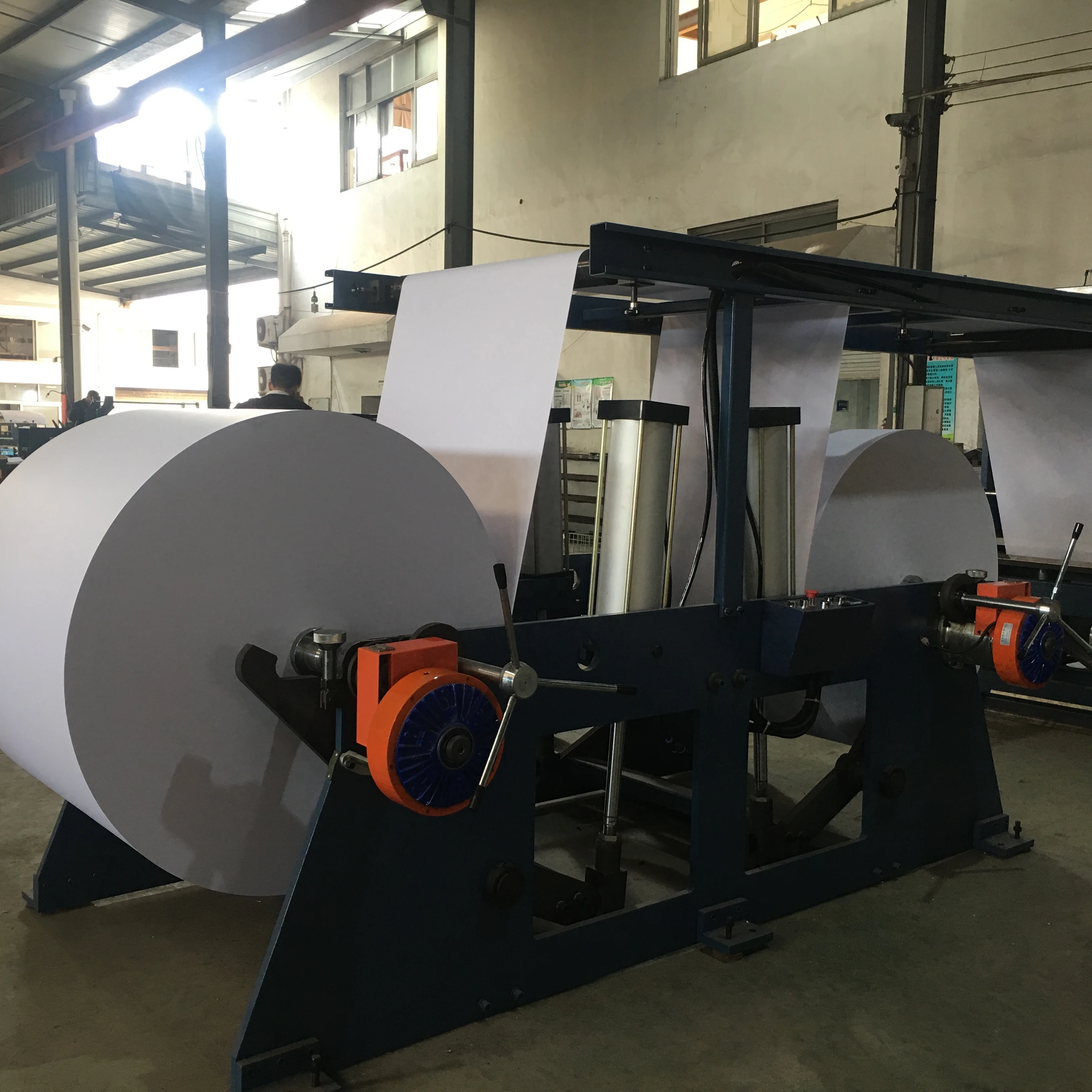

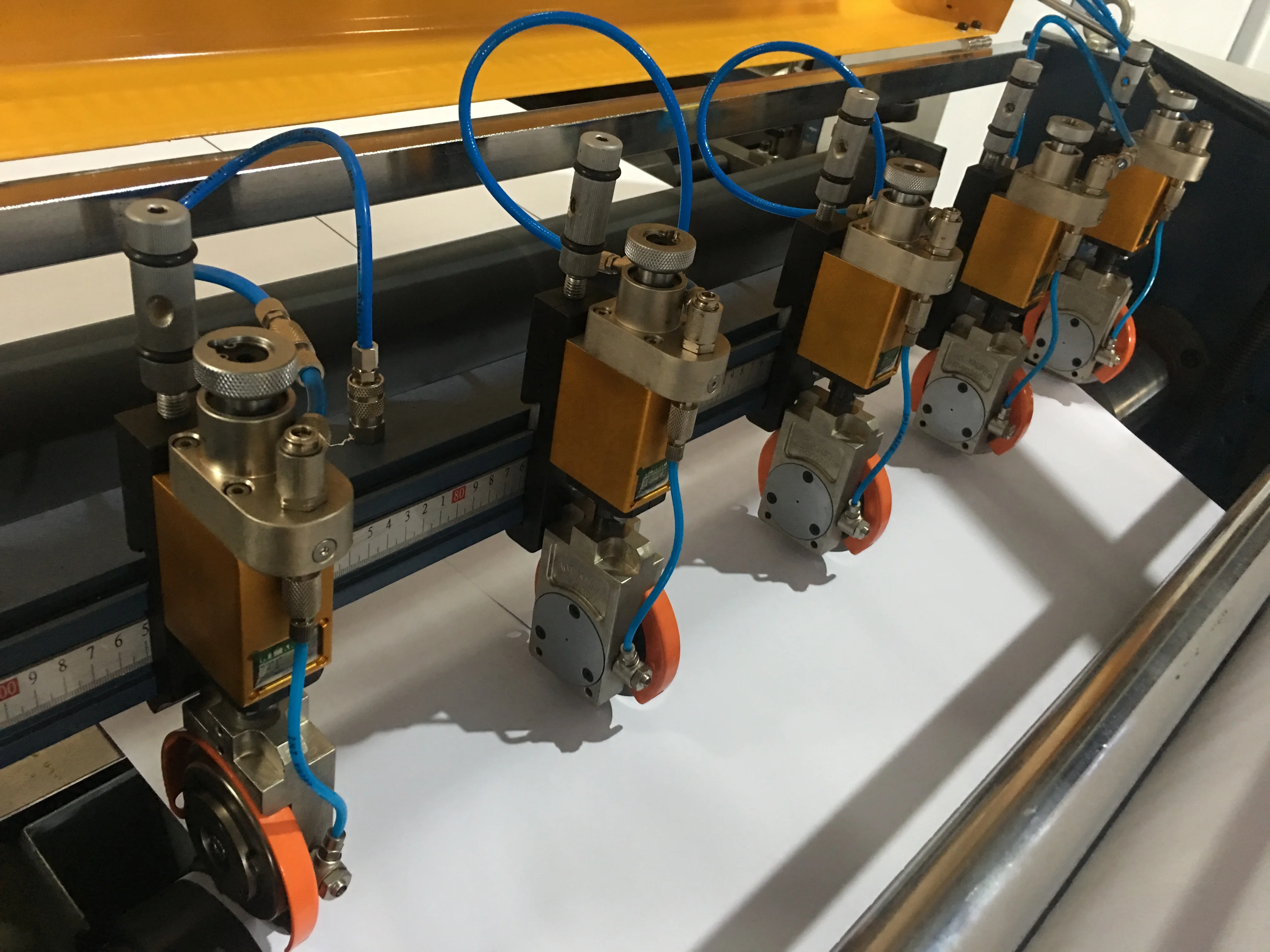

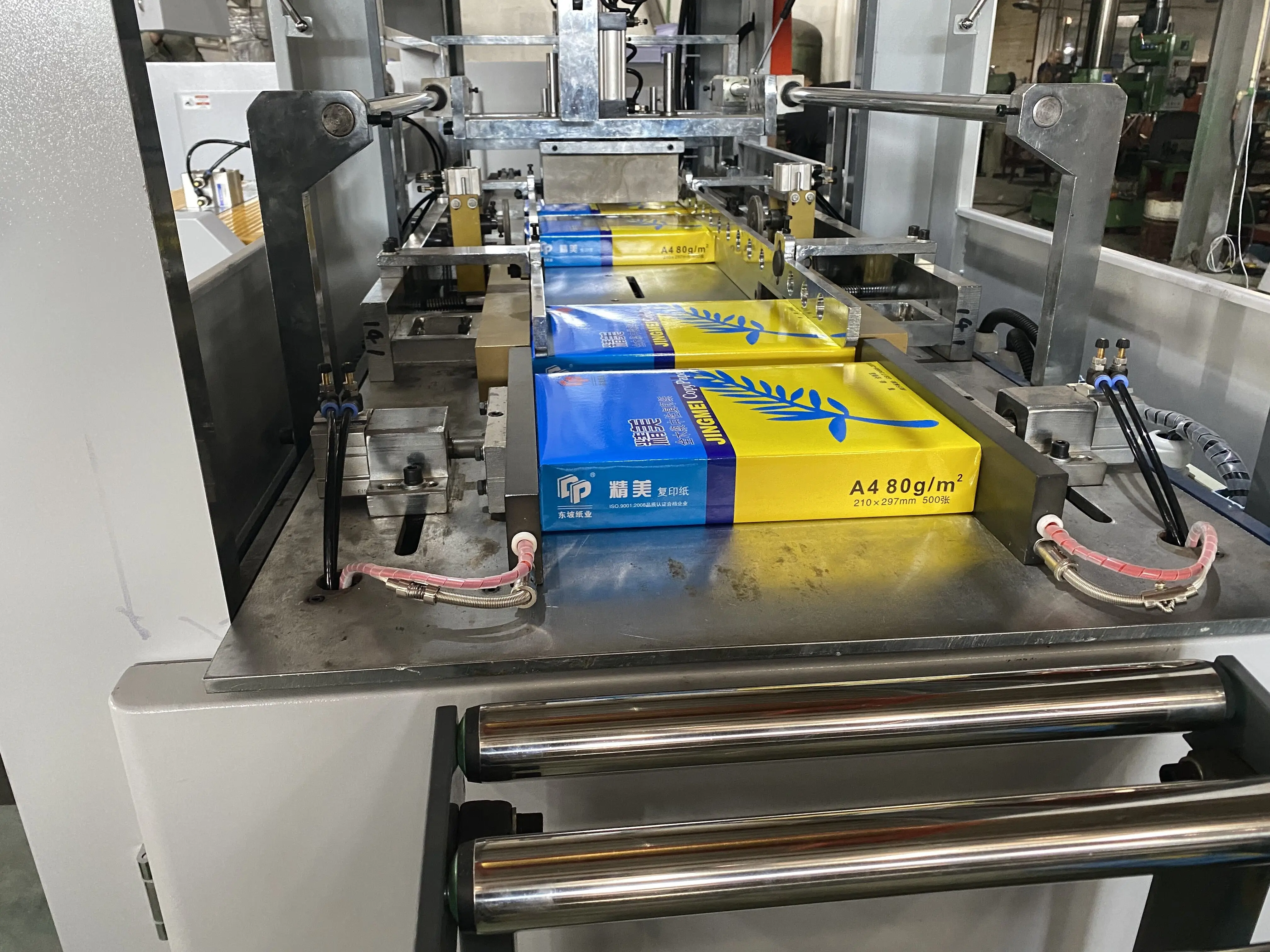

The whole process consists of paper roll unwinding, slitting, sheeting, counting, conveying, reams ejecting, packing and delivery.

Main Structures:

Main technical parameters on sheeter:

Model	KCP-A4(10)
Number of unwinding rolls	2
Number of cuttings	2
Max. gross width of paper roll	846mm
Max. net width of paper roll	840mm
Diameter of paper roll	400-1200mm
Diameter of paper core	3”(76.2mm)
Thickness of paper	60-100gsm
Length of sheeted paper	297mm
Quantity per ream paper	0-500pcs
Max. height of ream paper	65mm
Working speed of paper feeding	250--300m/min
Working speed of paper cutting	1010 times/min
Discharging speed of ream paper	6- 8 reams/min
Max. knife loading	400gsm (4 x 100)
Precision of paper cutting	±0.2mm
Requirements on paper roll	1.Stable Speed 2. No breakage 3. Qualified paper
Transmission	AC Frequency conversion, stepless speed regulated
Main power source	380V/50Hz 3phase 4 wires
Control voltage	220V AC/24V DC
Total Power	10KW
Machine dimensions	6.8 x 6.6 x 1.8M (L x W x H)
Machine weight	7T

Main technical parameters on wrapper:

Production Speed	10- 12reams/min
Motor power	5.1KW
Gluing power	3.7KW
Compressed air	0.6- 0.8 Mpa
Size of overwrapping paper	550- 560mm x 386mm
Machine dimensions	3.4 x 3.3 x 1.6M (L x W x H)
Machine weight	2.5T
