Высокоскоростная машина для резки и перемотки банкомата термобумаги

Высокоскоростная машина для резки и перемотки банкомата термобумаги

Категория: Paper Processing Machinery >>>
Поставщик: Jota,Machinery,Industrial,(Kunshan),Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.44 $*	0.64 $*
Aug-15-2025	0.76 $*	0.63 $*
Jul-15-2025	0.52 $*	0.32 $*
Jun-15-2025	0.69 $*	0.40 $*
May-15-2025	0.59 $*	0.94 $*
Apr-15-2025	0.69 $*	0.11 $*
Mar-15-2025	0.88 $*	0.54 $*
Feb-15-2025	0.84 $*	0.83 $*
Jan-15-2025	0.38 $*	0.79 $*

Характеристики

Product Description

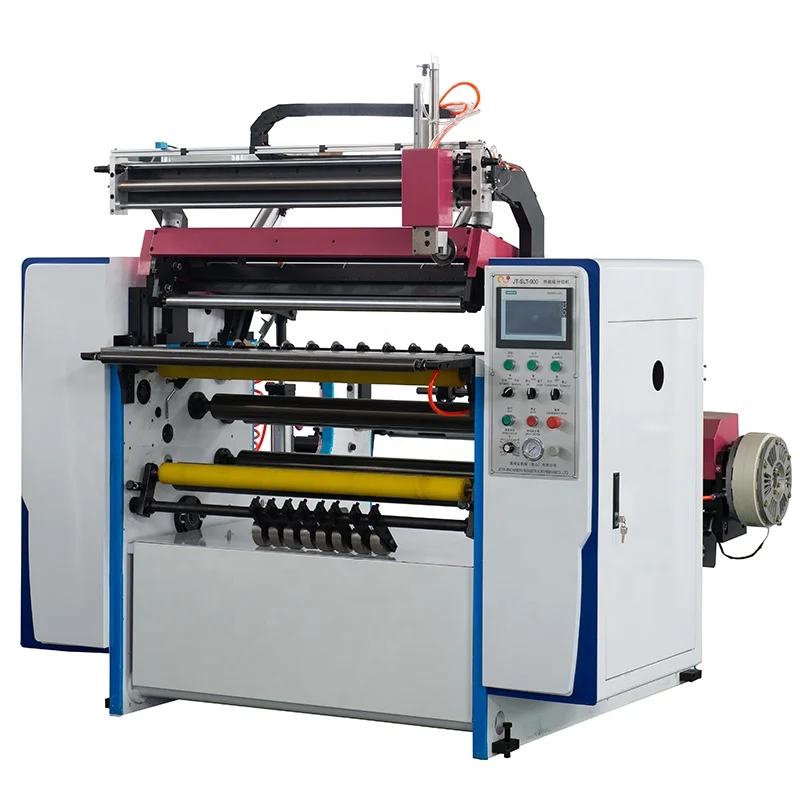

High Speed ATM Cash Register Paper Thermal Paper Roll Slitting and Rewinding Machine

Application Material:

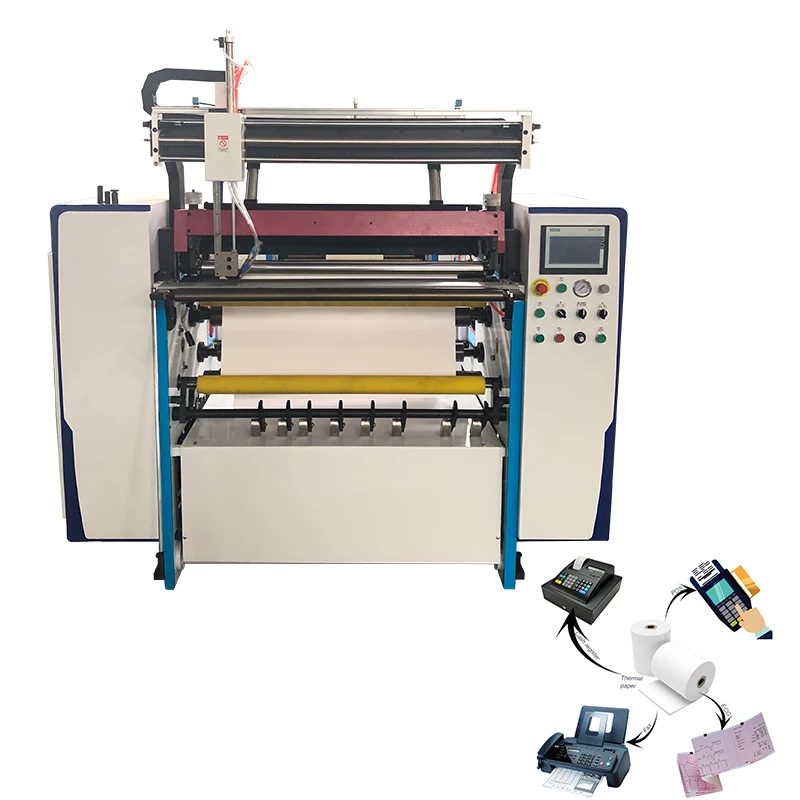

Machine is used for slitting and rewinding all kinds of thermal paper, including fax paper, cash register paper, ATM paper, ECG paper, medical record paper, POS paper, self-adhesive trade marks, non-woven cloth, films etc.

Specifications:

1. Machine adopts Siemens PLC control system and touch screen, all the parameters are displayed on the monitor, and it will automatic work.

2. The main motor adopts Siemens inverter motor, and frequency inverter control.

3. Machine adopts automatic Chain link lift-up loading system. Using the separate cylinder control locking the shaft.

4. All transmission rollers have been dynamic/static balance treated.

5. Machine adopts red line marking system, printing red line at the end of paper rolls.

6. Machine adopts round blades to slit, it equipped with automatic wasting materials edge trimming system.

7. It adopts auto tucker, adjust the paper material loose or tight easily.

8. It adopts 2 sets sensor & fully automatic tension control controller to keep constant tension.

9. It adopts auto meter counter, when it reach the setup length, the machine stop and alarm automatically.

10. It can adopts automatic cutter and gluer.

11. It equipped with emergency switch.

Parameters

Model	JT-SLT-900
Max. Parent Web Width	900mm
Max. Parent Web Diameter	1000mm
Max. Rewinding Diameter	160mm
Min. Slit Width	25mm
Max. Machine Speed	150m/min
Unwinding Shaft	3” Air Expanding Shaft
Rewinding Shaft	no shaft

Detailed Images

Banana Roll

Overlap problem should be a very common

problem, especially for the coreless thermal

paper slitter rewinder. But we adopted Banan

Roll, can perfect aviod overlap, there will be

a gap between each piece of paper,

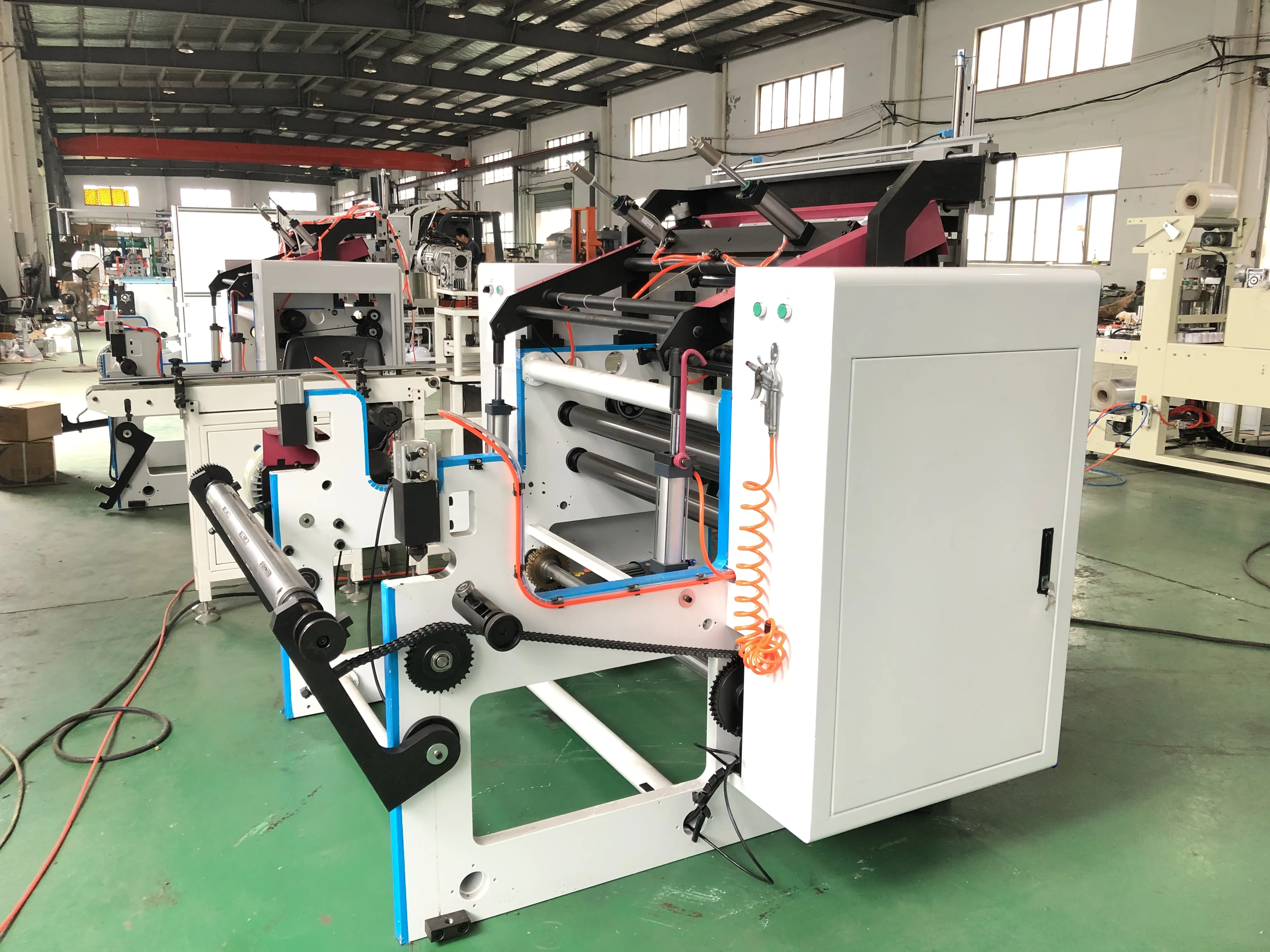

Unwinding Section

a. 3’’(76mm)air expanding shaft

b. Chain link automatic lift-up loading system

c. Cylinder locking the unwinding shaft
d. Guide & Slide AMT from Taiwan

e. Magnetic Clutch

f. Wheel for adjust waste edge

Slitting Section

a. Disc Cutter Assembly adopt the cam self-locking

b. Cutter with adjustable and moveable blade base.

c. Meter counter

Rewinding Section

a. 0.5”, 1”, 1.5” 2” are available

b. Pressure roller

c. Auto Tucker

Controlling Section

a. Siemens PLC & HMI

b. All the parameters are displayed on the monitor

Tension Control Section

a. Automatic Tension Controller system to control constant tension

b. Two set Sensor

Red Line Mark System

a. Marking red line

Samples show

Tools

Configuration

Name	Model	Pieces	Remark
Computer System	PLC+HMI	1 set	Siemens
Main motor	-	1 set	Siemens
Frequency inverter	-	1 Piece	Innovance from China
Air Pressure Valve	-	1 set	SMC
Cylinder	-	2 Piece	AIRTAC
Unwinding Shaft	76mm Air Expanding Shaft	1 Piece	-
Rewinding Shaft	8mm or 10mm	2 pieces	-
Upper / Lower Knife	-	16 sets	-
Tension Controller	-	1 set	-
Sensor	-	2 sets	-
Low Voltage Electrical Switch	-	-	SCHNEIDER
Magnetic Clutch	-	1 set	From Taiwan
Relay	-	-	Omron

Packing&Shipping

Packing Details:High Speed Coreless ATM Paper POS Paper Slitter Rewinder is with flexible wrapping and wooden case.With the machine, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Manu, Inverter Manu and Electrical Schematic Diagram.
Delivery time : Within 30 days after received 30% deposit receipt by T/T.
