GPOE-12-48V120W стойку Gigabit PoE инжектор панель 12 Порт 48V 120W адаптер питания по сети Ethernet для 802.3af камера

GPOE-12-48V120W стойку Gigabit PoE инжектор панель 12 Порт 48V 120W адаптер питания по сети Ethernet для 802.3af камера

Цена:68,00 $ - 72,00 $*

Количество:

Product Description

Power 12 gigabit devices from one supply 48 volt 120 watt

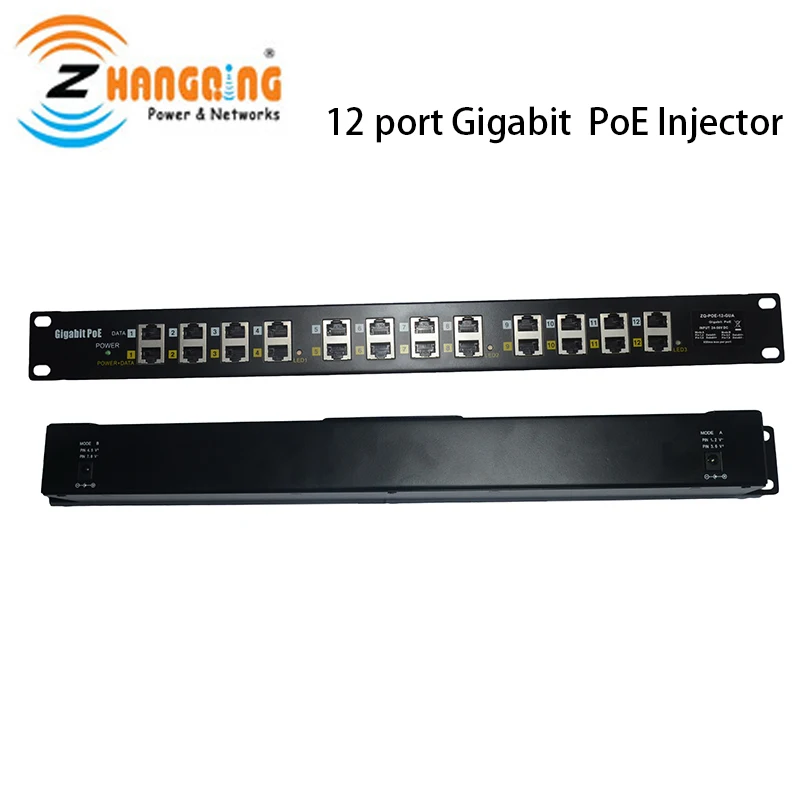

12 Port Gigabit Ethernet Injector

– 12 Shielded RJ-45 LAN

– 12 Shielded RJ-45 LAN+POE

– all 4 data pairs connected – transformer isolated power on POE side

• Size: 19 inch 1U Rack mount

• Dual 650 ma automatic resettable fuse on each port

– 1.3 amps in AB mode

• Same voltage to all ports

power is equally shared as needed by the devices

• Use with any Ethernet switch – PoE or non-PoE
switches

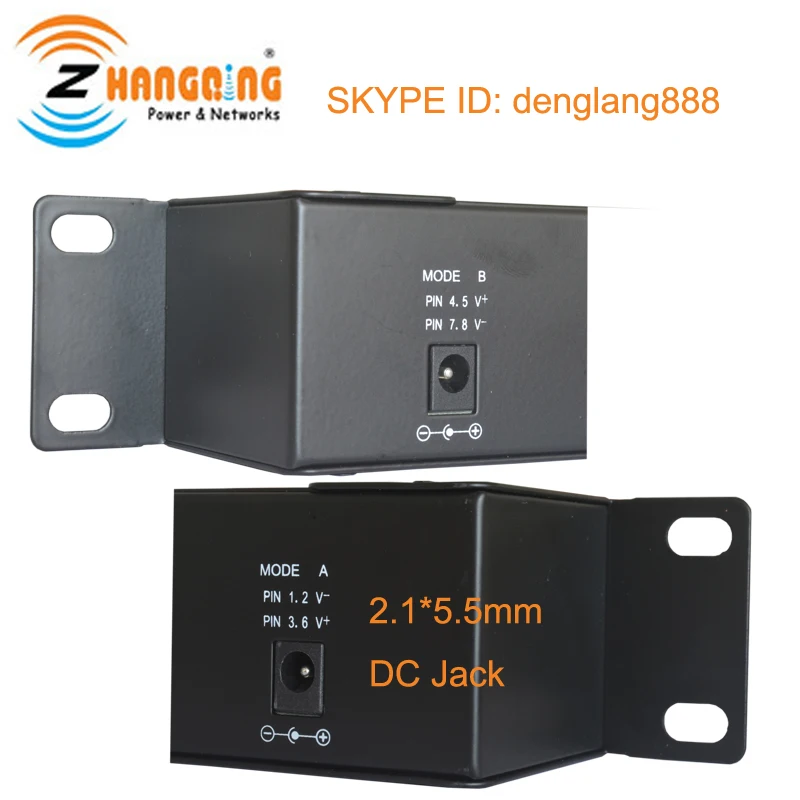

• Standard power connector - 2.1mm x 5.5mm

– Dual connectors – for one or two power supplies

– Use two power supplies for redundancy or 802.3at mode

• Ideal for IP Cameras, VOIP phone, WiFi Access Points

• LED status indicator

• Operating Temperature – 0 to 65 deg C

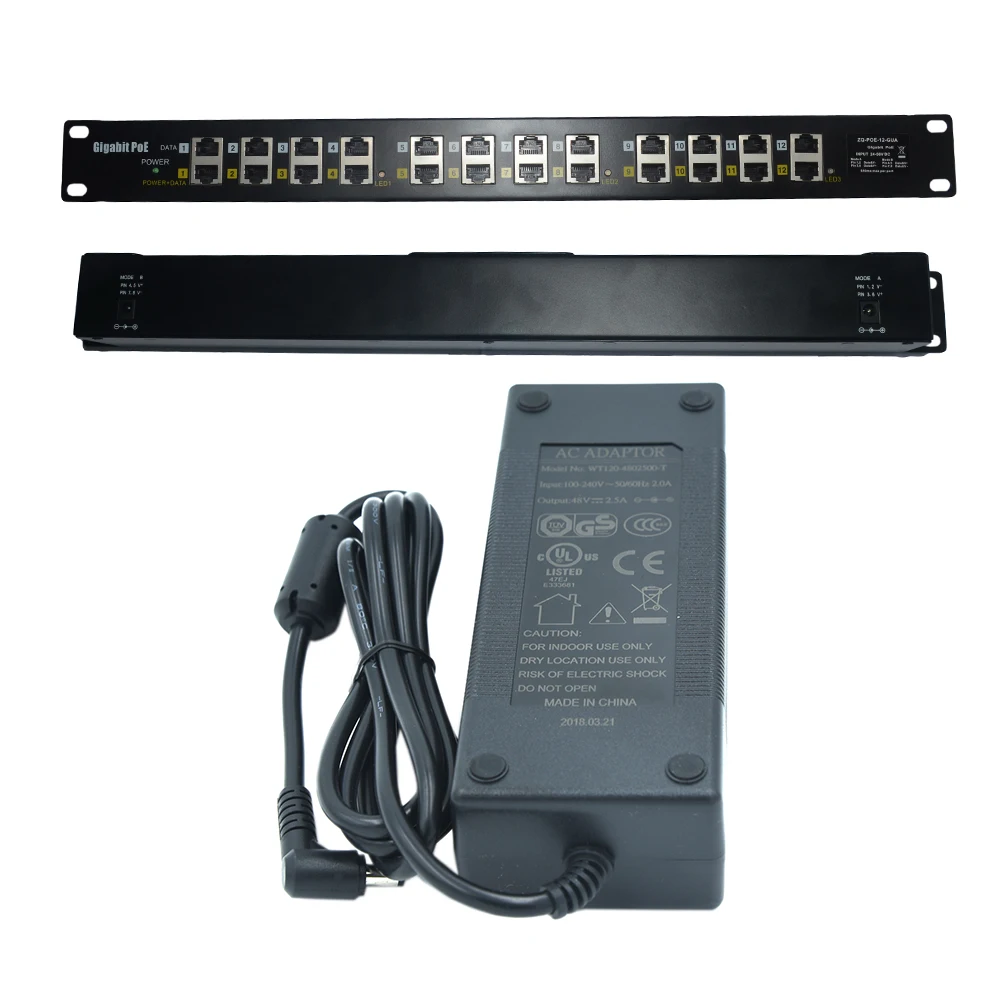

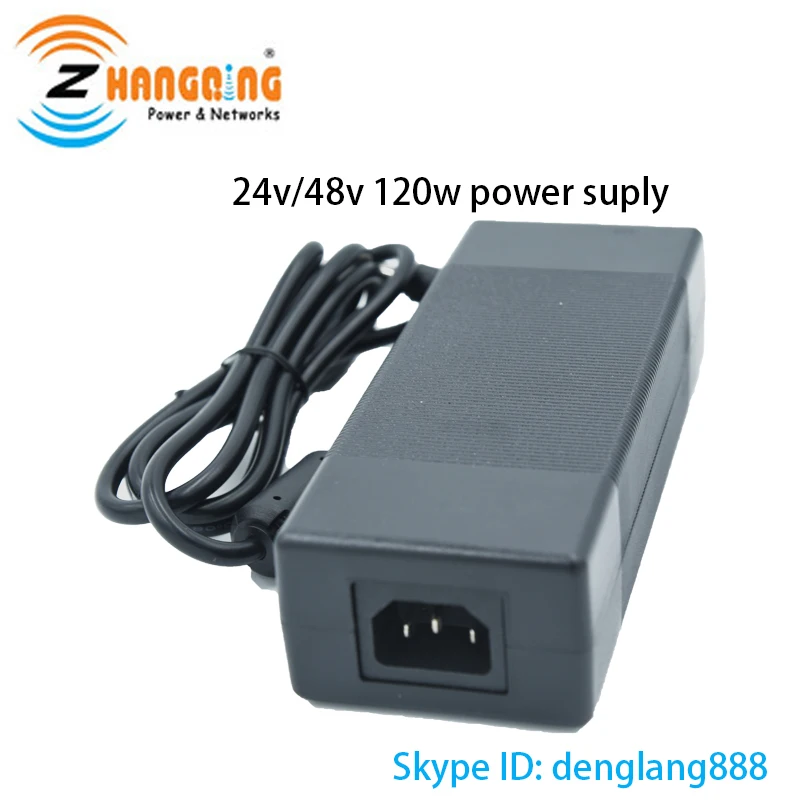

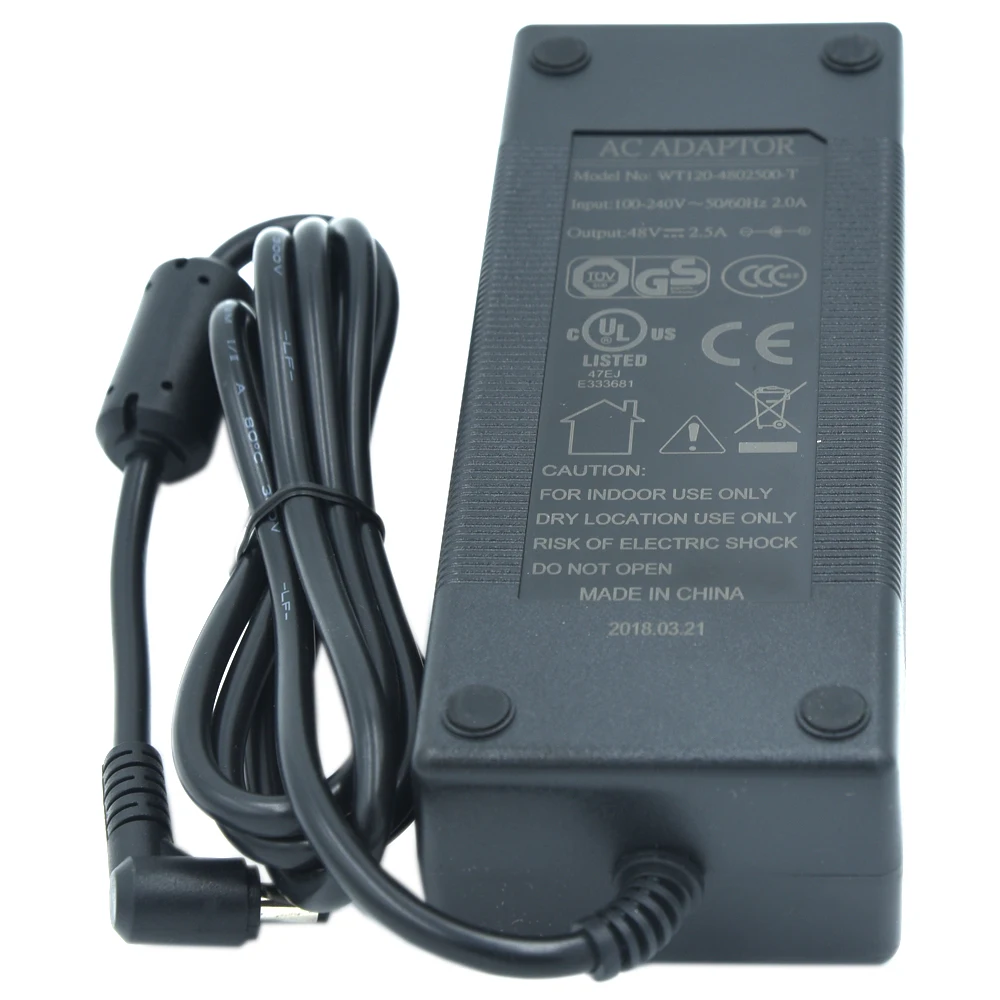

With 48 volt 120 watt power supply

AC Cable: US, EU, AU to choose

Device Spec	Mode A(3/6+,1/2-)	Mode B(4/5+,7/8-)	Application
802.3at active	56volts	56volts	See AT-8-56V120W for true 802.3at
802.3at passive	56volts	56volts	For WiFi AP and cameras that accept Passive power, up to 240 watts
802.3af or "12v,POE"	48 volts	48 volts or none	Use B input for redundancy
Passive 24v	None	24 volts	MikroTik, Ubiquiti, OpenMesh, Tranzeo
