Поддержка 10M/100M/1000M IEEE802.3af стандарта 12V/1A 1.5KV изоляции modea или modeb к штырю объединения модулей POE sdapo
- Категория: Ethernet & Communication Modules >>>
- Поставщик: Shenzhen,Dapo,Communication,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 4.64 $* | 4.3 $* |
| Jul-15-2025 | 3.2 $* | 3.20 $* |
| Jun-15-2025 | 4.31 $* | 4.45 $* |
| May-15-2025 | 4.8 $* | 4.28 $* |
| Apr-15-2025 | 3.47 $* | 3.97 $* |
| Mar-15-2025 | 4.70 $* | 4.68 $* |
| Feb-15-2025 | 4.42 $* | 4.39 $* |
| Jan-15-2025 | 4.17 $* | 4.81 $* |
Характеристики
Products Description
You are welcome to customize the POE modules of various sizes and appearances and function.The layout is required to receive the initial research and development expenses.After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.After the sample is qualified, batch production.
DESCRIPTION
12V 13W PD(Powered Device) Integrated Module (Isolation Type)
12V 13W PD(Powered Device) Integrated Module (Isolation Type)
FEATURES\t
-\tFully\tsupports IEEEⓇ Std.\t802.3af-2003
-\tInput Voltage Range 37V\tto 57V
-\tShort\tCircuit Protection\t
-\tFully\tsupports IEEEⓇ Std.\t802.3af-2003
-\tInput Voltage Range 37V\tto 57V
-\tShort\tCircuit Protection\t
- In-rush Current Limit
-\tOver-temperature\tProtection\t\t
-\tProgrammable Classification (Default\t:Class\t0)
-\tHigh\tEfficiency\t\t\t\t
-\tEasy\tInstallation and\tLow Cost\t(Isolation\tType, Minimum External Devices required)\t\t\t\t\t
-\tLow Output Ripple and\tNoise\t\t
-\tAdjustable Output\tVoltage\t\t
- 1500Vrms Isolation (Input-Output)
-\tOver-temperature\tProtection\t\t
-\tProgrammable Classification (Default\t:Class\t0)
-\tHigh\tEfficiency\t\t\t\t
-\tEasy\tInstallation and\tLow Cost\t(Isolation\tType, Minimum External Devices required)\t\t\t\t\t
-\tLow Output Ripple and\tNoise\t\t
-\tAdjustable Output\tVoltage\t\t
- 1500Vrms Isolation (Input-Output)
PIN\tASSIGNMENT
Pin # | Name | Description |
1，2 | NC | Do Not Connect. |
3 | VA1 | Input (1). This input pin connects to the centre tap of the transformer connected to pins 1&2 of the RJ45 connector. It is not polarity sensitive. |
4 | VA2 | Input (2). This input pin connects to the centre tap of the transformer connected to pins 3&6 of the RJ45 connector. It is not polarity sensitive. |
5 | VB1 | Direct Input (1). This input pin connects to pin 4&5 of the RJ45 connector(or centretap of 4&5). It is not polarity sensitive. |
6 | VB2 | Direct Input (2). This input pin connects to pin 7&8 of the RJ45 connector(or centretap of 7&8). It is not polarity sensitive. |
7，8 | -VDC | Negative DC Output. This pin provides the -VDC output. |
9，10 | +VDC | Positive DC Output. This pin provides the +VDC output. |
ELECTRICAL SPECIFICATIONS
No | Item | Specification |
1 | Input Voltage | 37~57V |
2 | Output Voltage | 12V Typ. |
3 | Output Current (Vin=56V) | 1.3A Max. |
4 | Line Regulation | 2% |
5 | Load Regulation | 2% |
6 | Ripple & Noise | 200mVp-p max. |
7 | Efficiency | 85% min. |
8 | Input to Output Isolation | 1500 Vrms |
9 | Type of DC/DC Converter | Flyback Type |
10 | Operating Temperature | -20 ~ +50 ℃ |

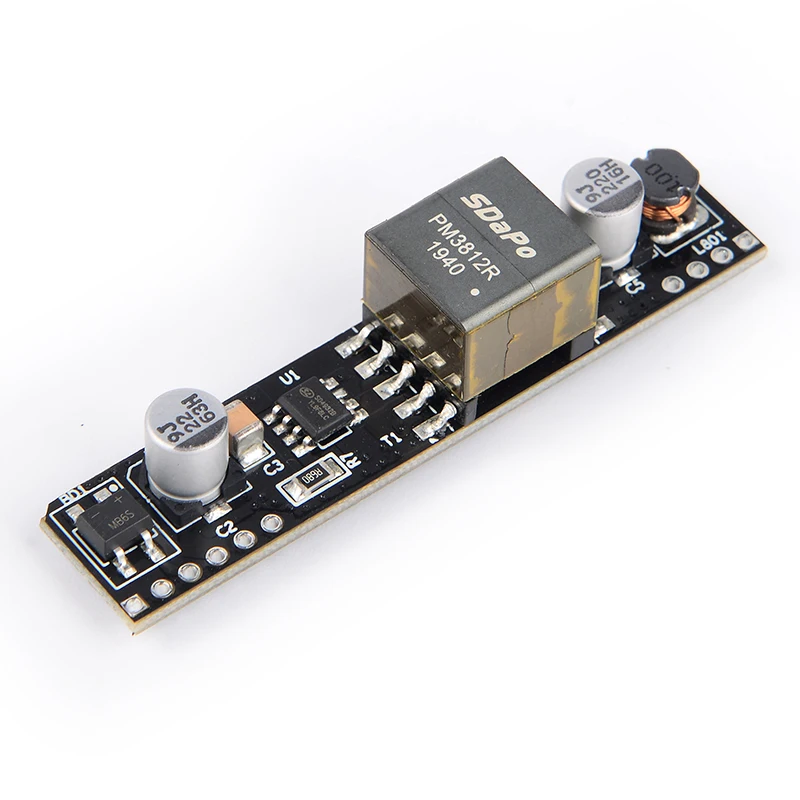

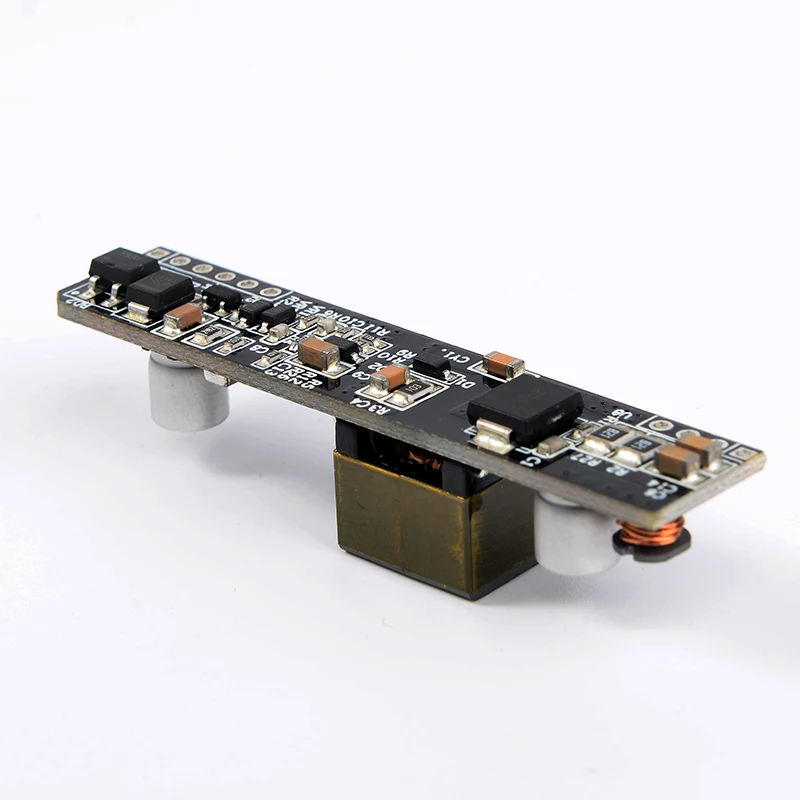

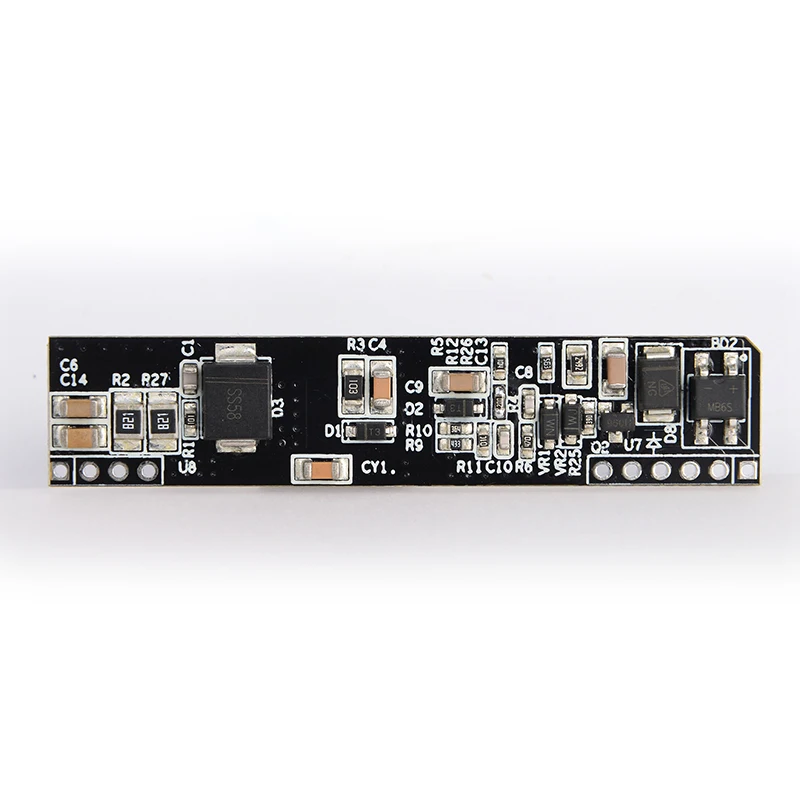

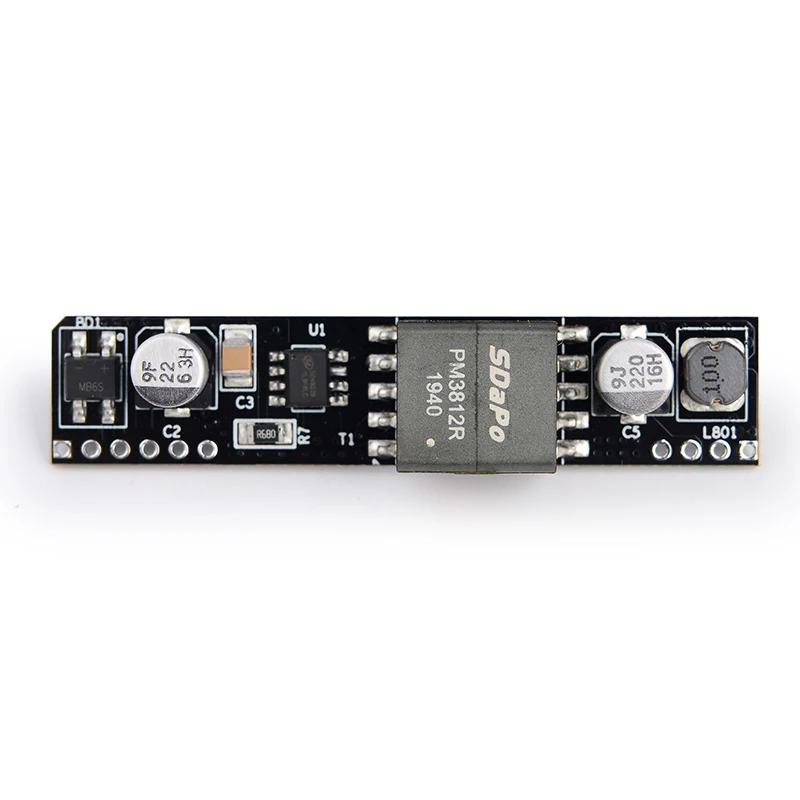

12V\tPD Module\tPN : PM1201lB
