PD-1000TM is the PoE ( Power Over Ethernet ) PD Device which support DC output 12V with 30Watt. It is a revolutionary technology for powering Ethernet terminals such as POS computing system, wireless access point, and Speed-Dom IP camera. The technology incorporates electrical power onto a LAN data line enabling the delivery of operating power in addition allowing data communication to terminals over standard cabling infrastructure.



Features  :

* Automatically detects PoE terminals and supplies inline power

* Auto-sensing power drawn from 802.3af/at power source equipment device

* Supplies power up to 30 Watts

* Safeguards network device with short circuit protection

* Converts Non-PoE devices with PoE Support

* Ethernet isolation with ESD Protection

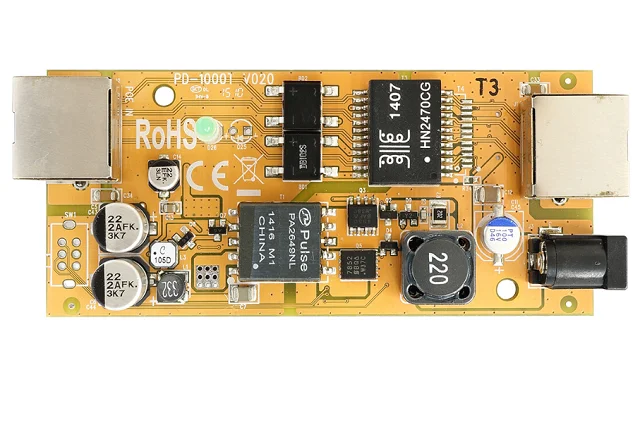

PD-1000TM
General Spec.
PoE Protocol	IEEE802.3at, IEEE802.3af
Ports	10/100/1000Mbps
Interface	Input Data+Power : RJ45
	Output Data : RJ45
	Output Power : DC Jack
Power Input	48~56VDC
Power Output	12V / 2.5A
Max. Power   Output	30Watts
ESD Protection	15KV at Air
	8KV at contact
DC Power Plug	5.5*2.1mm
Temperature	-30 ~ 65℃
Humidity	10 ~ 90% non-condensing
Dimension	100(L)x42(W)x20(H)mm
Weight	41g
