МВт MOS-620CH 20 МГц двухканальный обучения осциллограф 0.2uS ~ 0.5S/DIV Время развертки двойной трассировки
- Категория: Oscilloscopes >>>
- Поставщик: Shenzhen,Kuaiqu,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.53 $* | 0.58 $* |
| Aug-16-2025 | 0.48 $* | 0.63 $* |
| Jul-16-2025 | 0.83 $* | 0.78 $* |
| Jun-16-2025 | 0.5 $* | 0.11 $* |
| May-16-2025 | 0.37 $* | 0.77 $* |
| Apr-16-2025 | 0.64 $* | 0.47 $* |
| Mar-16-2025 | 0.54 $* | 0.20 $* |
| Feb-16-2025 | 0.72 $* | 0.30 $* |
| Jan-16-2025 | 0.10 $* | 0.18 $* |
Характеристики

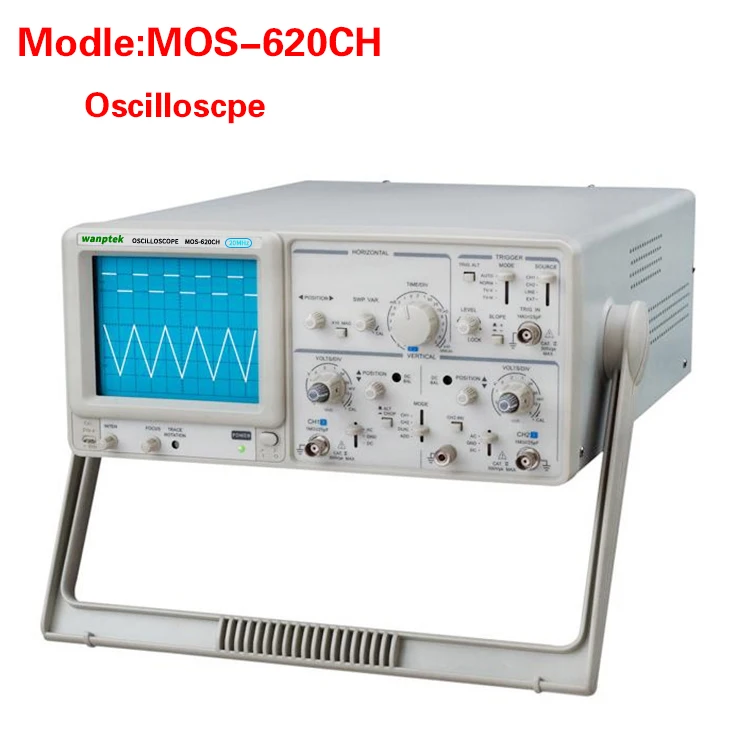

MOS-620CH 20MHz Dual Channel Teaching Oscilloscop 0.2uS~0.5S/DIV Sweep Time Dual Trace Analog Oscilloscope
Product Information
Dual Channel 20MHz/40MHz/50MHz
High brightness, internal scale oscilloscope
Closed attenuation switch is durable
Scan extension × 10 function
TV sync, X-Y mode
ALT trigger function, measurable two-way uncorrelated signal
Technology Parameter
| Type | 20MHz oscilloscope | 40MHz oscilloscope |
| Sensitivity | MOS-620CH/620CF | MOS-640CH/640CF |
| Precision Fine tuning sensitivity | ≤±3% 1/2.5 or less than panel indicator scale | |
| Bandwidth | DC~20MHz | DC~40MHz |
| Ac coupling: less than 10Hz(for 100KHz 8DIV FRF -3dB) | ||
| Rise time | 17.5nS | 8.75nS |
| The input impedance | 1MΩ/25pF | |
| DC balanced movement | 5mV~5V/DIV: ±0.5DIV, | |
| Linear | When the waveform moves vertically in the center of the lattice, the amplitude (2DIV) varies <±0.1DIV | |
| Vertical mode | CH1 1 CH2 2 DUAL:Channel 1 and 2 are displayed simultaneously with the channel. Any scanning speed can be ADD:Channel 1, 2 plus channel algebraically | |
| Intermittent repetition frequency | 250KHz | |
| Input Coupling | AC GND DC 400V(DC+AC Peak) (AC: frequency ≤1KHz) The maximum effective readout value when the probe is set at 1:1 is 40Vpp(14Vrms Maximum effective readout value when probe is set at 10:1 is 400Vpp(140Vrms) | |
| Maximum Input Voltage | ||
| CMRR | >50:1 at 50KHz sinusoidal wave (set the sensitivity of CH1 and CH2 at the same condition) | |

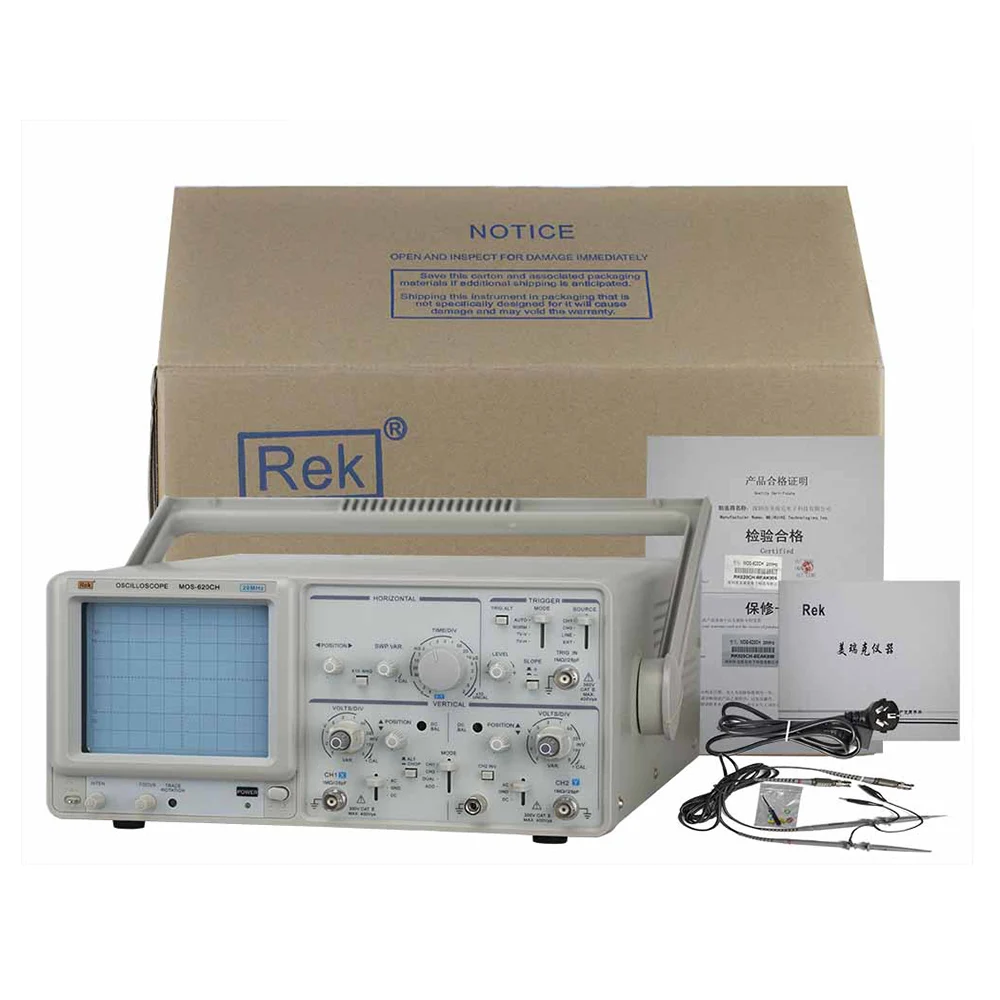

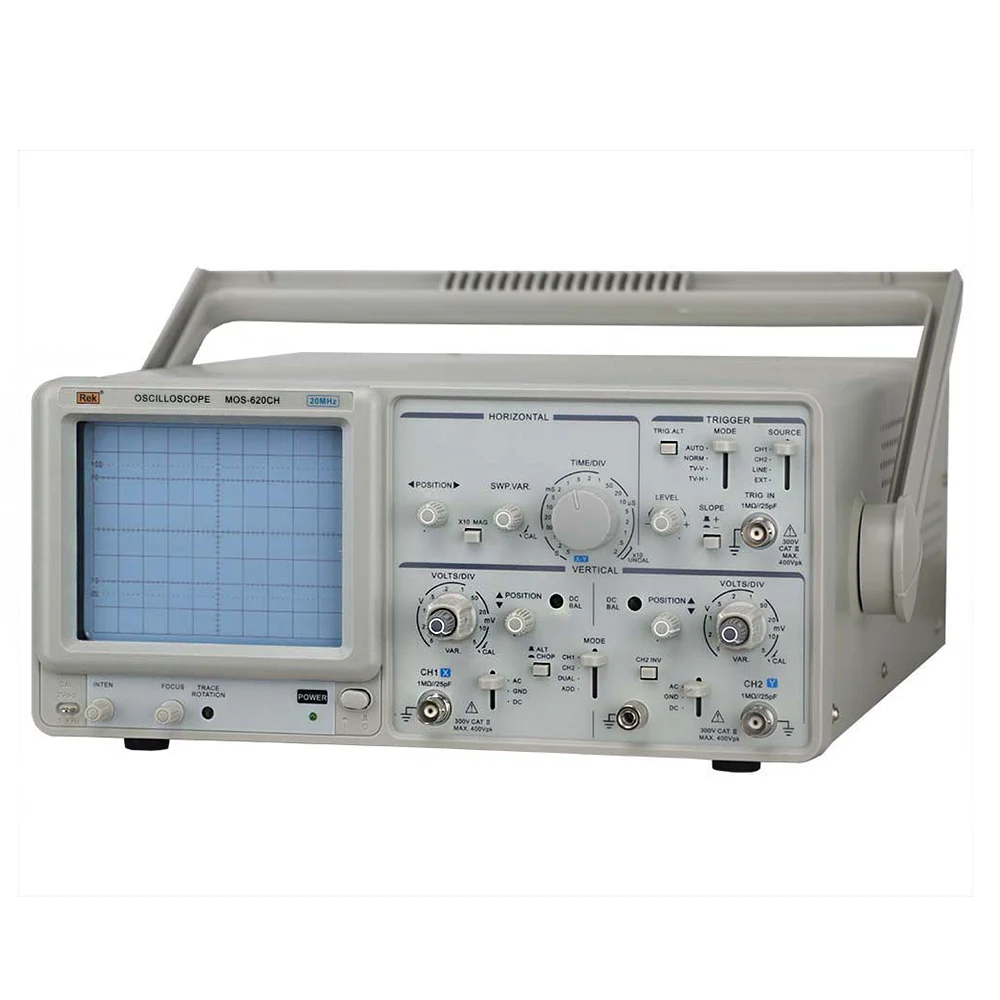

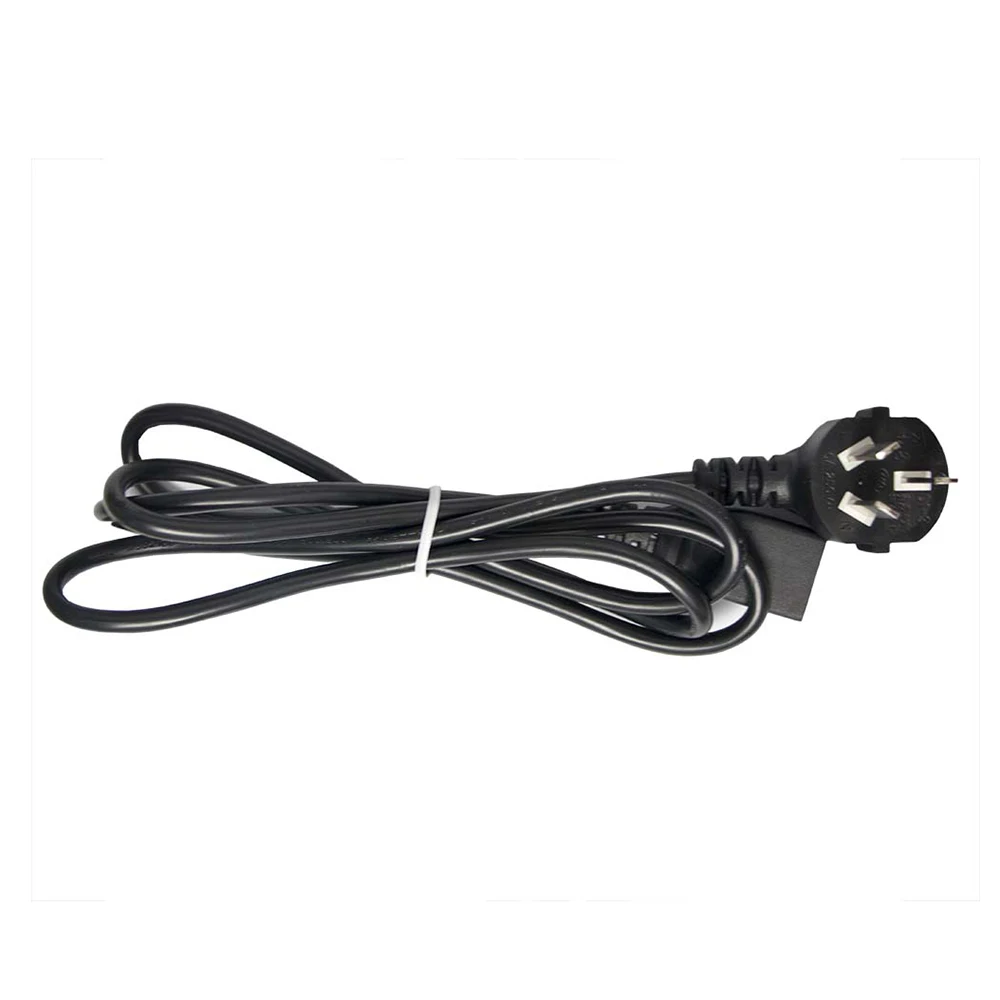

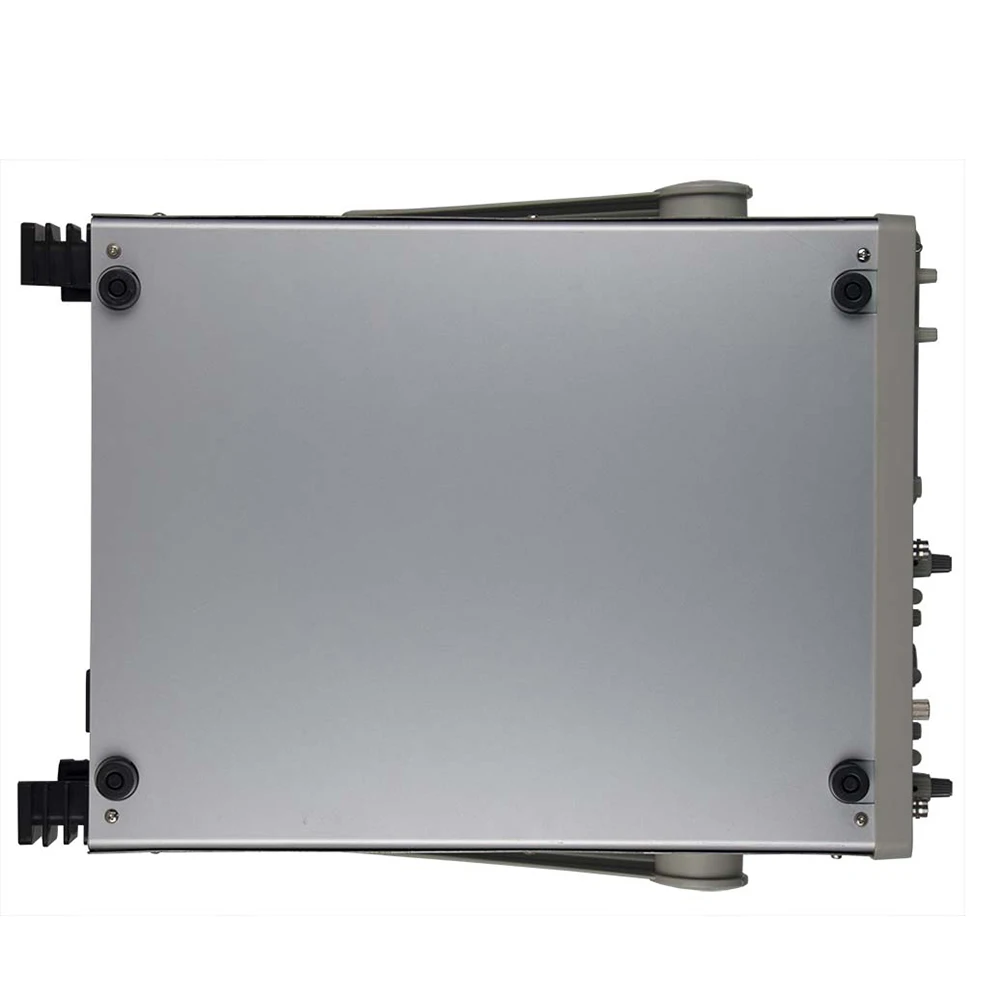

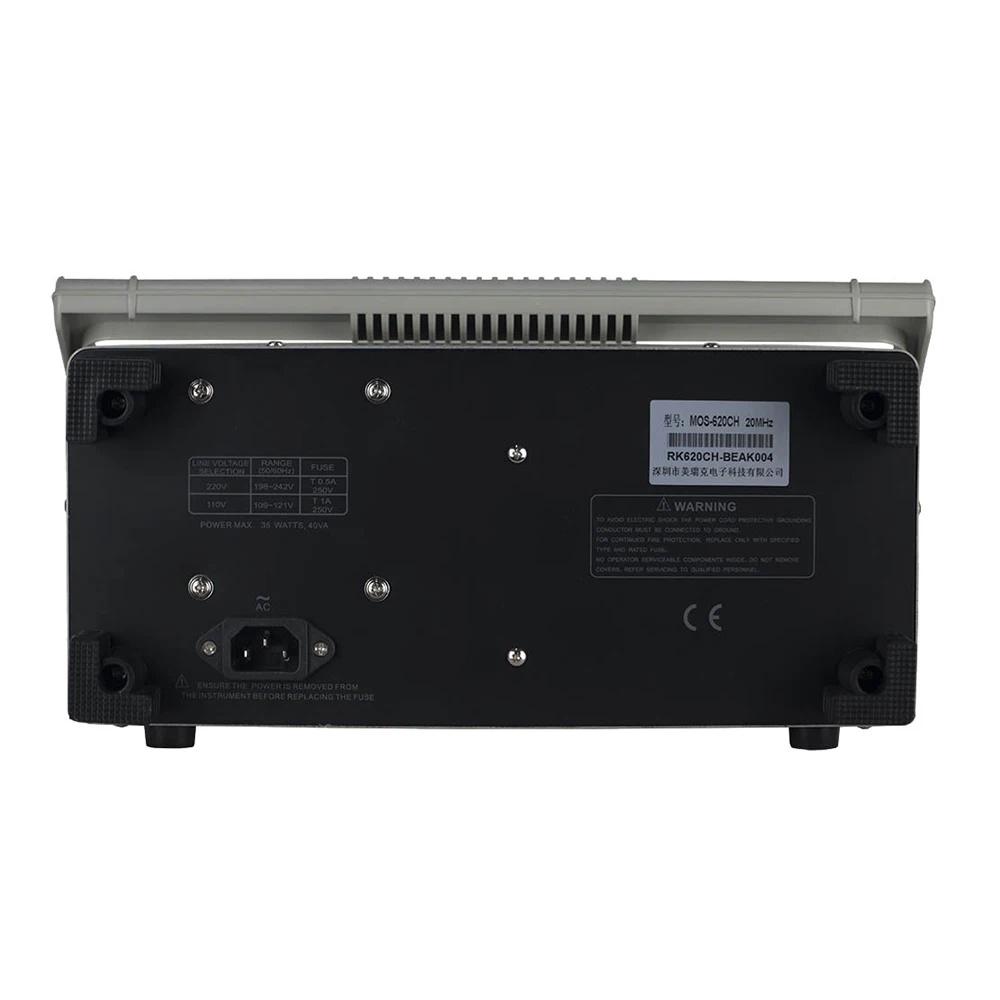

Detail Images
Our Services
FAQ
About Shipment
We will ship your package within 7 working days. We may change the shipping method: Consider of the customs, remote address and shipping speed.
Warranty &Return
Our store provides free replacement for orders within 30 days from delivery date. For orders from 1 to 12 months, you have to pay some parts of order value to get replaced. For order older than 12 months, we will give small discounts.
Our Service time
Our Working time is Monday to Friday 9:00 AM to 6:30 PM BeiJing Time. All orders will not be processed at the weekend and holidays.
Feedback
Please contact us first if you have any problem,i will reply you within 30 minutes during working time.We promise you to solve your problem within 24 hours.
