4-канальный осциллограф RIGOL DS1074Z Plus 70 МГц полоса пропускания генератор сигналов
- Категория: Oscilloscopes >>>
- Поставщик: Changsha,Lonroy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.31 $* | 0.59 $* |
| Aug-15-2025 | 0.29 $* | 0.78 $* |
| Jul-15-2025 | 0.83 $* | 0.75 $* |
| Jun-15-2025 | 0.63 $* | 0.37 $* |
| May-15-2025 | 0.42 $* | 0.77 $* |
| Apr-15-2025 | 0.42 $* | 0.10 $* |
| Mar-15-2025 | 0.28 $* | 0.58 $* |
| Feb-15-2025 | 0.13 $* | 0.96 $* |
| Jan-15-2025 | 0.99 $* | 0.12 $* |
Характеристики

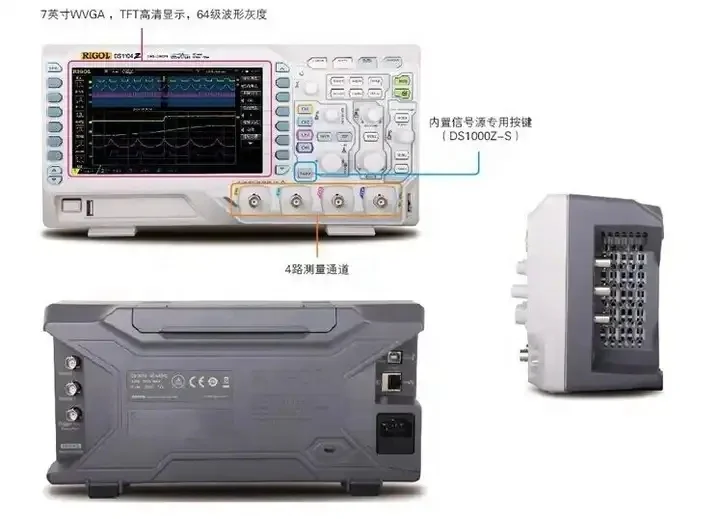

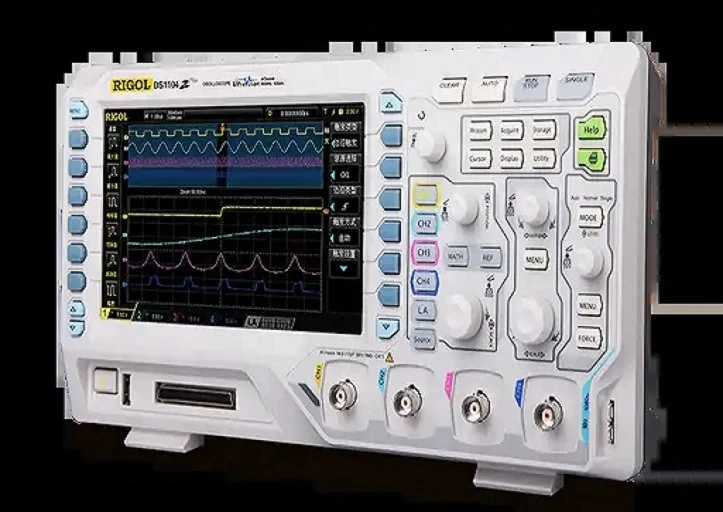

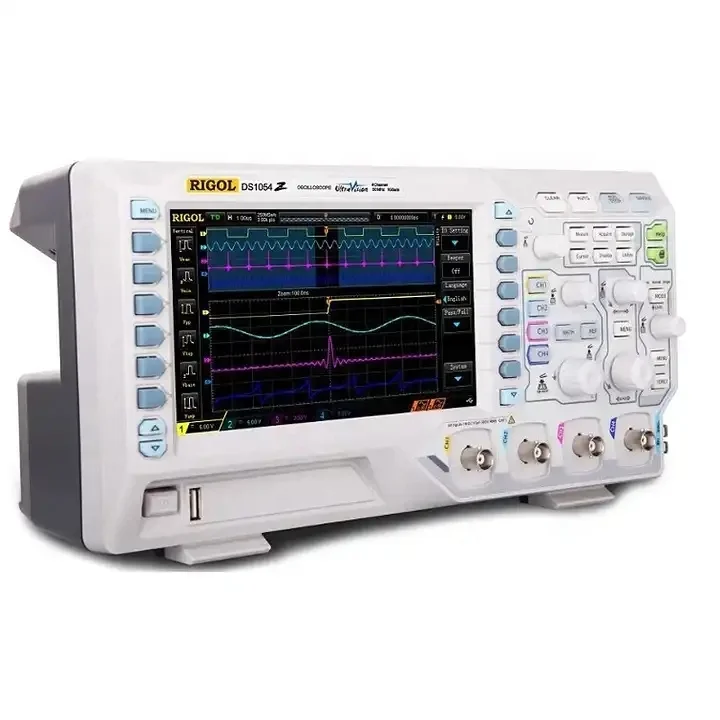

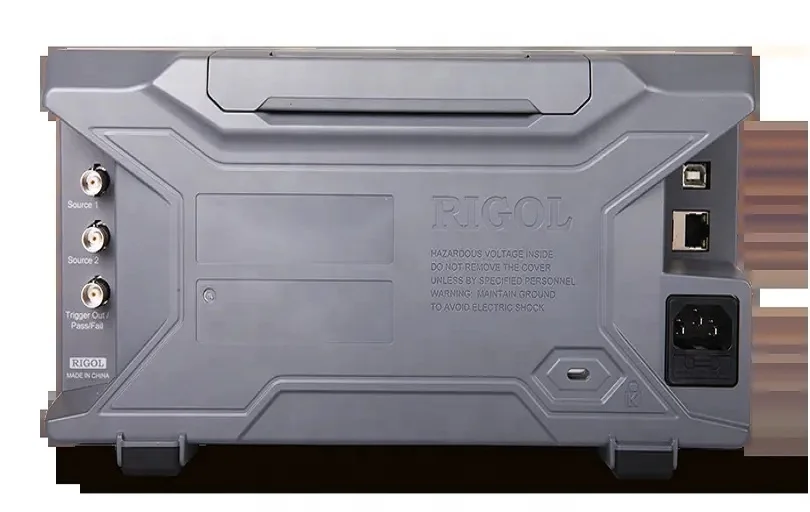

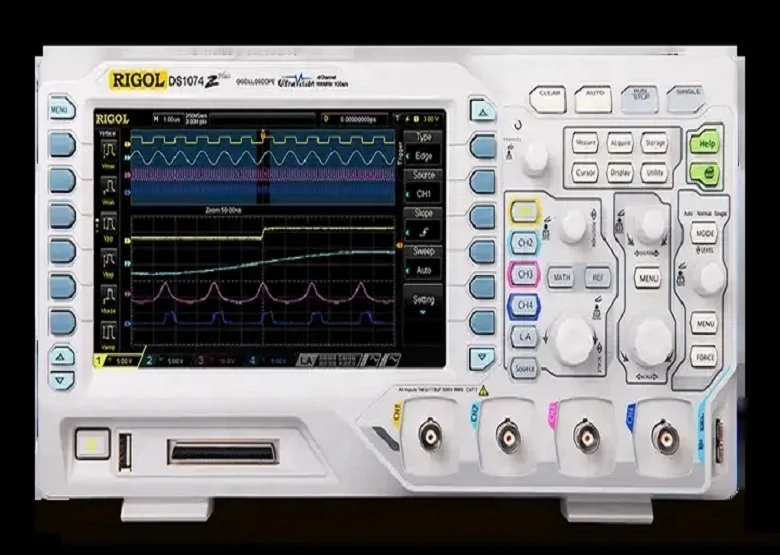

RIGOL DS1074Z Plus 4 Channel Oscilloscope 70MHZ Bandwidth 1GSa/s Signal Generator Oscilloscope
Product Description:
4 Channels 70MHz Max. 1GSa/s Digital Storage Oscilloscope Memory Depth 12Mpts 30,000 wfm/s 7s" TFT LCD 800x480 USB RIGOL DS1074Z
The DS1000Z Series is the new economic level Digital Oscilloscope from Rigol to meet the customer's applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. The DS1000Z 4 channel oscilloscopes come in 70 or 100 MHz versions with a 7 inch display and Rigol's UltraVision technology as well as a host of options. Add the optional analysis, decoding, deep memory, and integrated 2 channel waveform generator for a powerful 4 channel scope at an exceptional price.
Accessories: probe x4, usb cable x1, power cord x1, CD x1.
RIGOL DS1074Z Plus 4 Channel Oscilloscope 70MHZ Bandwidth 1GSa/s Signal Generator Oscilloscope
Features:
70MHz Bandwidth, 4 channels
1G Sa/s Real-time Sample Rate
12Mpts (Std.) and 24Mpts (Opt.) Memory Depth
Innovative "UltraVision" technology
Up to 30,000wfms/s Waveform Capture Rate
7 Inch WVGA (800x480), multiple intensity levels waveform display
RIGOL DS1074Z Plus 4 Channel Oscilloscope 70MHZ Bandwidth 1GSa/s Signal Generator Oscilloscope
Specifications:
Model DS1074Z
Bandwidth 70 MHz
Analog Channels 4
Sample Rate 1GSa/s (Single-channel), 500MSa/s(Dual-channel), 250MSa/s(Fulll-channel)
Max Memory Depth 12Mpts(standard) ,24Mpts(option)
Max. Waveform Capture rate Up to 30,000 wfms/s
Real Time waveform Record,
Replay and Analysis function Up to 60, 000 Frames(Opt.)
Std. Probes RP2200 150MHz BW Passive Probe:4 sets
Built in 2 Ch Source No
RIGOL DS1074Z Plus 4 Channel Oscilloscope 70MHZ Bandwidth 1GSa/s Signal Generator Oscilloscope
Images:
